SLAT and FLAP Motor Control Electronics
What is a SLAT / FLAP Motor Control Unit?

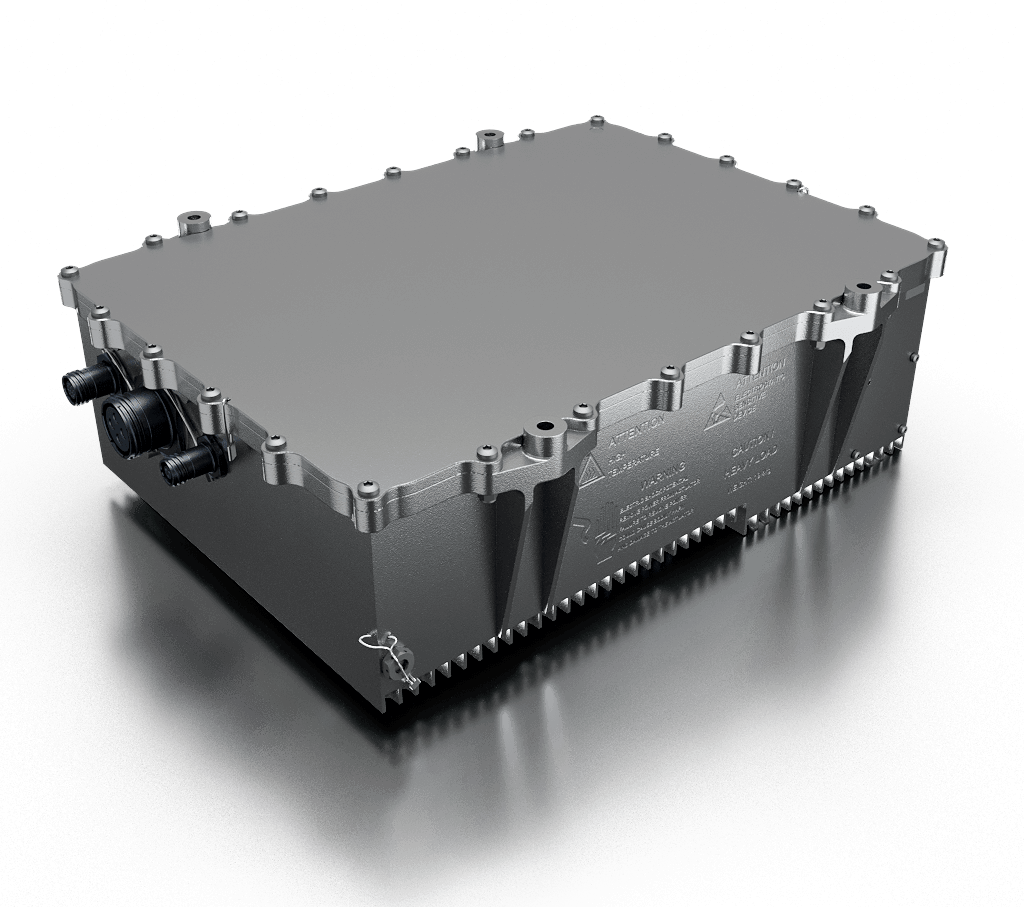

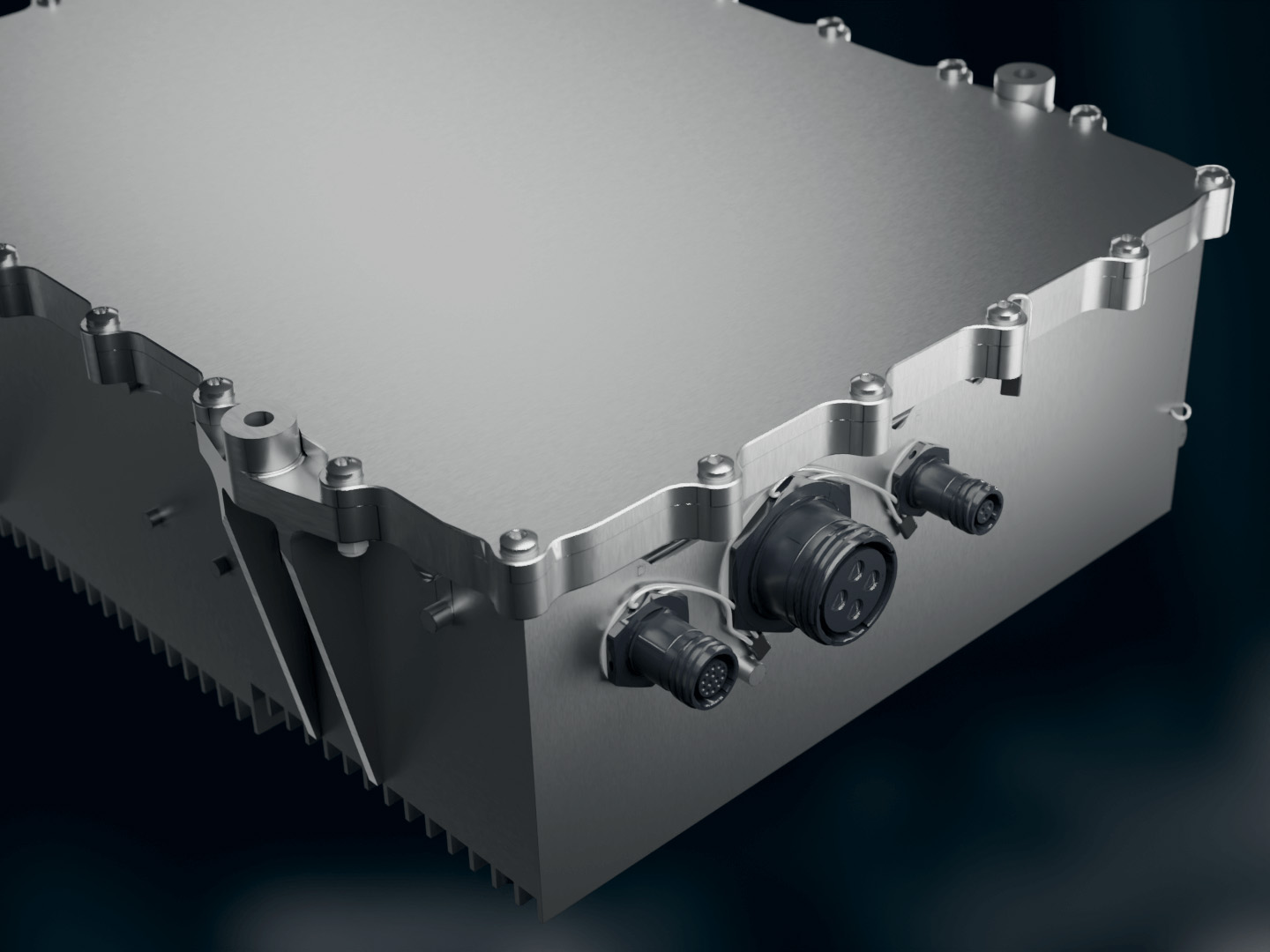

The certified flap actuator control unit from Silver Atena provides reliable motor control electronics for SLAT and FLAP systems in modern aircraft.
Designed according to RTCA DO-254 DAL B and RTCA DO-160 standards, the ECU controls the high-lift system which ensures increased lift, delayed stall, and safe flight behavior during takeoff and landing.
Features
- Electric operation of the leading or trailing edge wing flaps (SLAT/FLAP)
- HV control of electrical pressure off brake (ePOB)
- Hardware developed according to civil aviation standard RTCA DO-254, Design Assurance Level (DAL) B
- Qualified for environmental conditions according to civil aviation standard RTCA DO-160
Applications
- Modern flight control systems with electric actuators
- Replacement of hydraulic landing flap systems
- High-lift systems for civil aircraft
- Integration into existing and future aircraft platforms

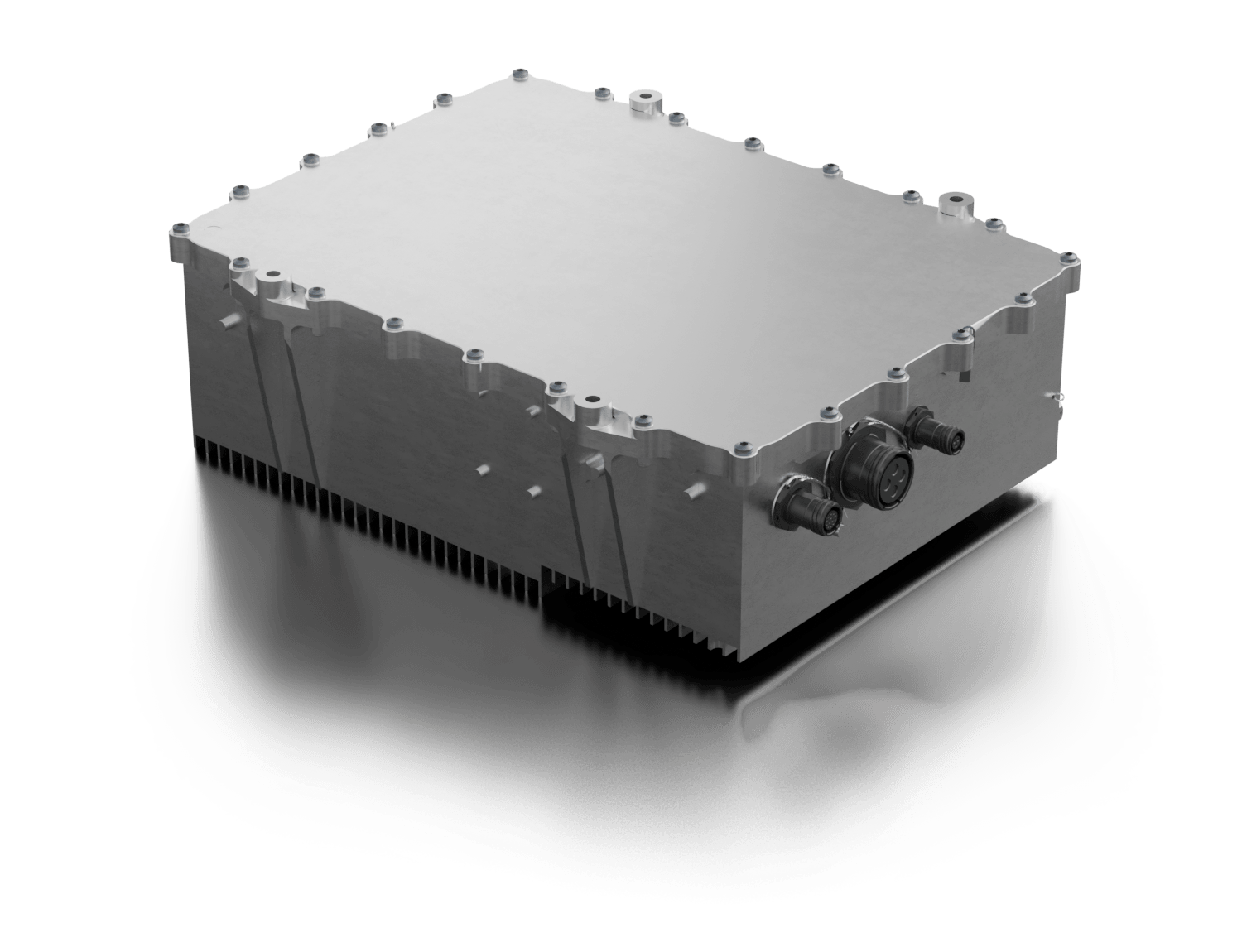

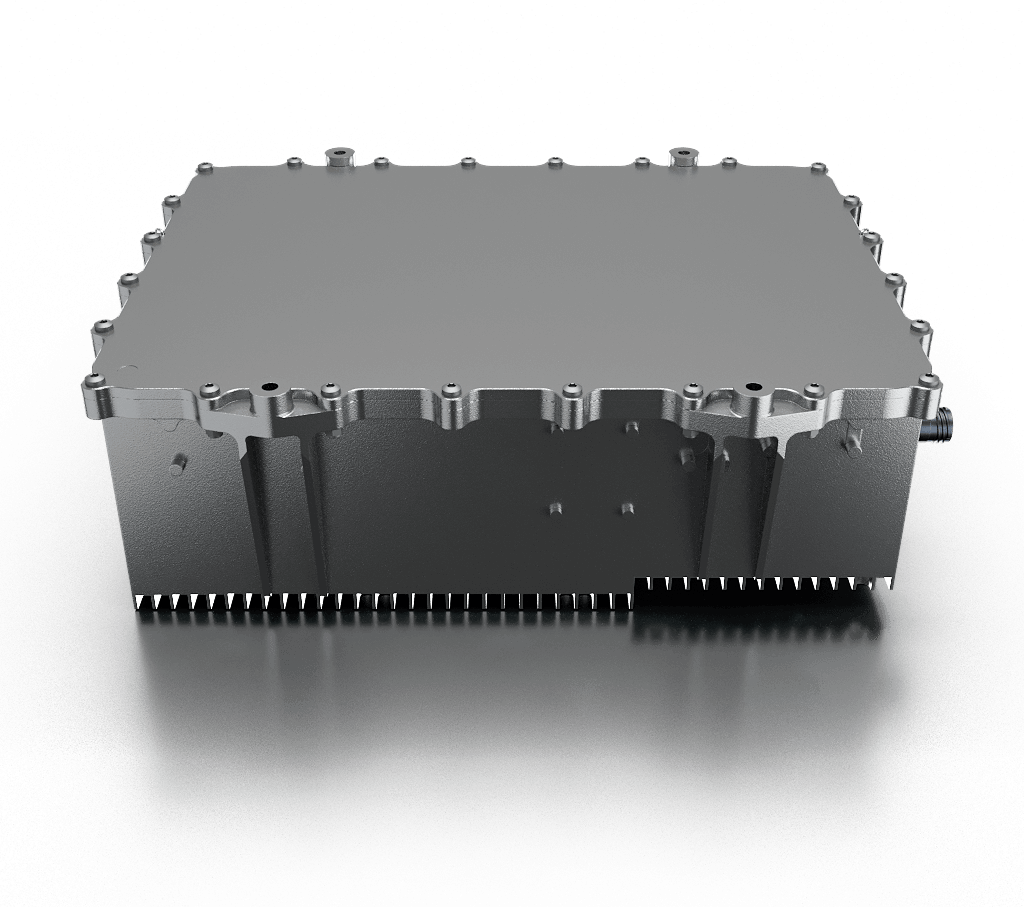

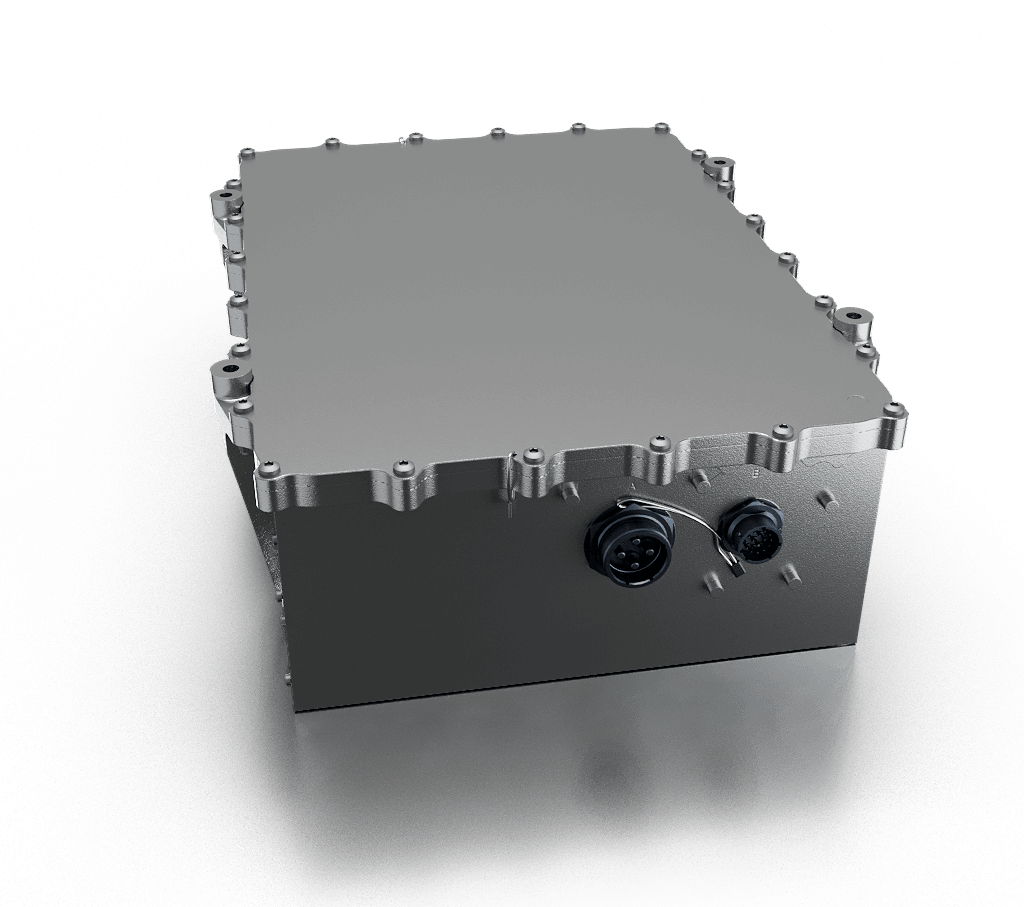

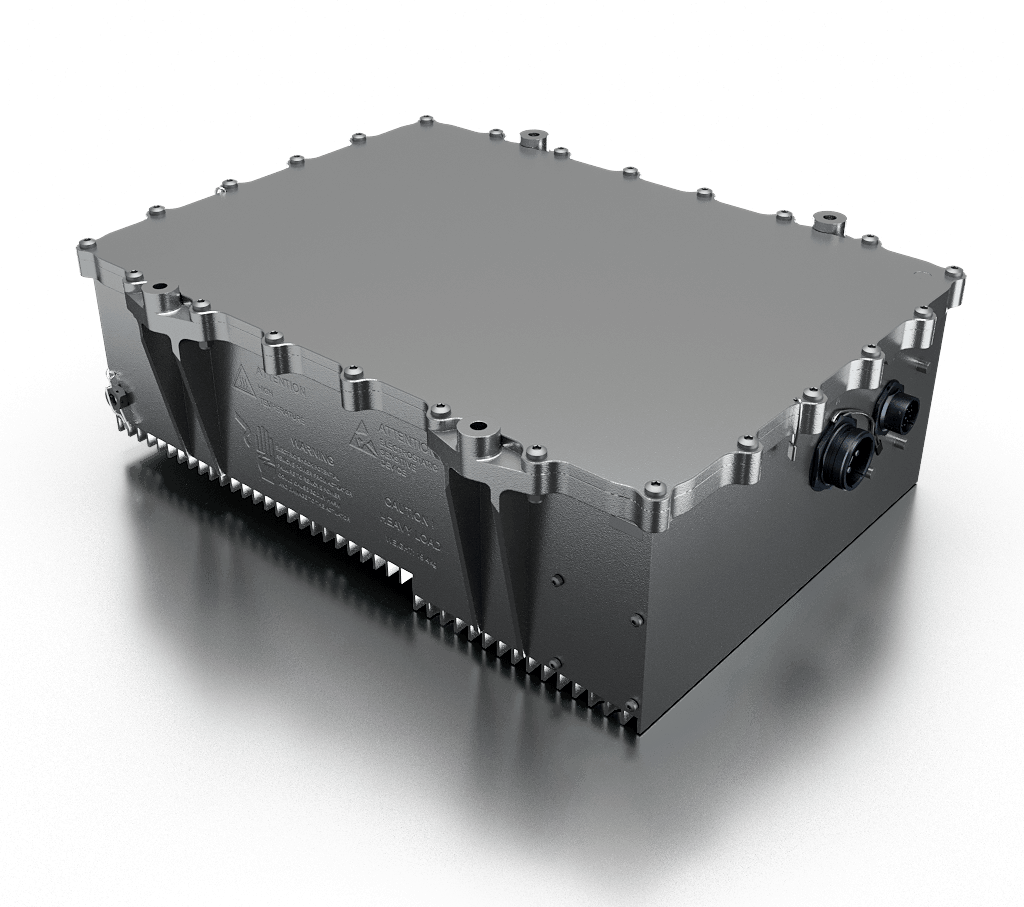

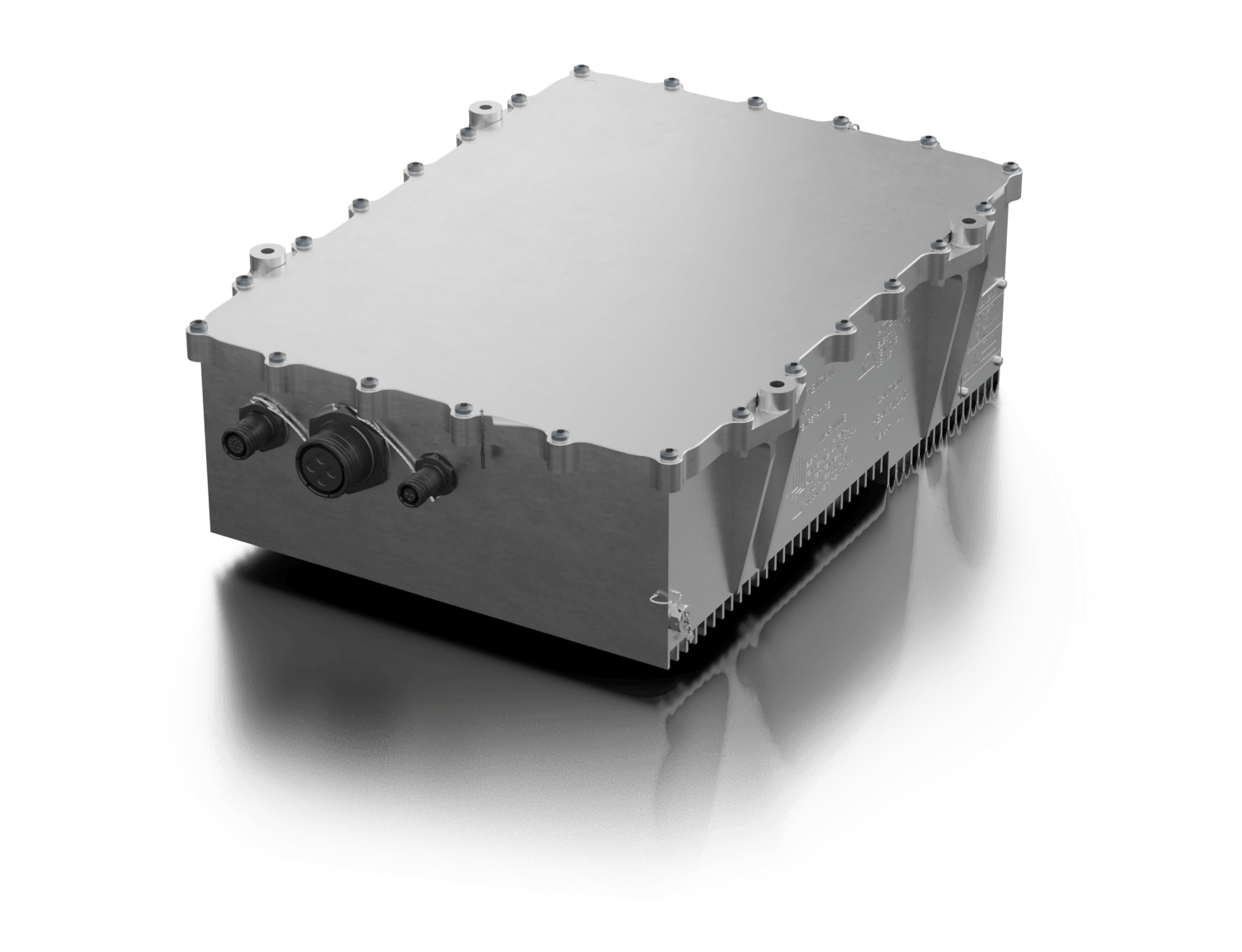

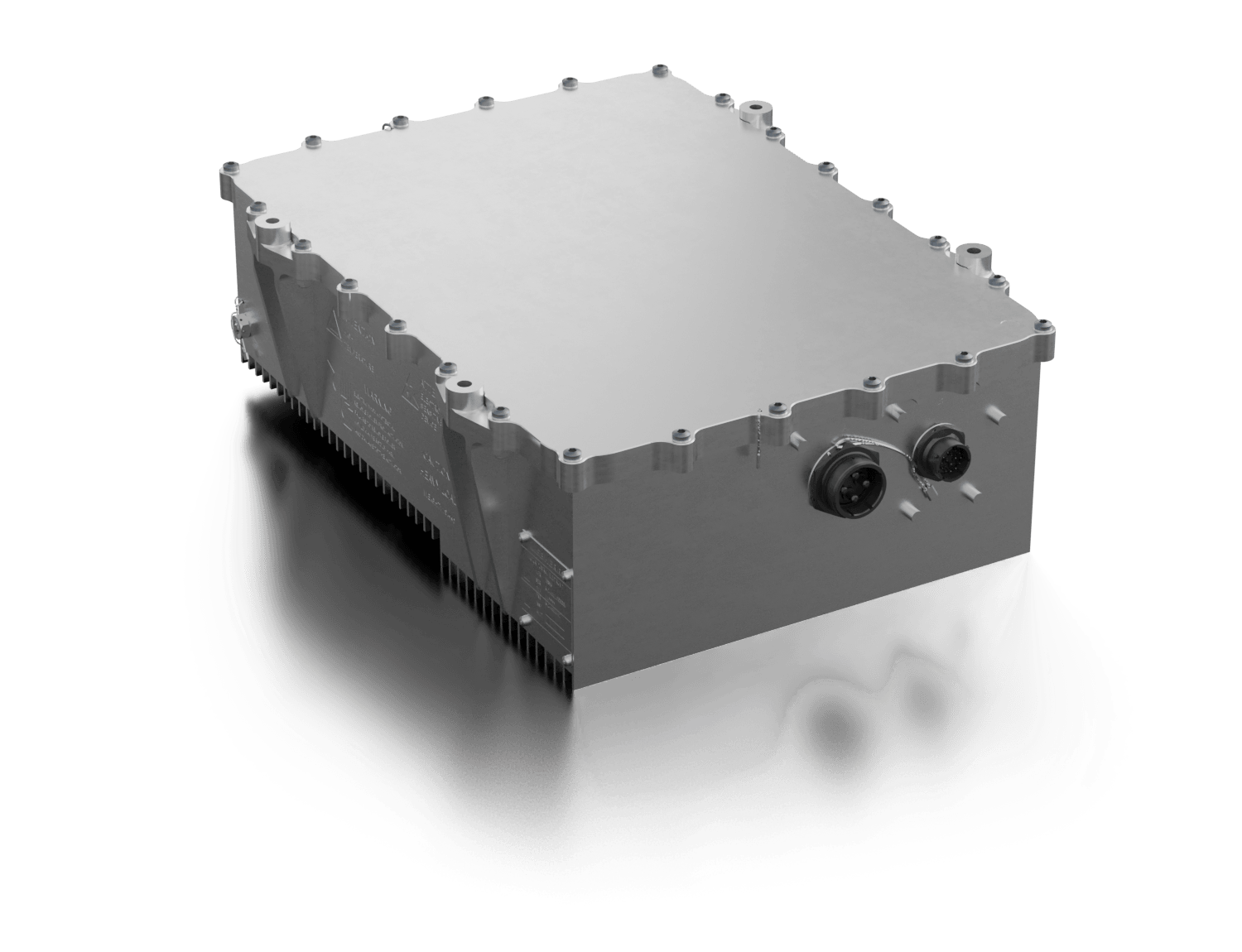

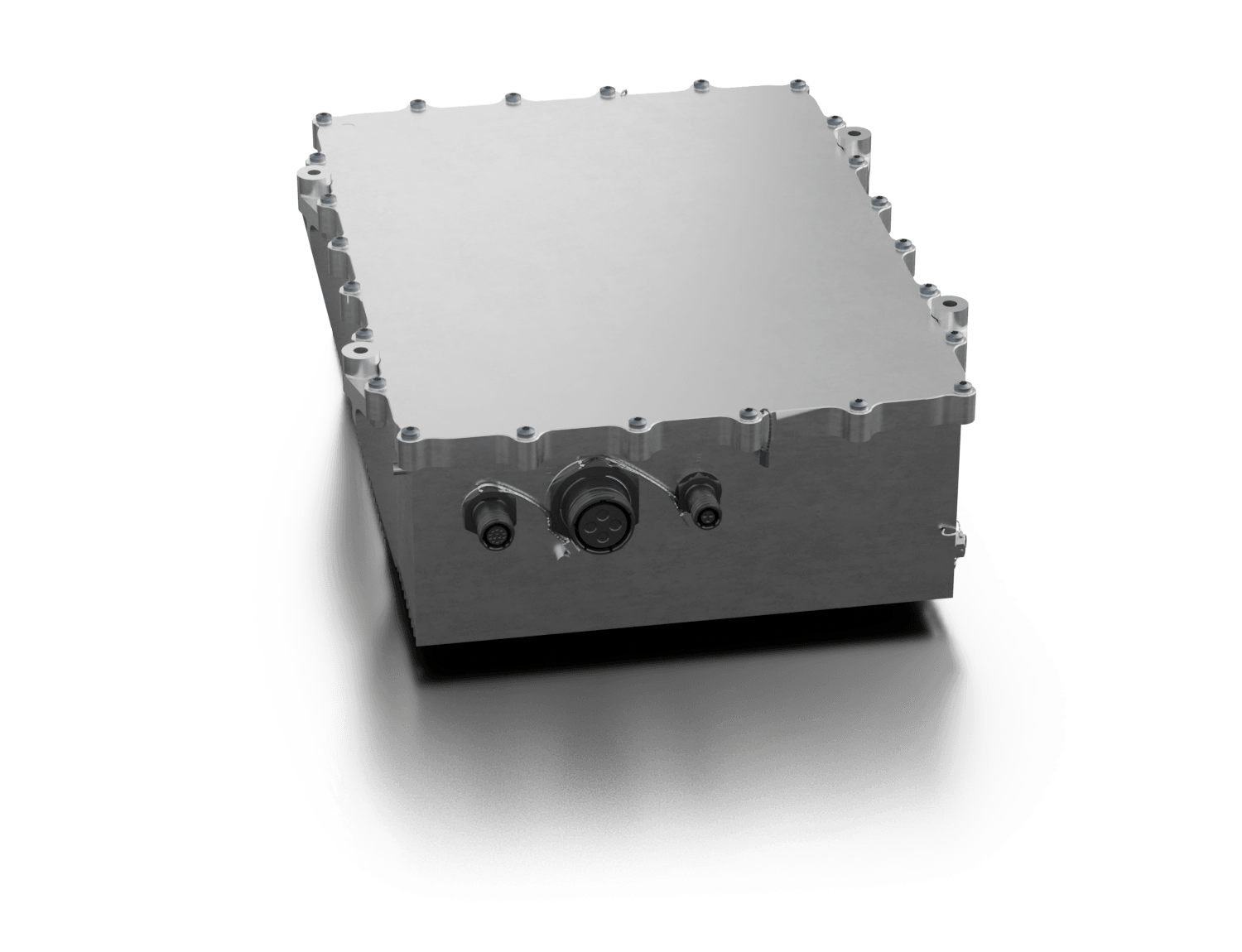

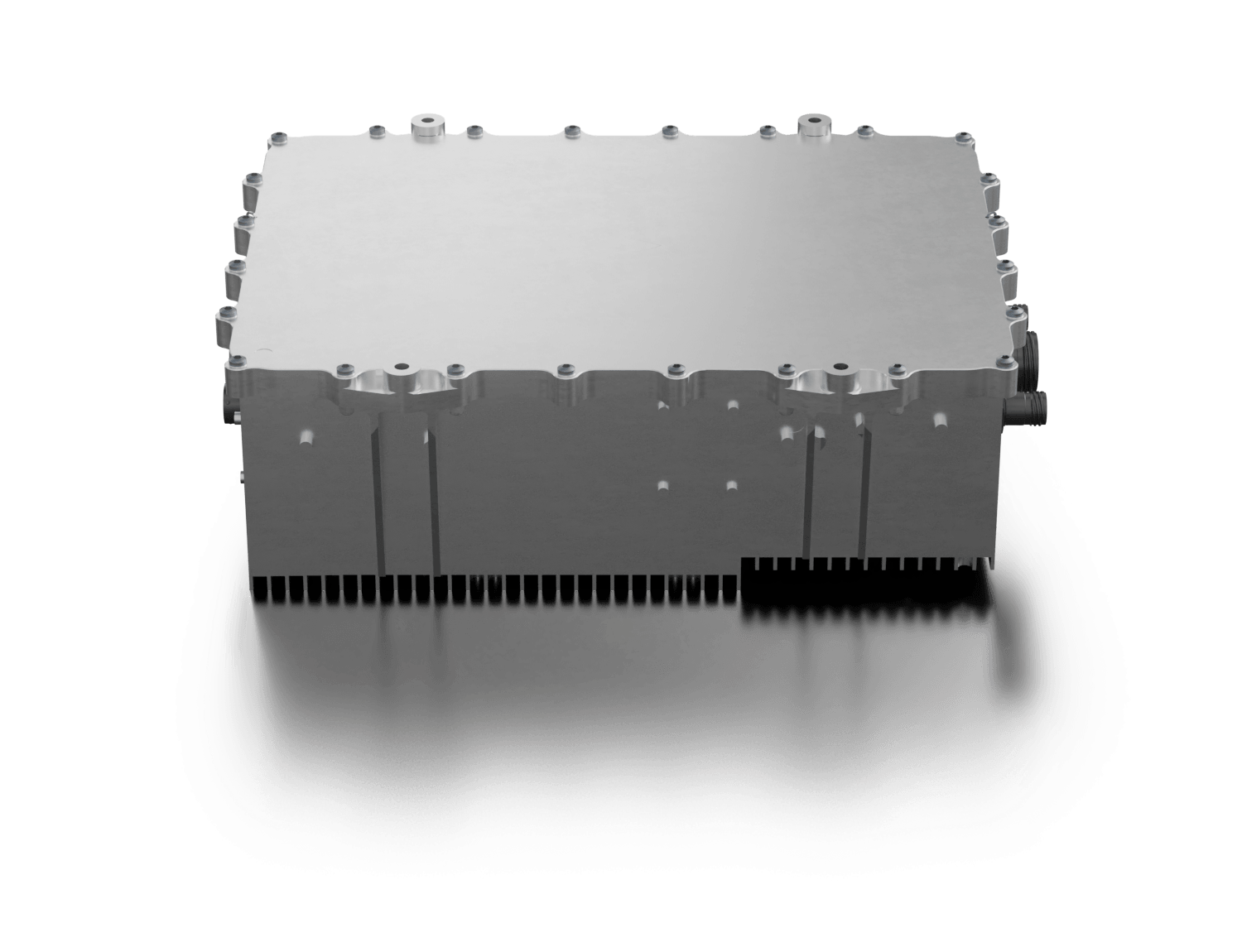

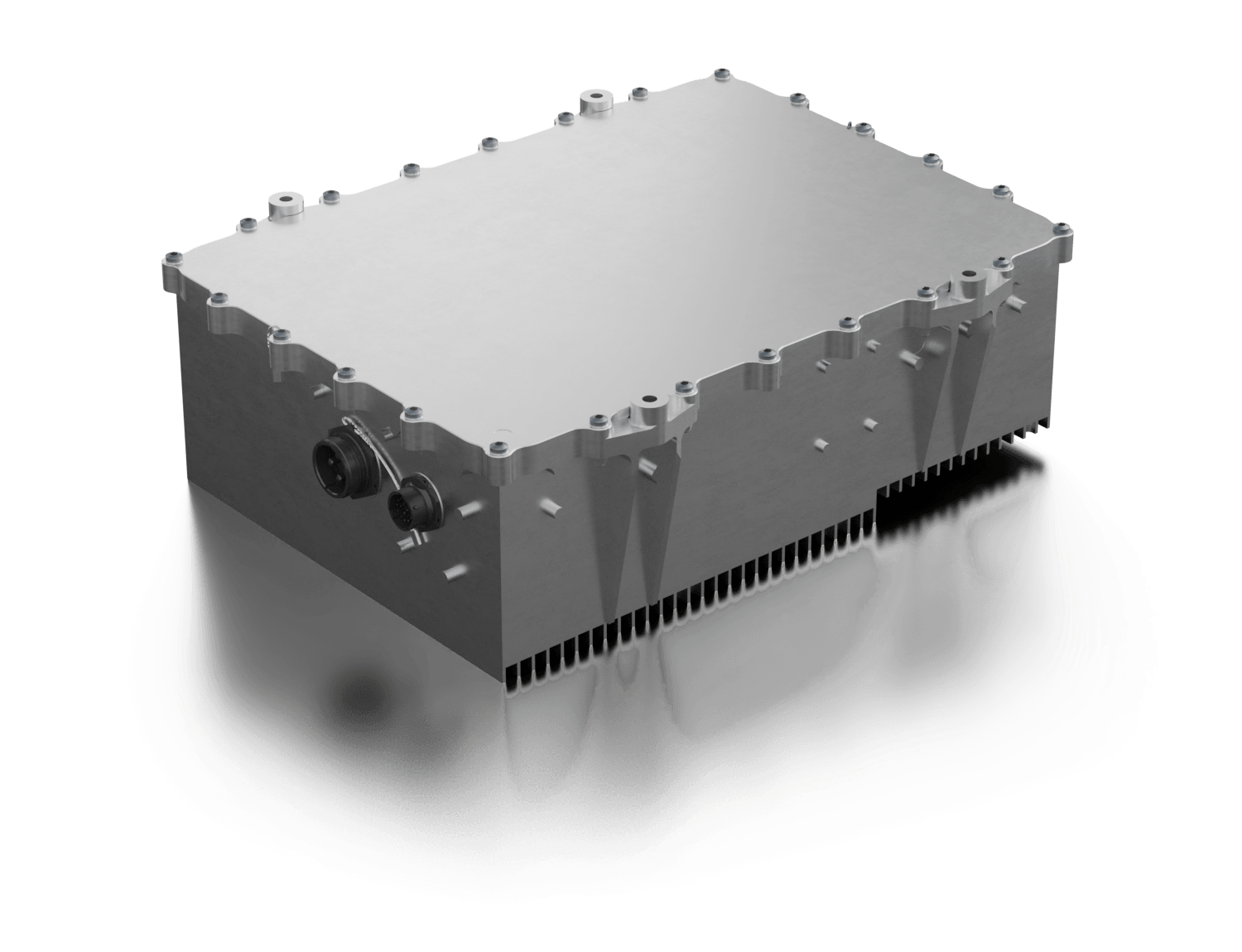

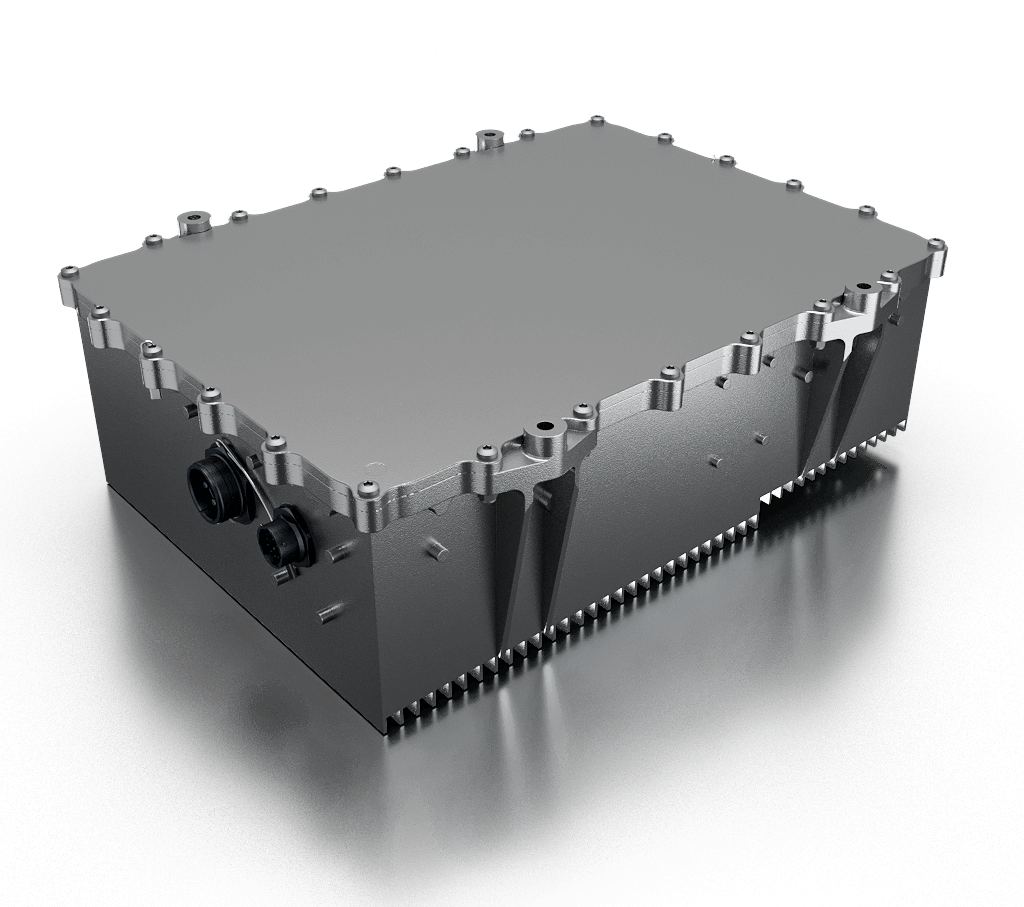

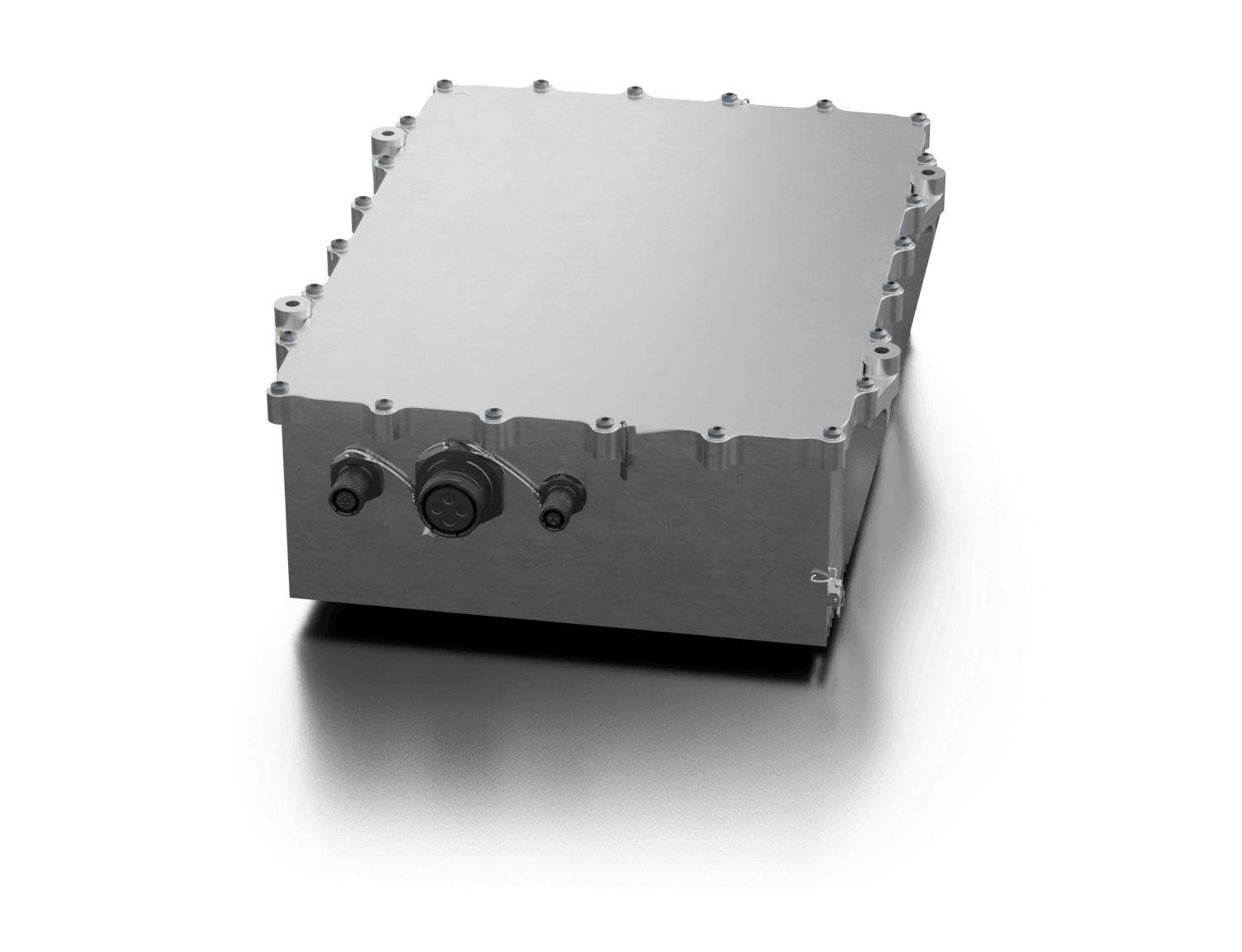

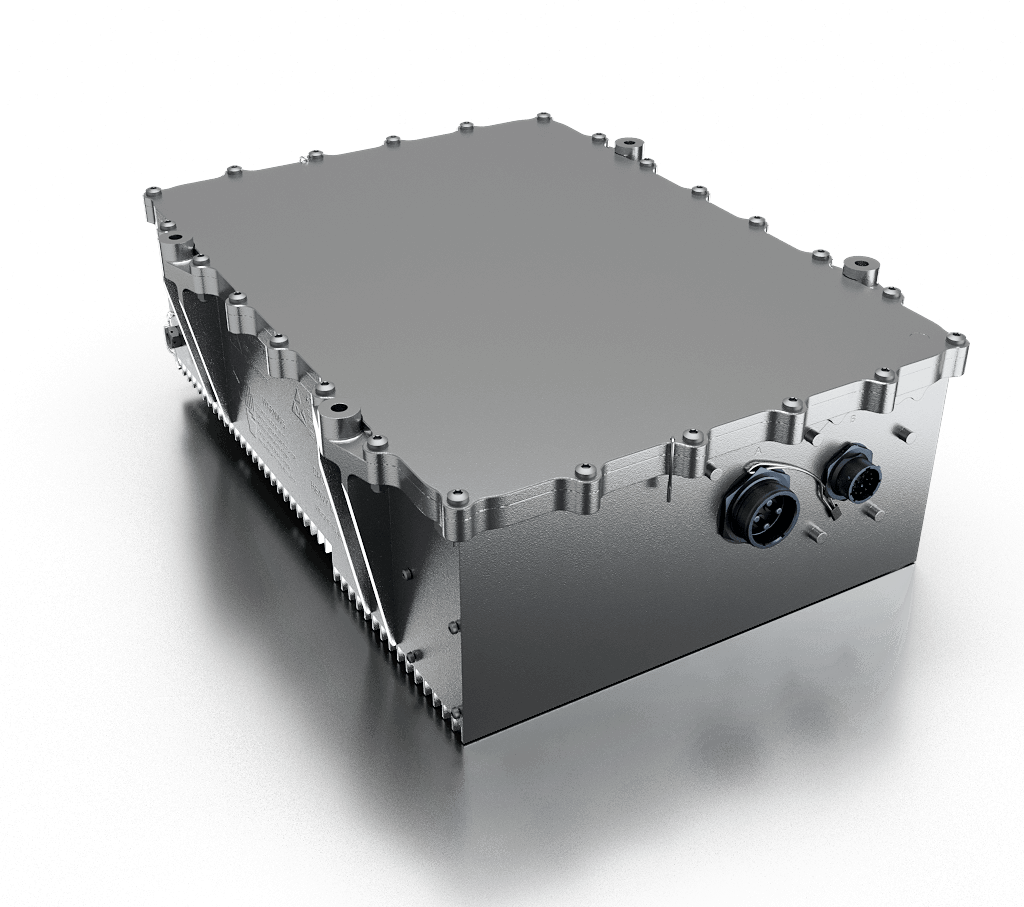

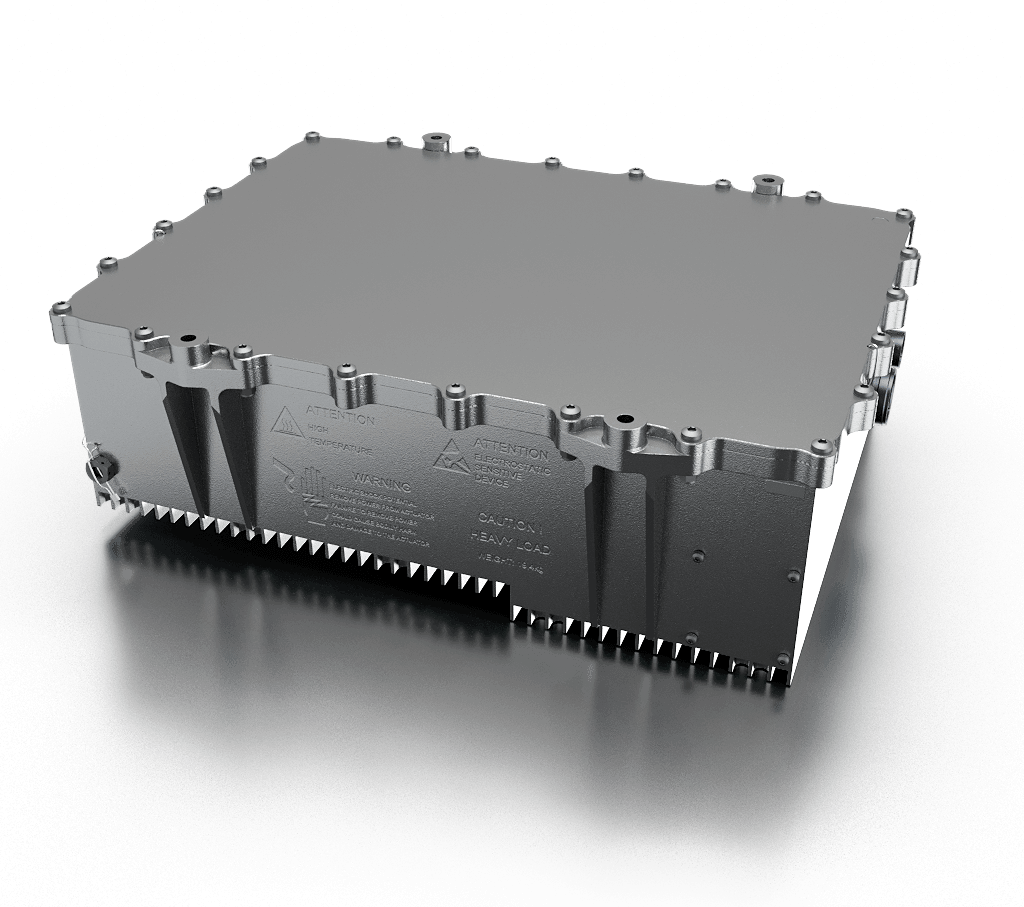

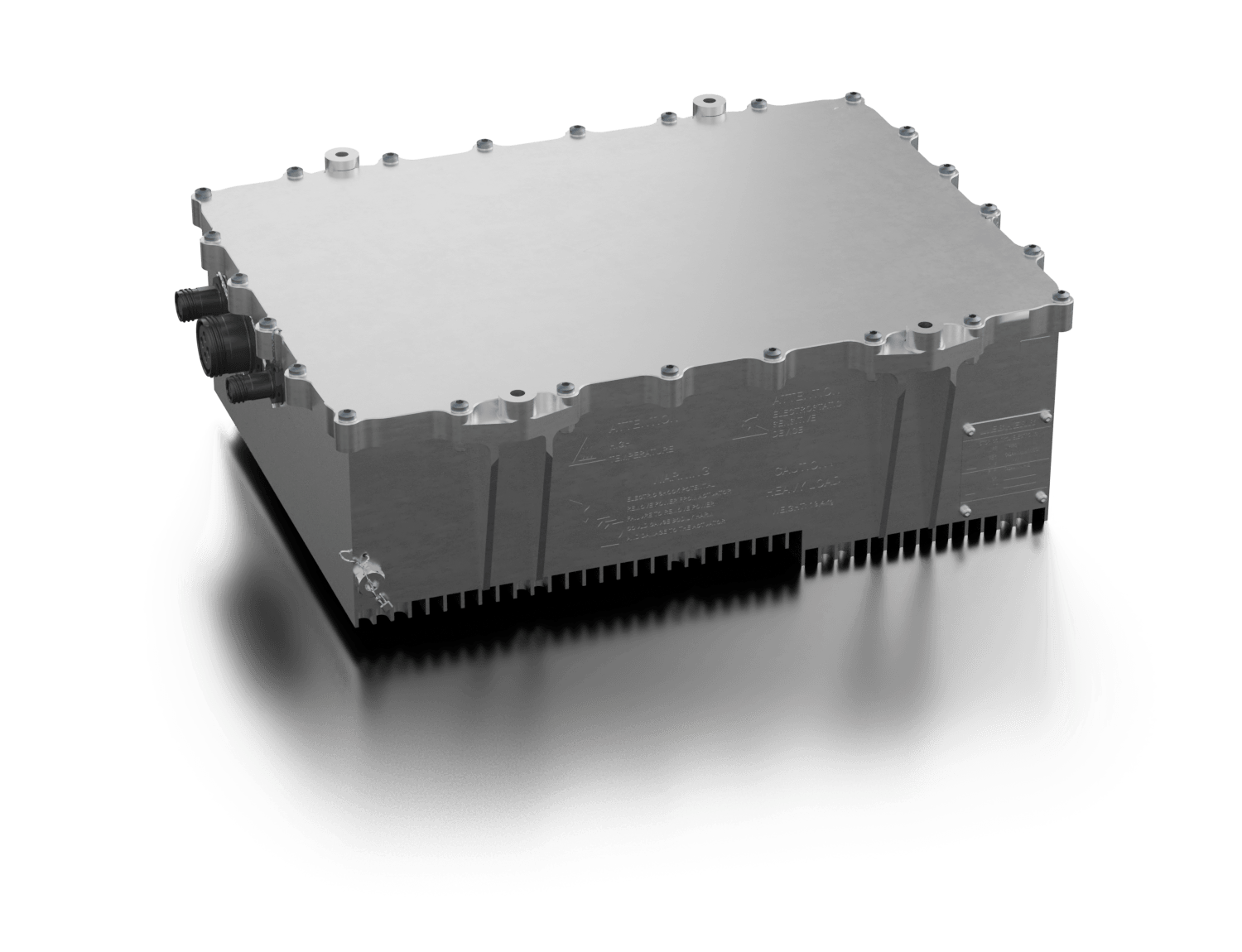

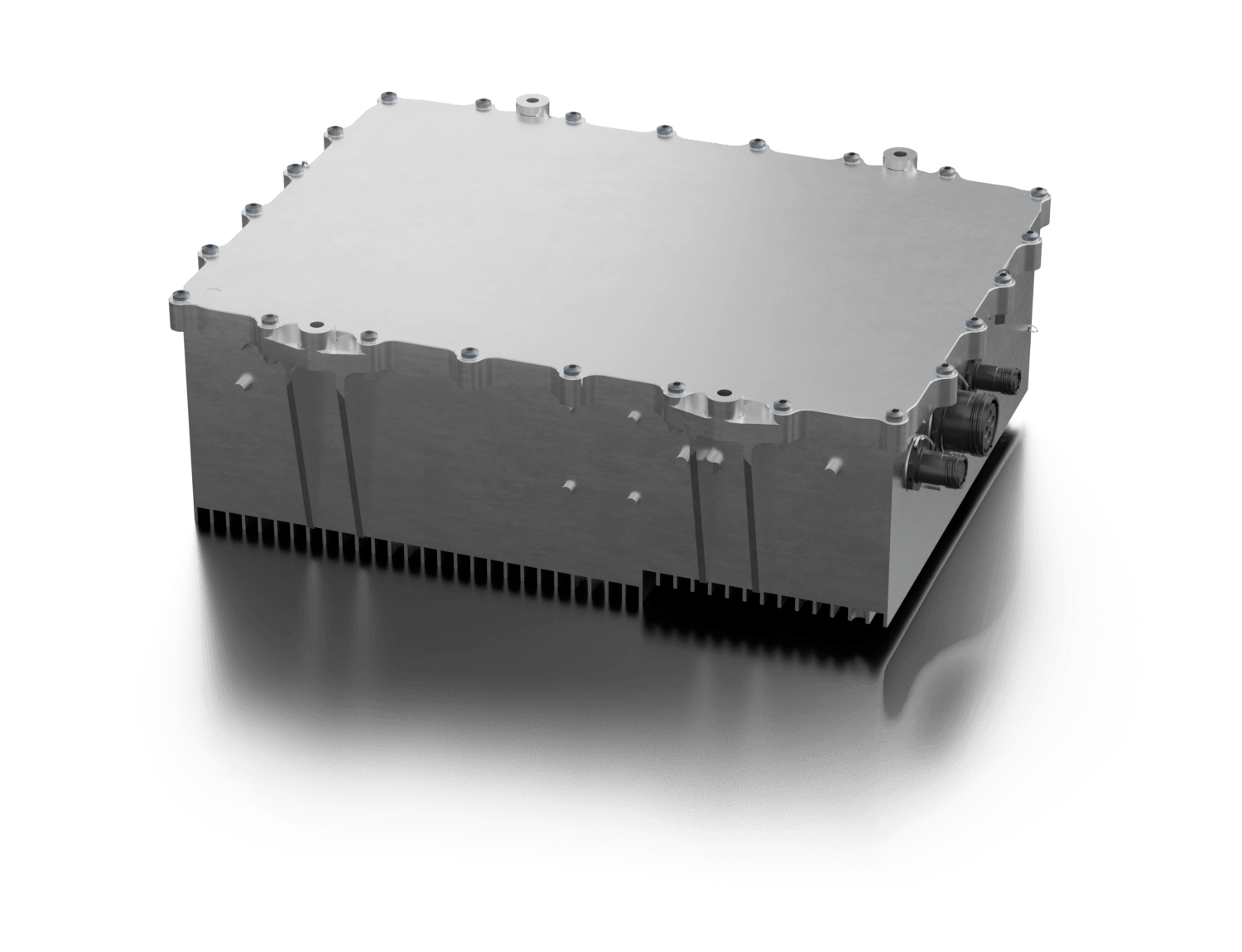

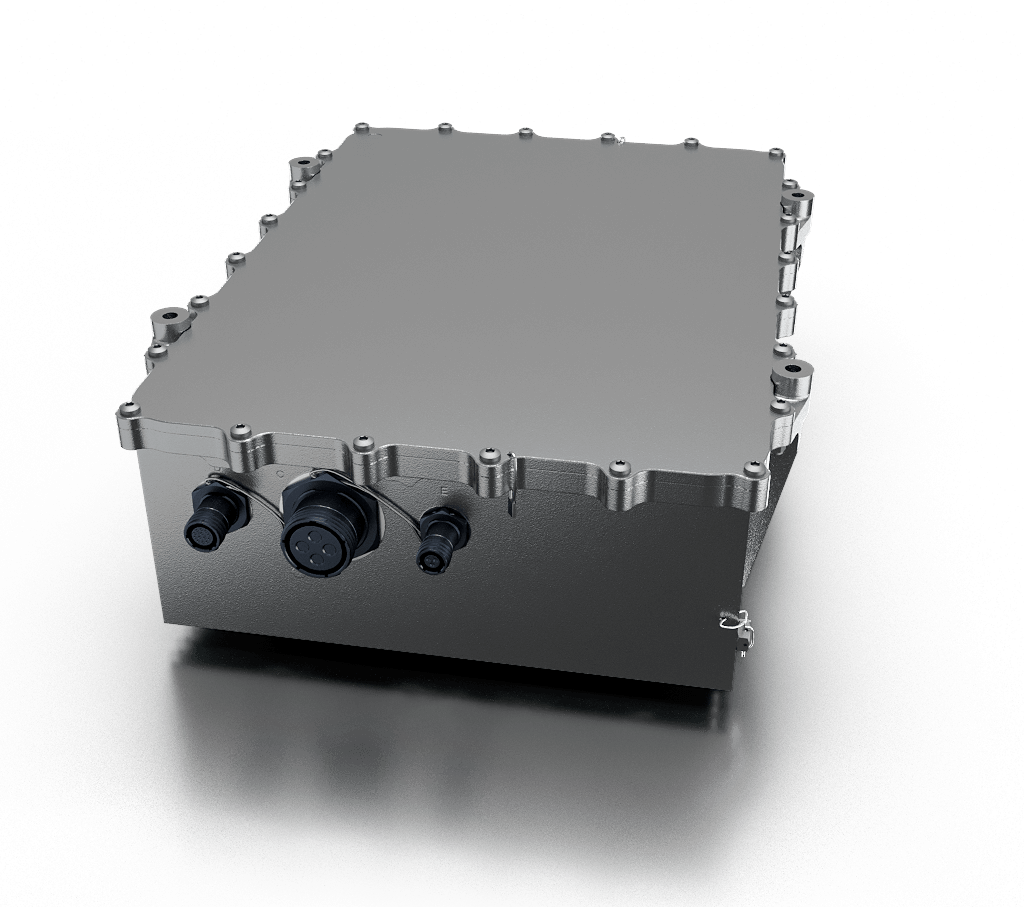

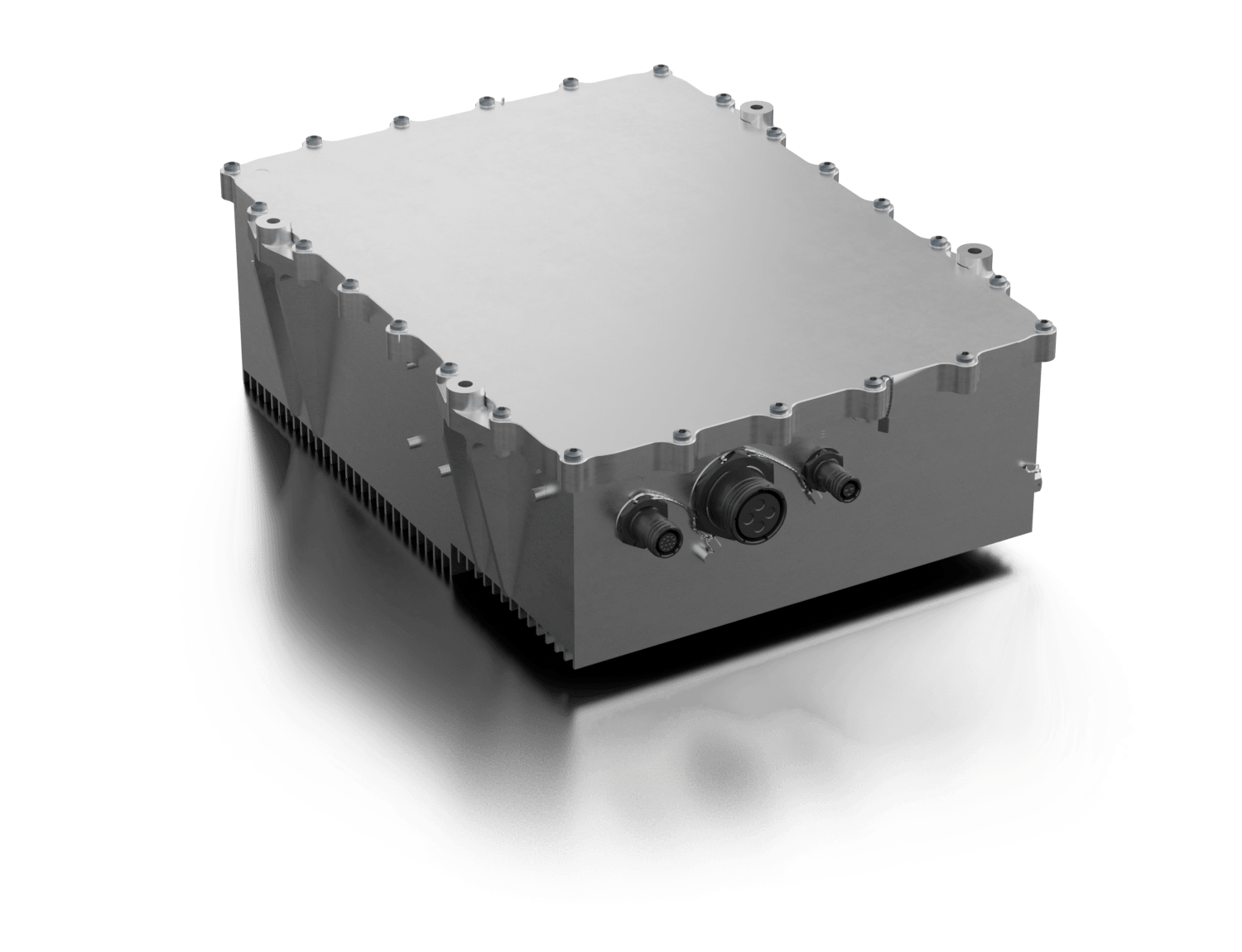

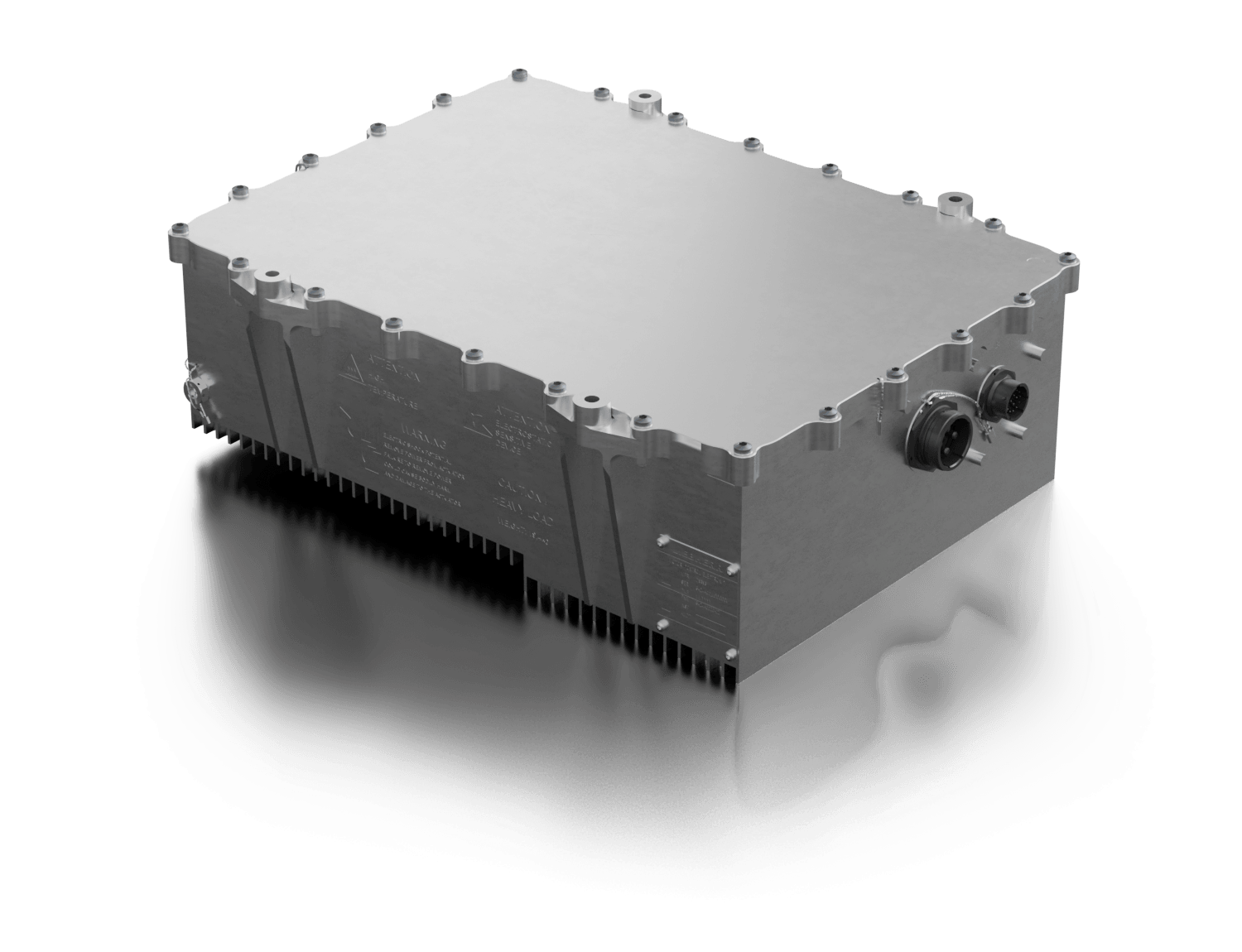

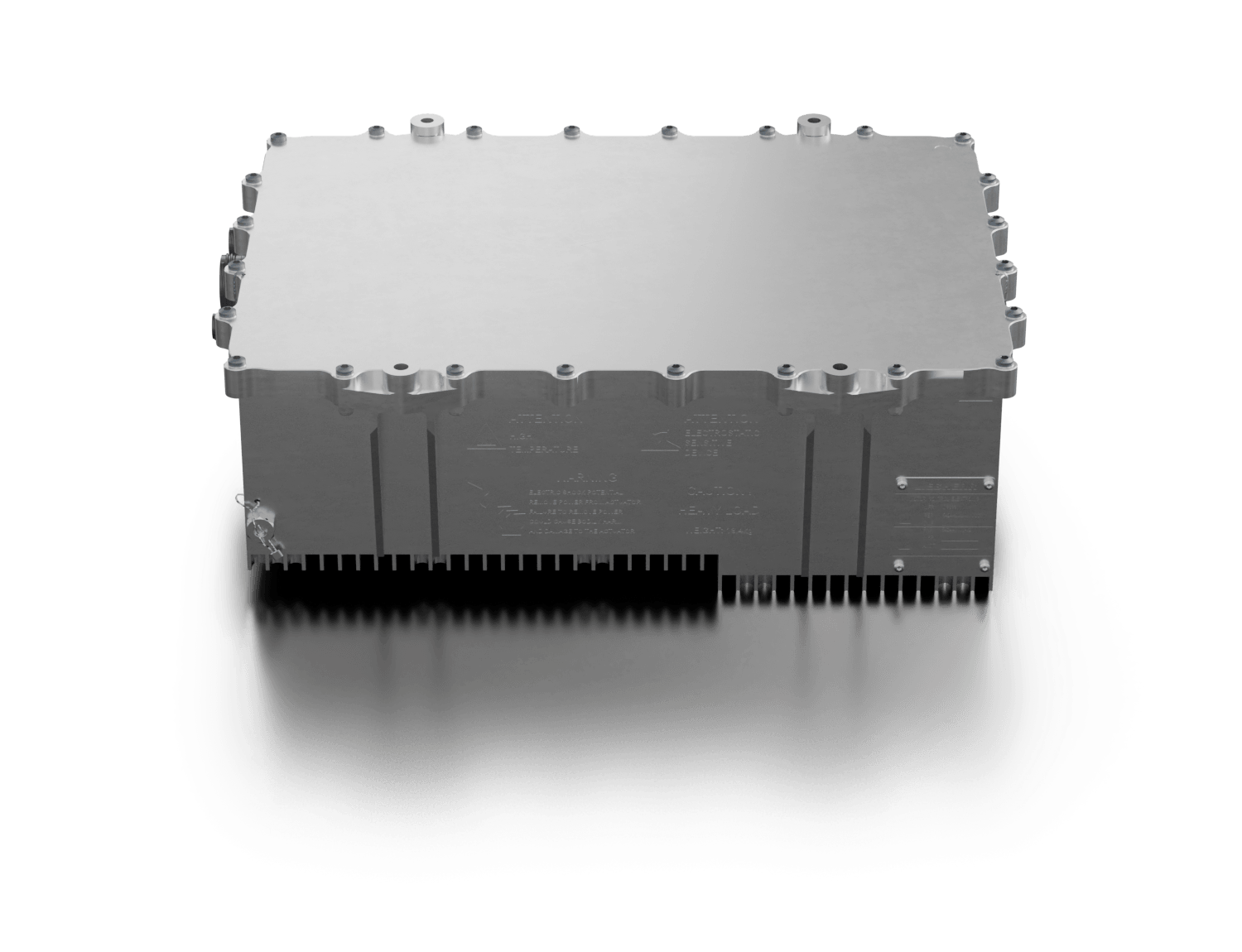

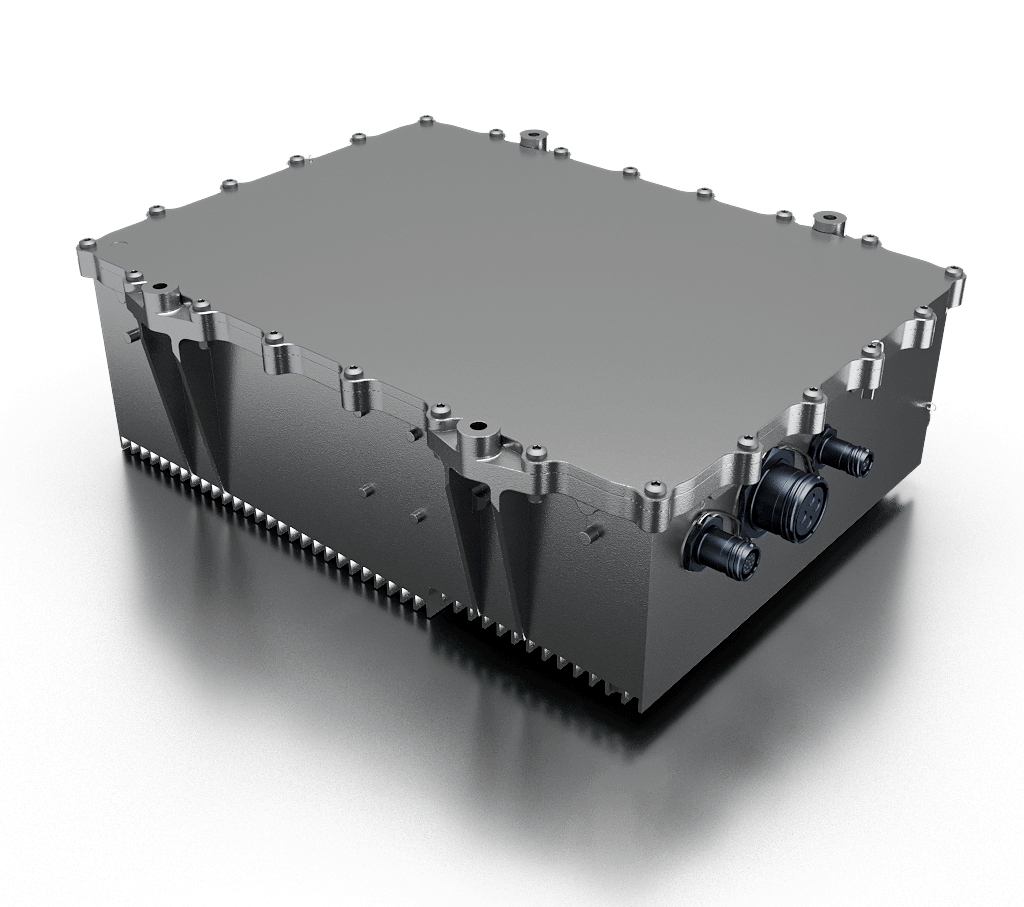

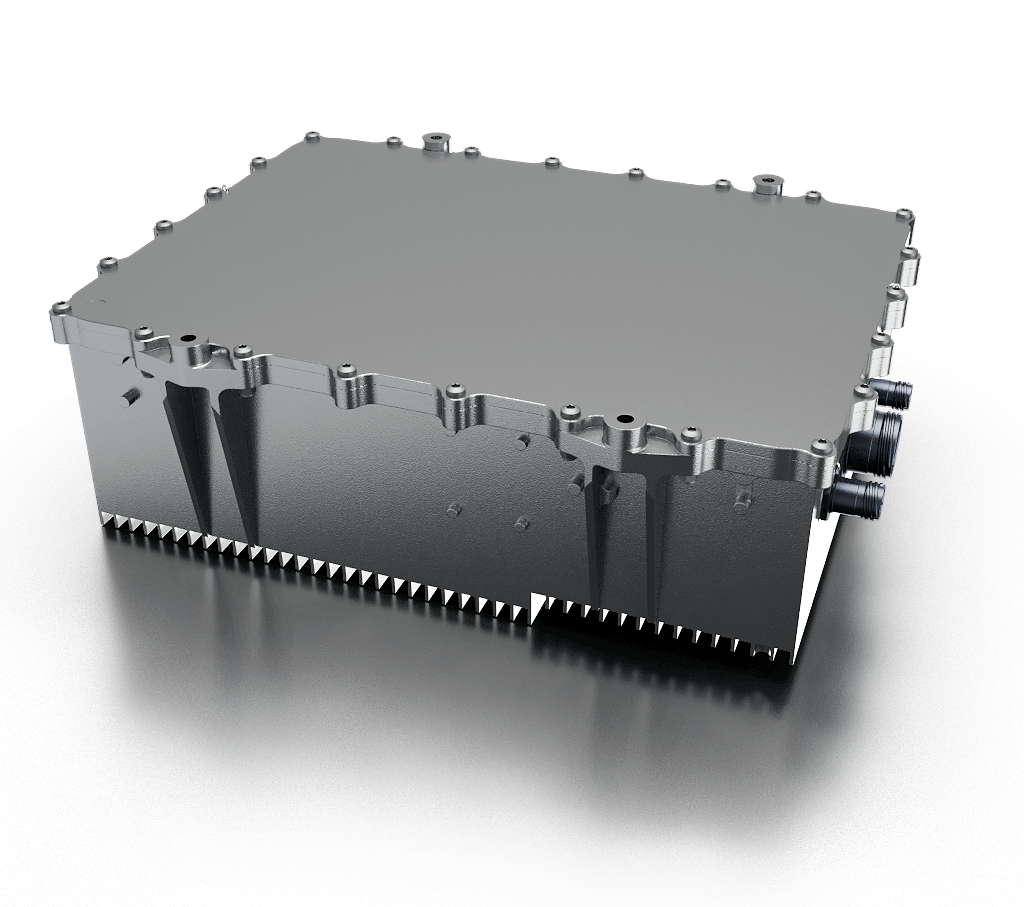

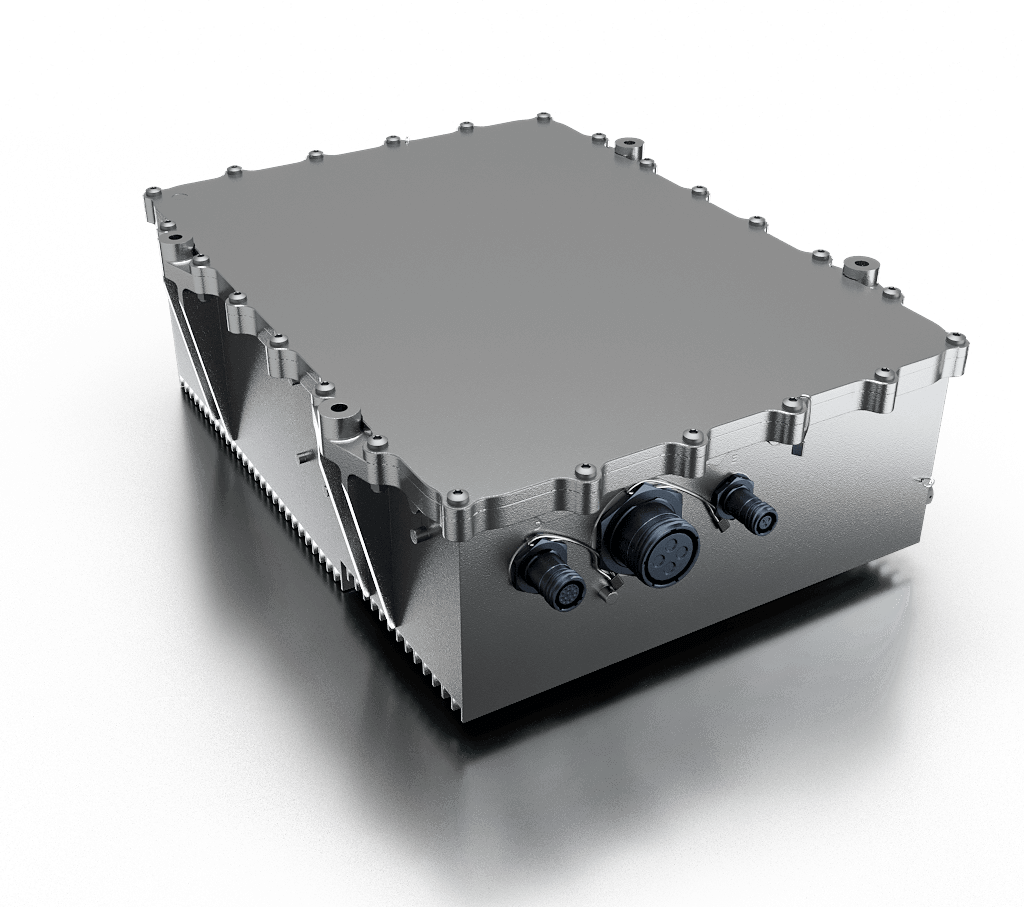

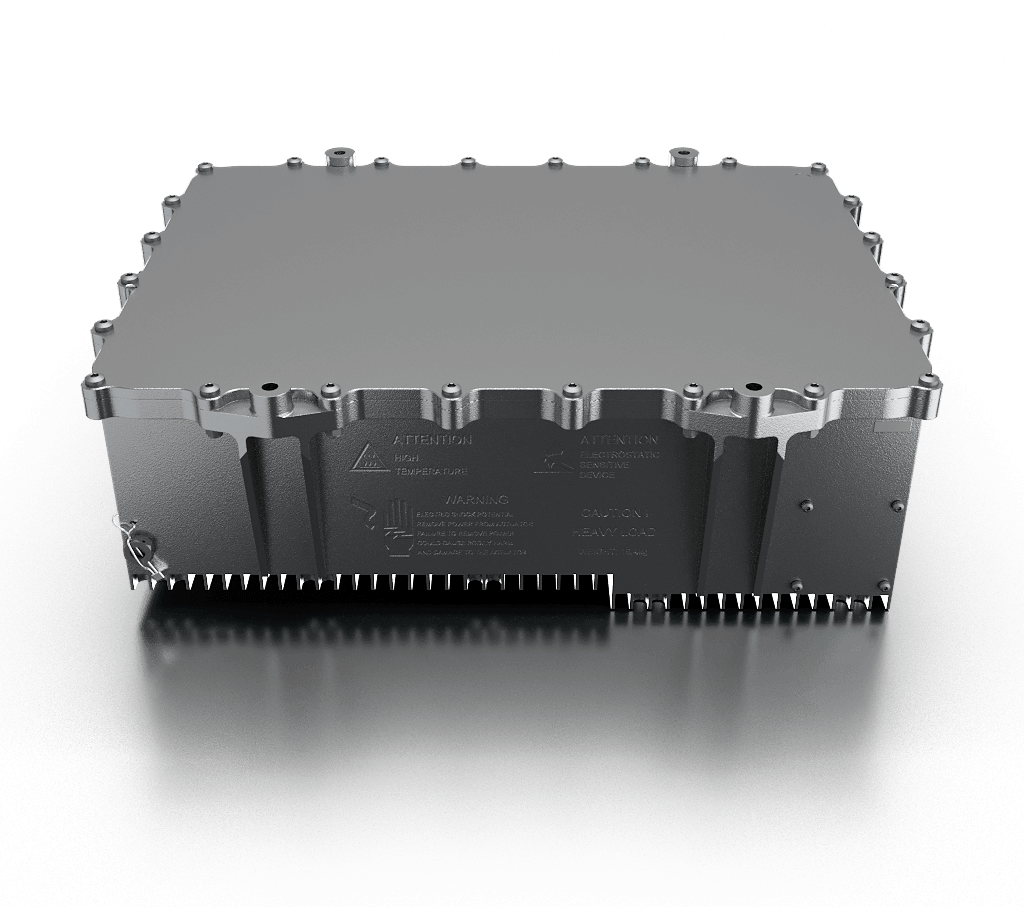

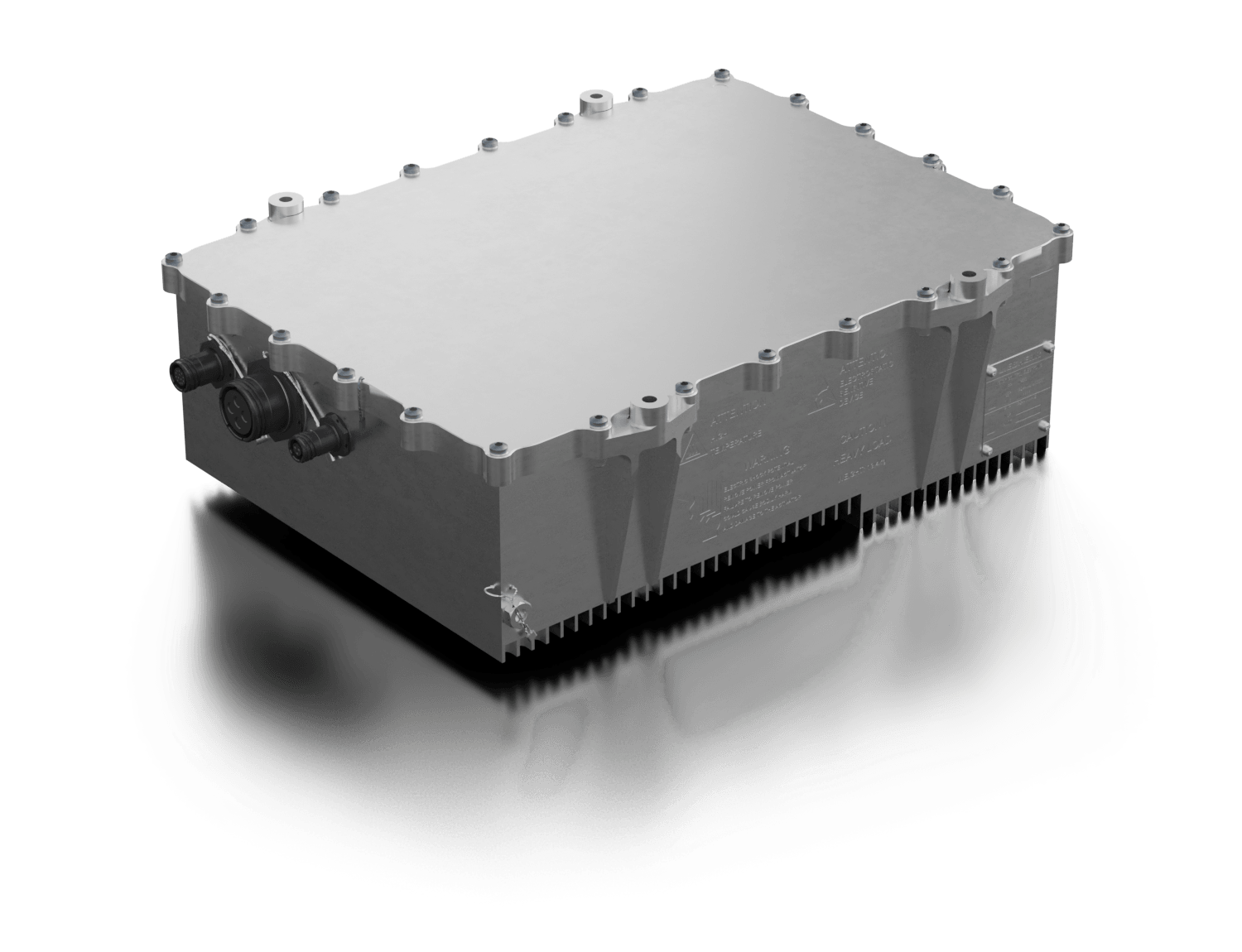

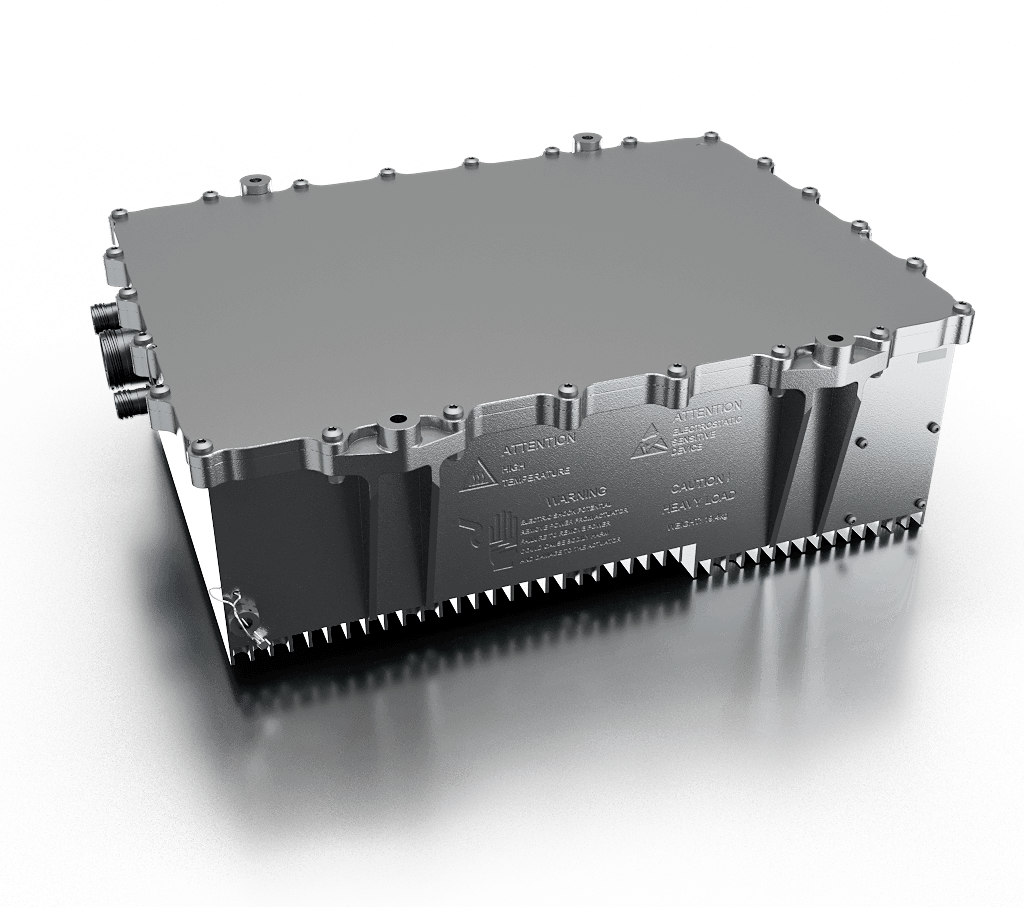

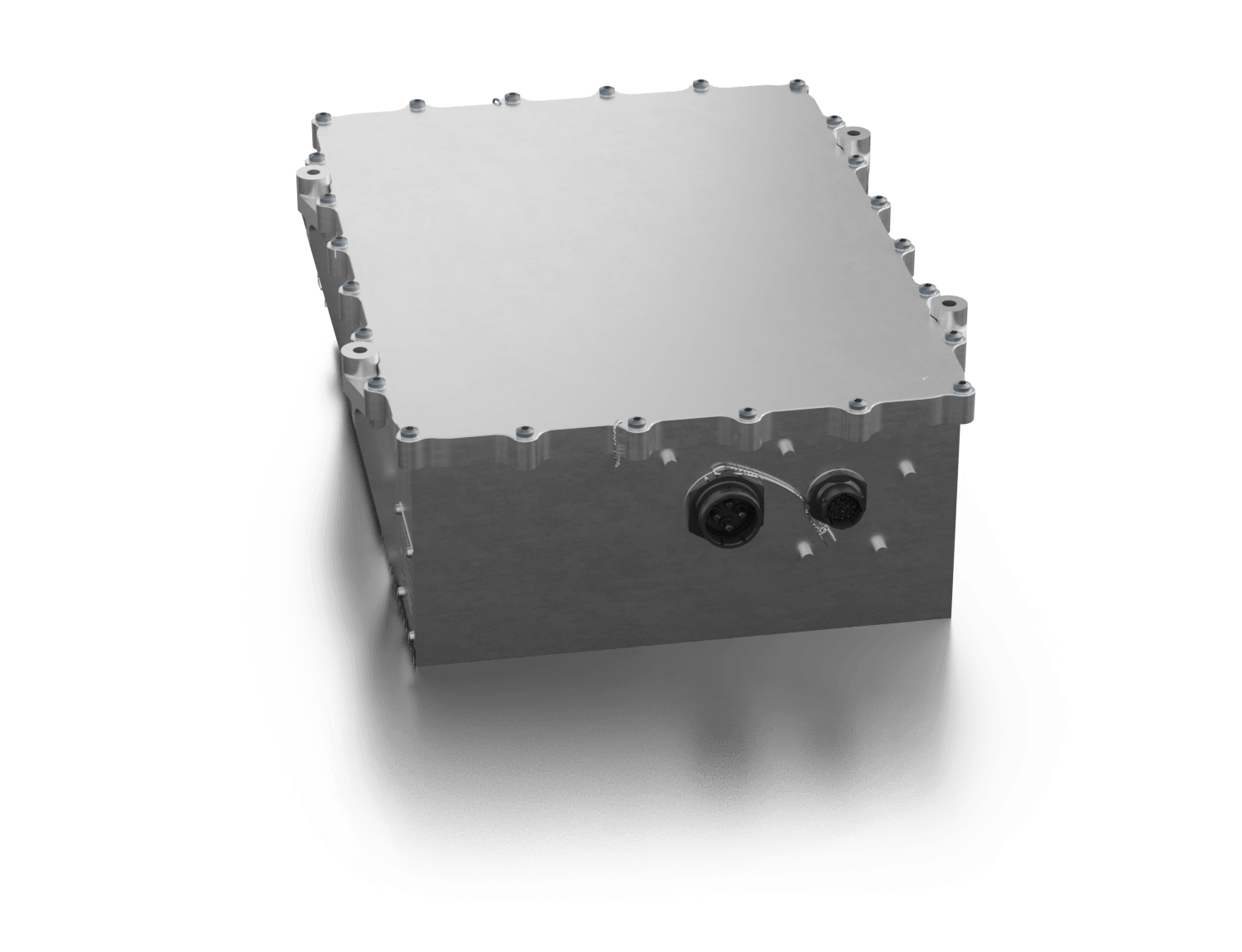

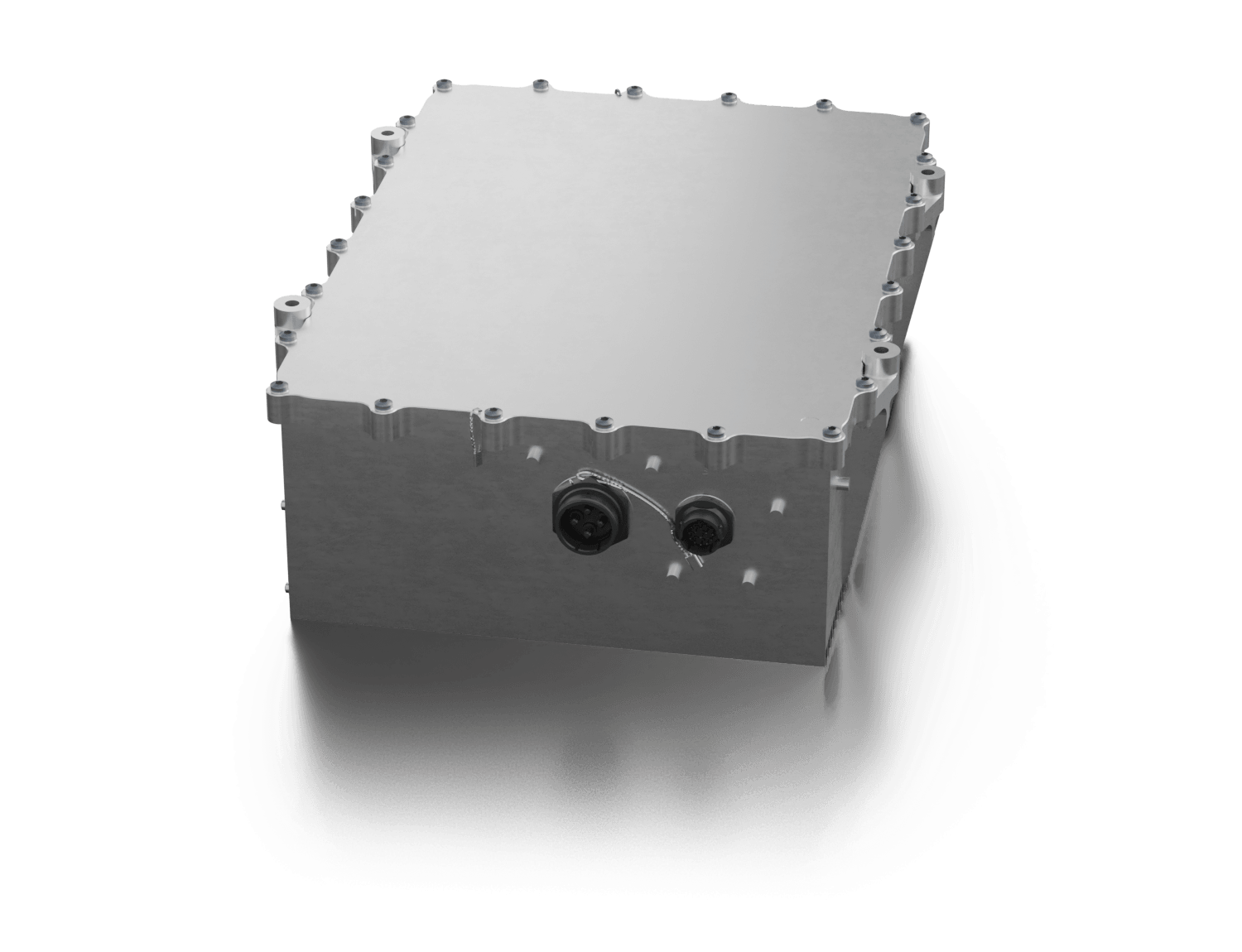

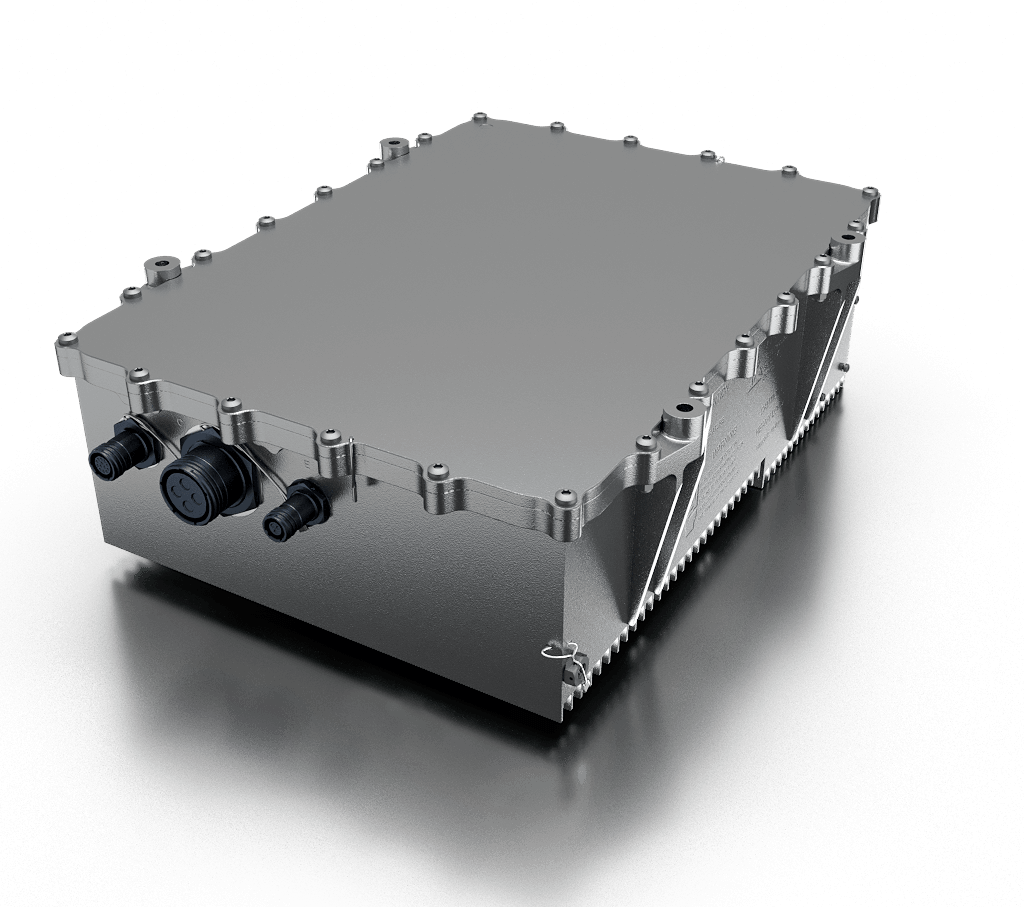

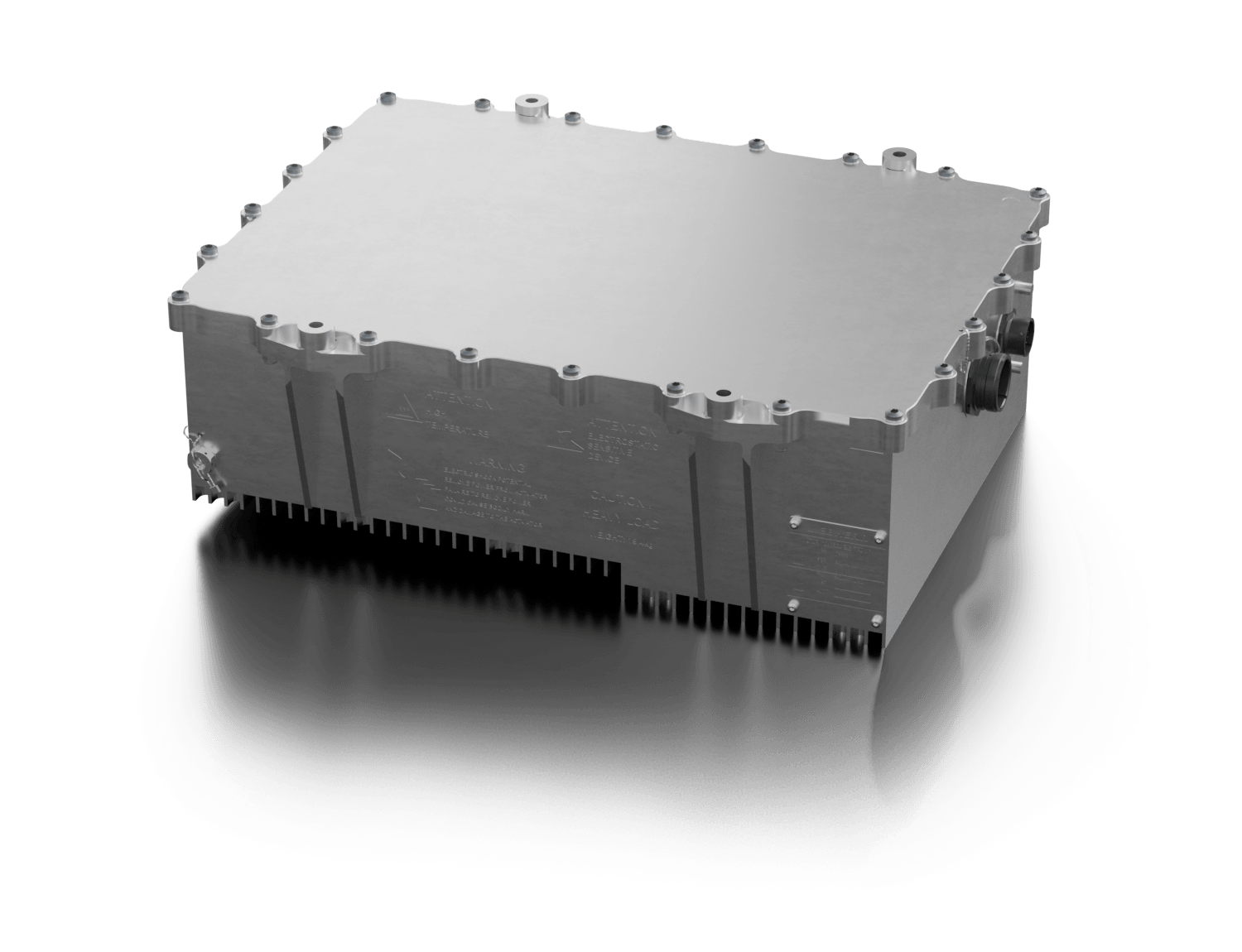

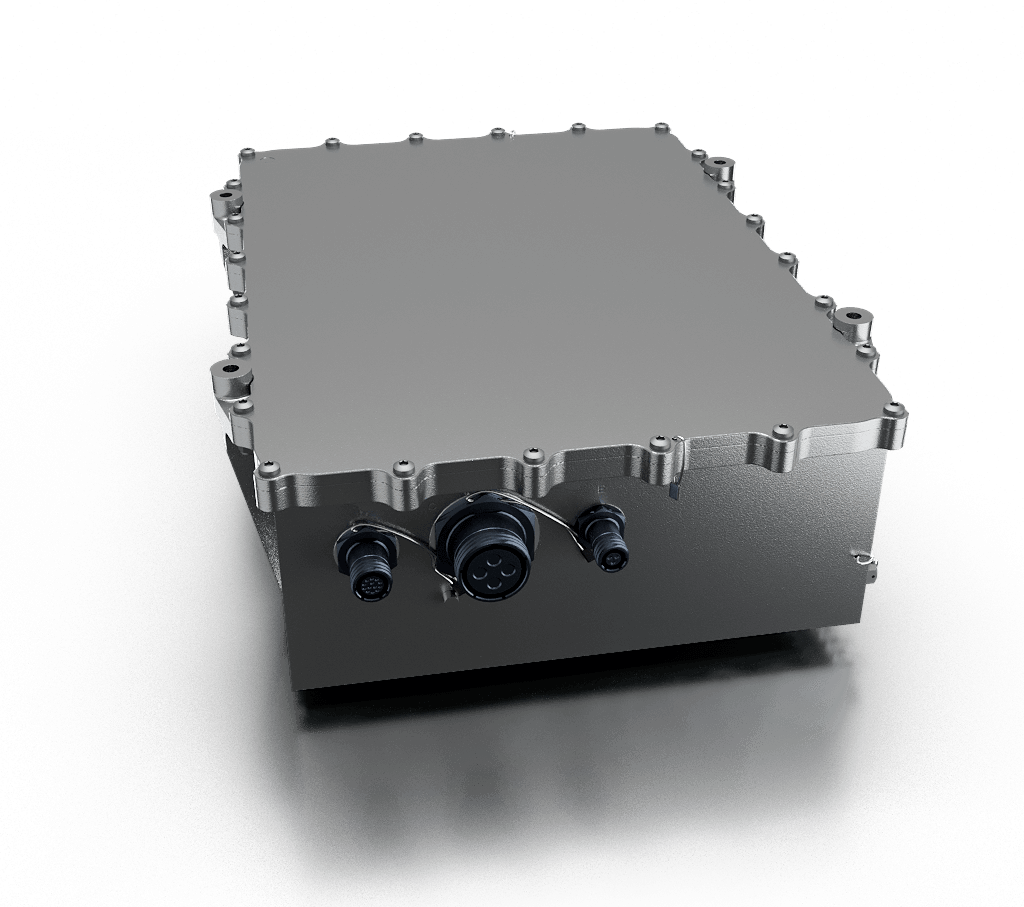

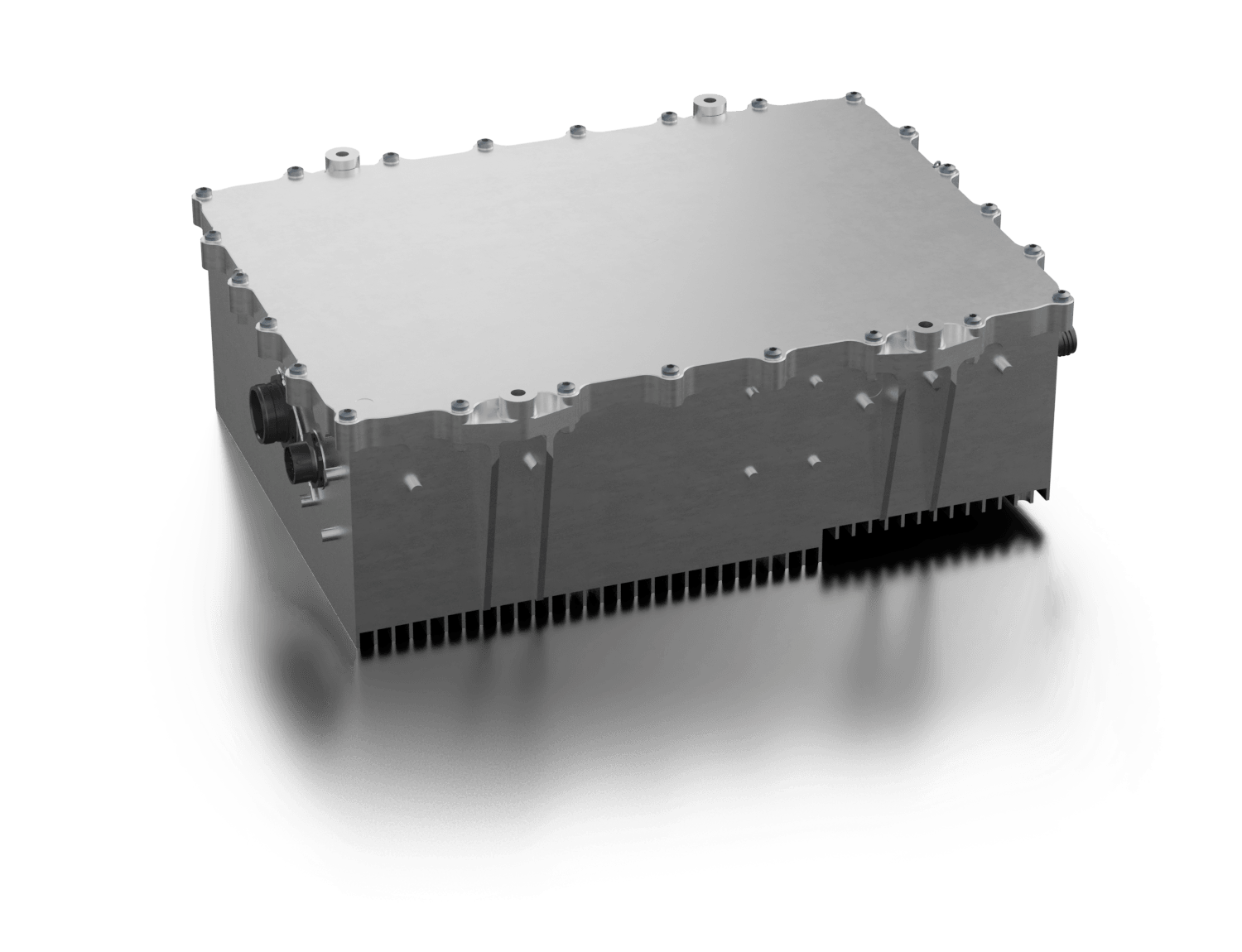

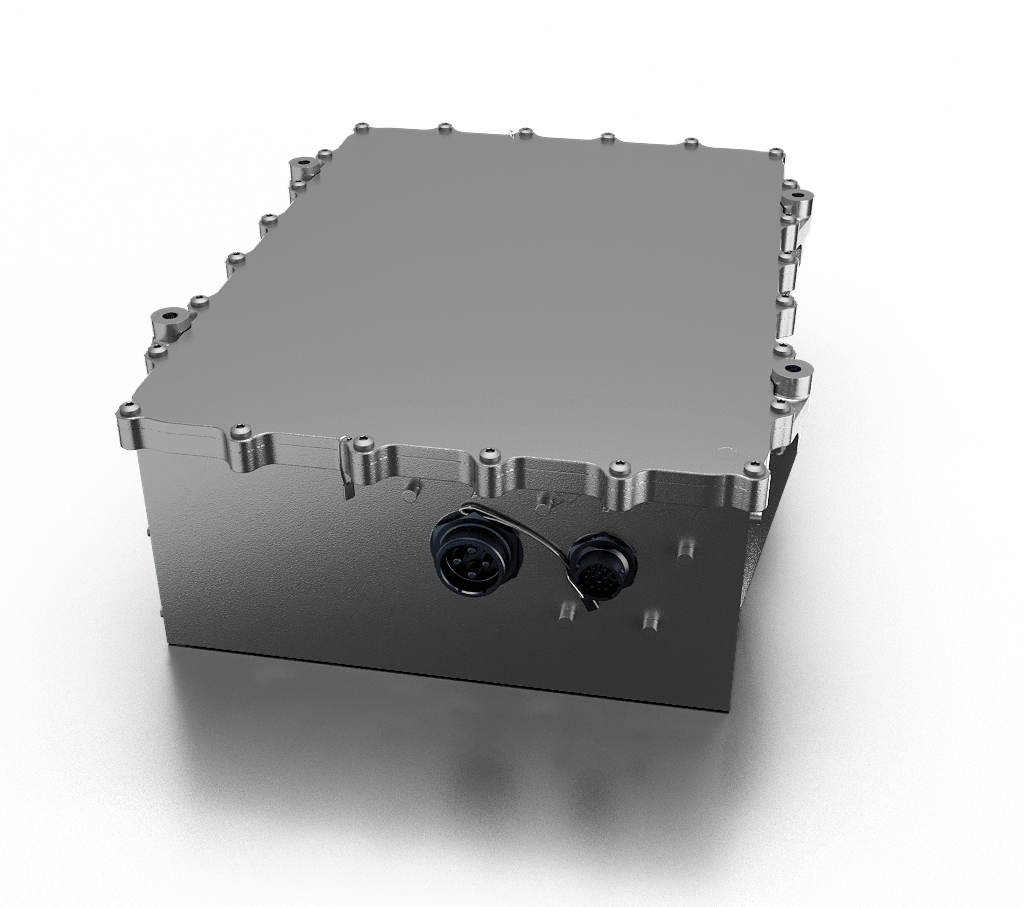

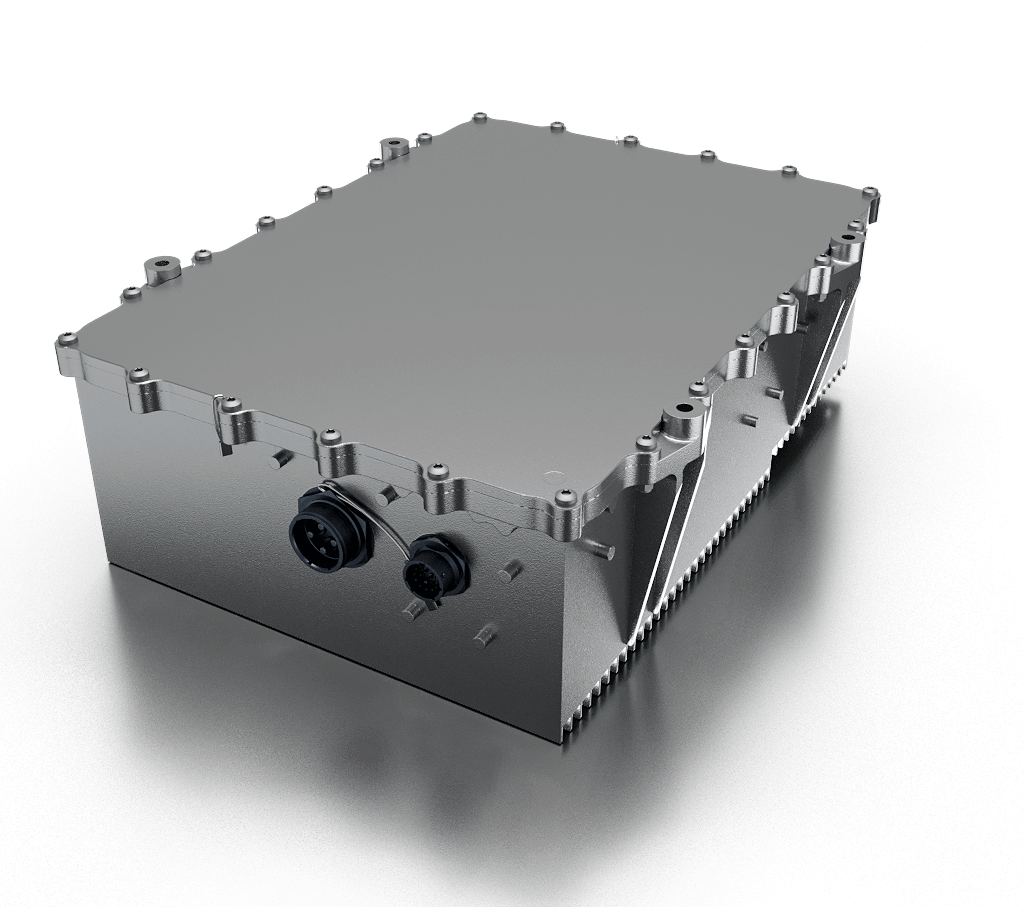

The SLAT / FLAP Motor Control Unit in 3D-View
Please click on the image to activate the 360˚ view.
Specifications
- Certified motor control electronics for aerospace applications
- Power supply via on-board network (3 x 230 VAC, 400-800 Hz)
- Total power: 25 kW

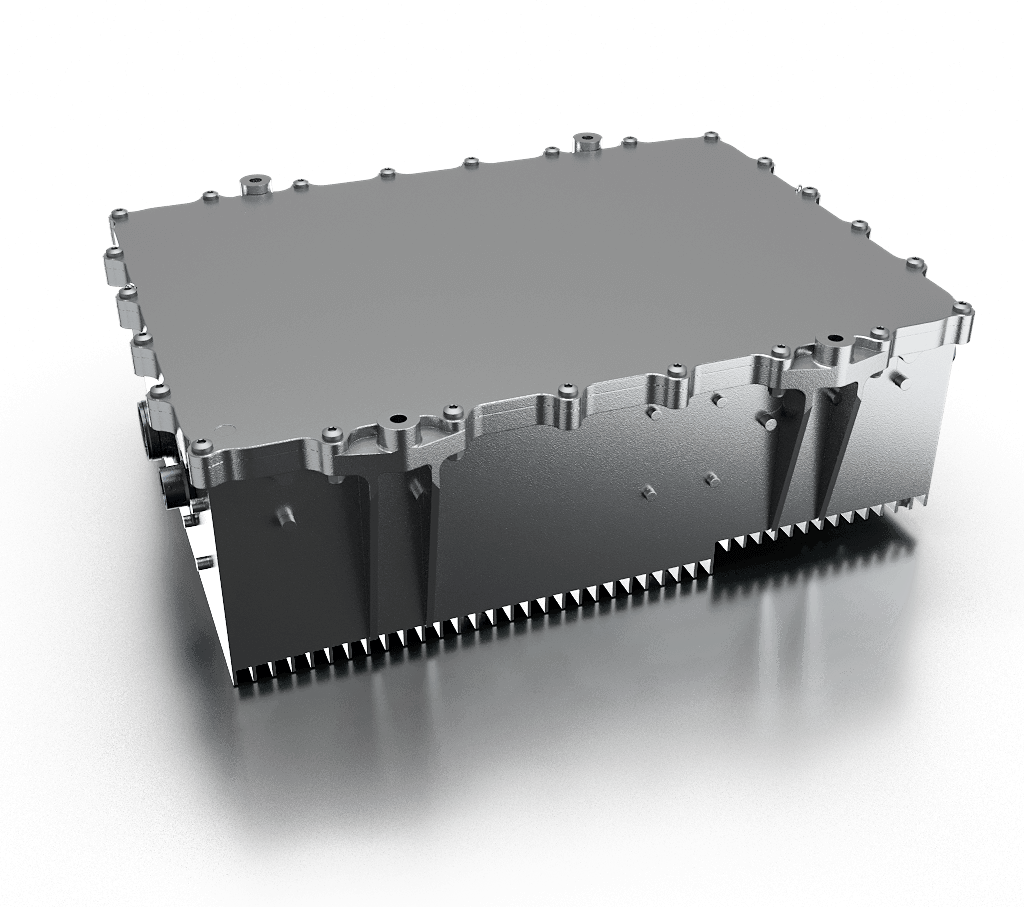

- Housing: Hermetically sealed with passive cooling
- Temperature range: -55°C to +95°C (operation)

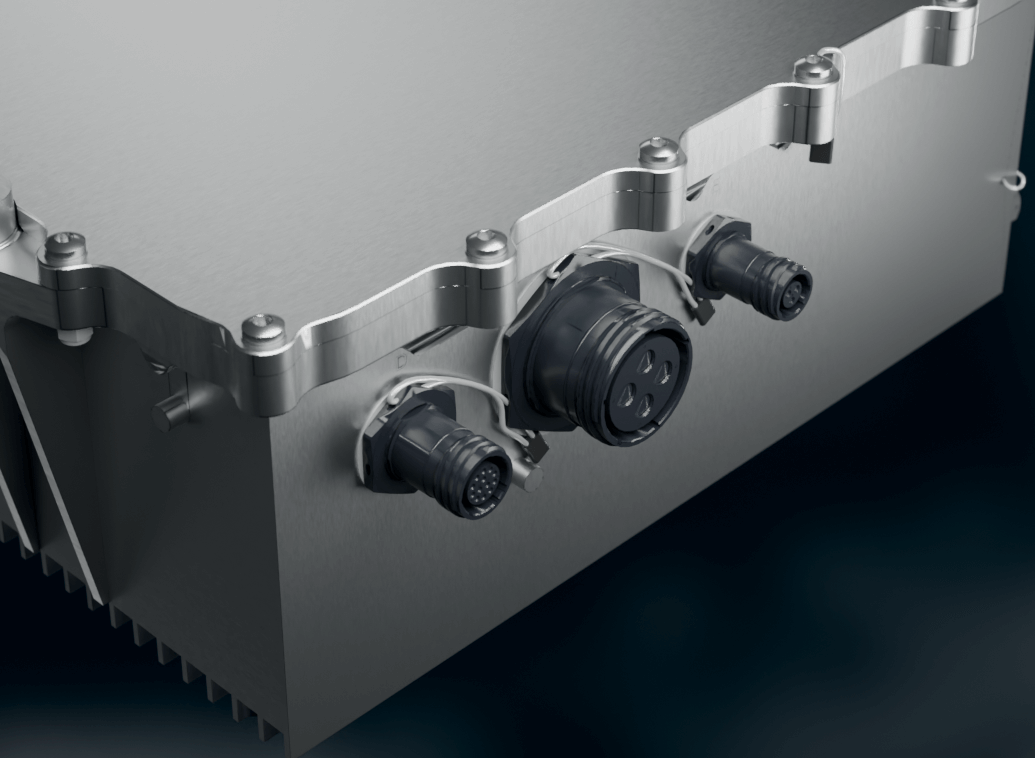

- Interfaces: ARINC 429, CAN, RS-232, resolver
Application Areas
- Flight Control Systems
- Auxiliary units
- Applications using electric drives as replacement of mechanical / hydraulic systems
- Motor Control Electronics for SLAT or FLAP Drive
Advantages
- Delays stall: The wing can operate at a higher angle of attack without stalling.
- Increases lift: Improves lift during takeoff and landing.
- Improves safety: Helps control the aircraft at slow speeds.
Why choose this product?
When developing certifiable high-lift control units according to aviation standards, customized products can be offered in terms of power, on-board voltage and frequency.
This comprises multiple interfaces as well as all required safety features, including electrical “pressure-off brake” control (POB).
Why Silver Atena?
With a proven track record of innovation in aerospace, Silver Atena delivers robust and certifiable control solutions for highly critical aviation systems.
