Central Control Unit
What is a Central Control Unit?

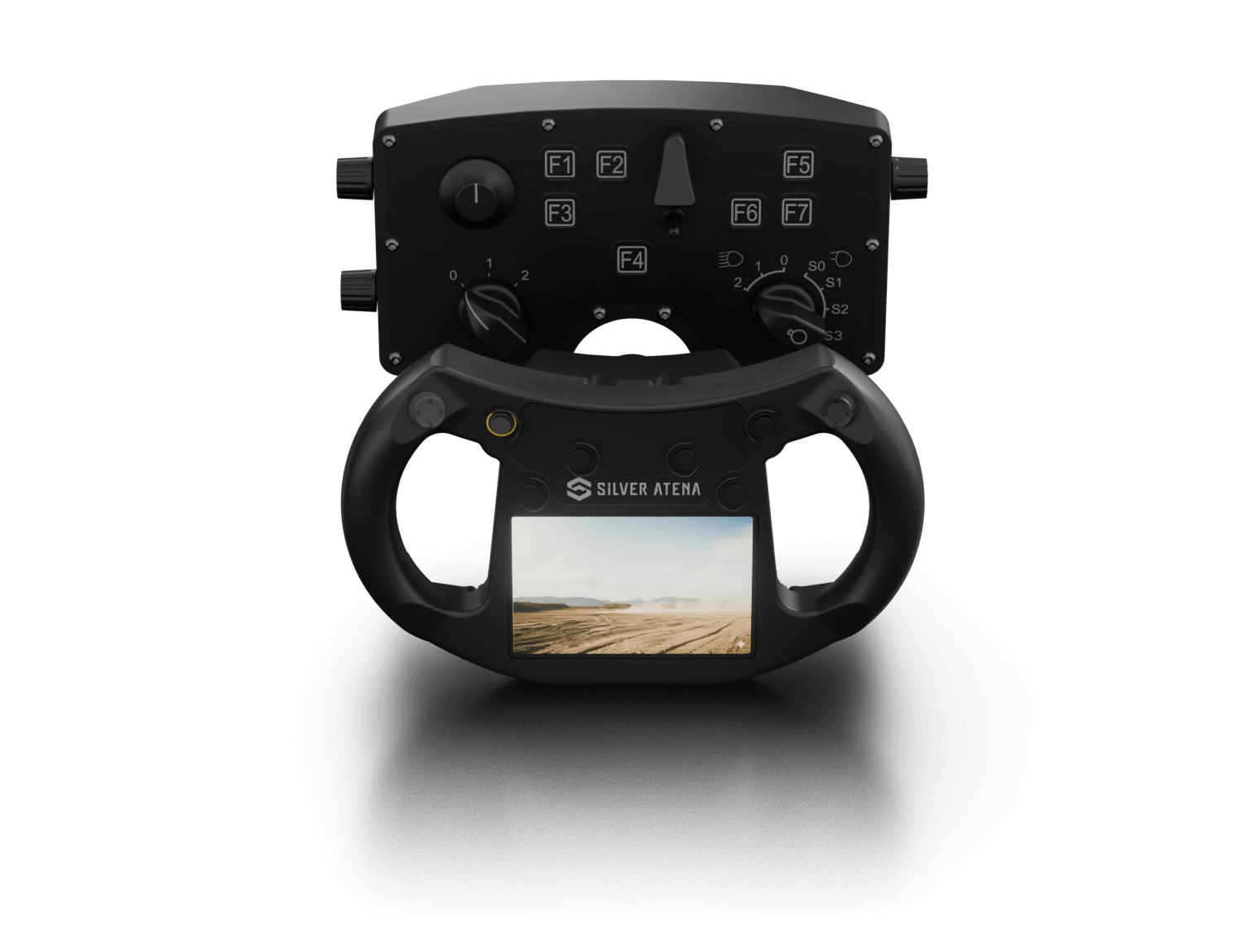

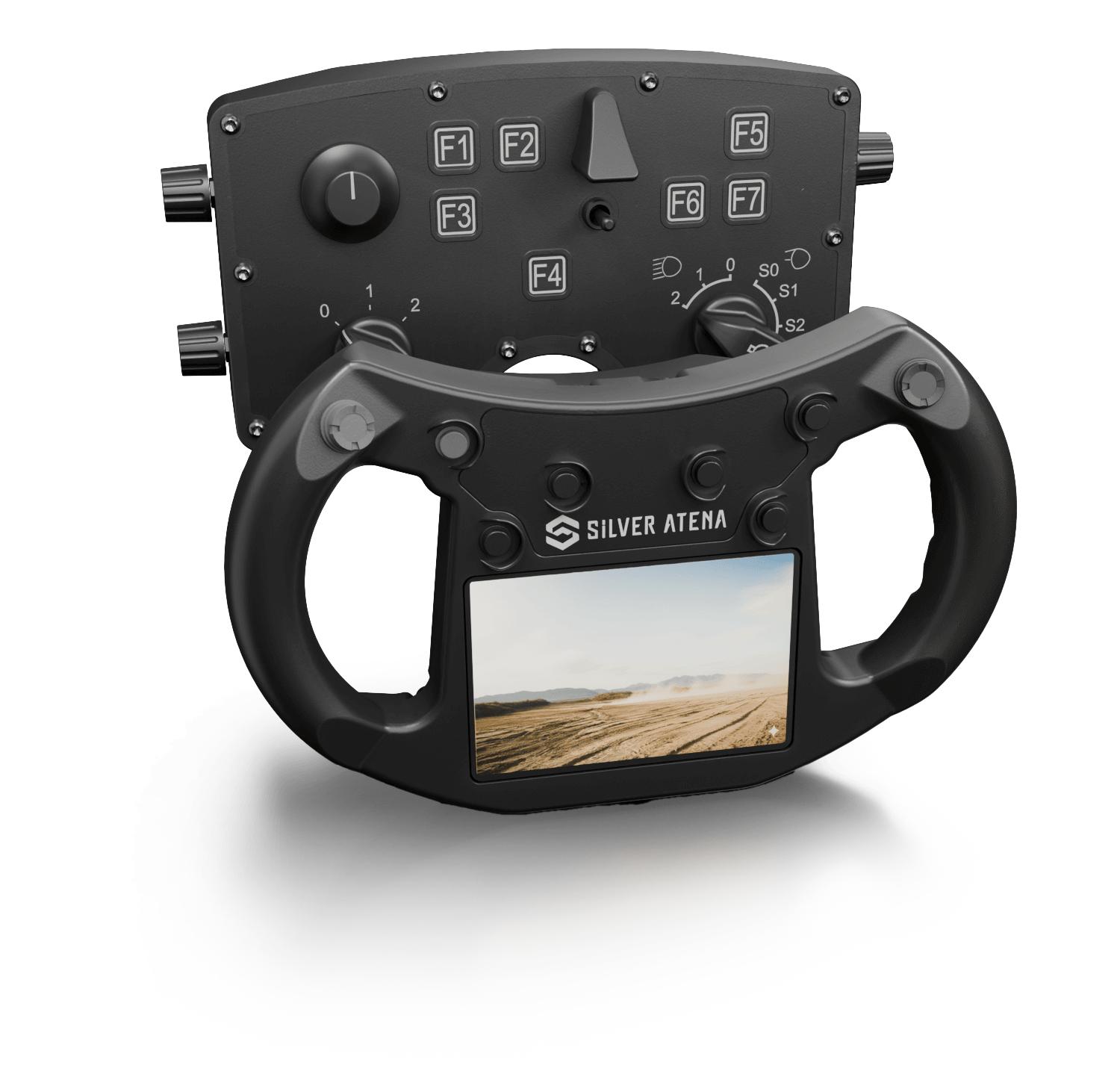

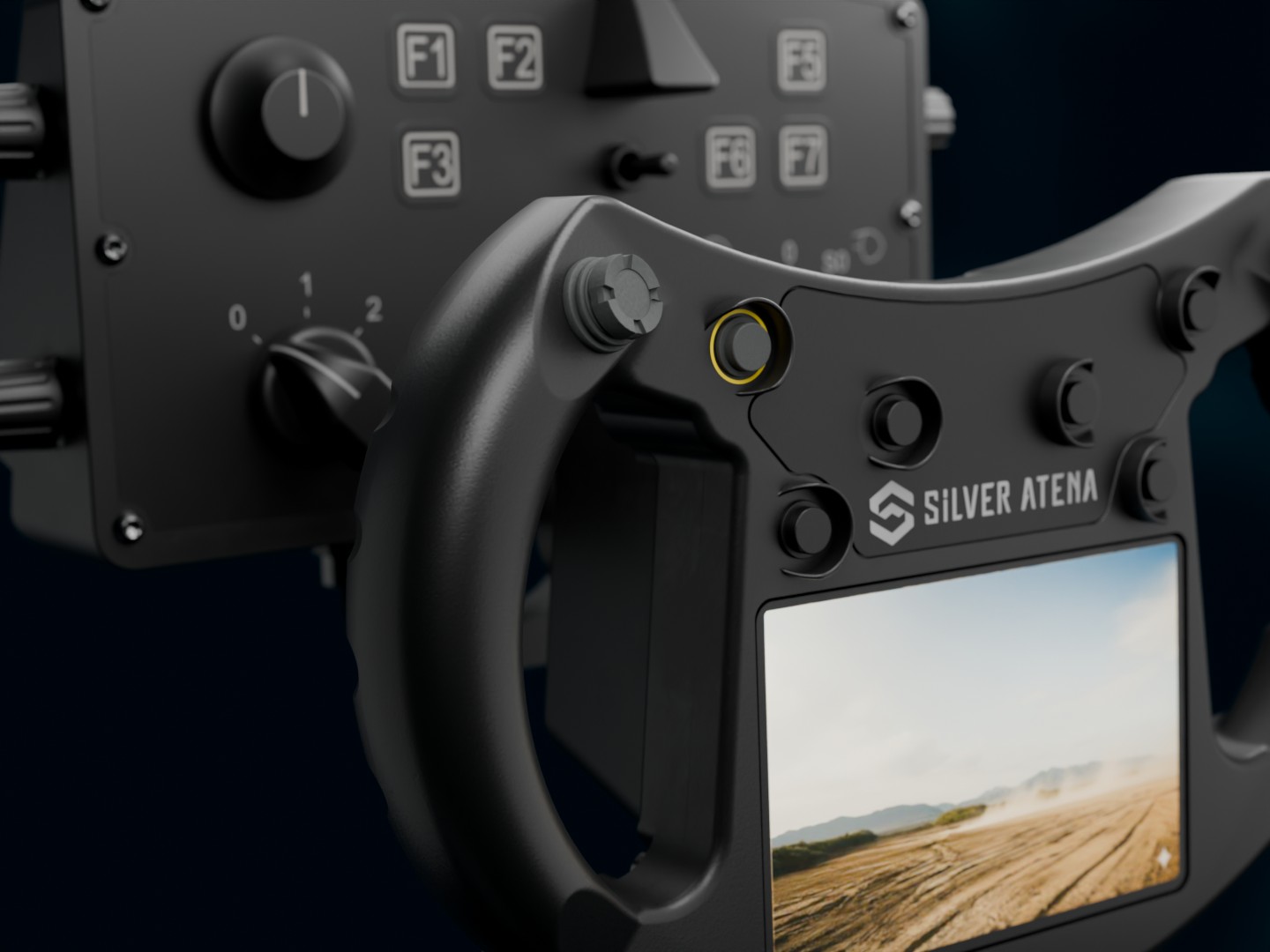

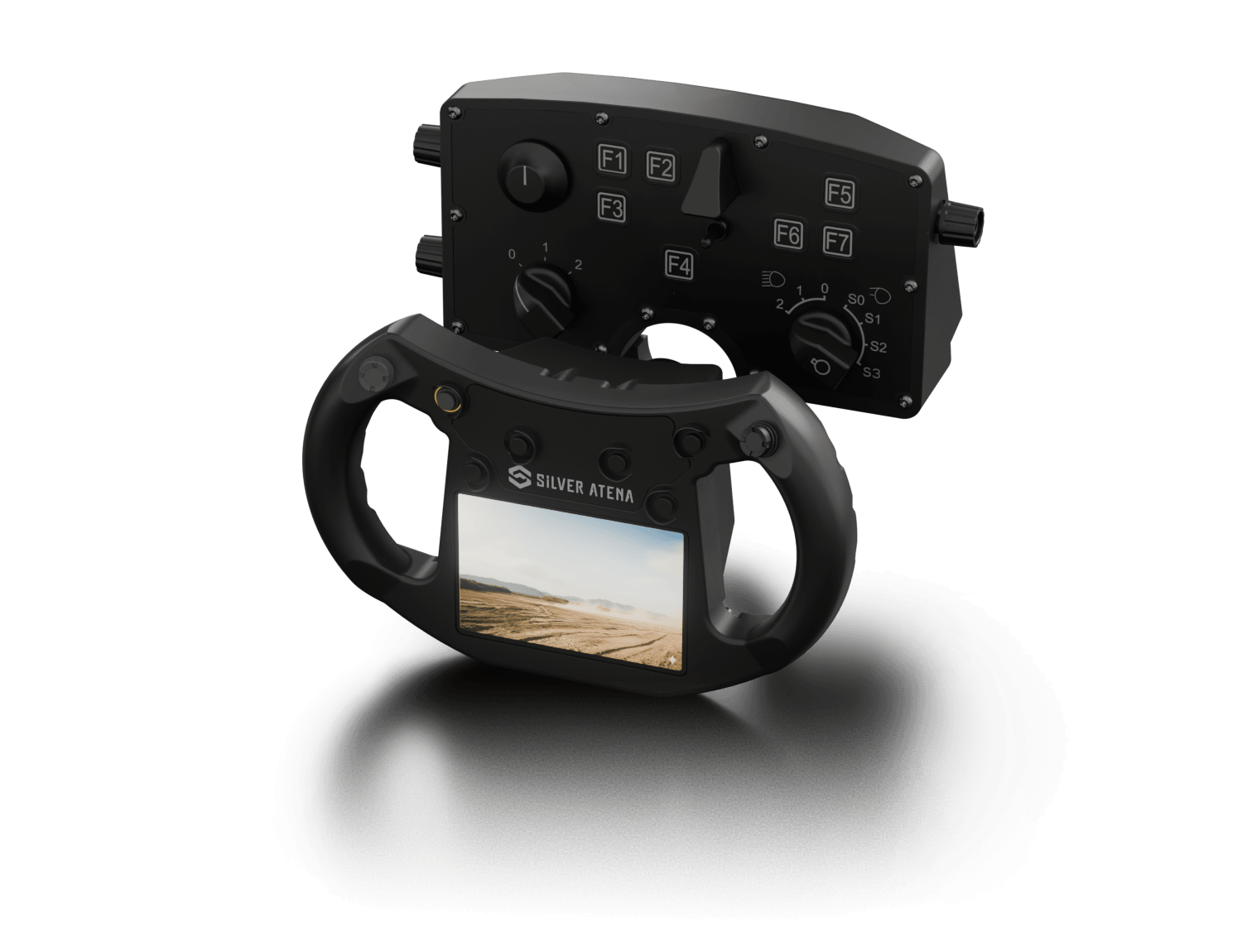

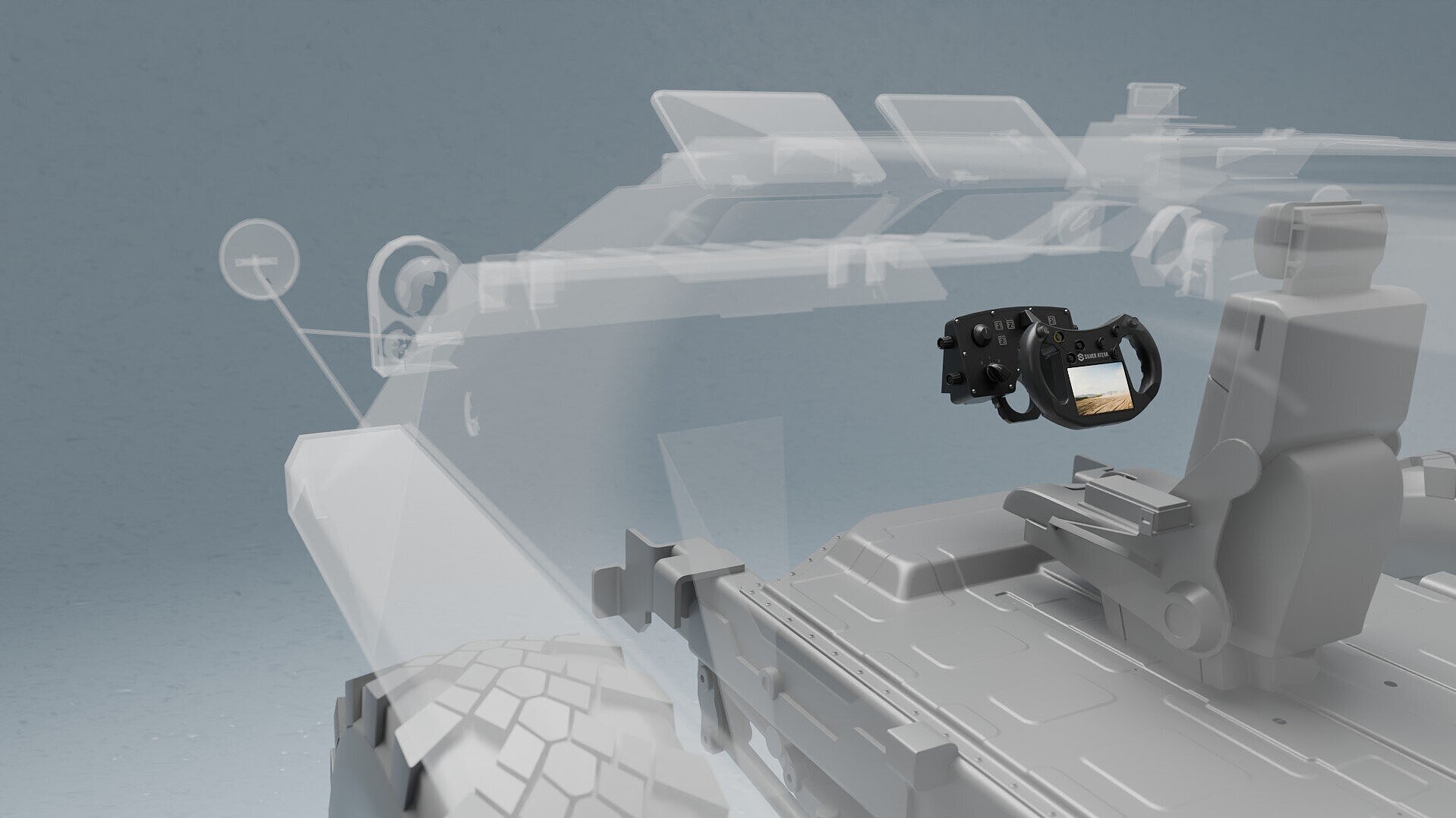

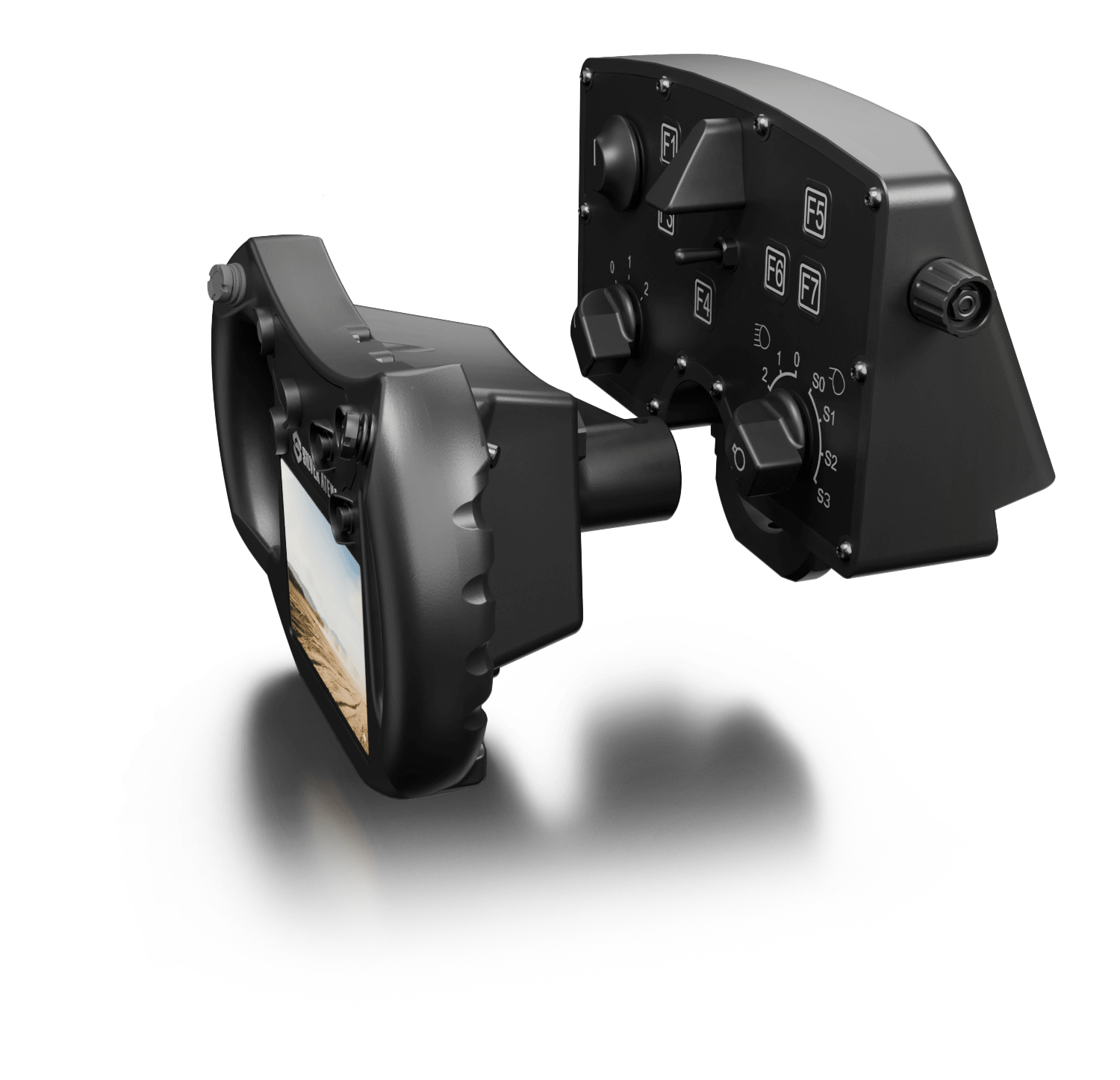

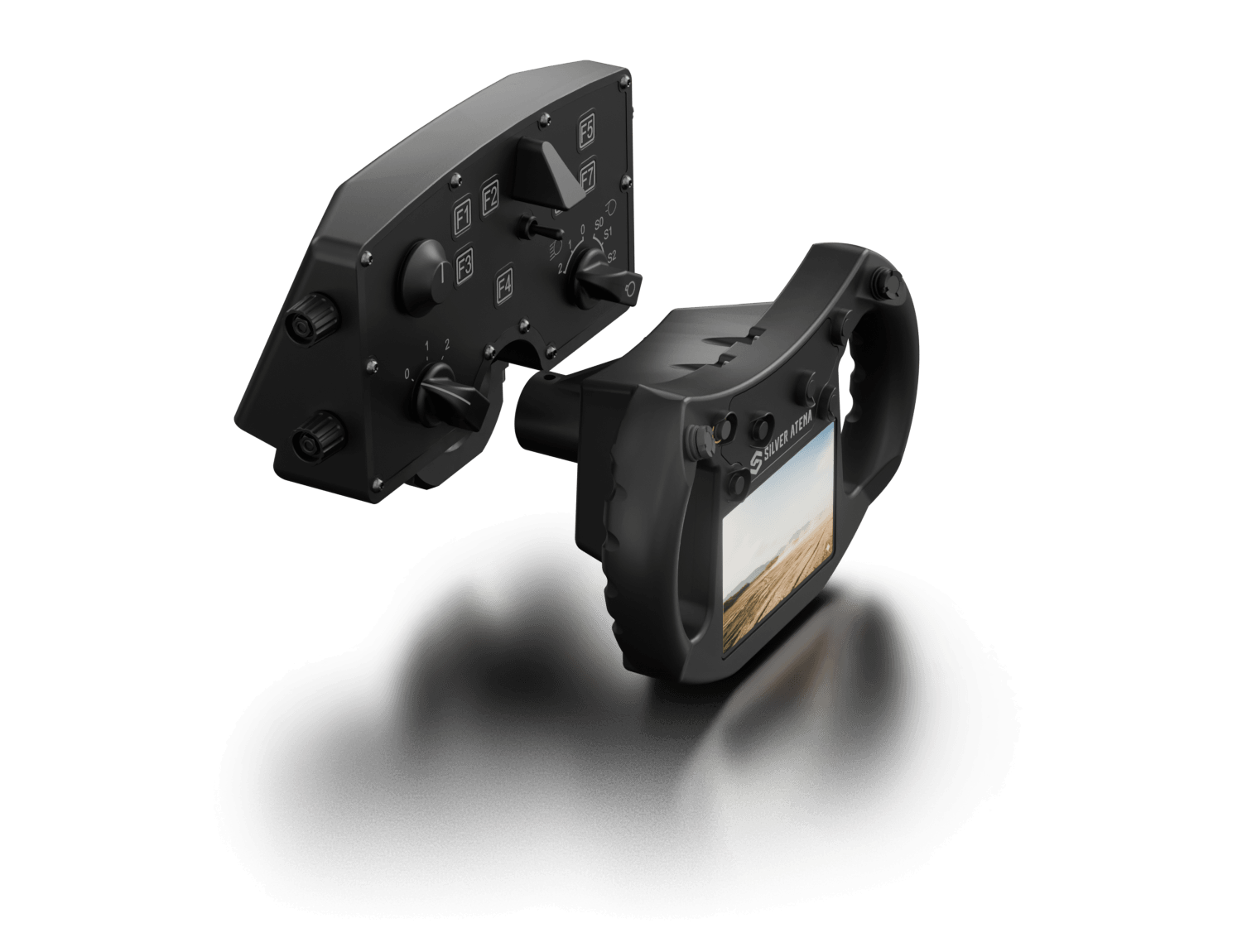

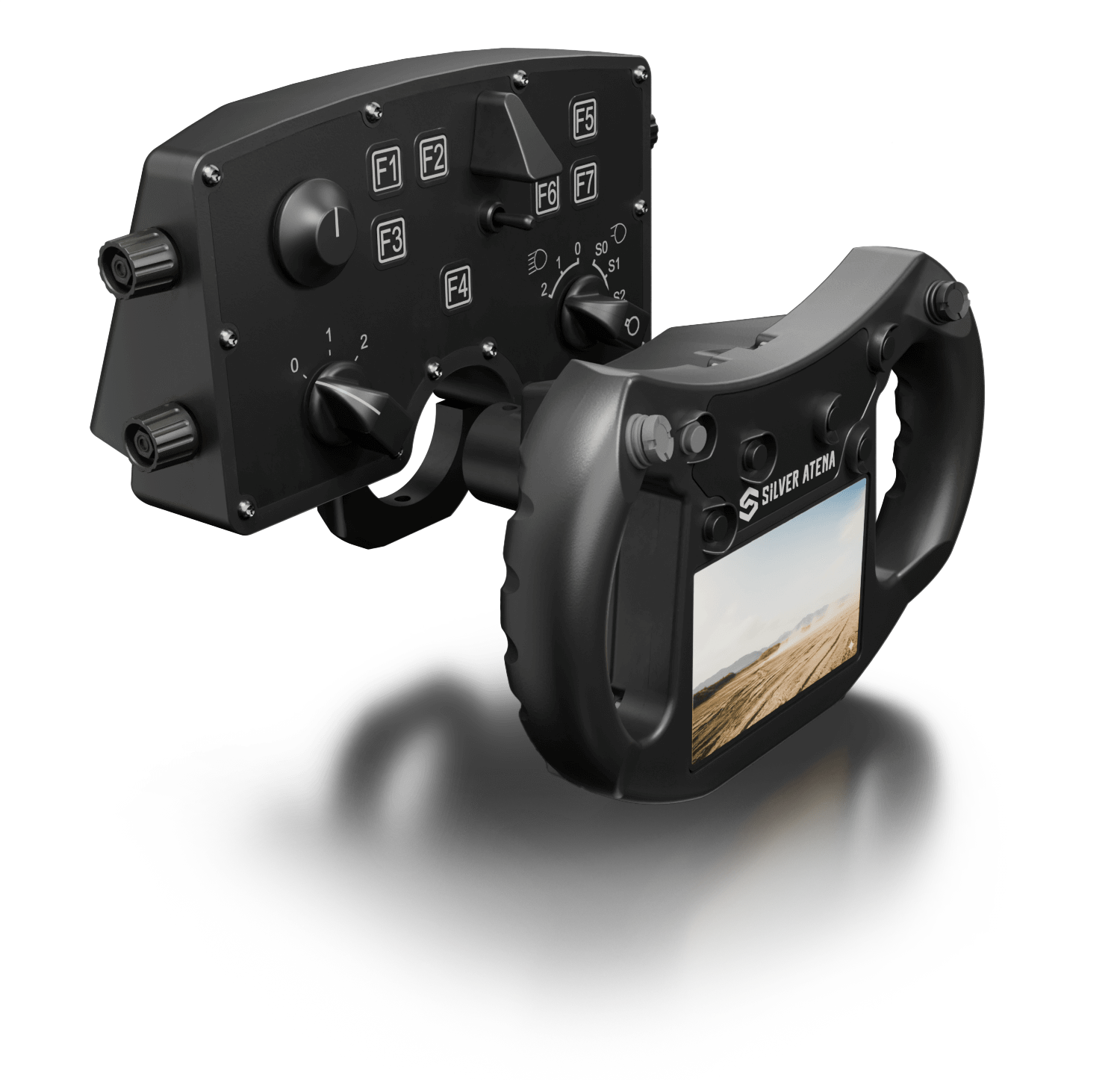

The combination of steering handle and central control unit (CCU) is a robust, MIL-certified control solution for armored vehicles. It serves as the central human-machine interface for vehicle control under extreme operating conditions – from arctic cold to desert operations.
Featuring a 4.3" display, EMC protection, dimmable lighting, and glove-compatible operation, it enables precise control and high reliability.
The central control unit is customizable and flexibly integrated for use in various vehicle types.
Features
- 4.3" display for displaying driving information such as engine speed, gear, speed, etc.
- Microcontroller-based communication and control
- View selector switch for switching between camera driving views
- Operation of the viewfinder extensions
- Operating with gloves is possible
- Control elements with dimmable backlight
- Fully shielded against EMC interference
Applications
The central control unit is specifically designed for land-based applications (combat vehicles and tanks).
Other applications, such as air- or sea-based applications, are also possible with adaptations.
In modern combat and command vehicles, the device enables vehicle control.

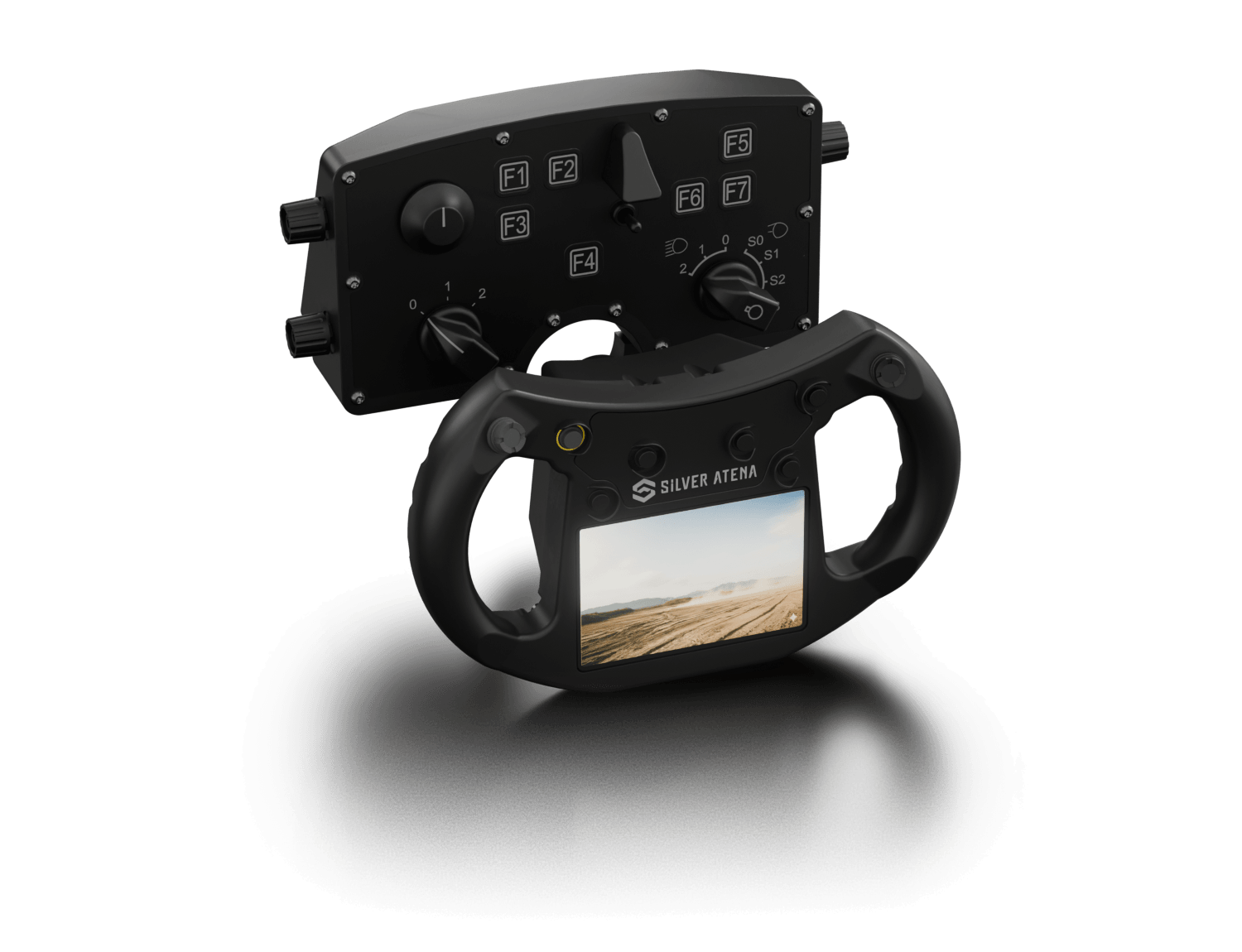

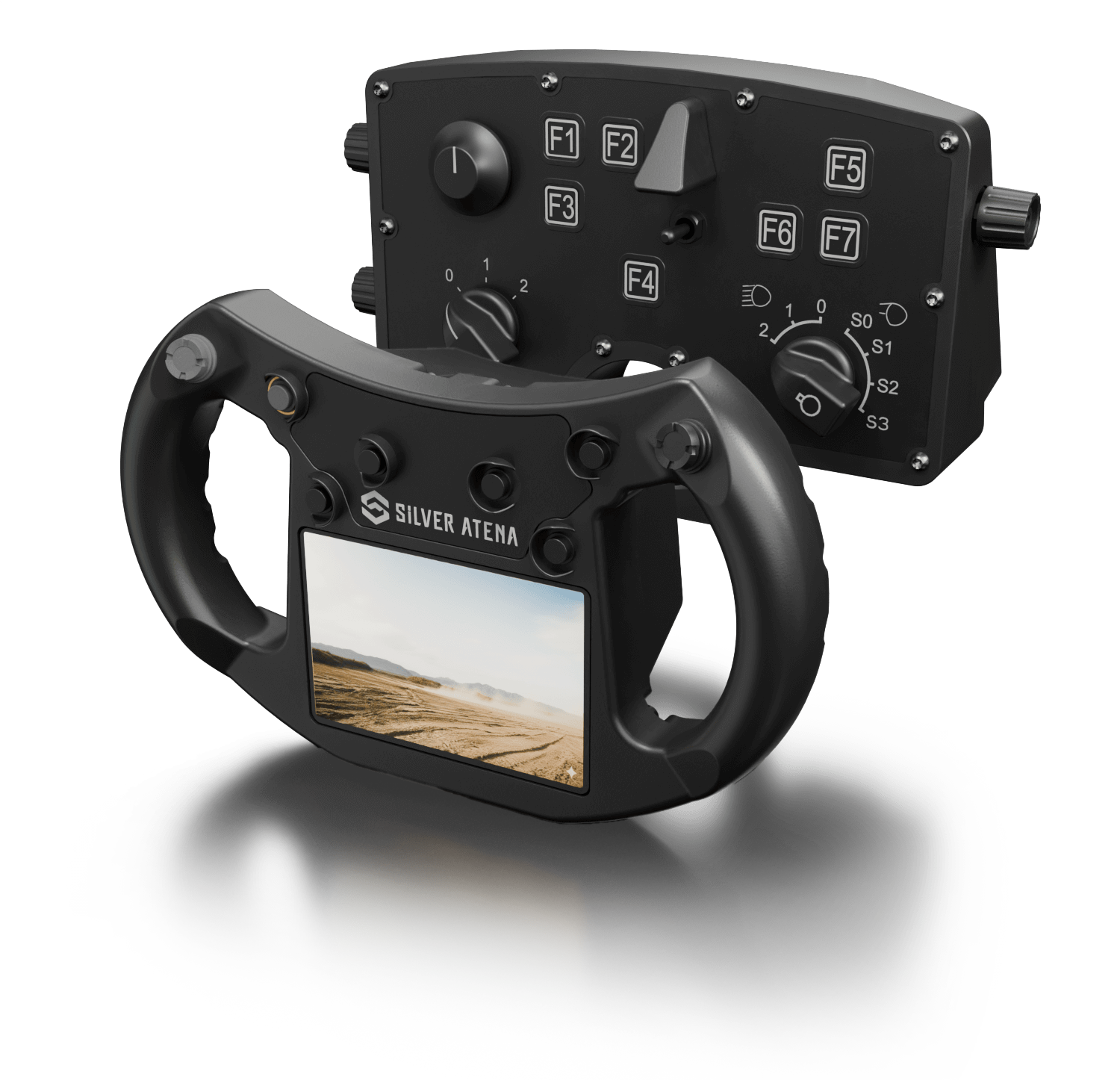

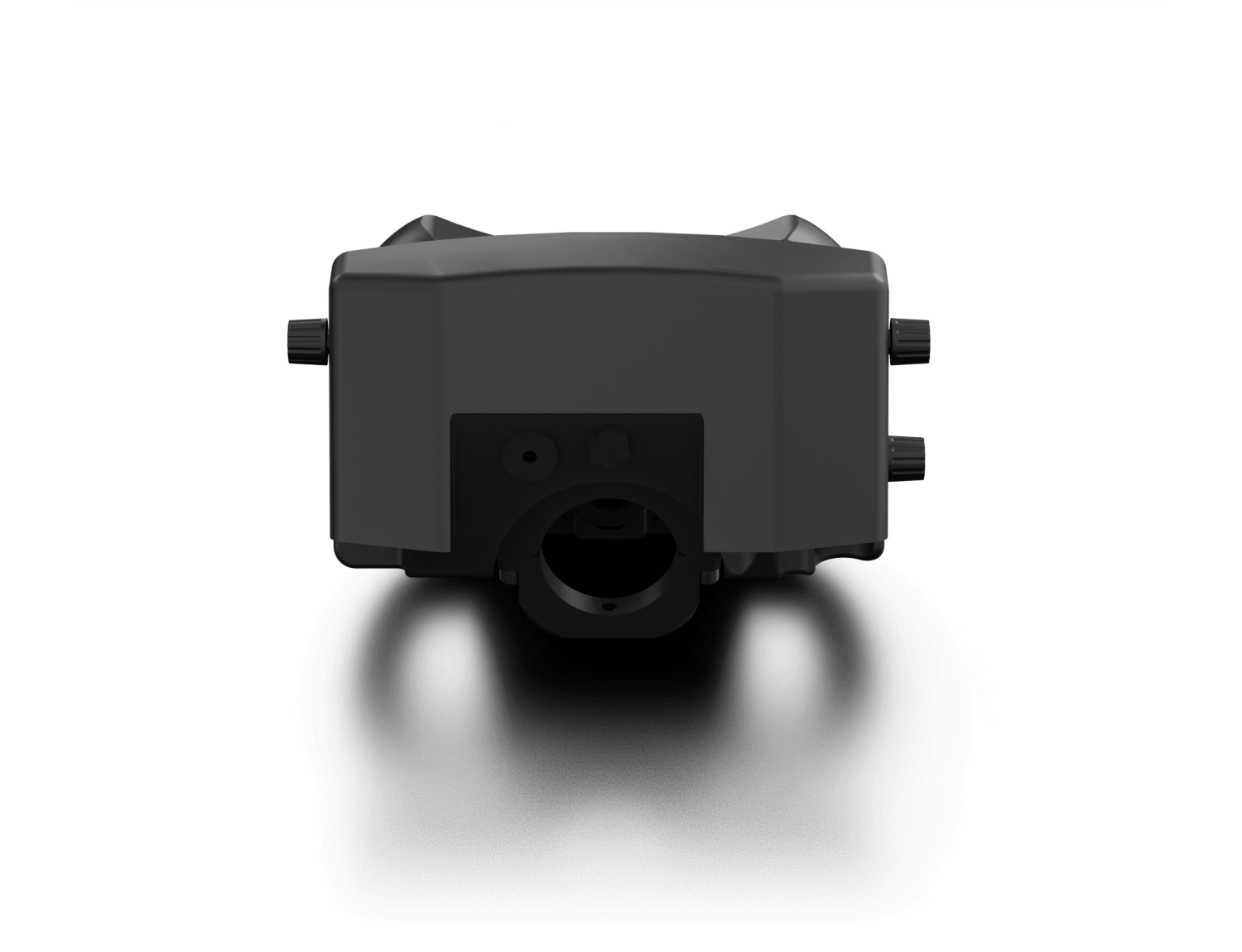

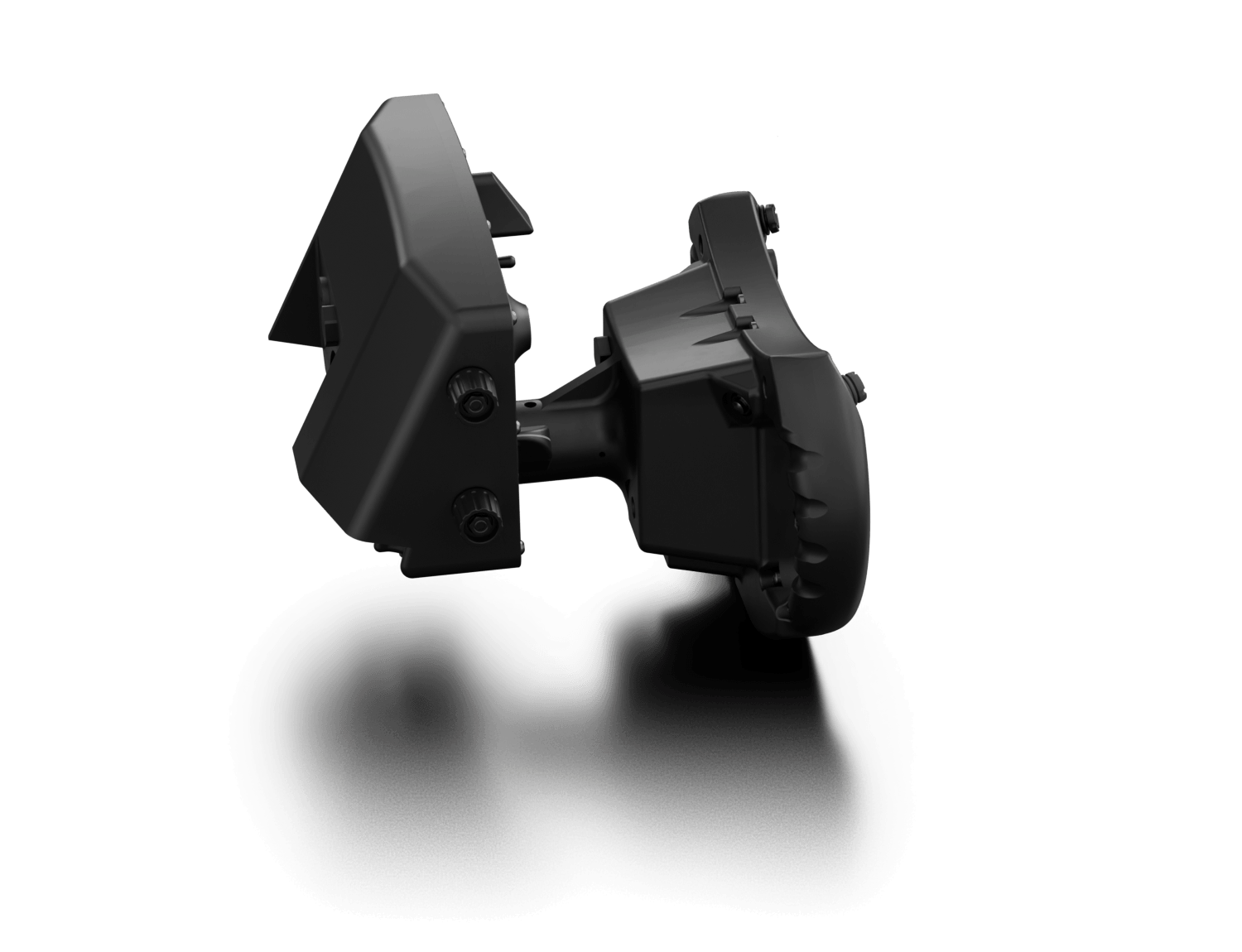

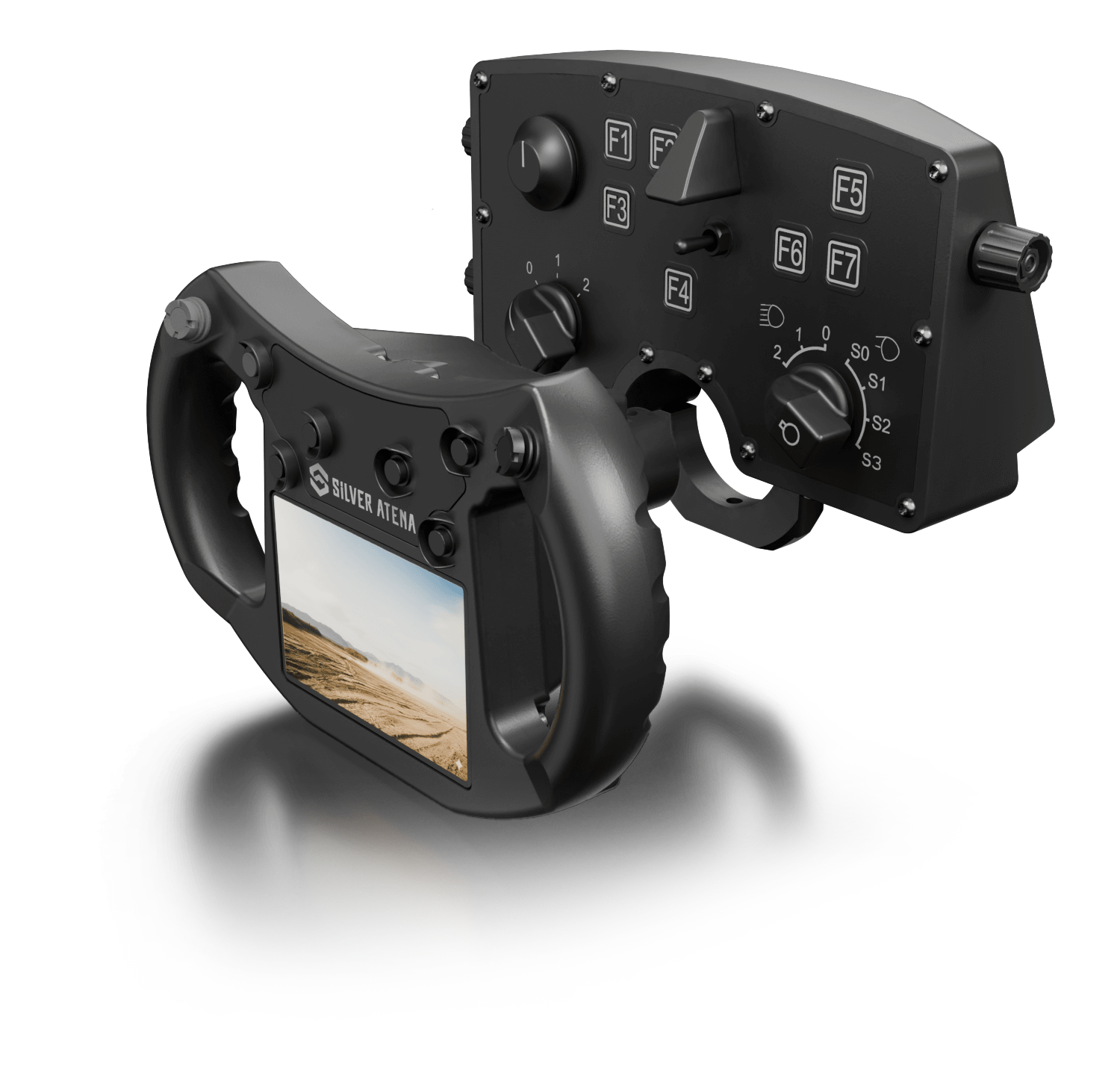

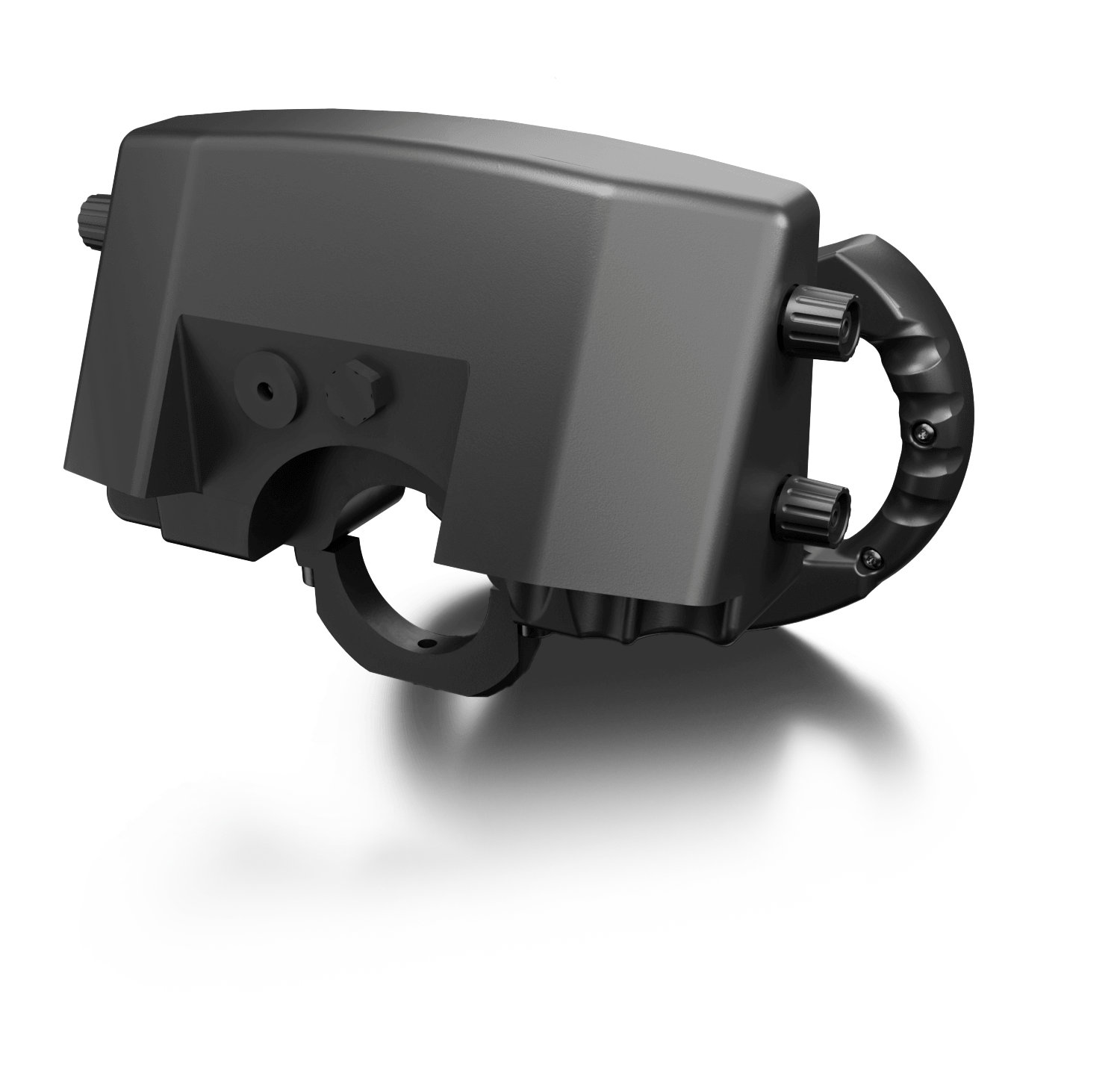

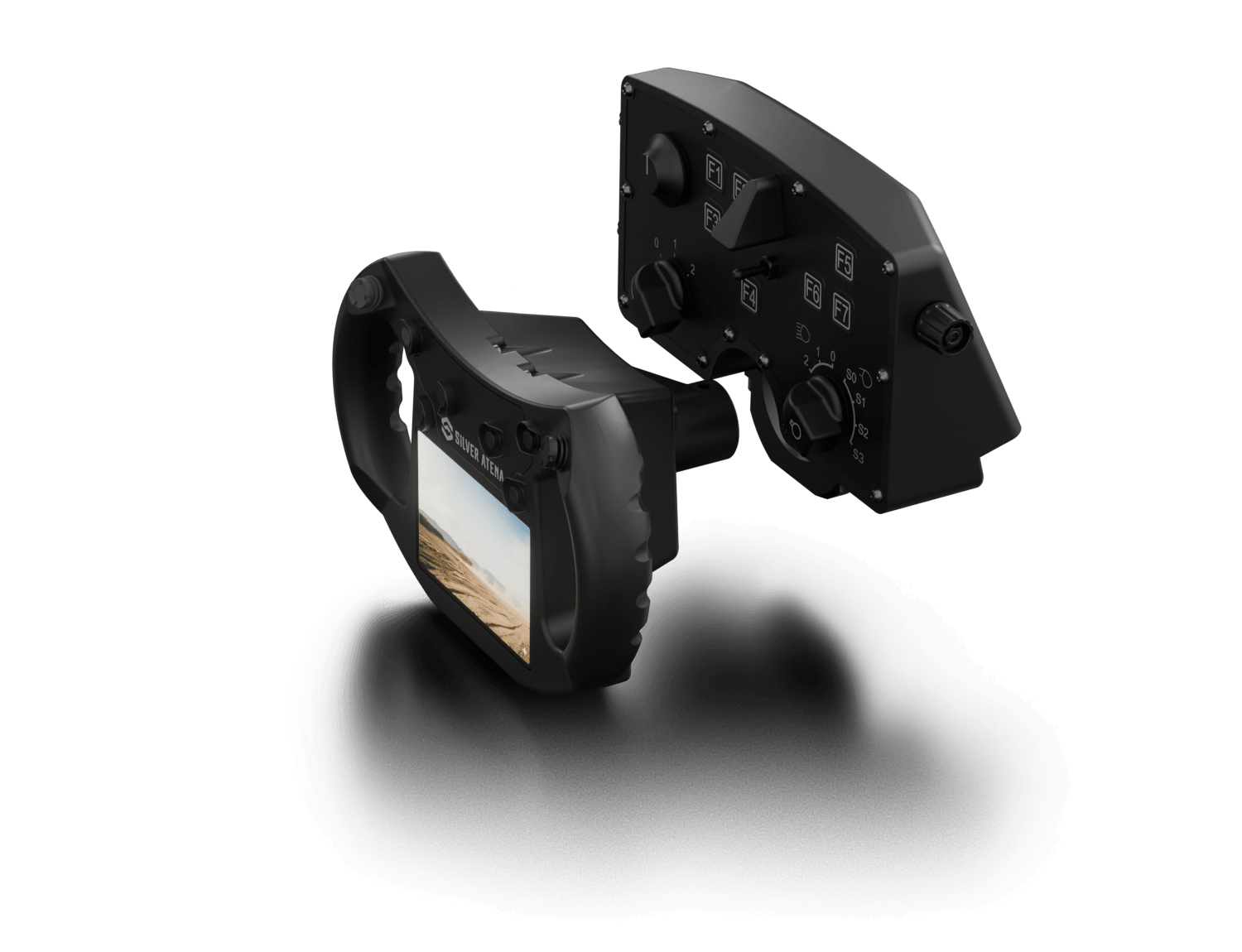

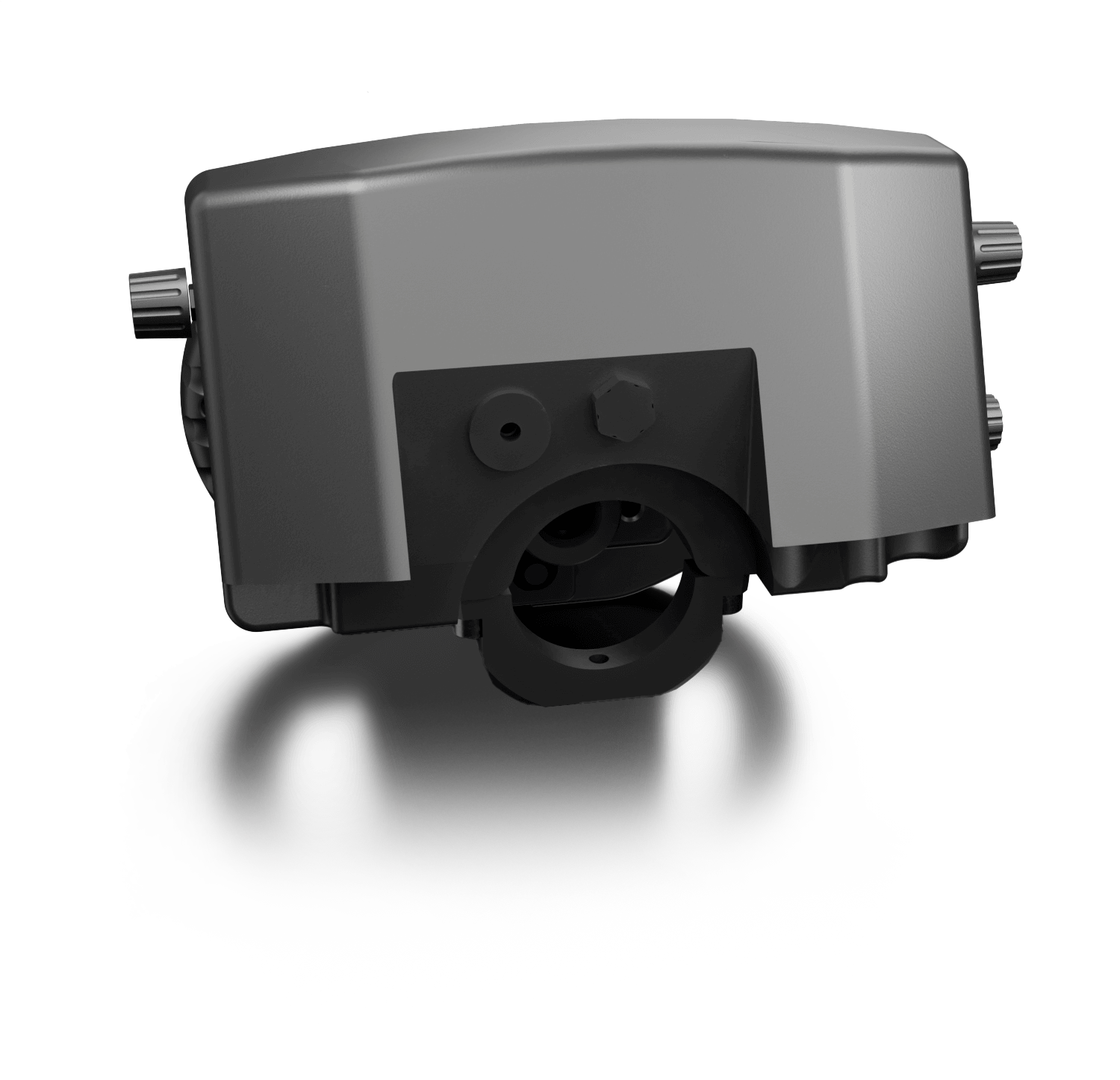

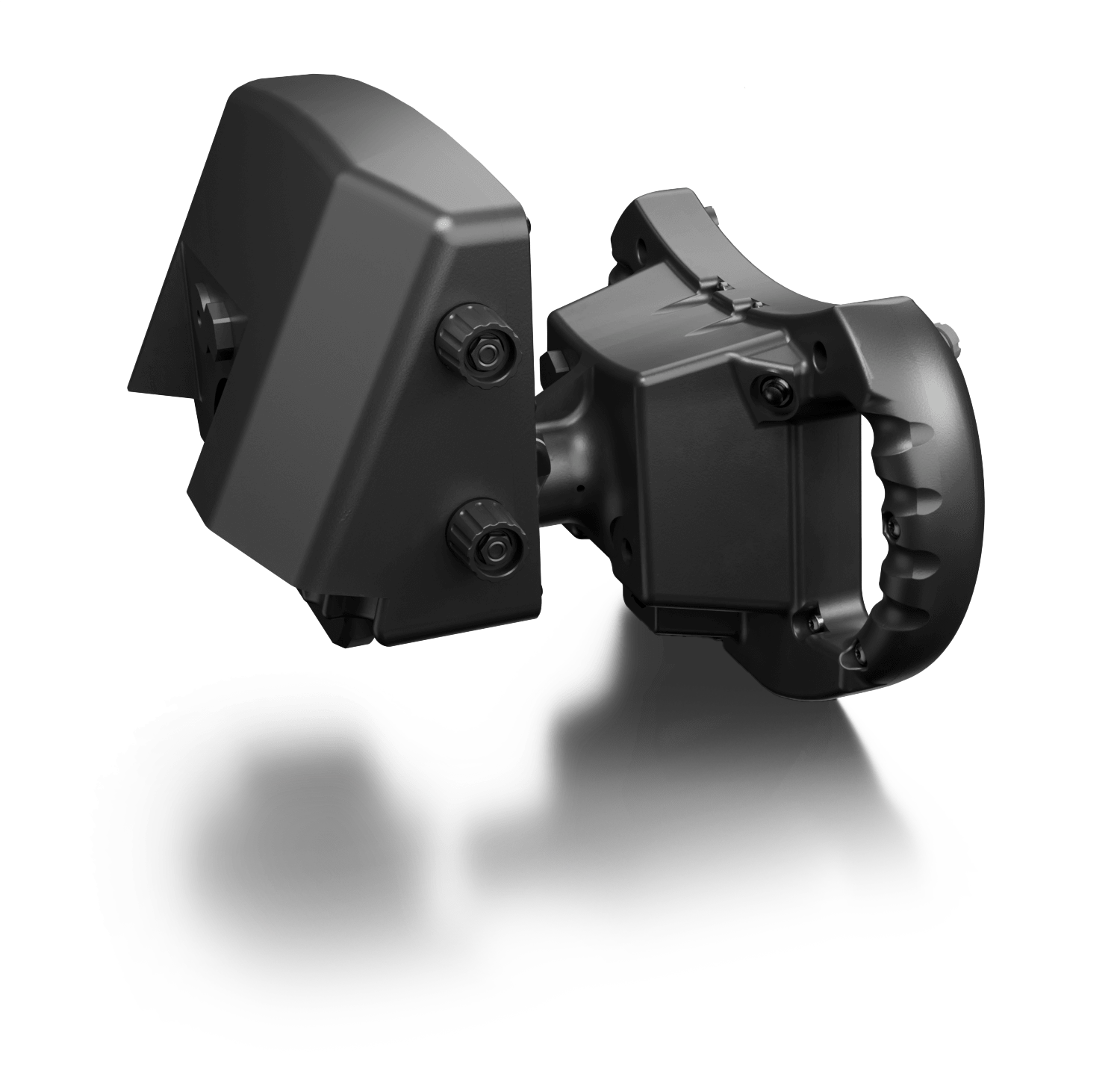

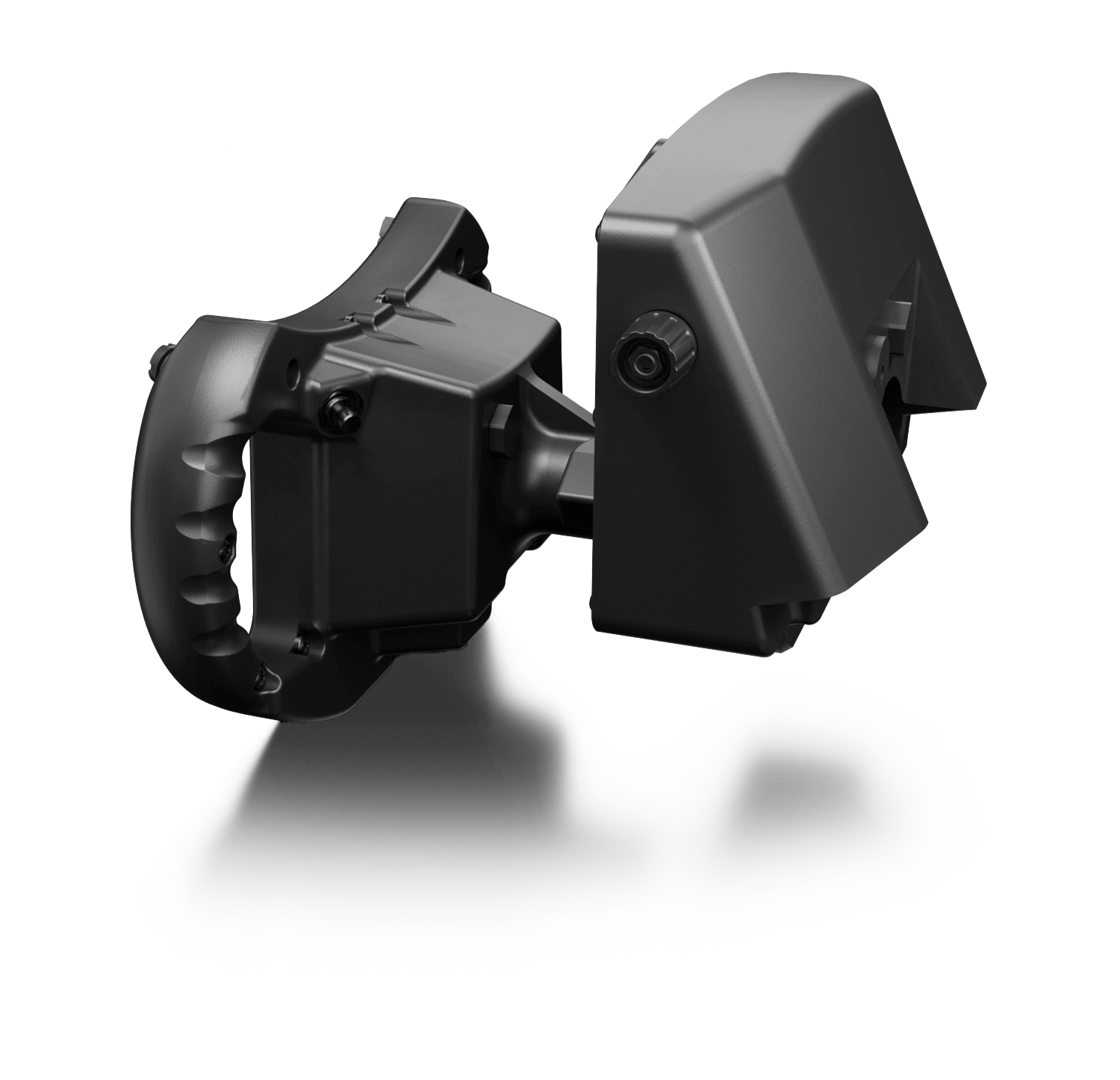

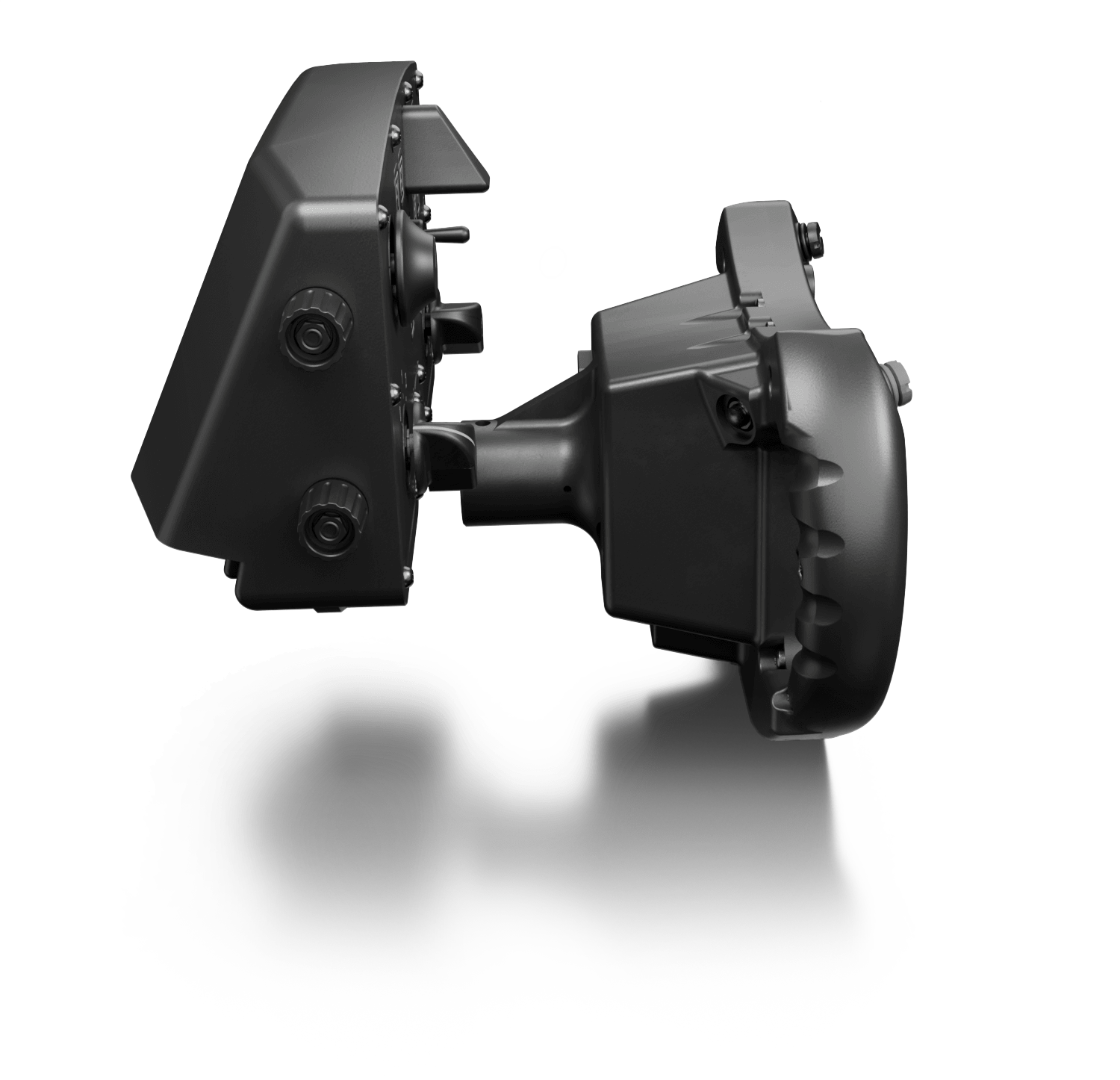

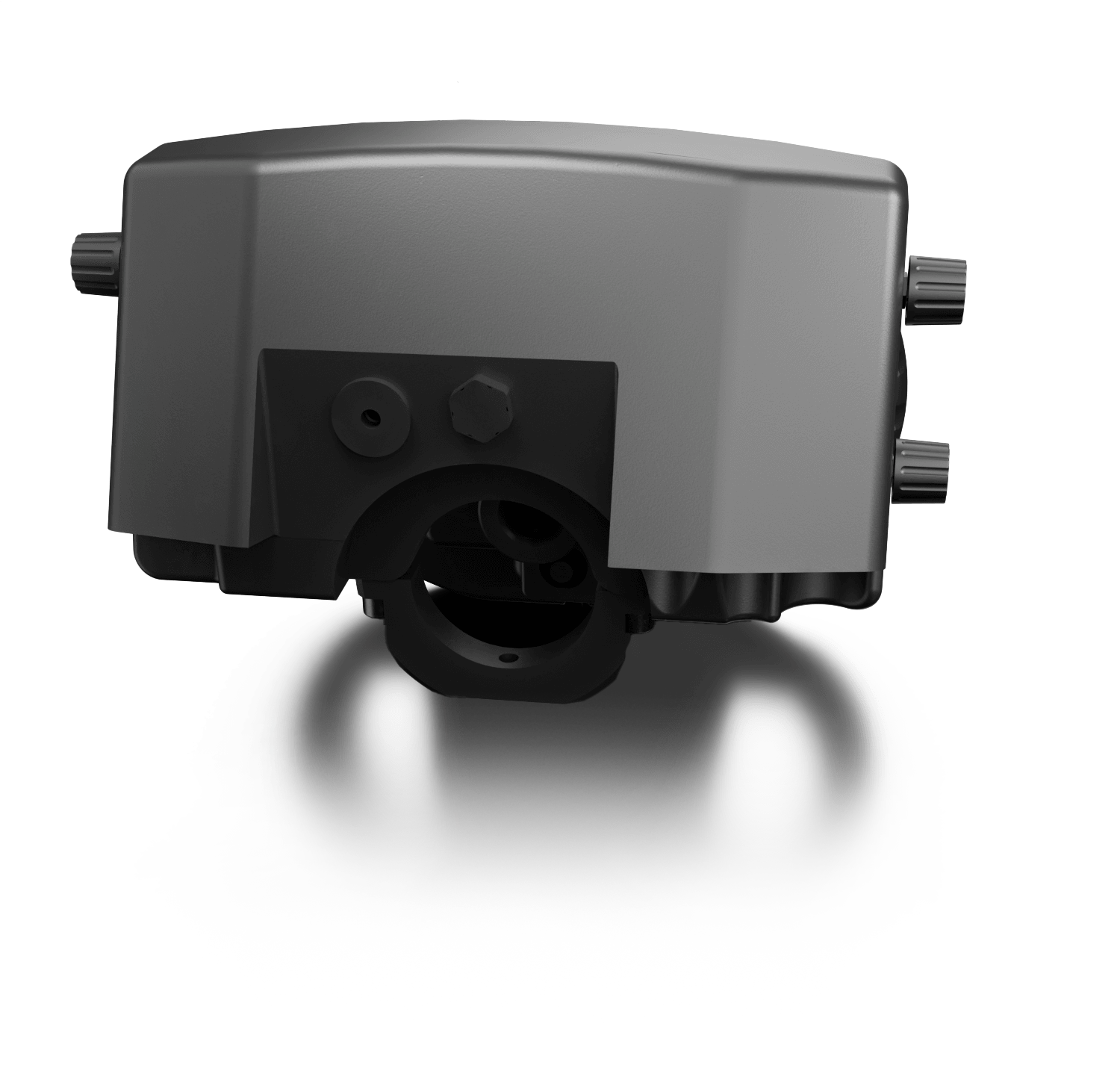

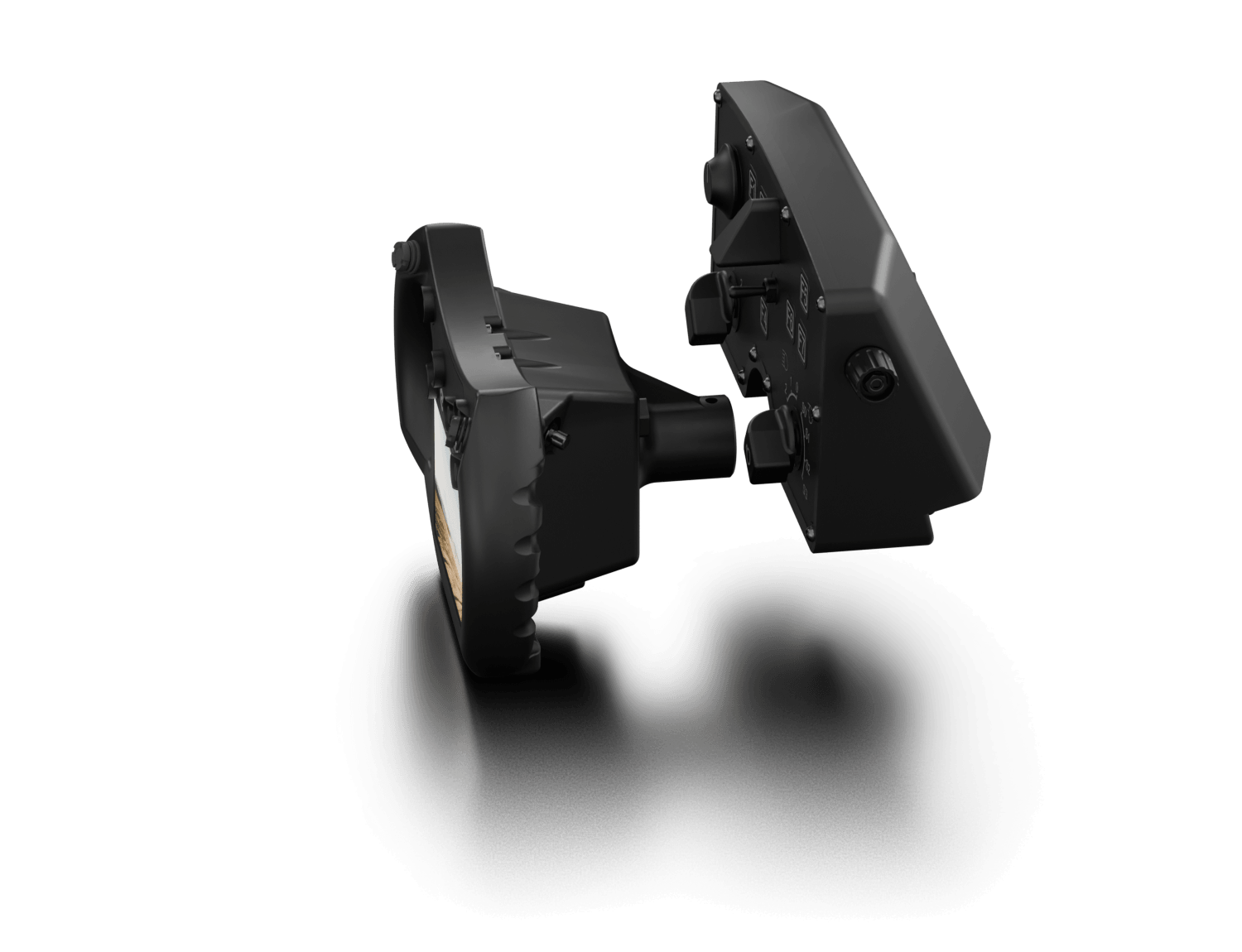

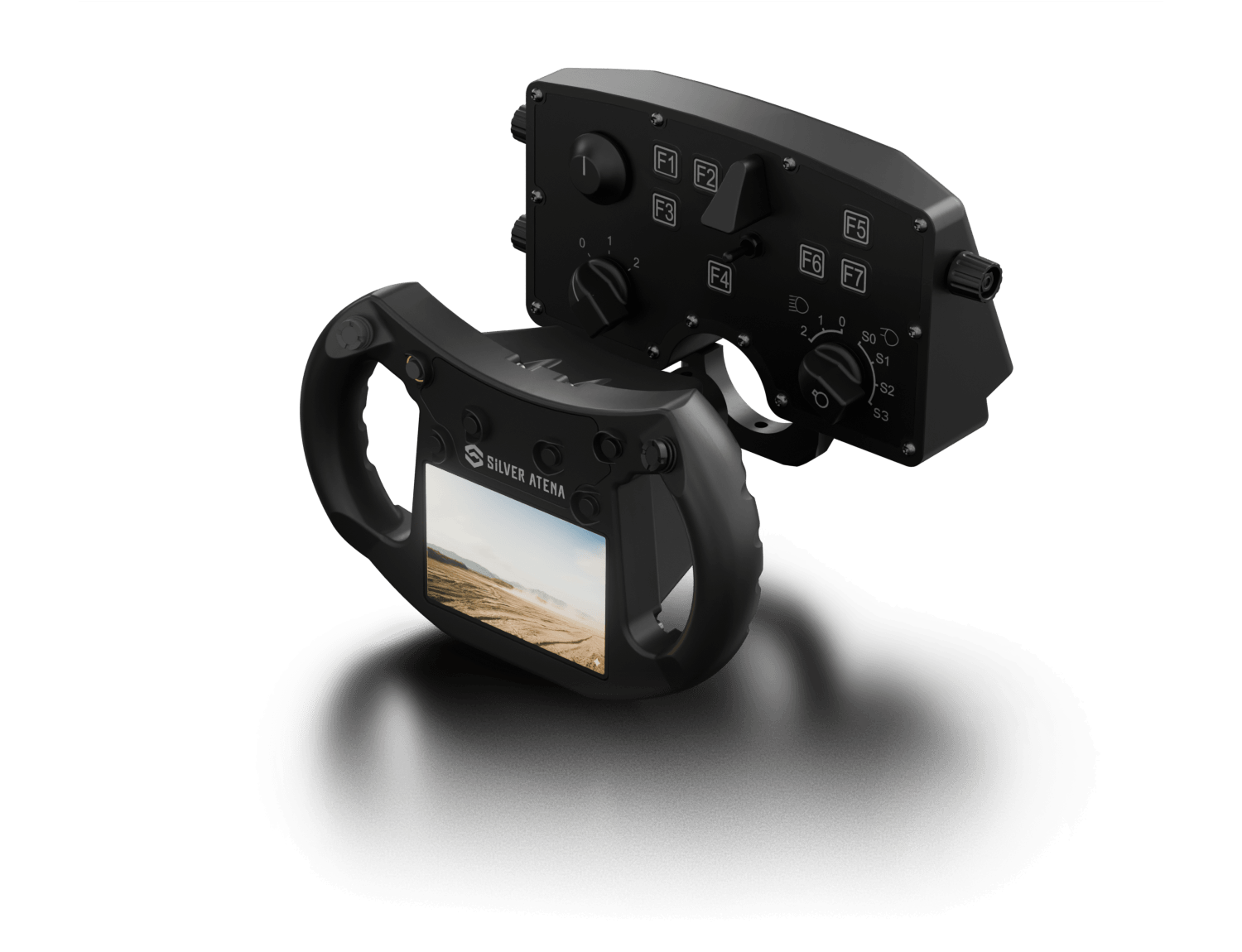

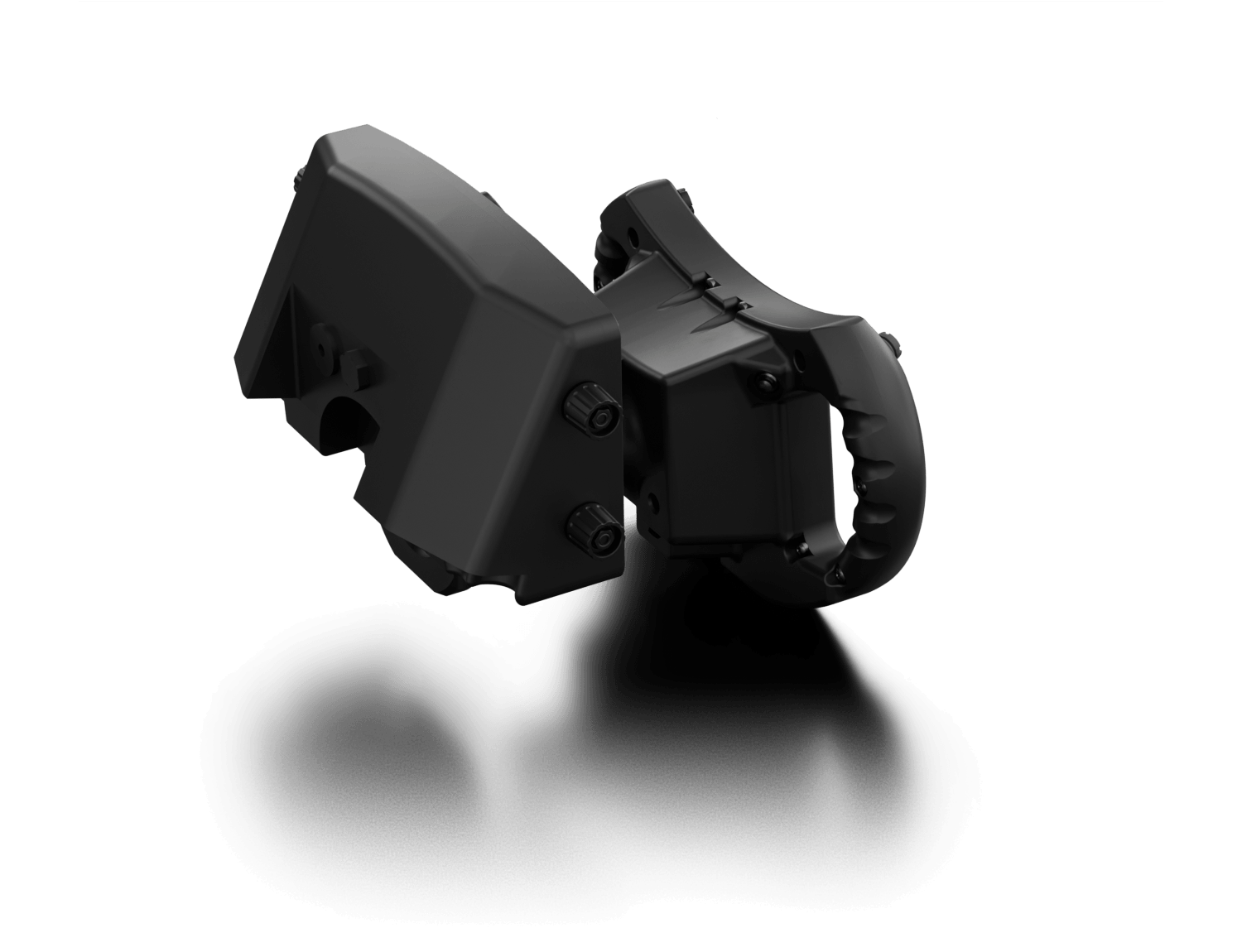

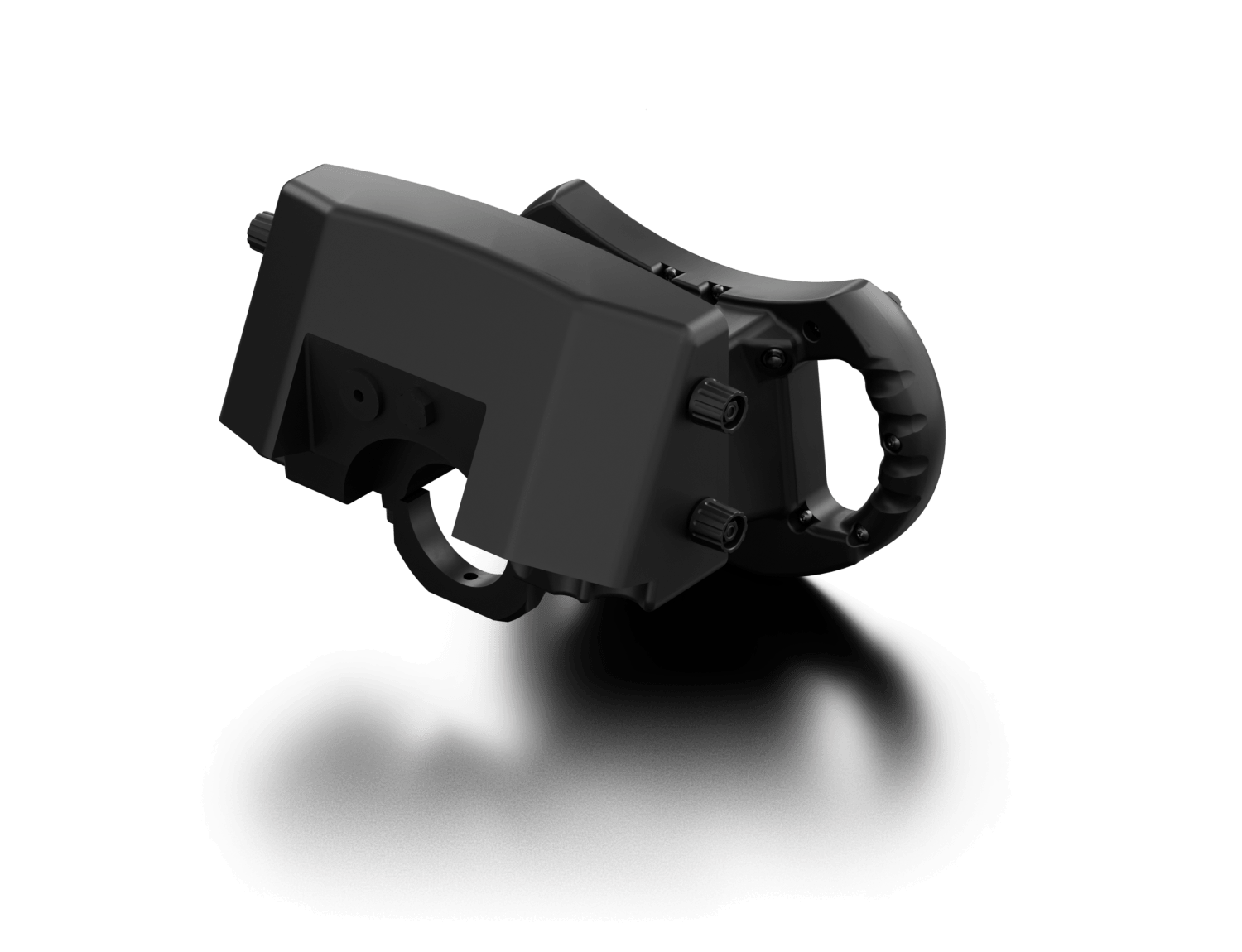

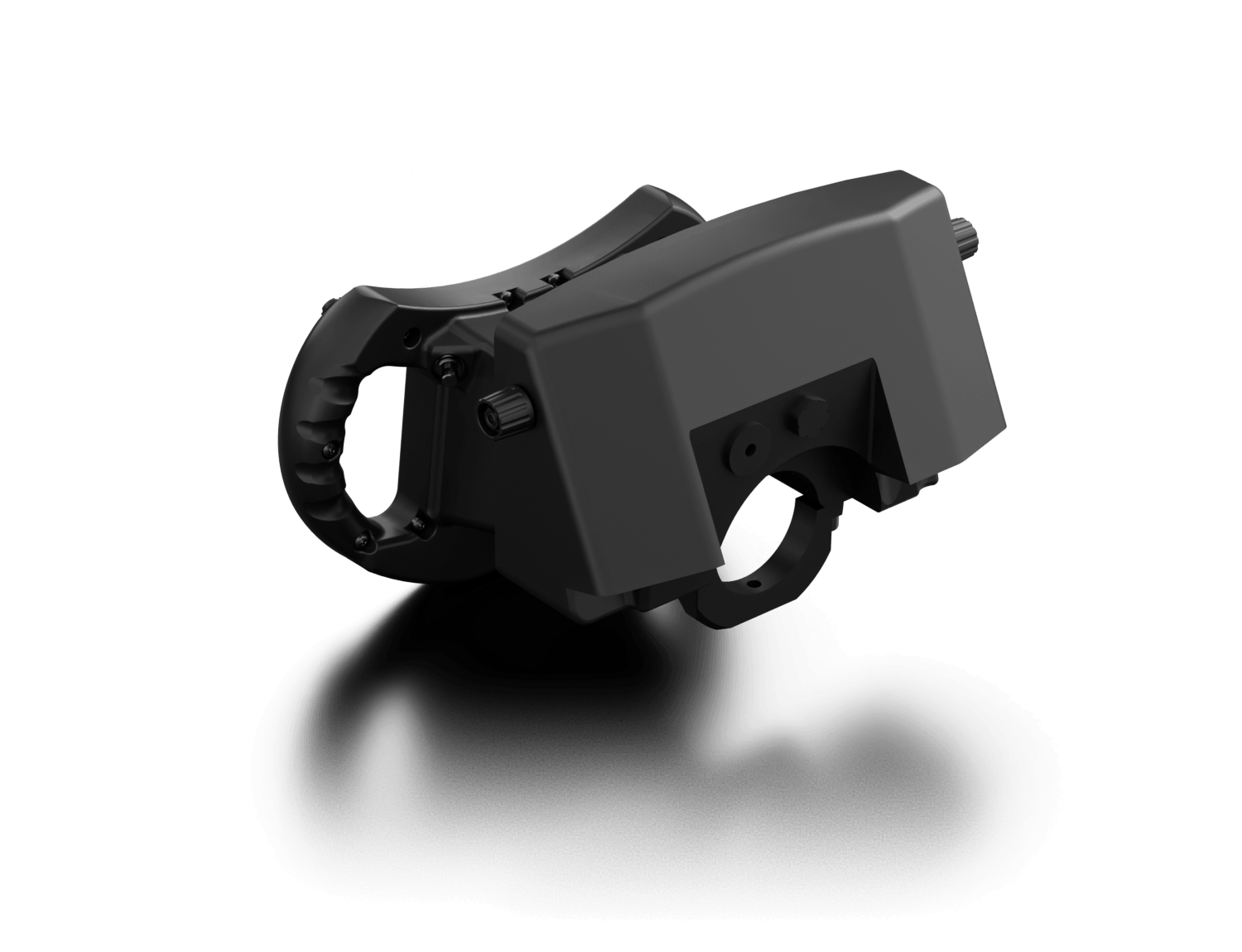

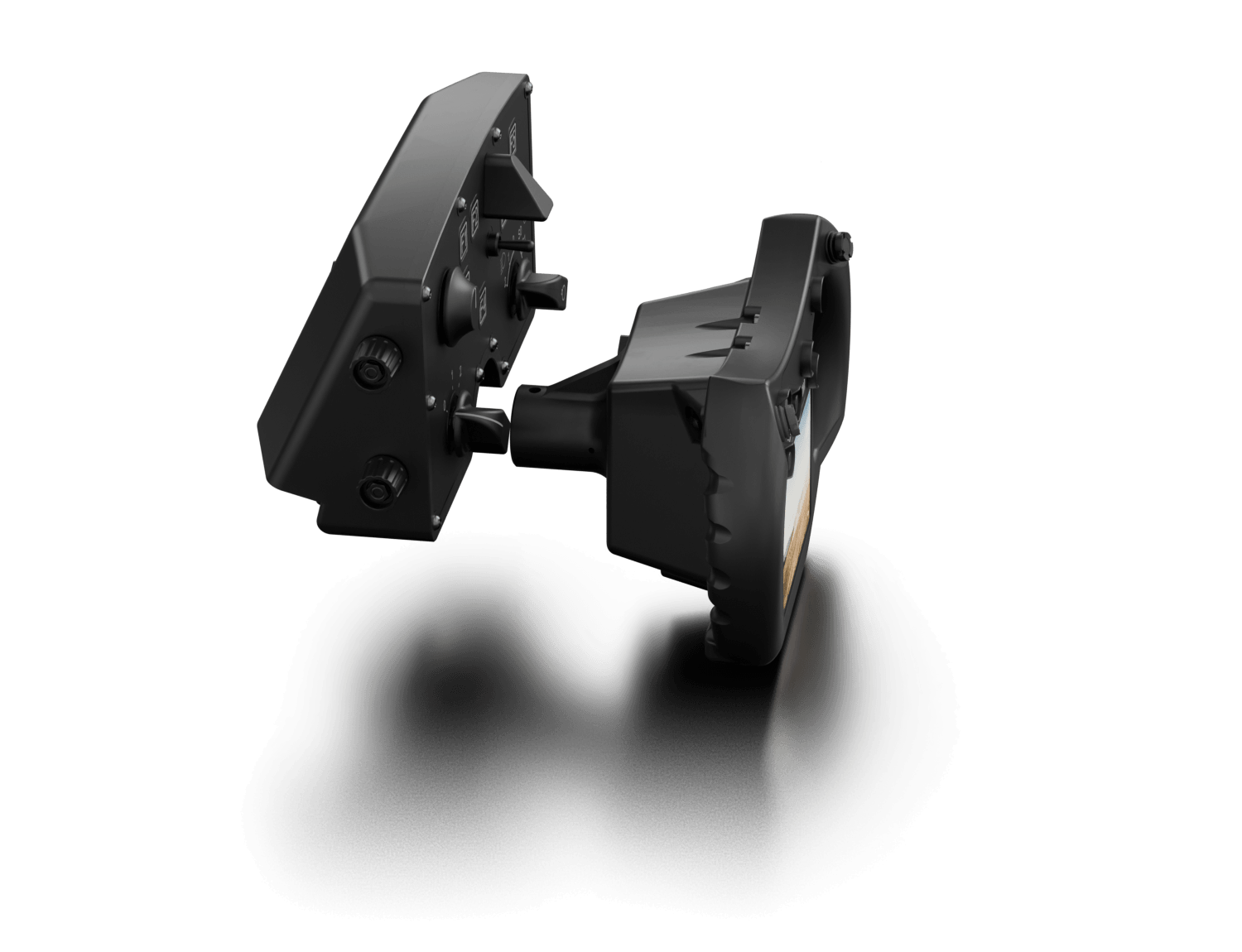

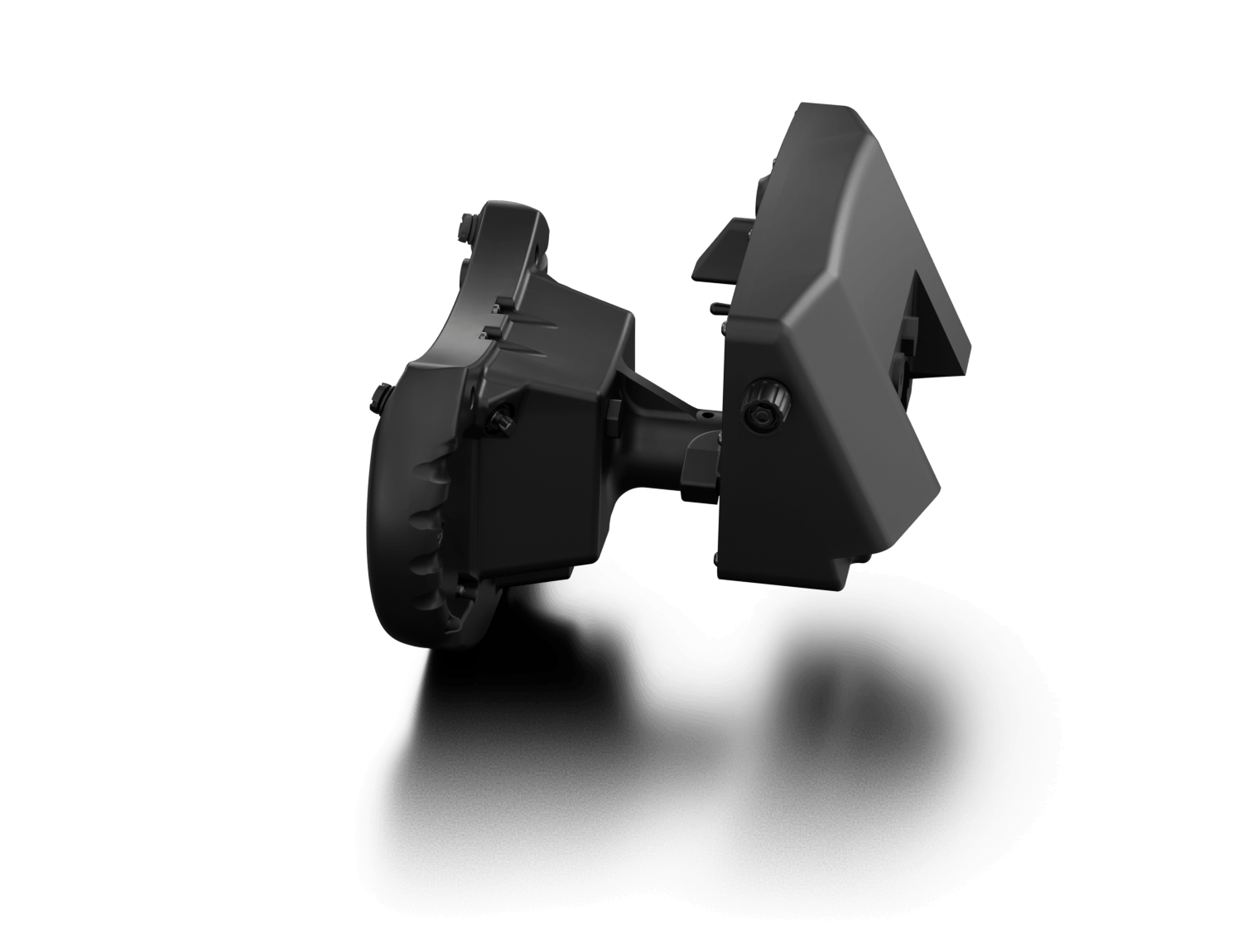

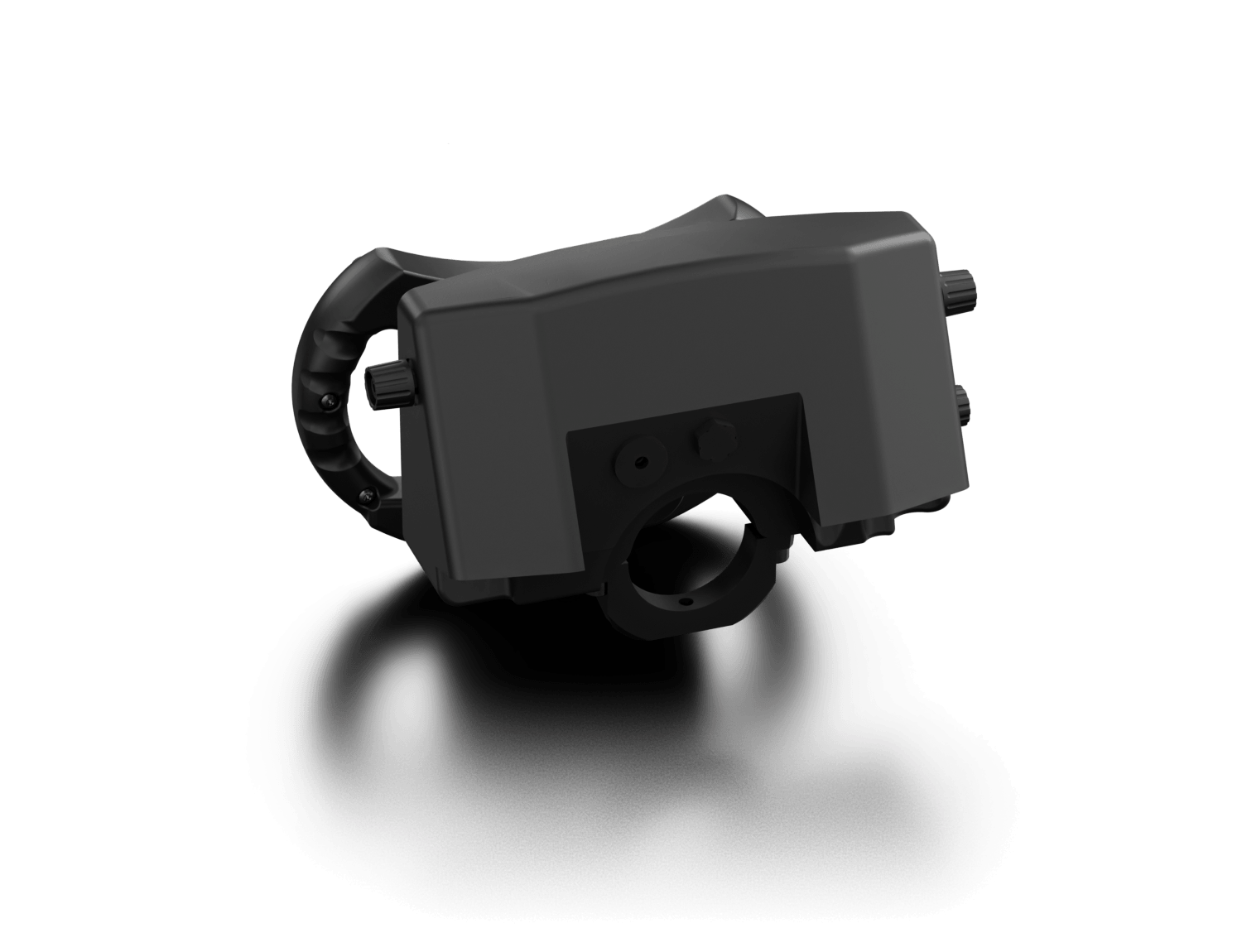

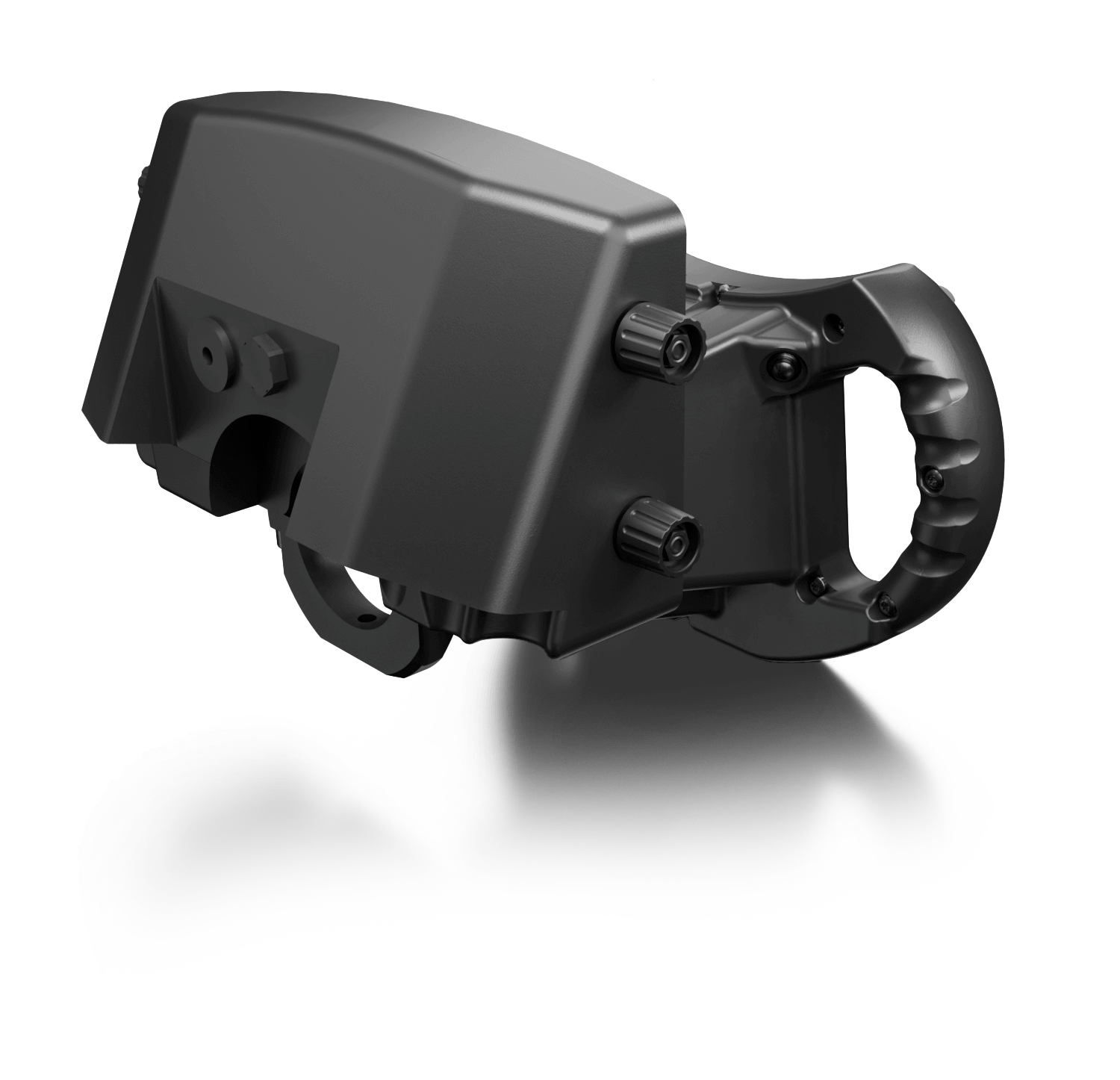

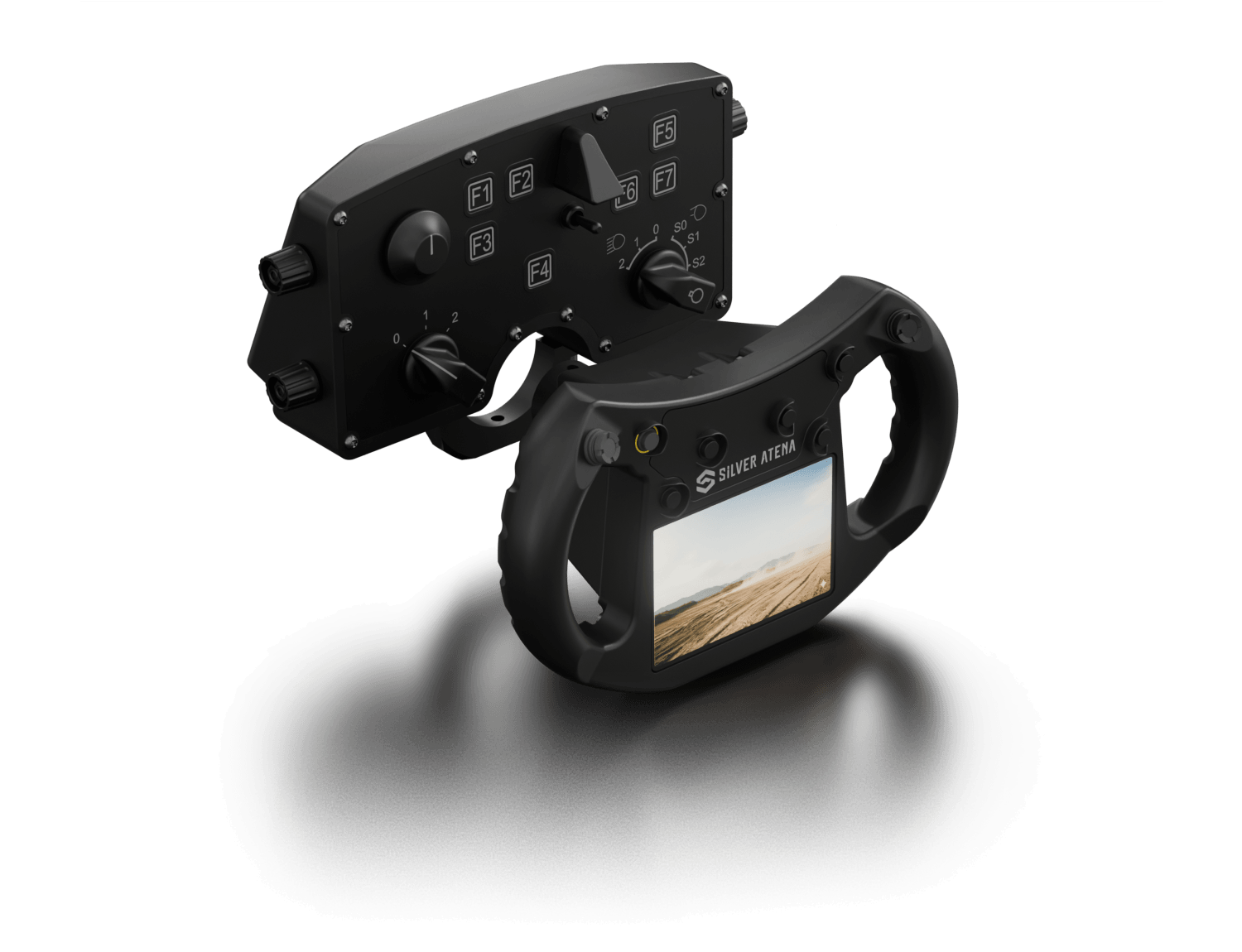

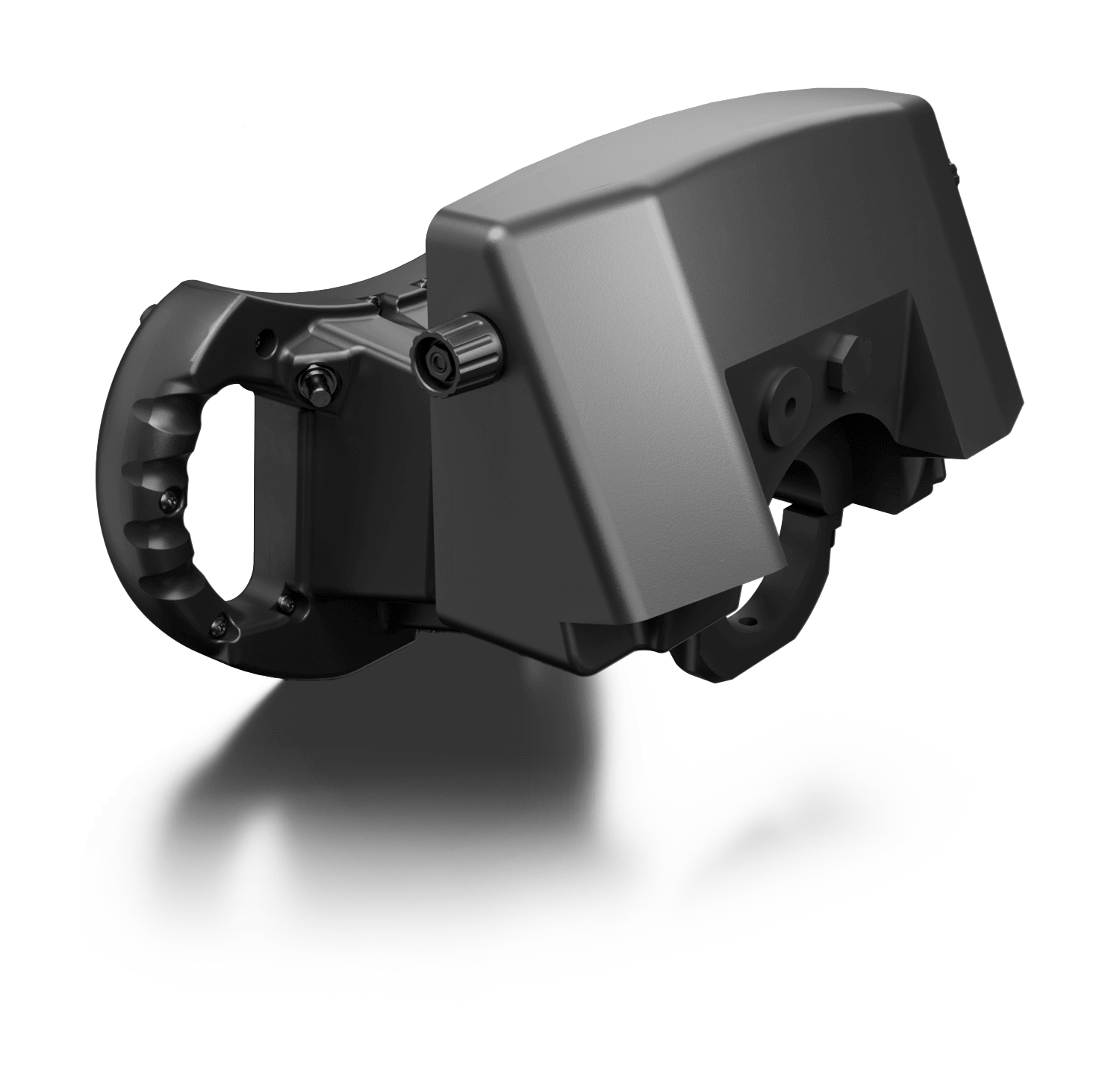

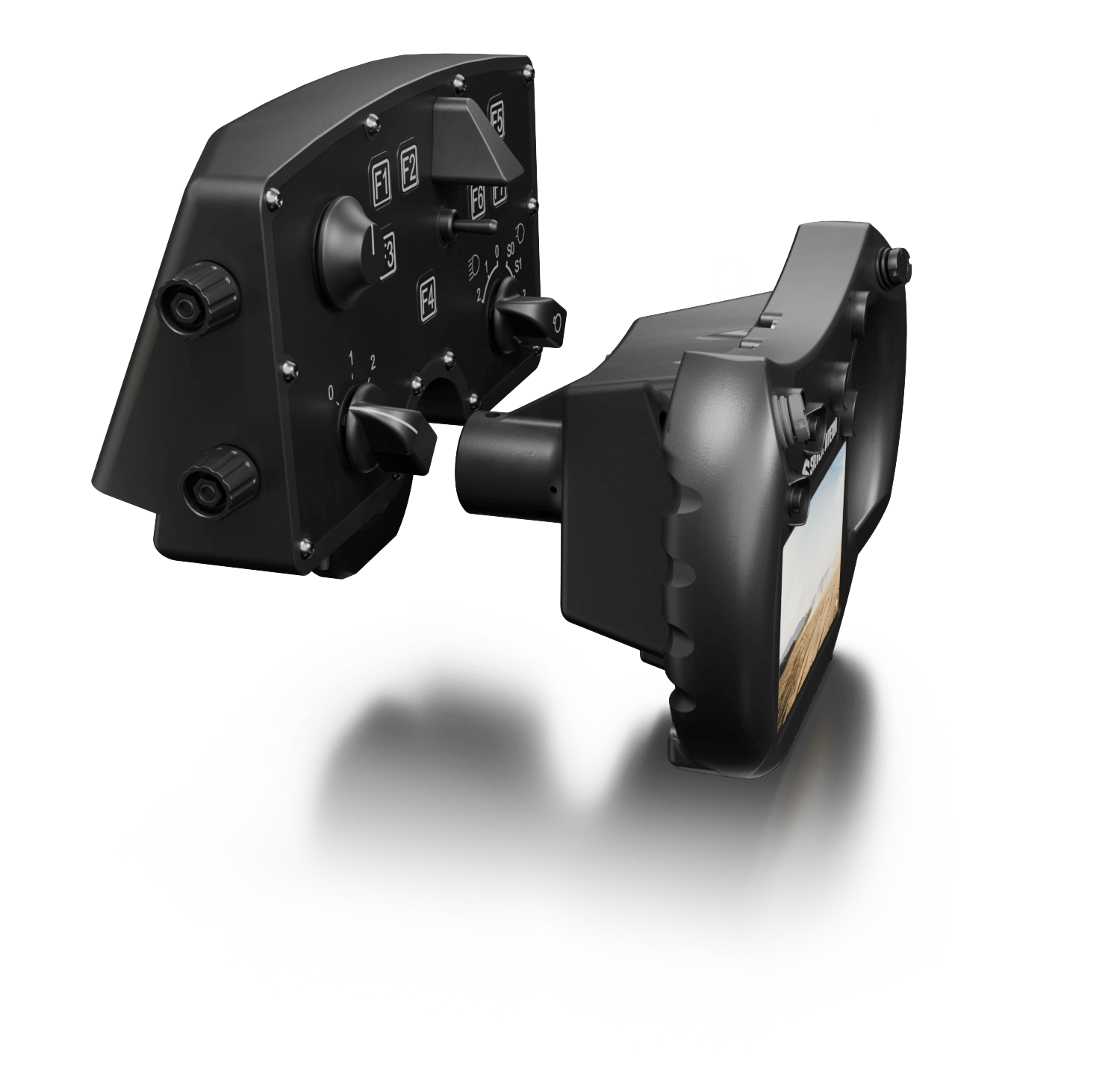

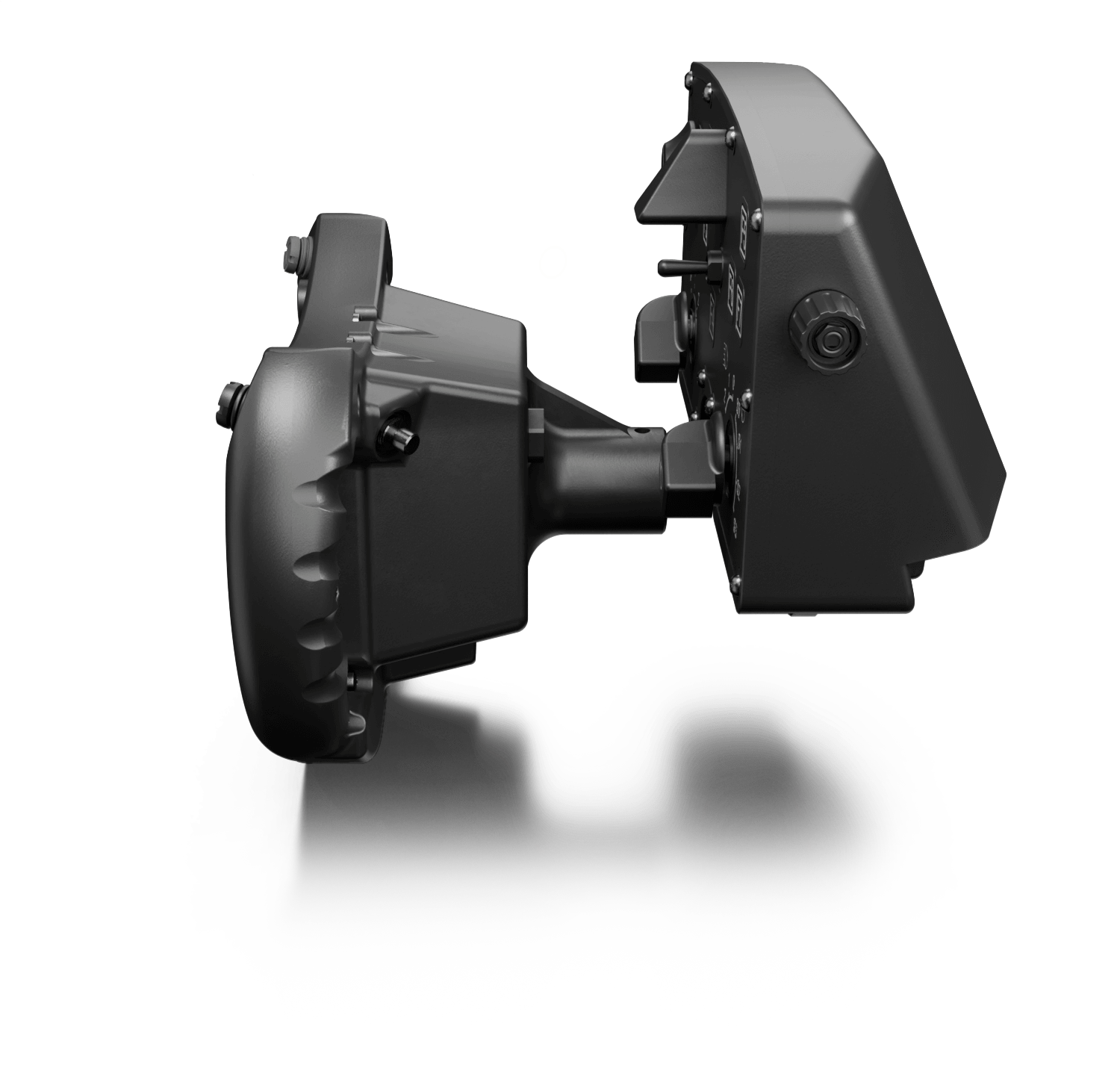

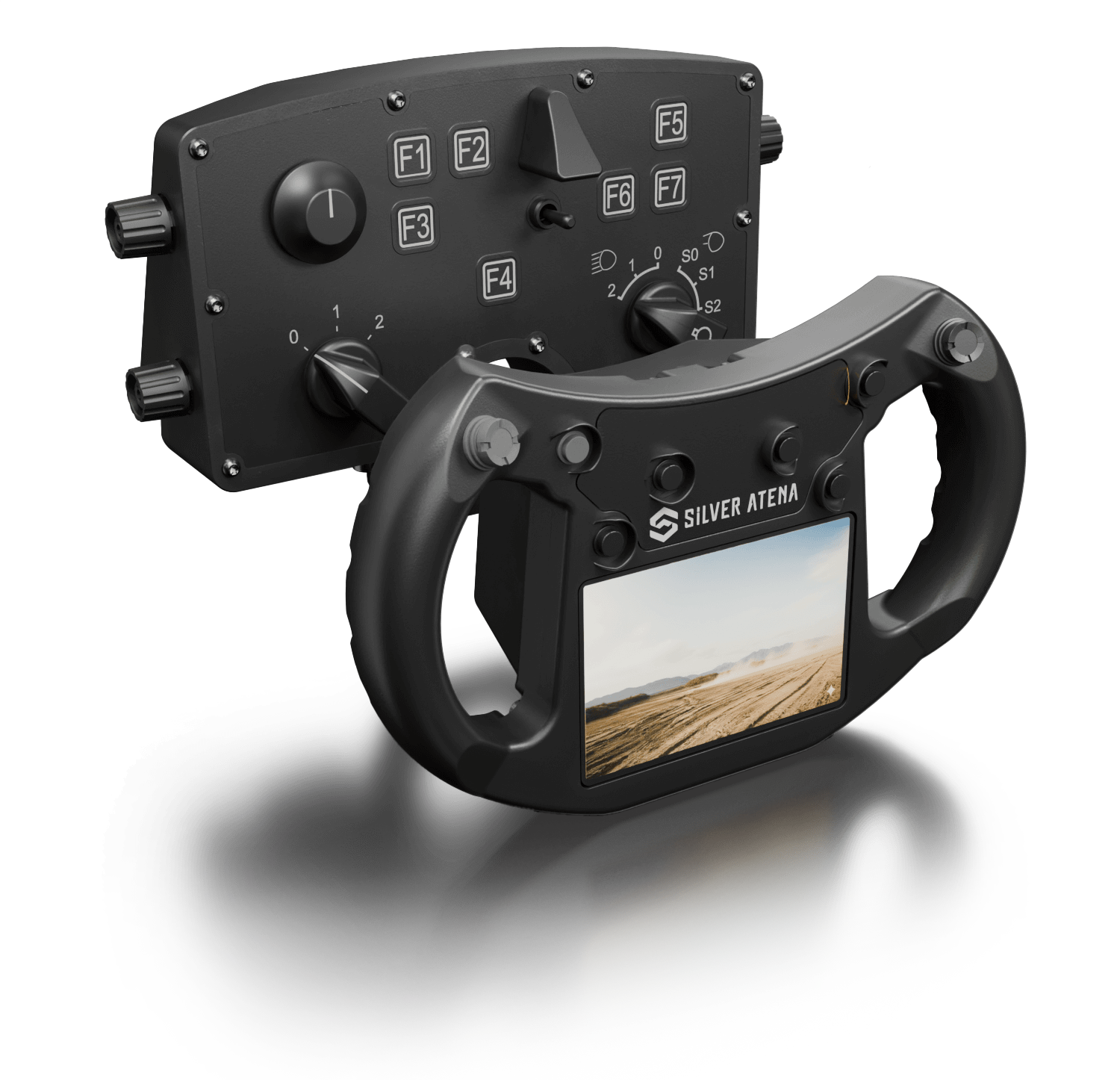

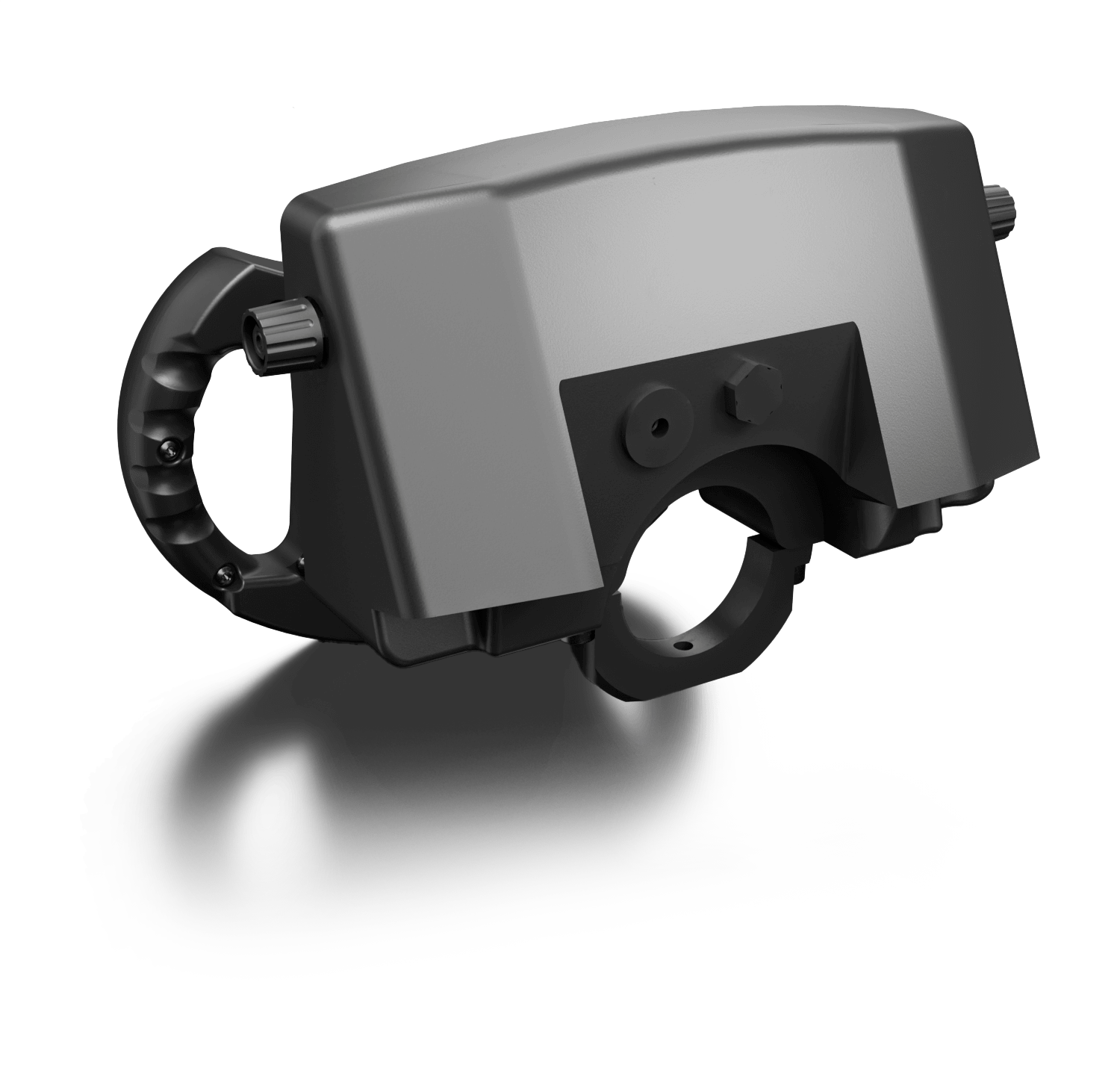

The Central Control Unit in 3D-View
Please click on the image to activate the 360˚ view.
Specifications
- Display: 4.3" LED WQVGA (480x272; Format: 16:9)
- Contrast: 600:1; Brightness: 1100 cd/m2
- Control elements: 10 function pushbuttons, rotary encoder, rotary switch, membrane keypad, toggle switch, 2 directional pads
- Power supply: 10…32 VDC, nominal 28 VDC
- Dimensions [WxHxD]: 269 x 169 x 155 mm
- Operating temperature range: -46 °C to 63 °C acc. to MIL
- Protection class: IP65
- Certification: MIL-STD810E, VG95373, VG96916-5
- Interfaces: MilCAN, Debug RS232
Application Areas
The central control unit is optimized for use in military vehicles.
Advantages of the Central Control Unit
- Extremely rugged design: Specially developed for maximum resistance to dust, vibration, moisture, and mechanical stress in the field.
- Reliable operation in extreme temperatures: Extended temperature range guarantees full operational readiness in arctic or desert-like conditions.
- High durability and minimal maintenance: Designed for continuous operation in demanding tactical environments with reduced service intervals.
- Ergonomic operation in the field: Safe and precise operation even in winter temperatures or when wearing tactical gloves.
- Customer-configurable: Adaptable to different military vehicle types, communication systems, and operational scenarios.
- Certified according to MIL standards: Meets the strict requirements of military specifications (e.g., MIL-STD-810) for ruggedness, shock resistance, and reliability.
Why choose our central control unit?
The central control unit was specifically developed as an operating interface for military vehicles and meets the highest military requirements as well as relevant MIL standards.
By combining individual development requirements with state-of-the-art technology, a robust and reliable control concept was created that ensures maximum operational safety even under extreme military deployment conditions.
The control elements are characterized by their high durability, precise operation, and long service life – making them ideal for use in armored vehicles, special-purpose vehicles, and other military applications.
Why Silver Atena?
Silver Atena is the ideal partner for the development of safety-relevant electronics, with many years of experience in supplying robust, fail-safe components for military applications.
Its products meet the highest standards of reliability, environmental resistance, and usability – even under extreme conditions.
With certified quality according to MIL standards and great flexibility along the entire value chain, Silver Atena offers extensive experience in developing customized solutions for different vehicle types and user needs.
