Electric Power Take-Off (ePTO)

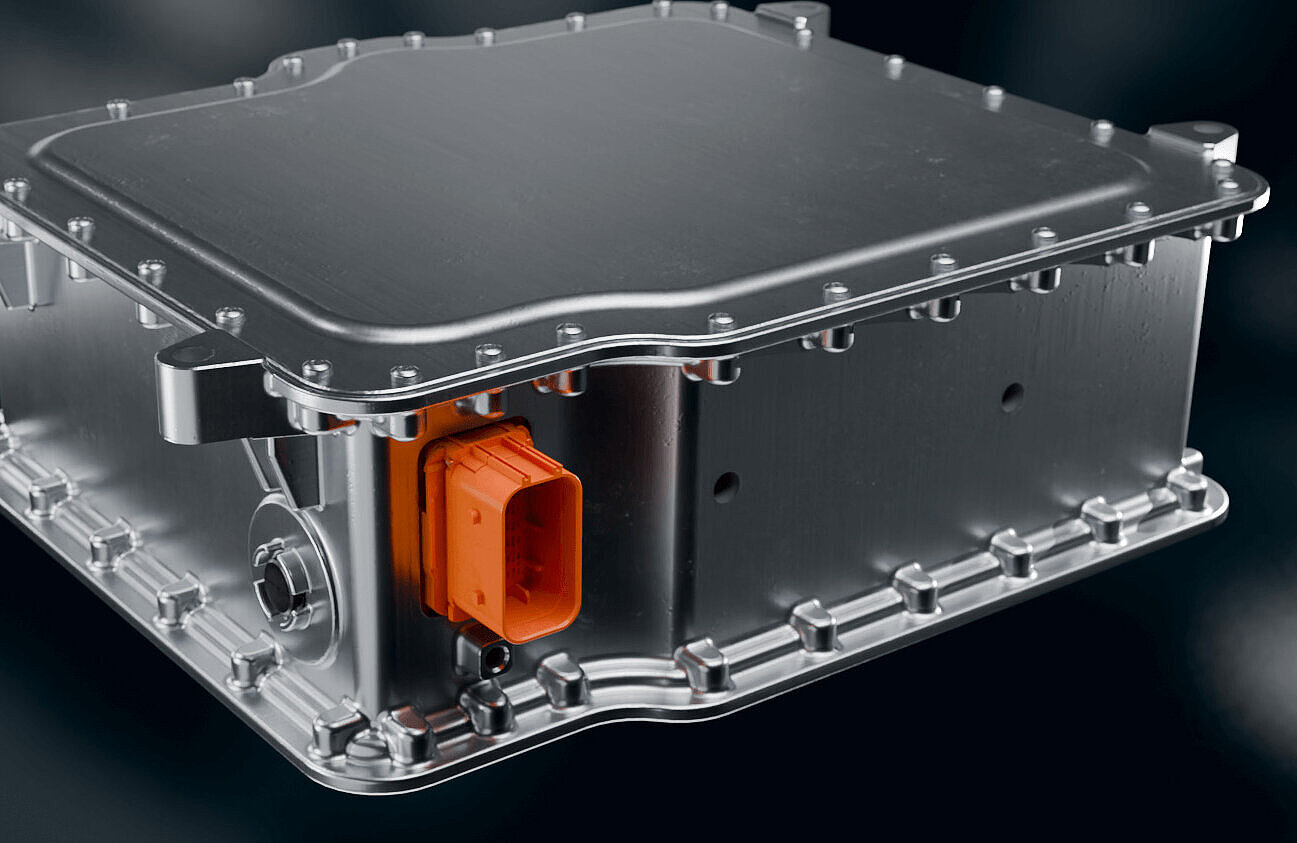

What is an electric Power Take-Off (ePTO)?
Electrification opens up completely new possibilities for the efficient design of various electrical and mechatronic applications in commercial vehicles.
With Silver Atena's ePTO auxiliary units can take electrical energy from the vehicle's on-board electrical system and use it for various additional functions.

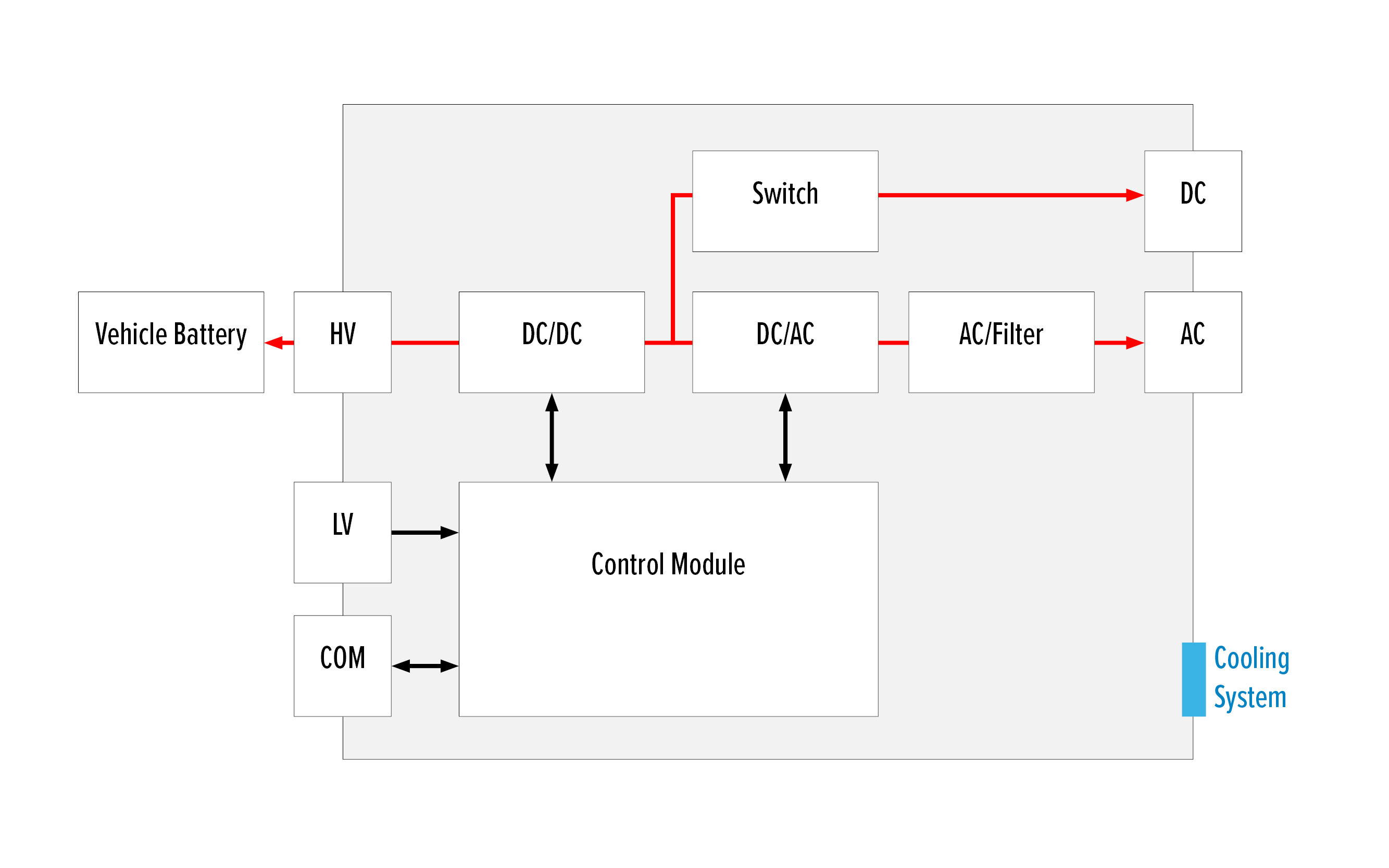

It forms the bridge between the vehicle's HV electrical system and other electrical components. It provides various voltages with high output power for the flexible connection of different loads.
Features
- Regulated AC voltage: EU or NAFTA grid, single-phase and/or three-phase
- Regulated DC power supply to a body load from the HV on-board network
- Regulated power feed from a HV DC body load to the HV on-board network
- Hot-plug capability with high starting currents
- Communication with the vehicle's on-board network management
- Measurement of currents and voltages at the HV body connection
- Safety functions:
overvoltage protection, active discharge, active equalization of the body load, monitoring of the potential connection, insulation monitoring
Applications
Vehicles that use bodies and trailers with independent, high-performance electrical systems.

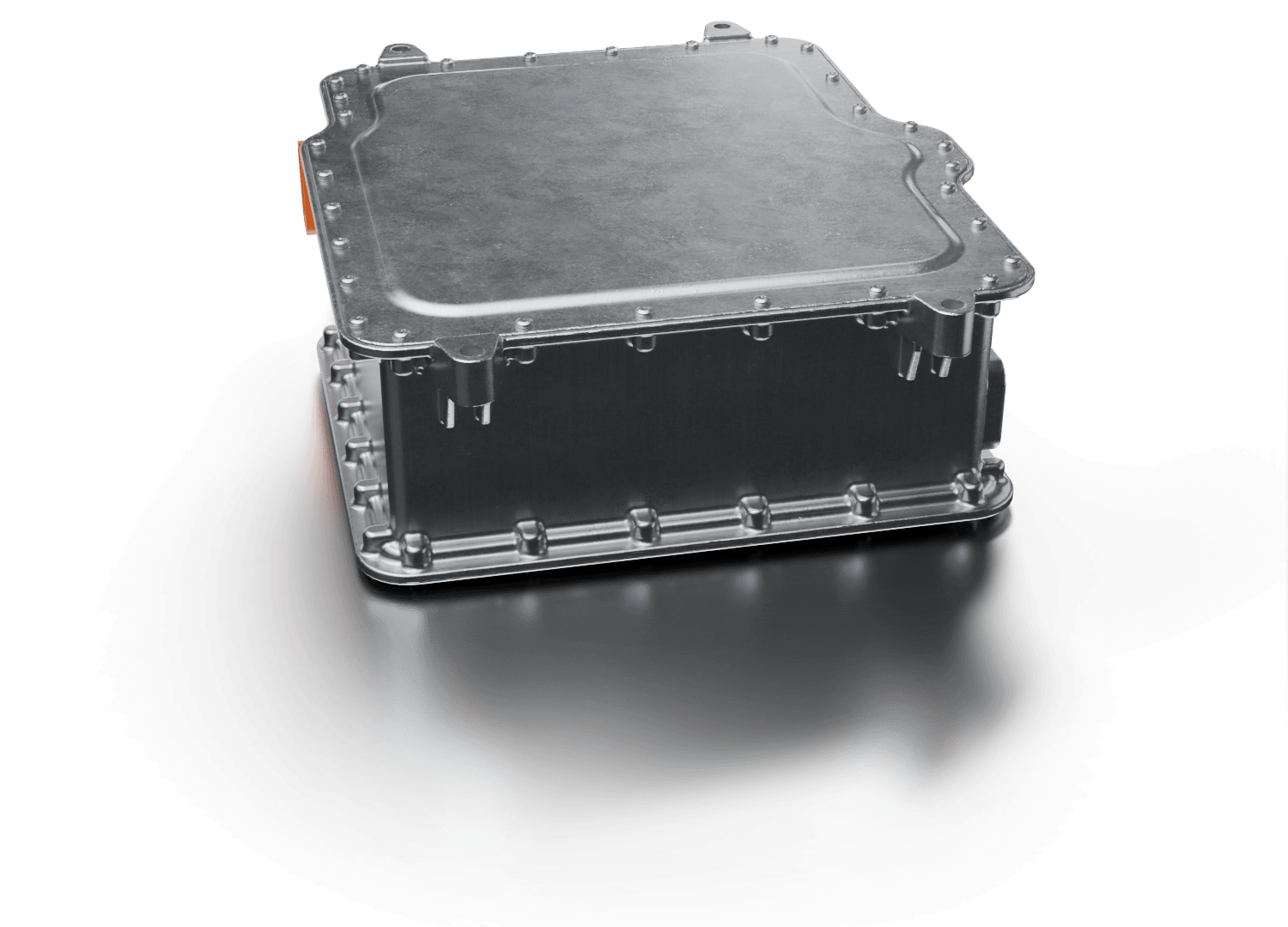

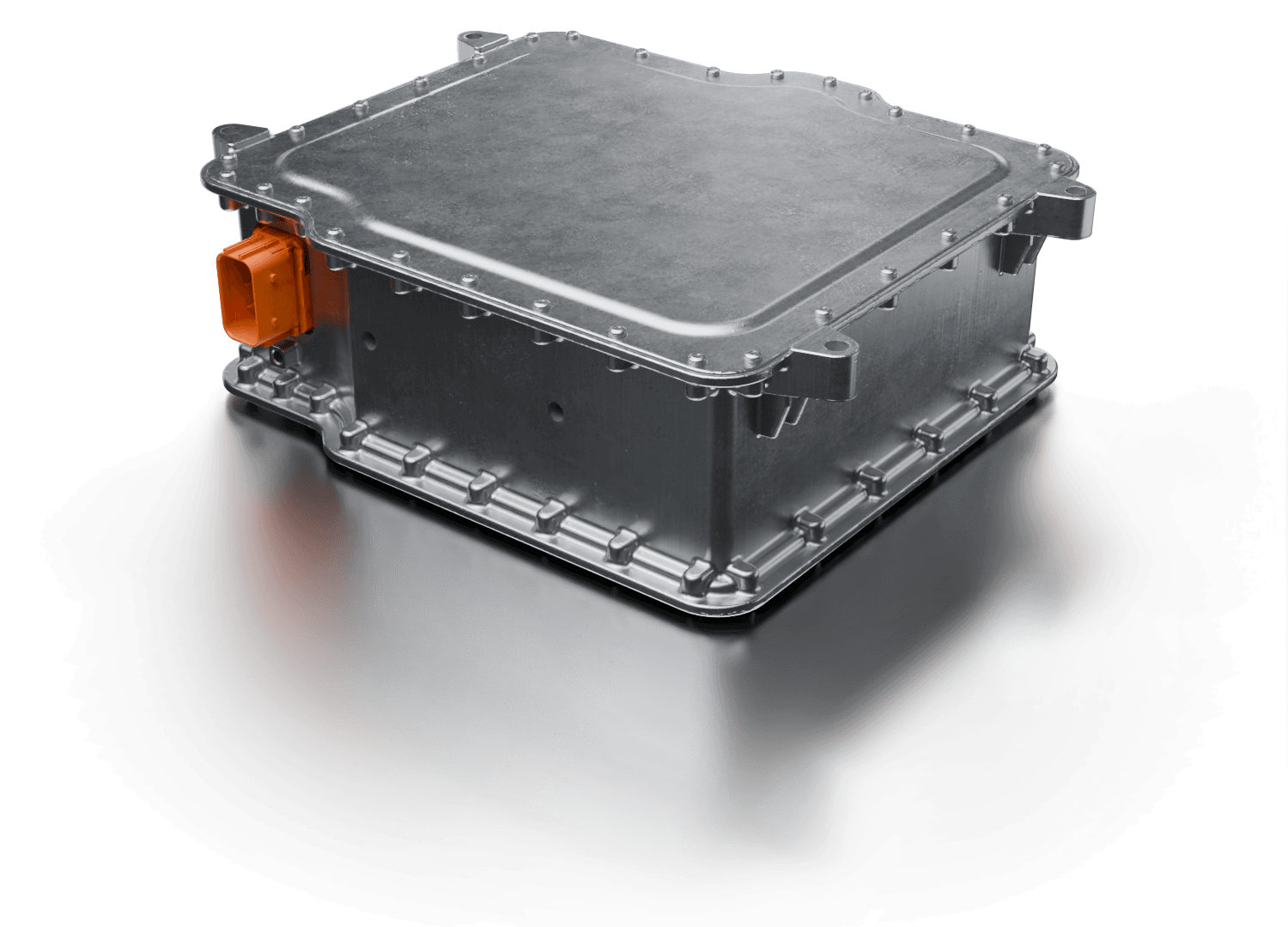

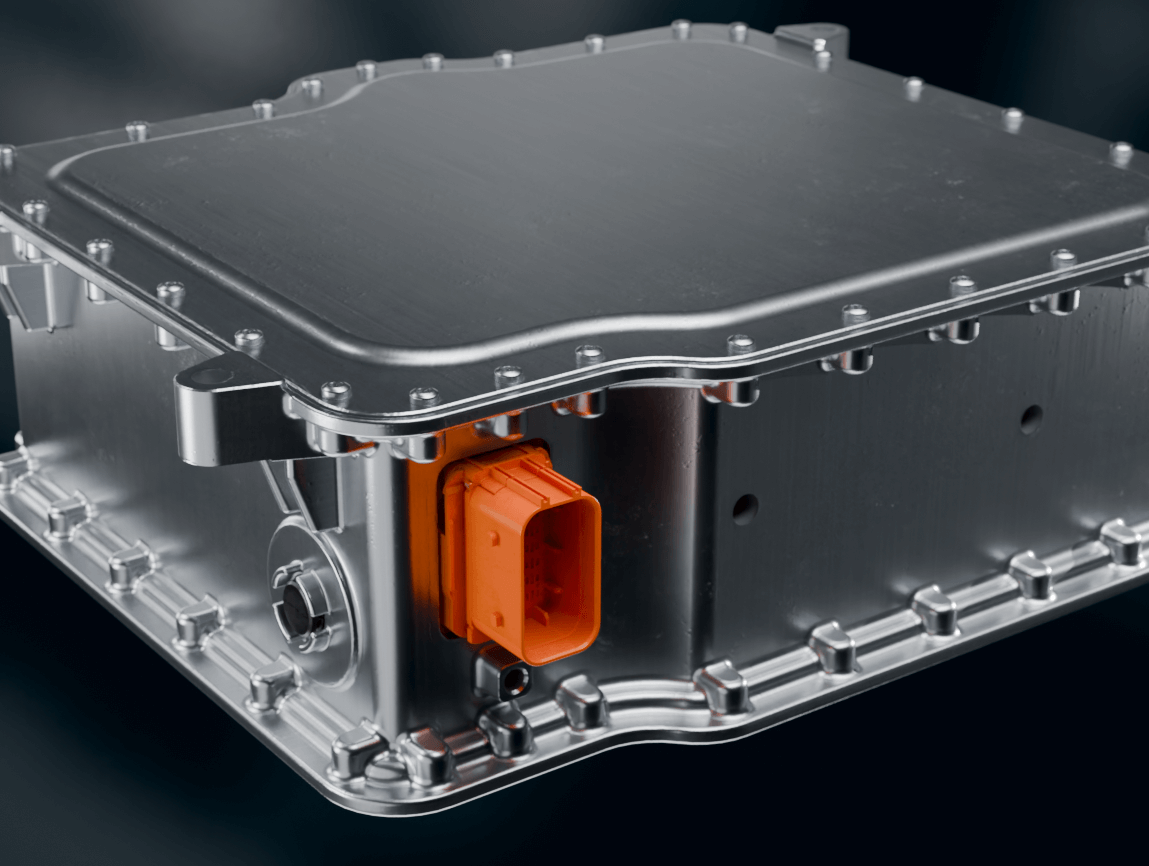

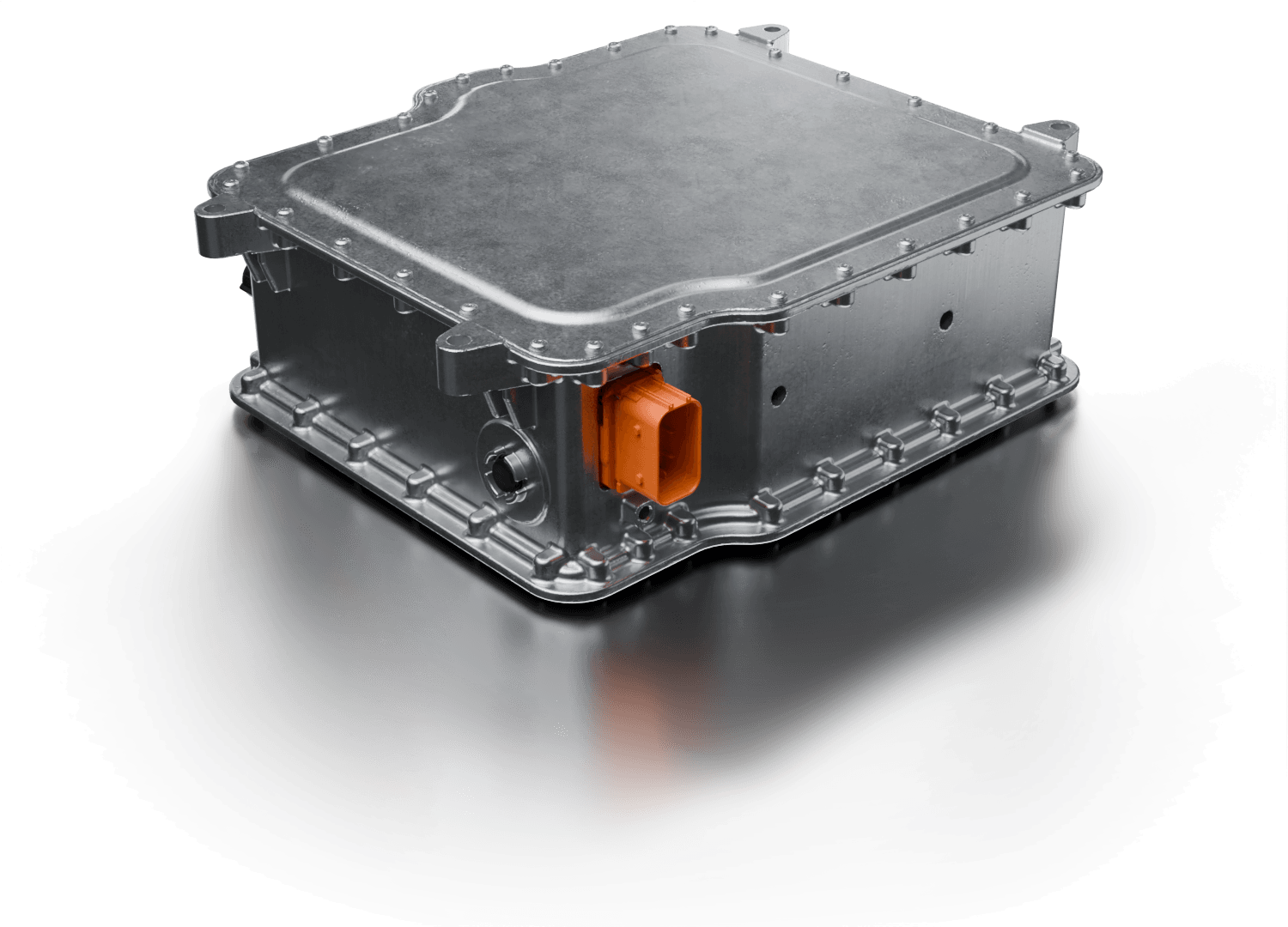

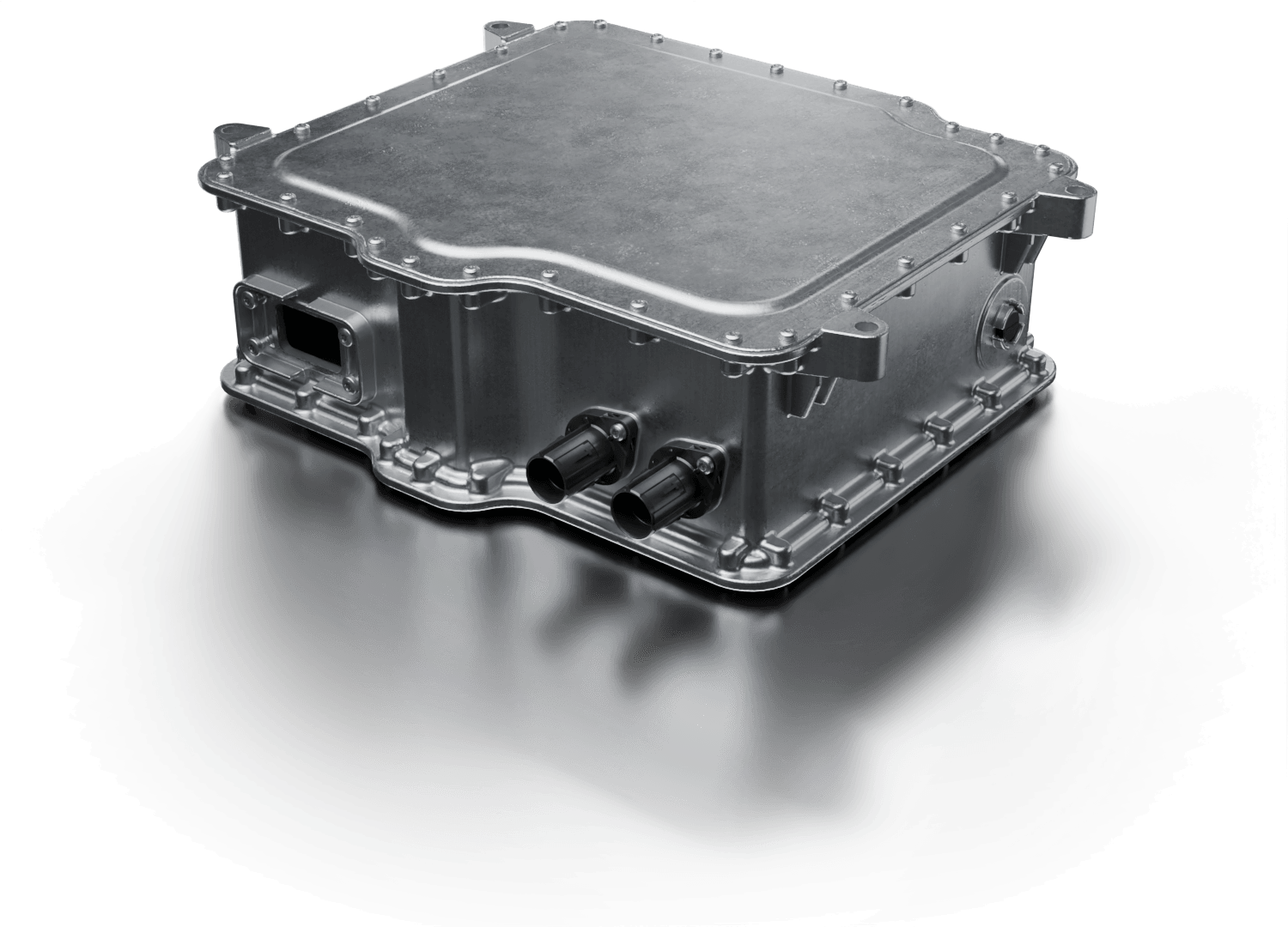

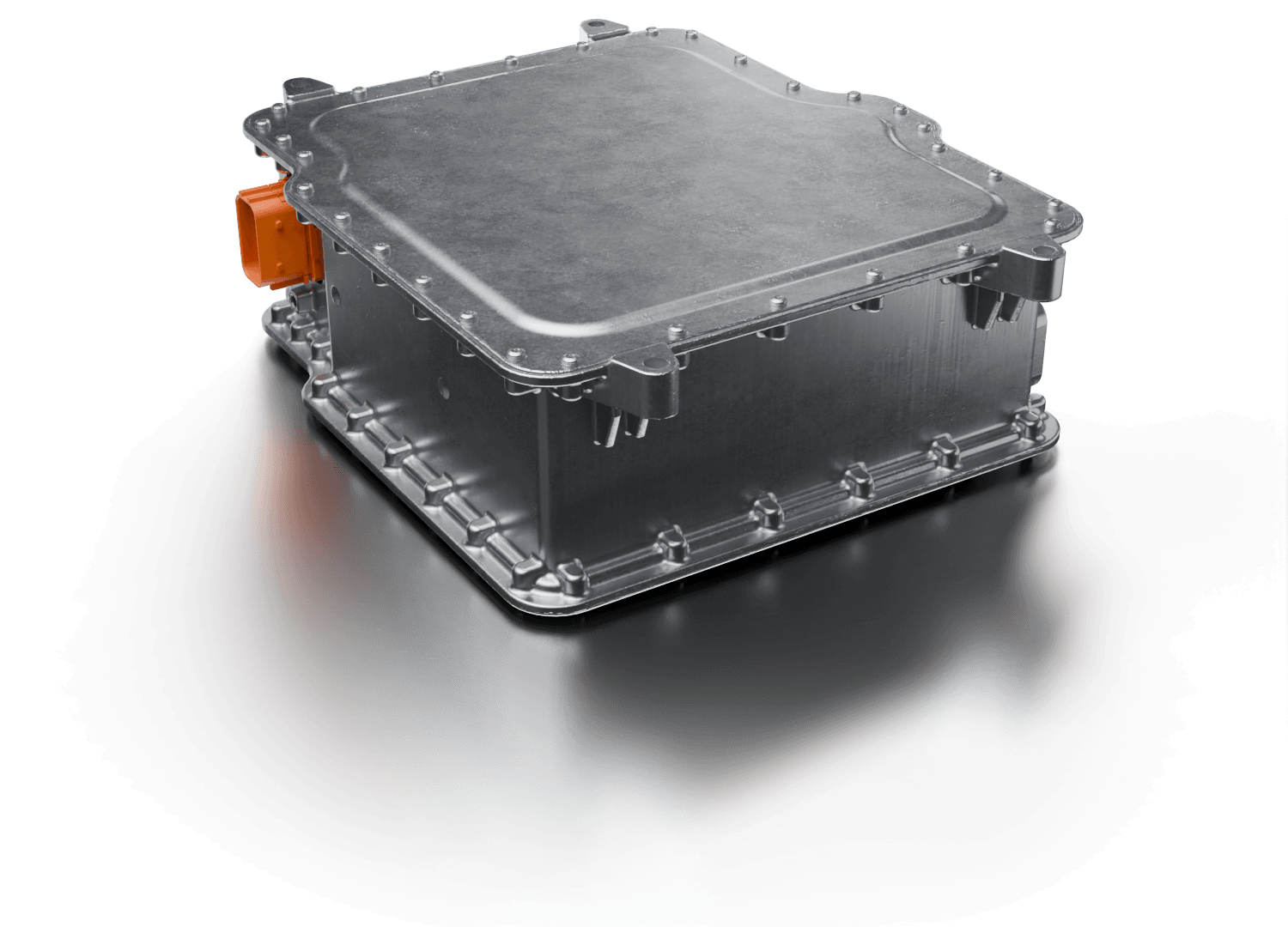

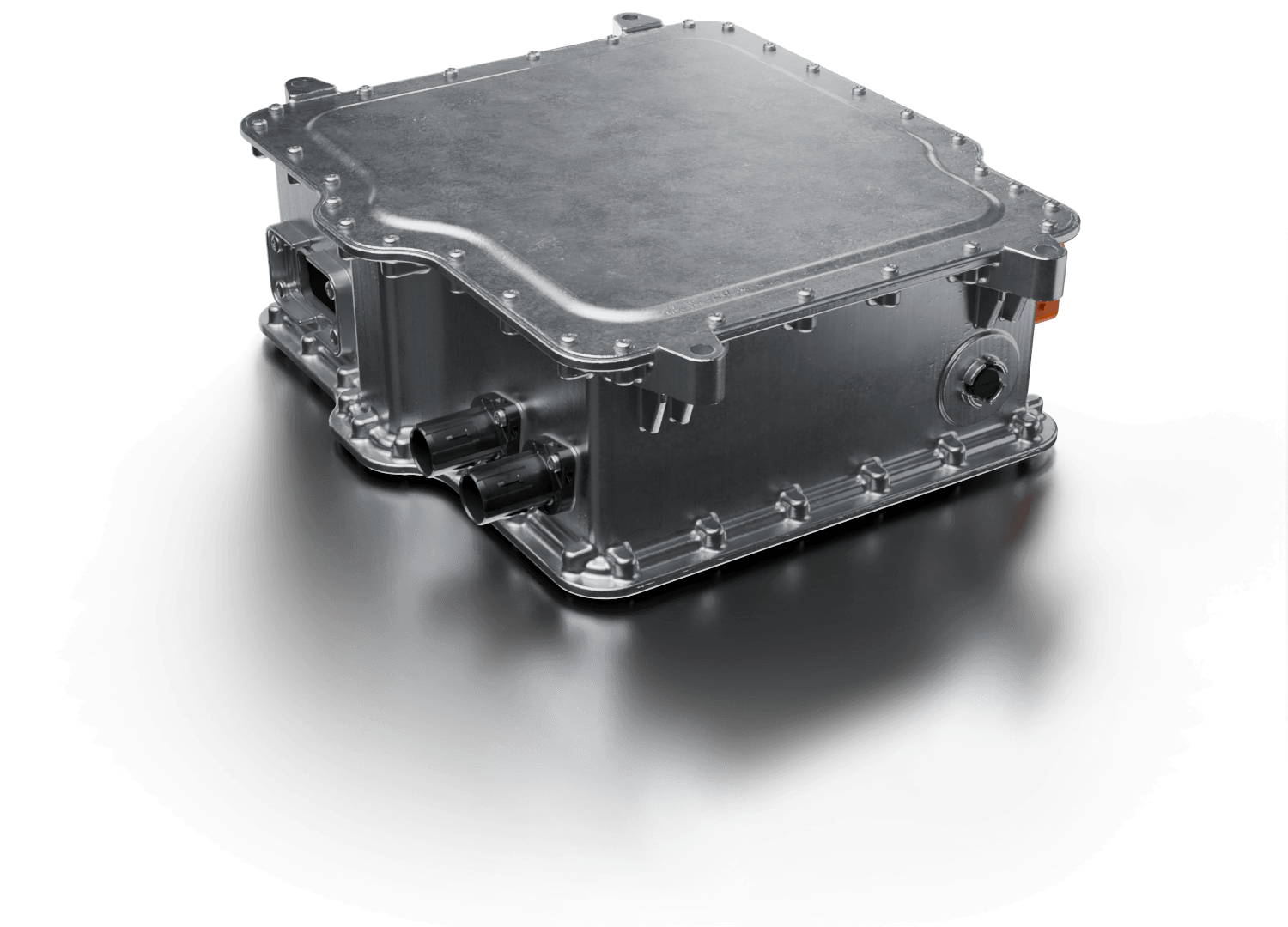

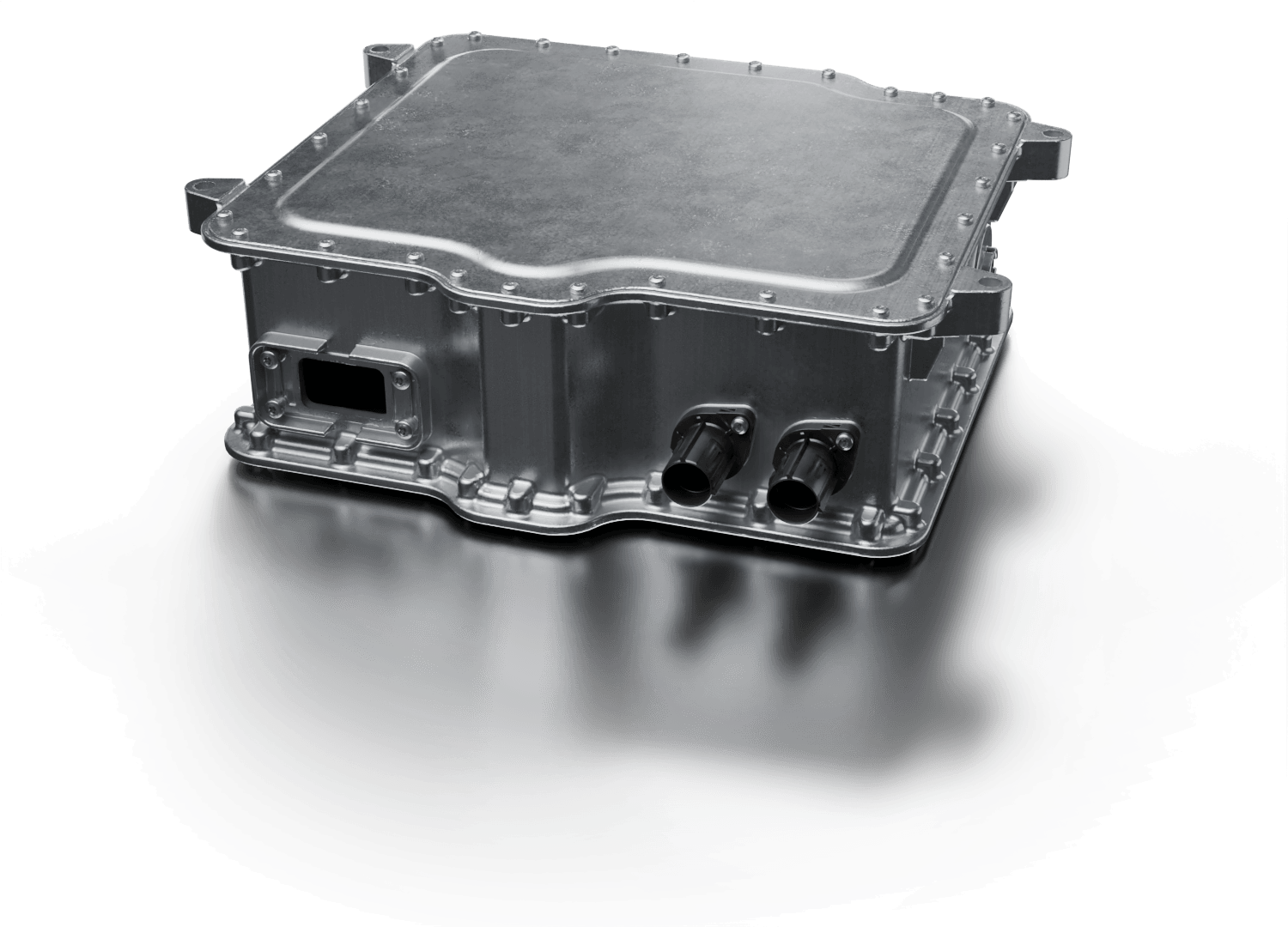

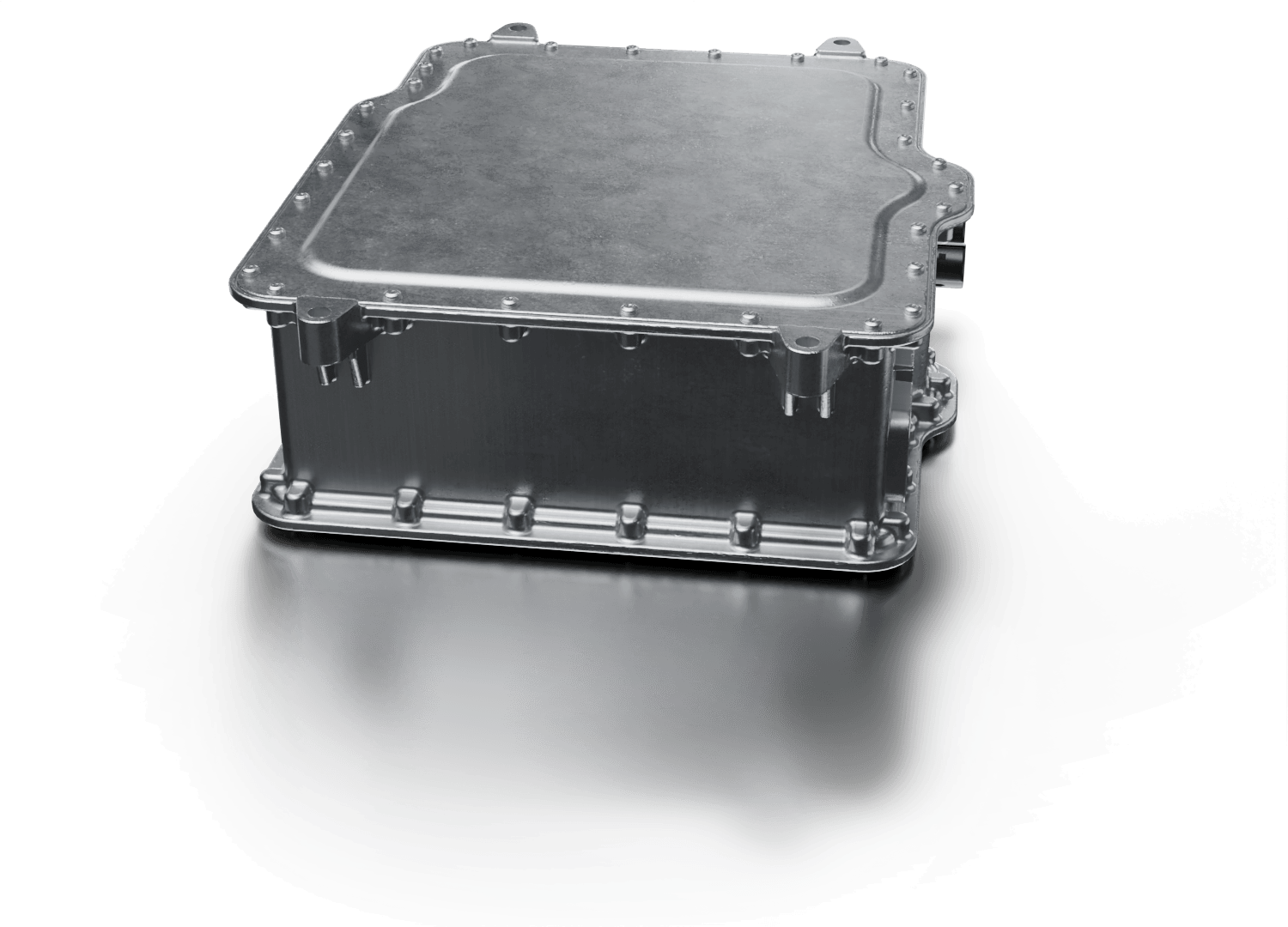

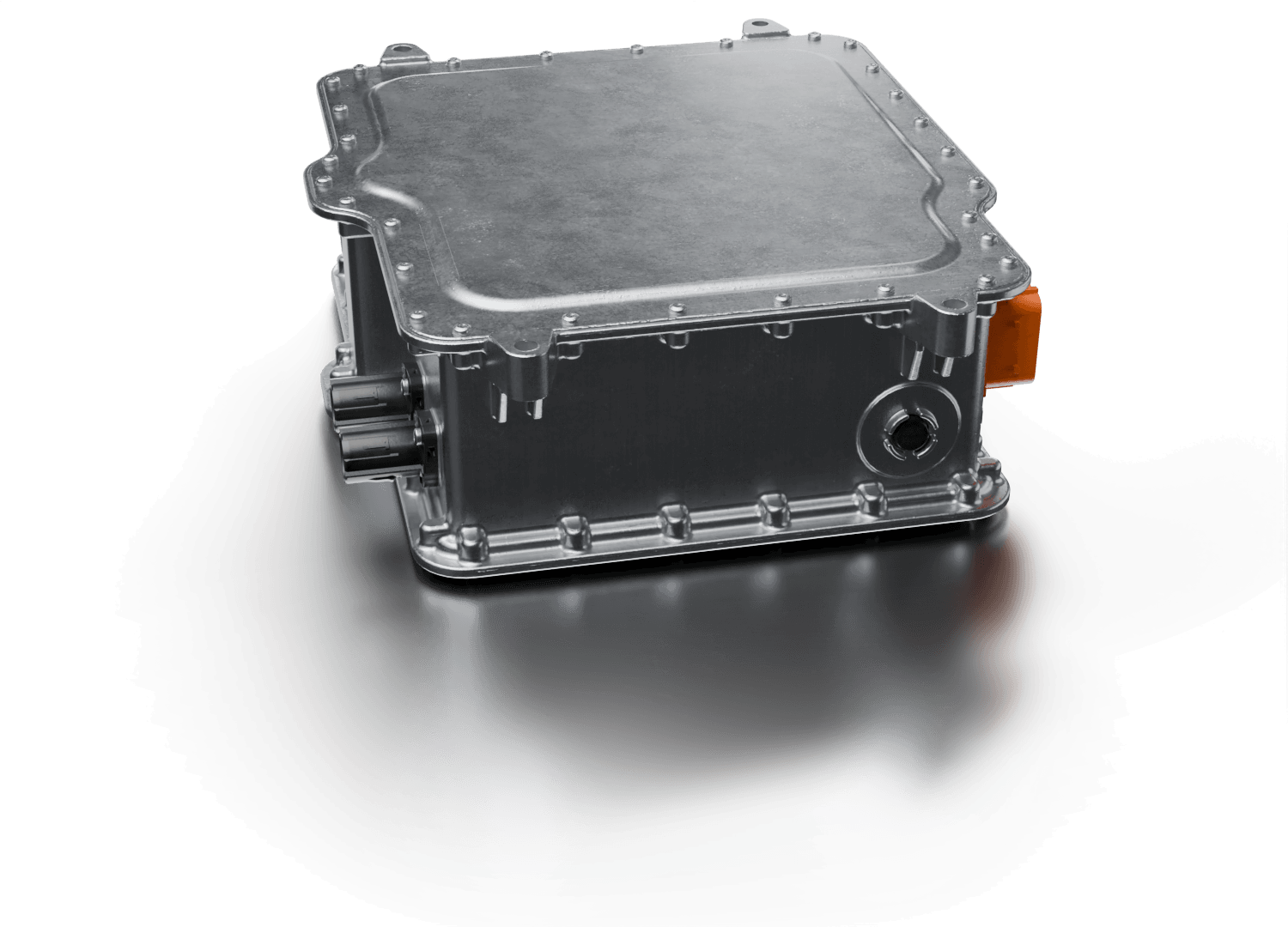

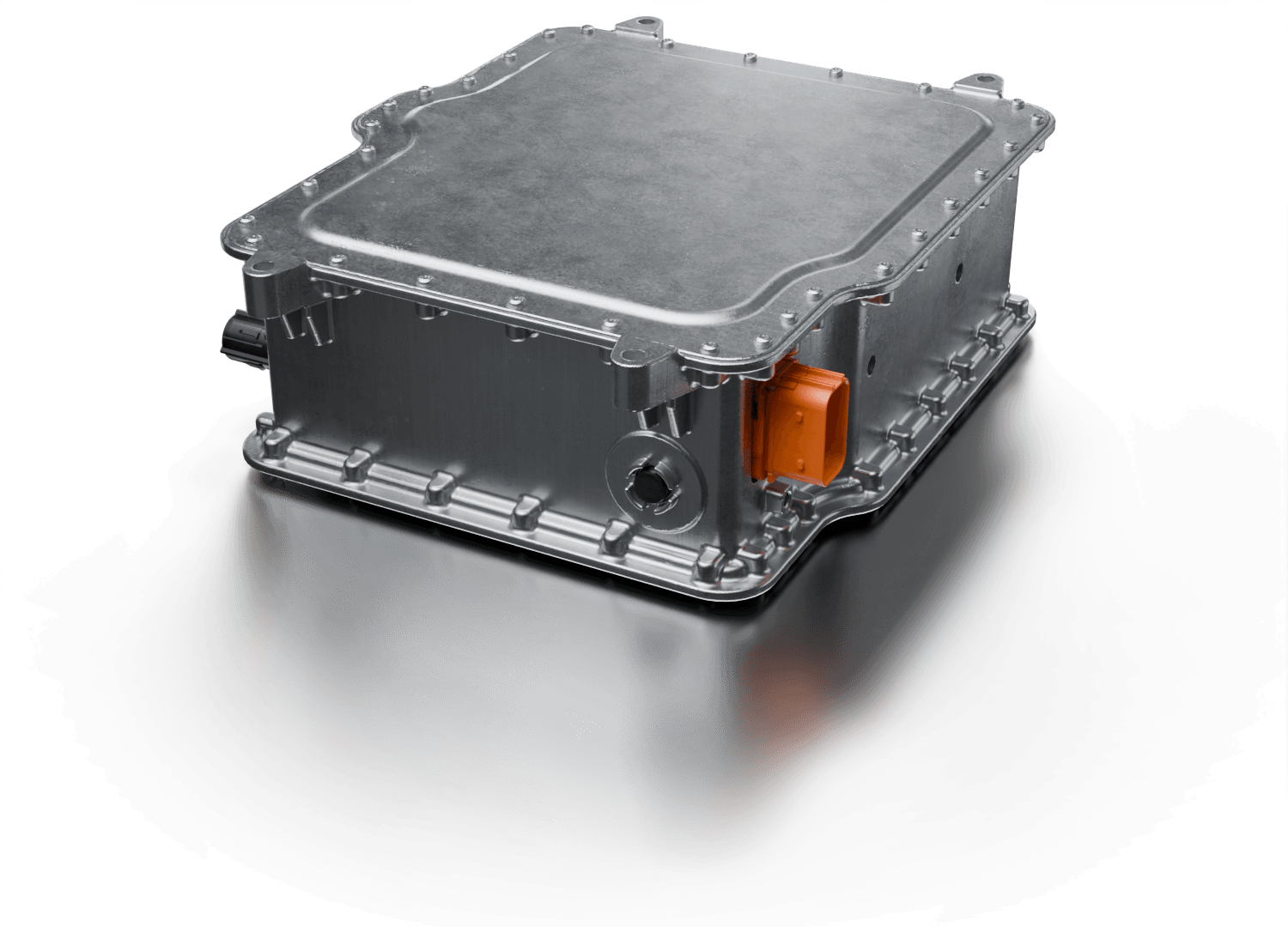

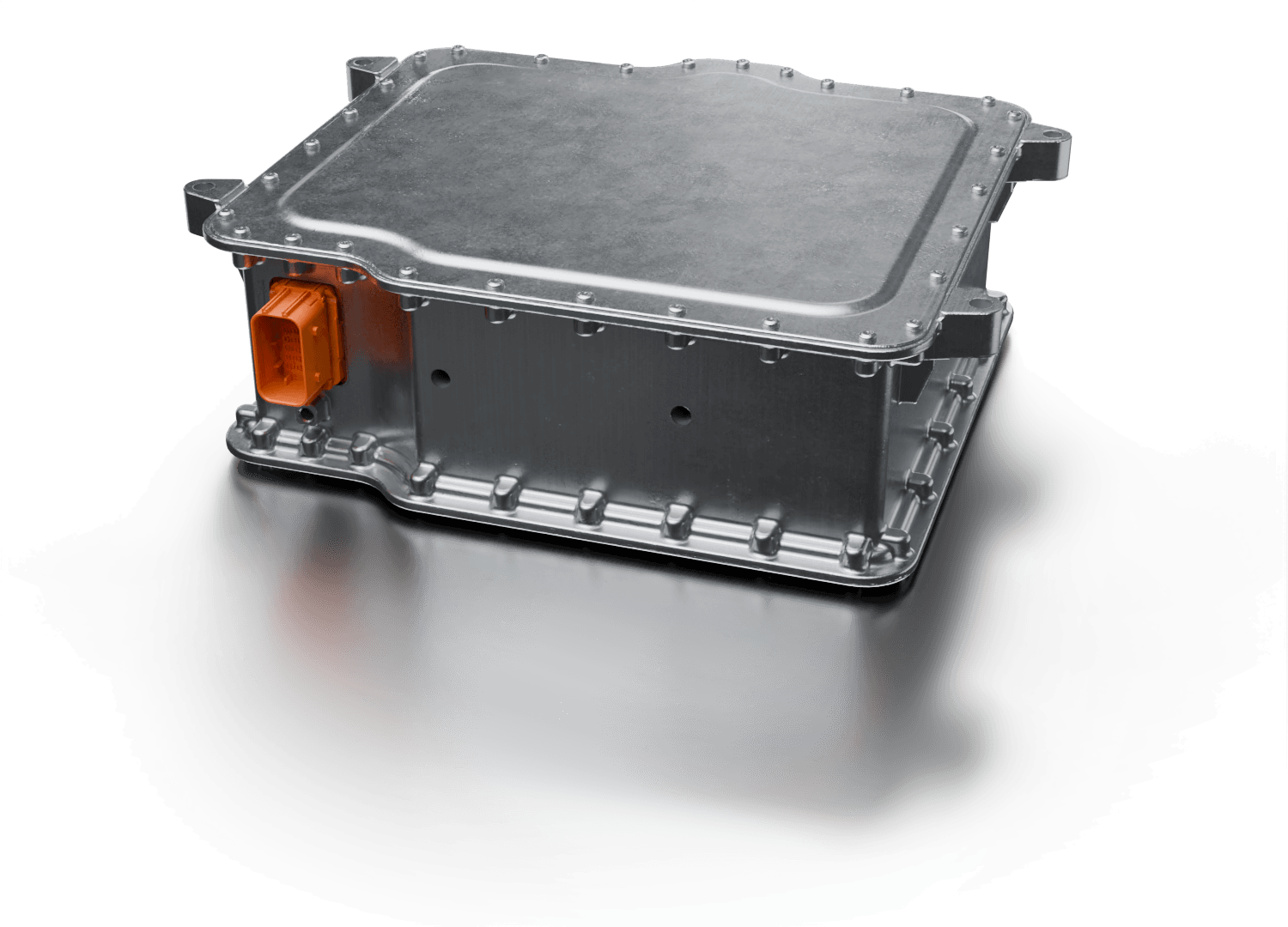

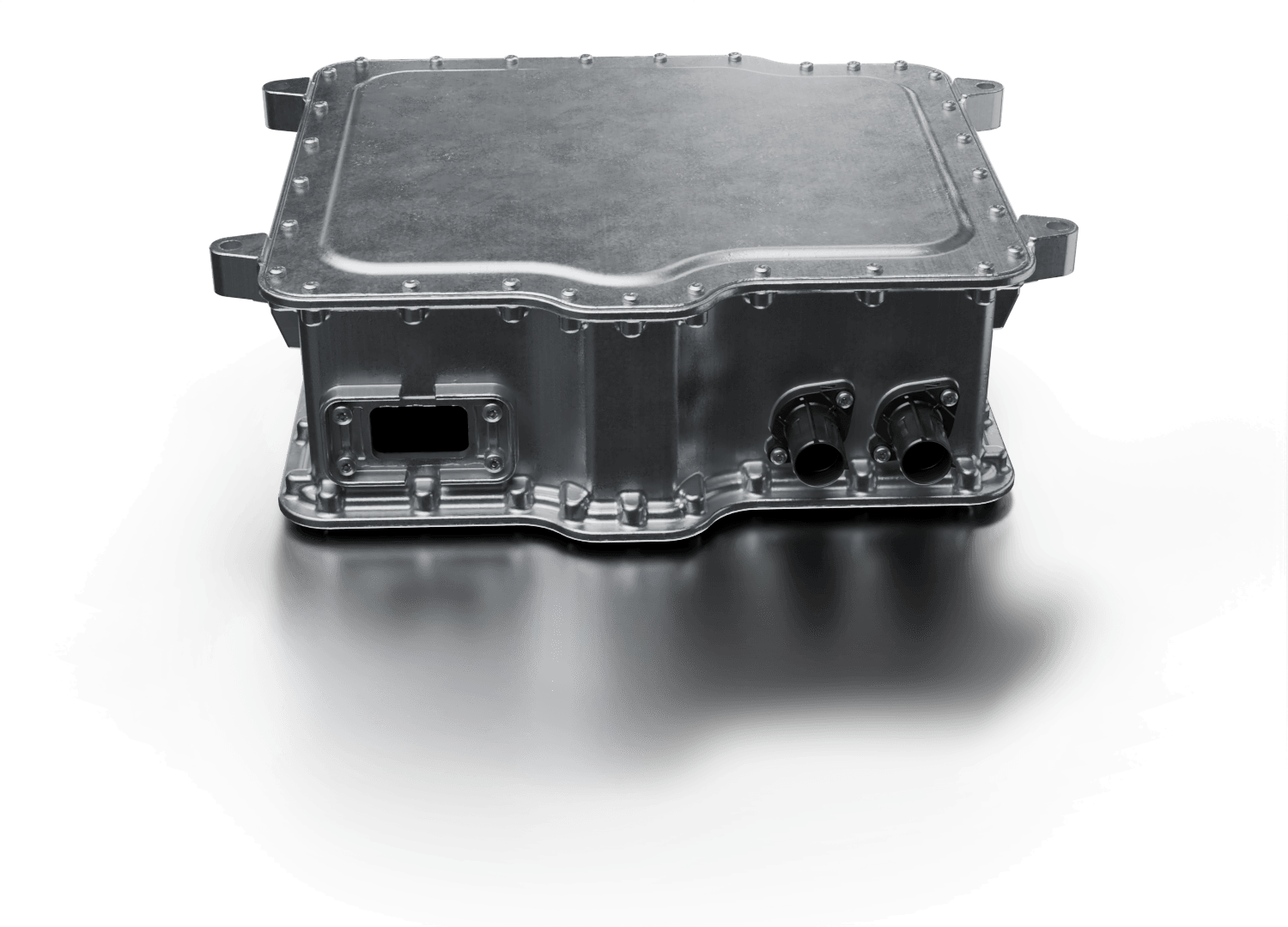

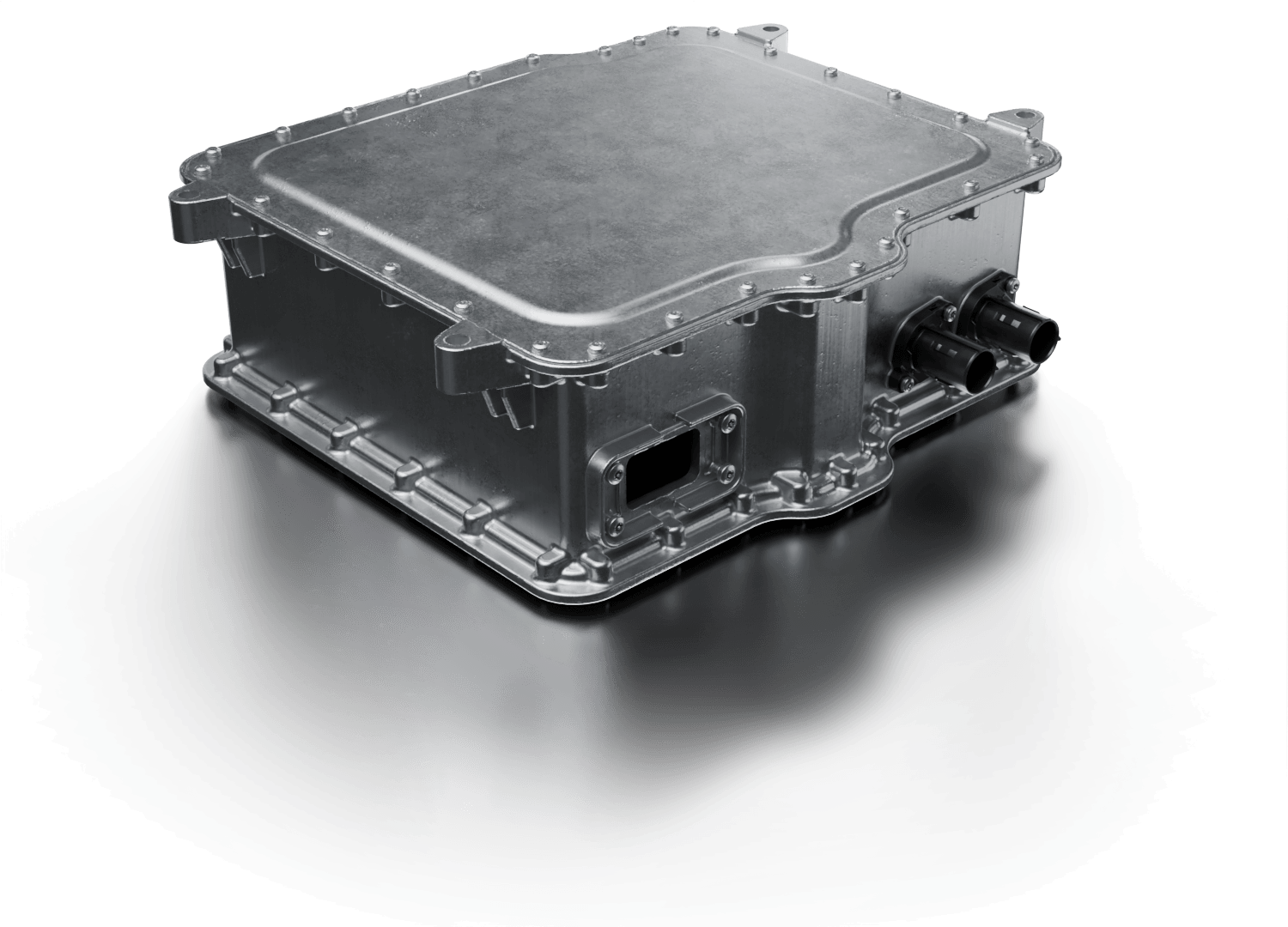

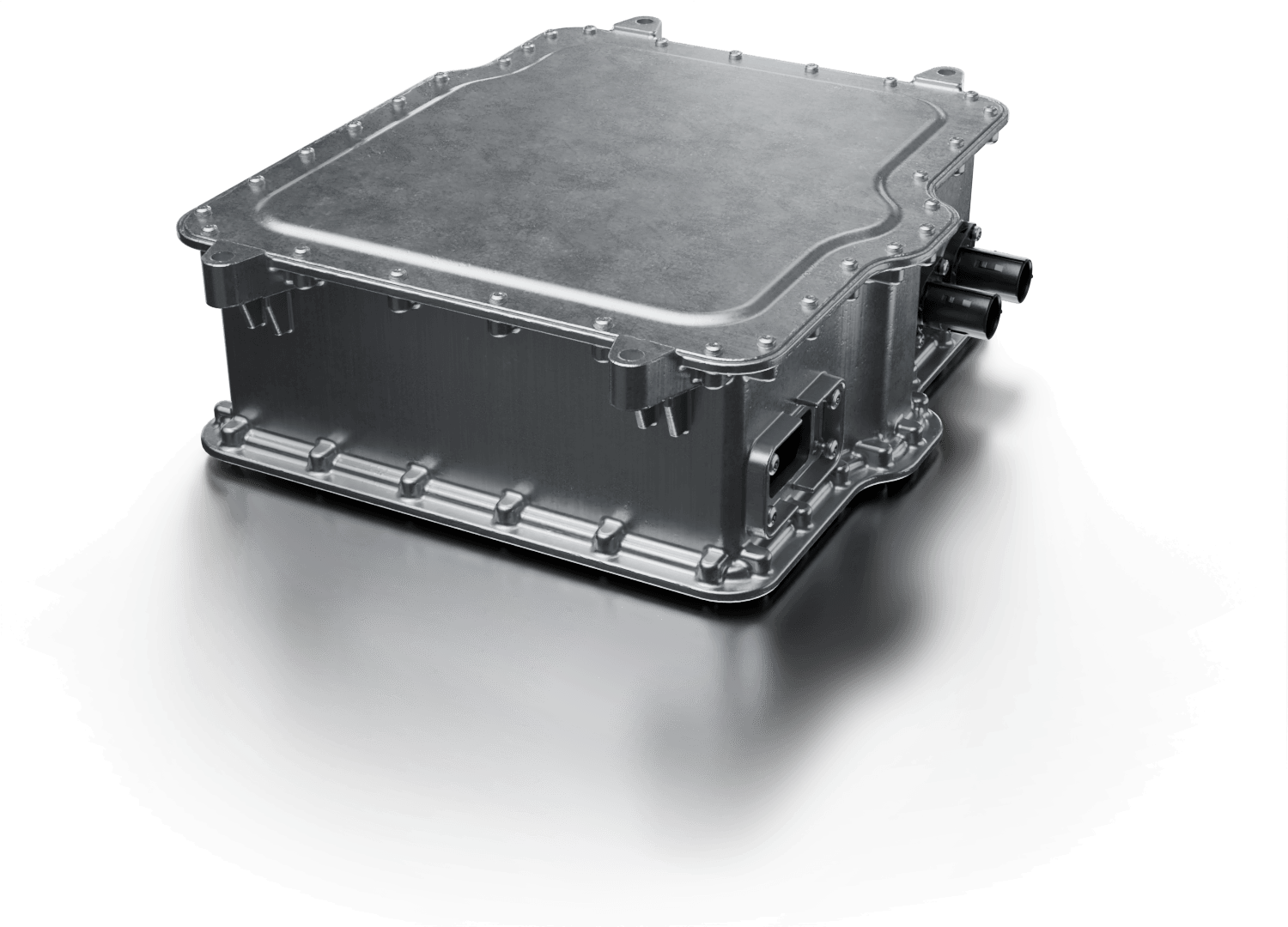

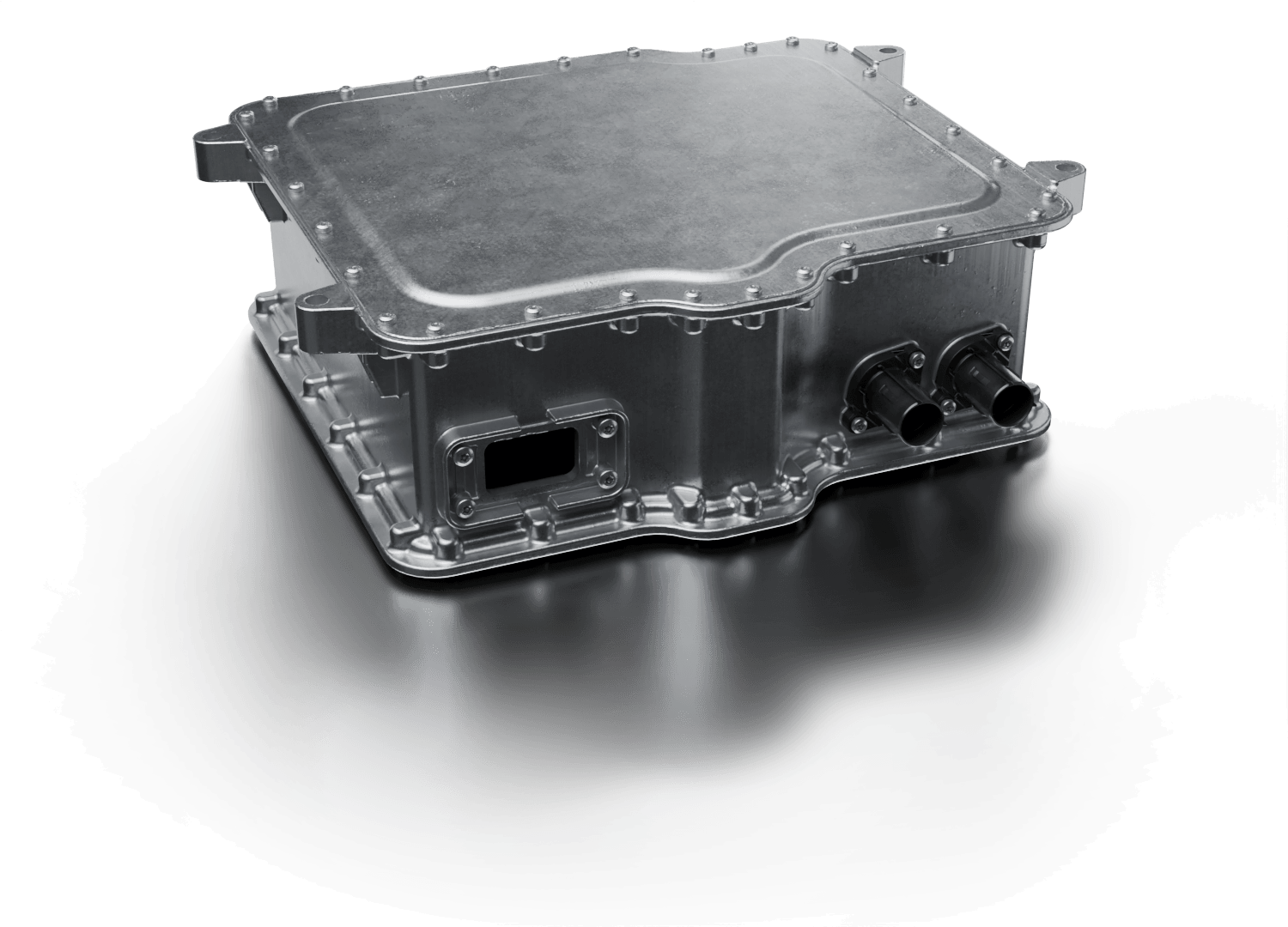

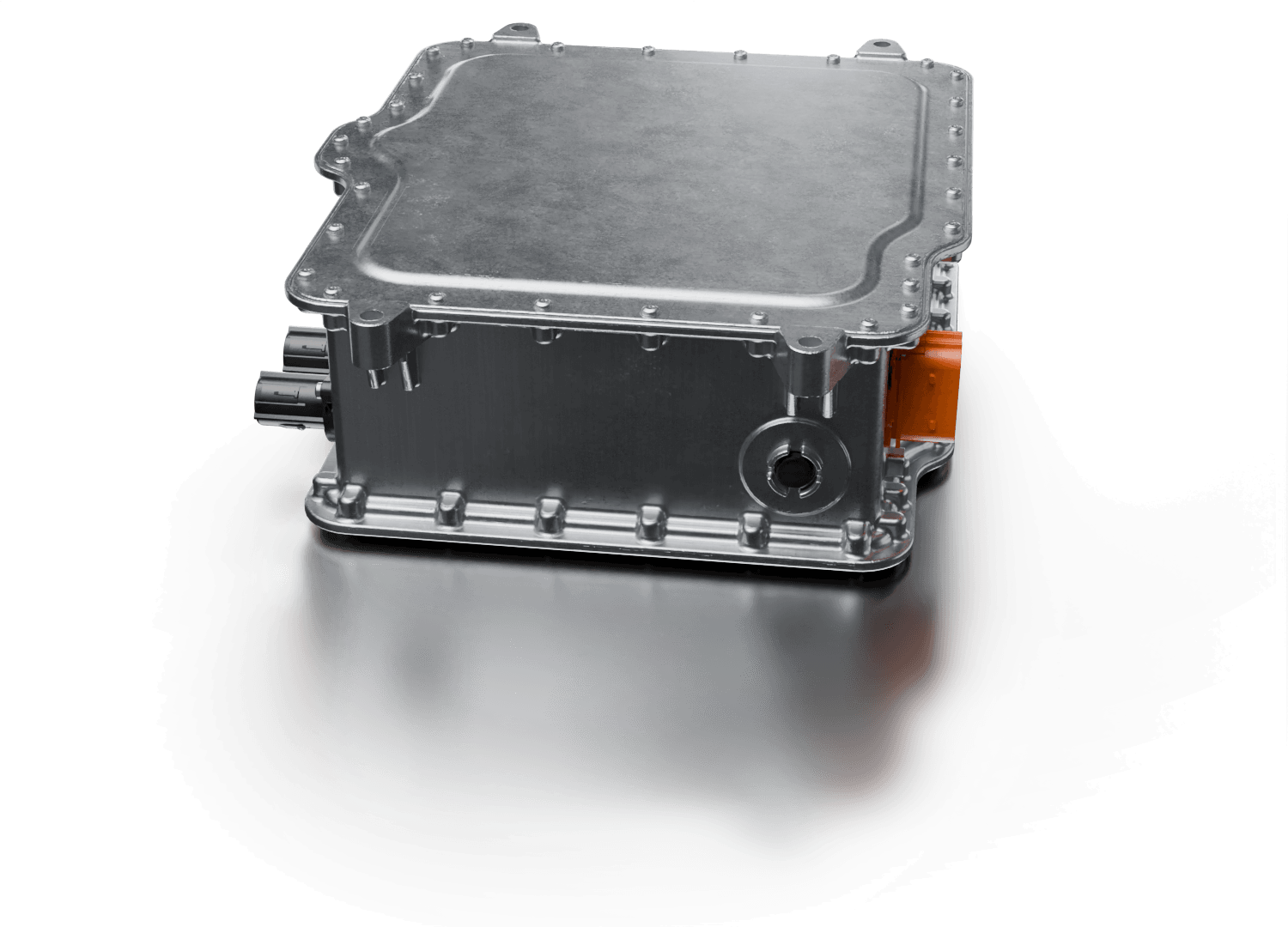

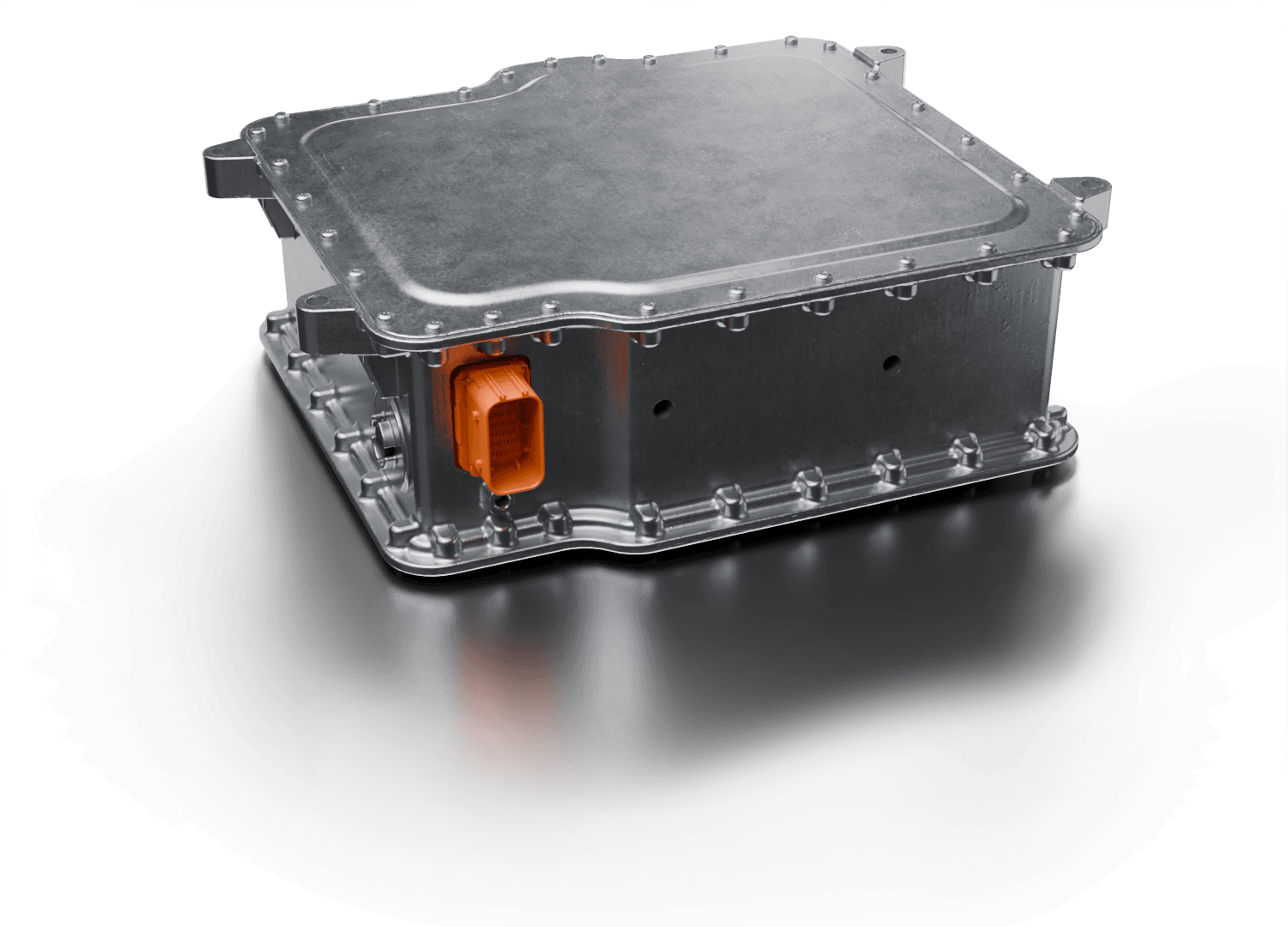

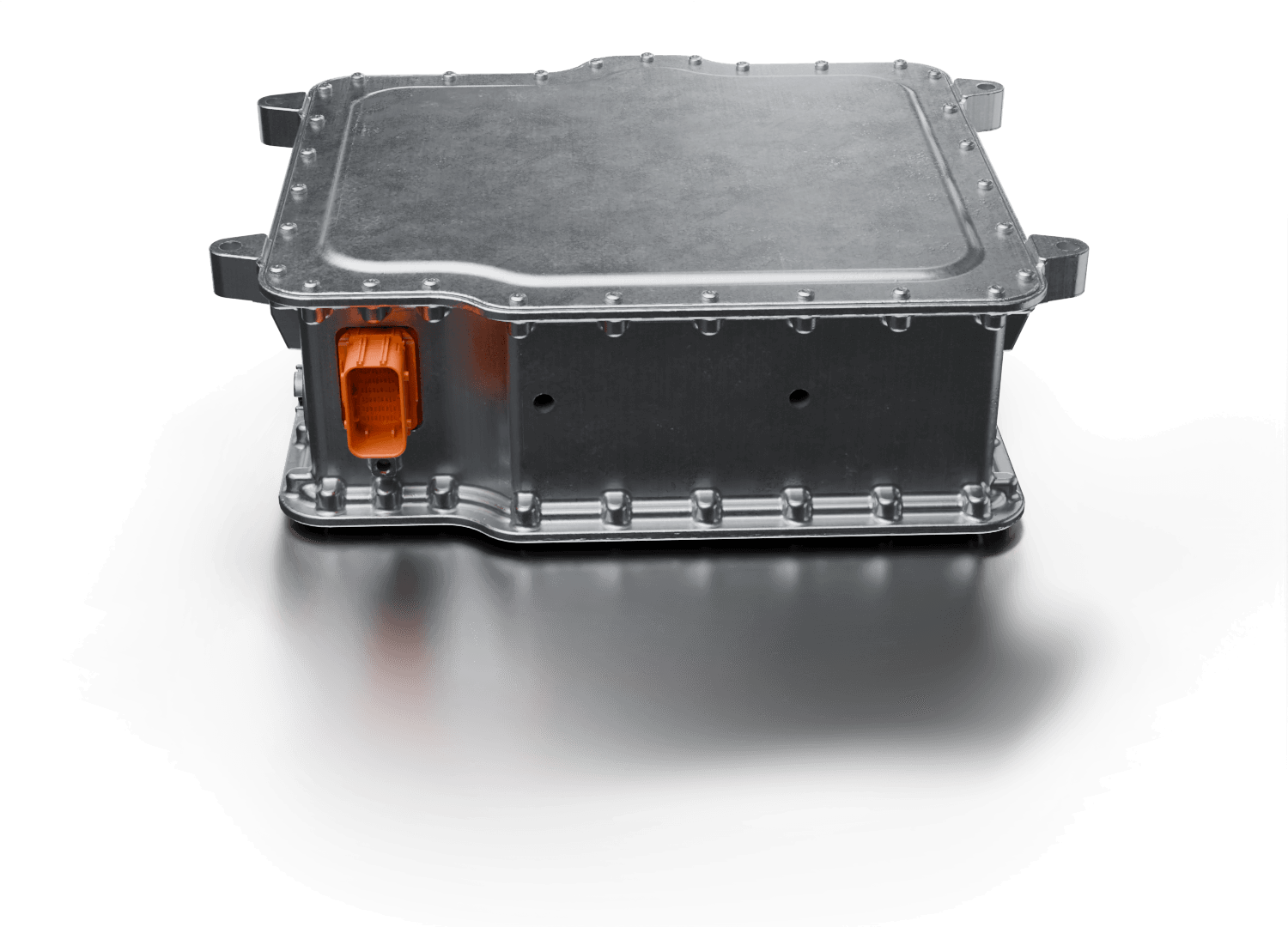

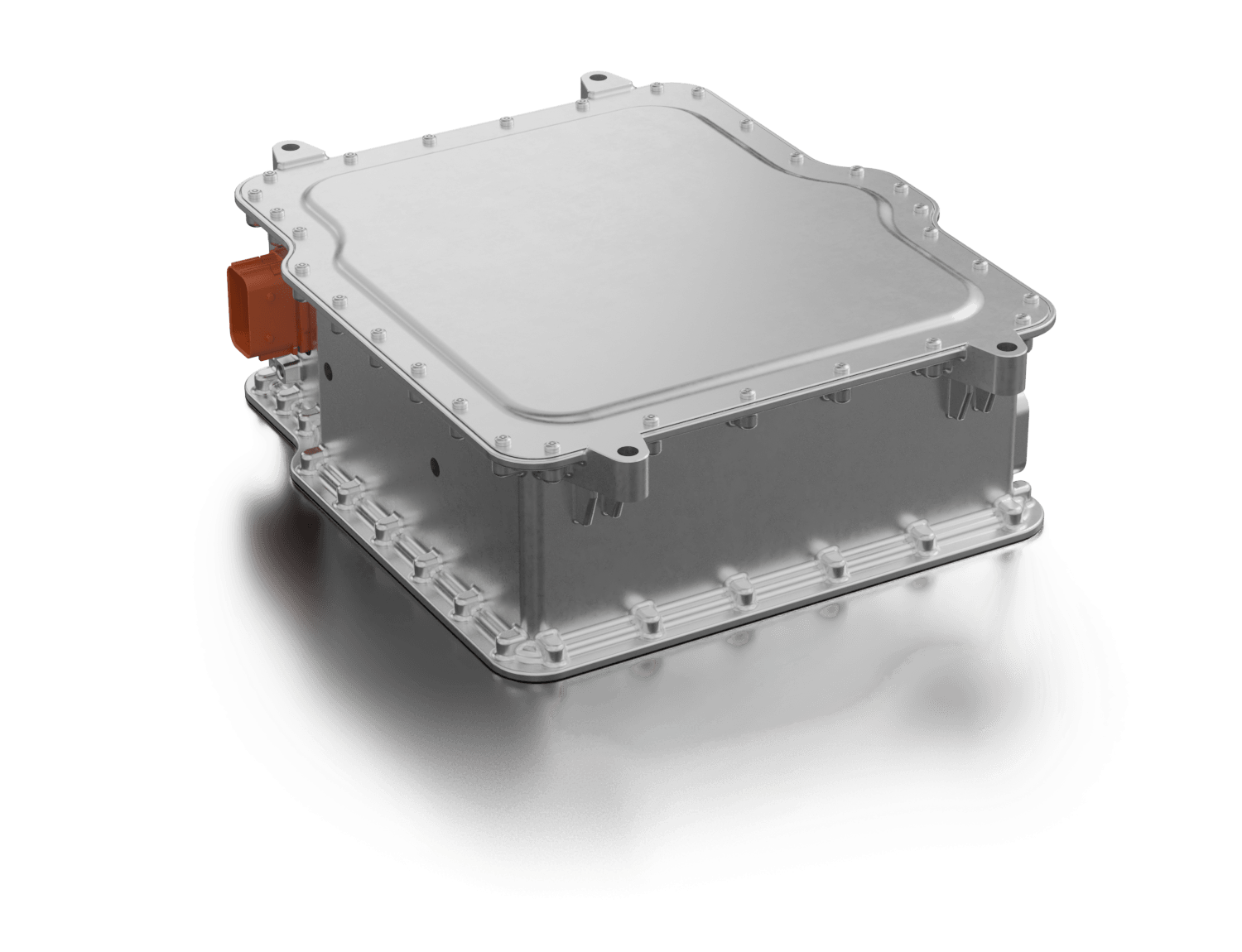

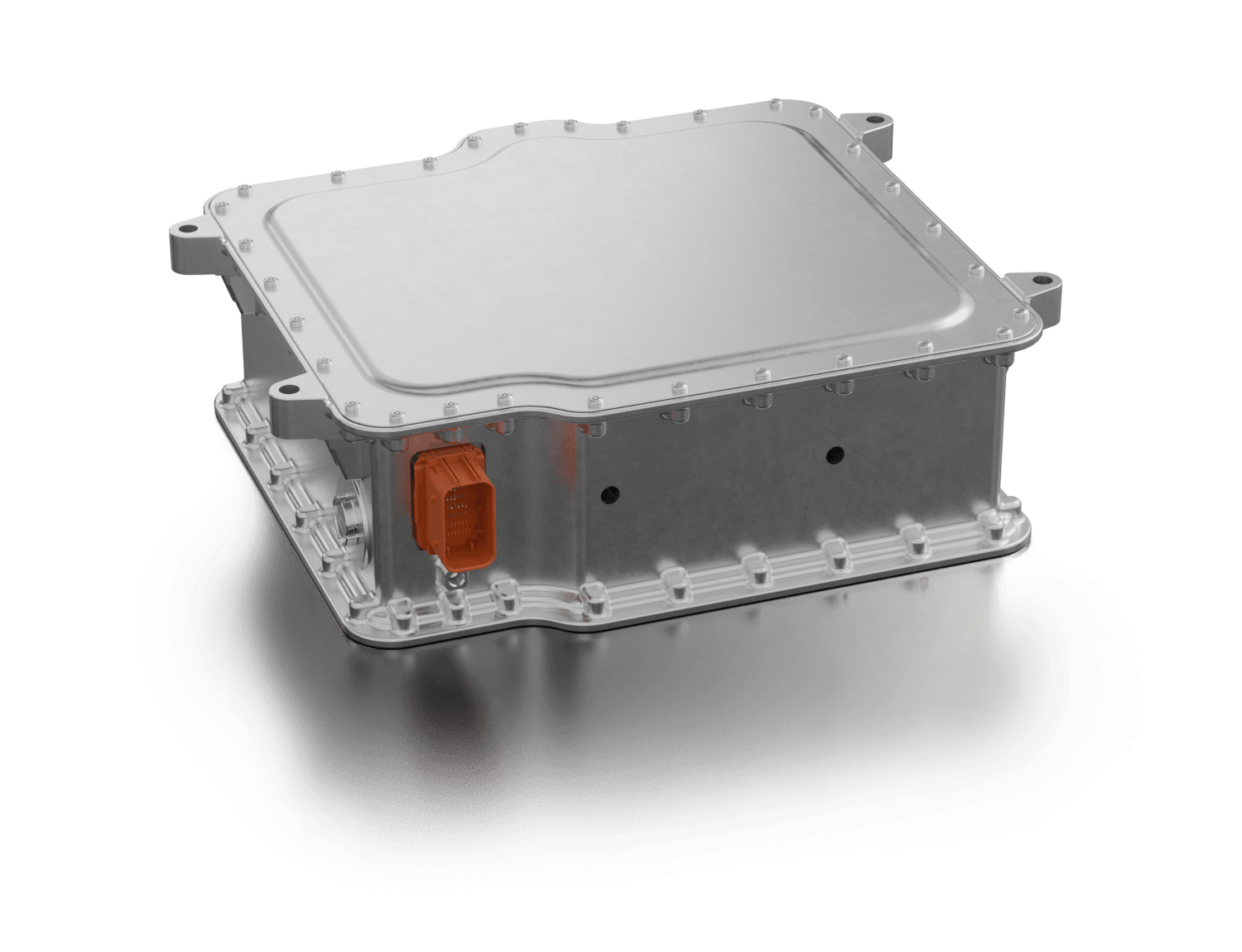

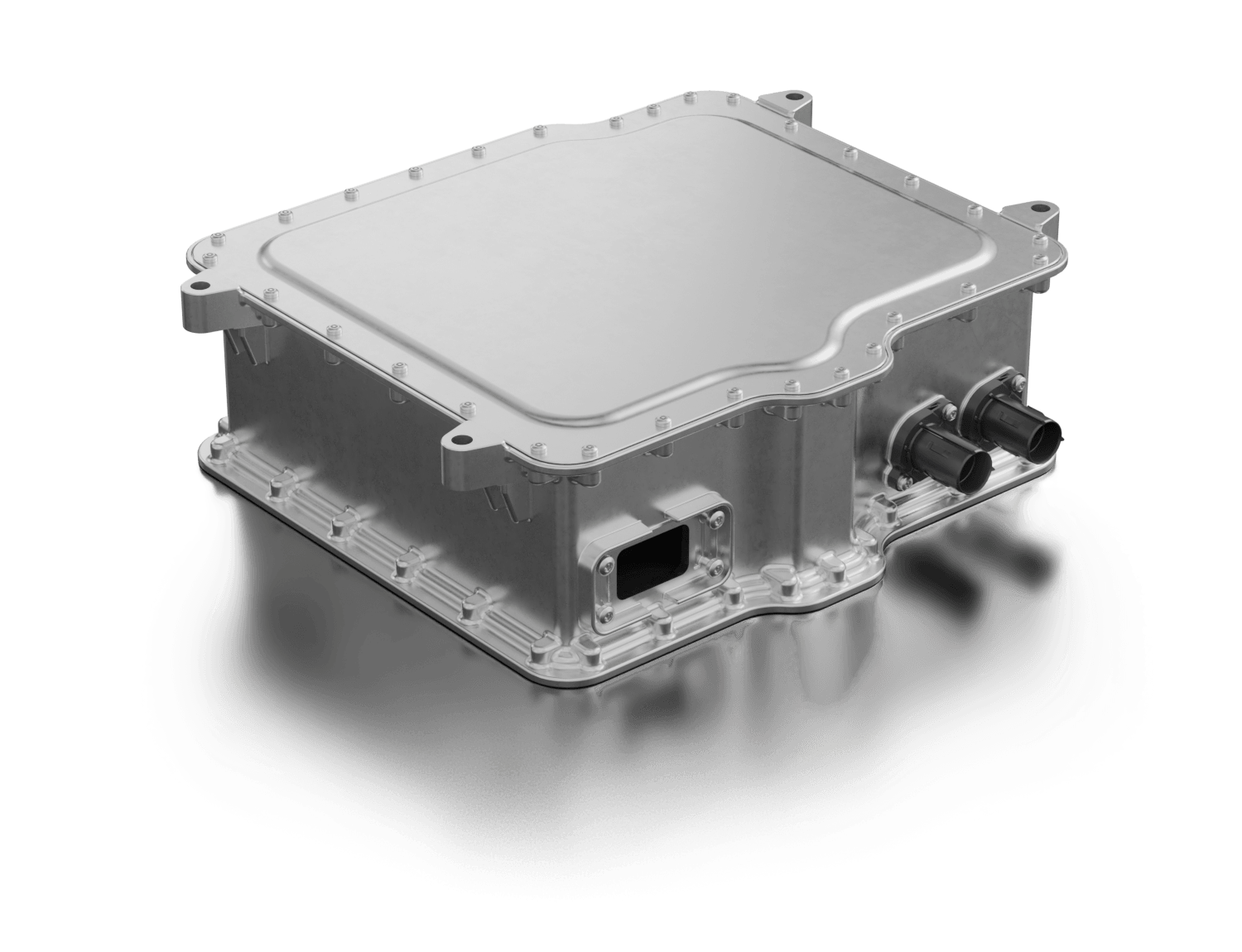

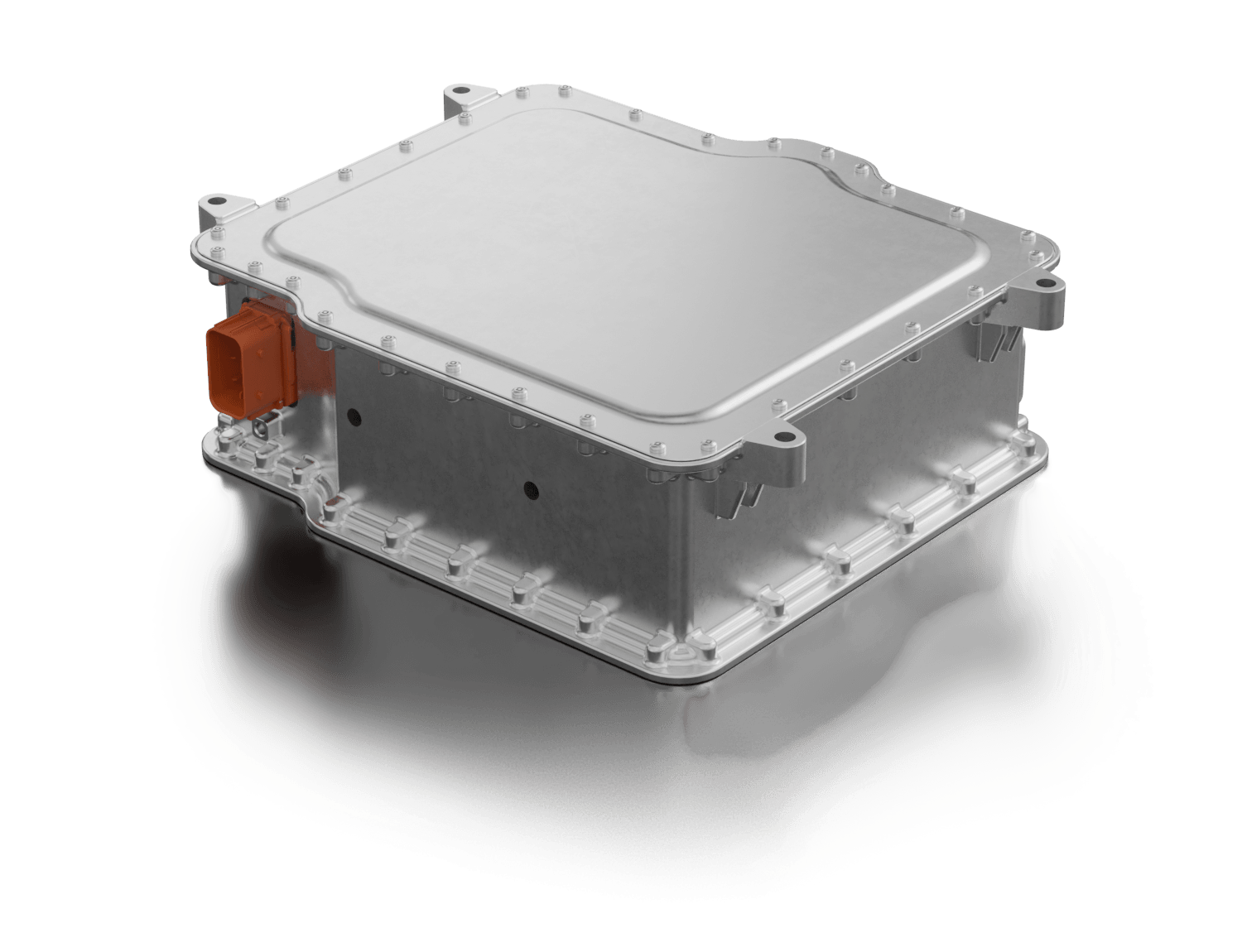

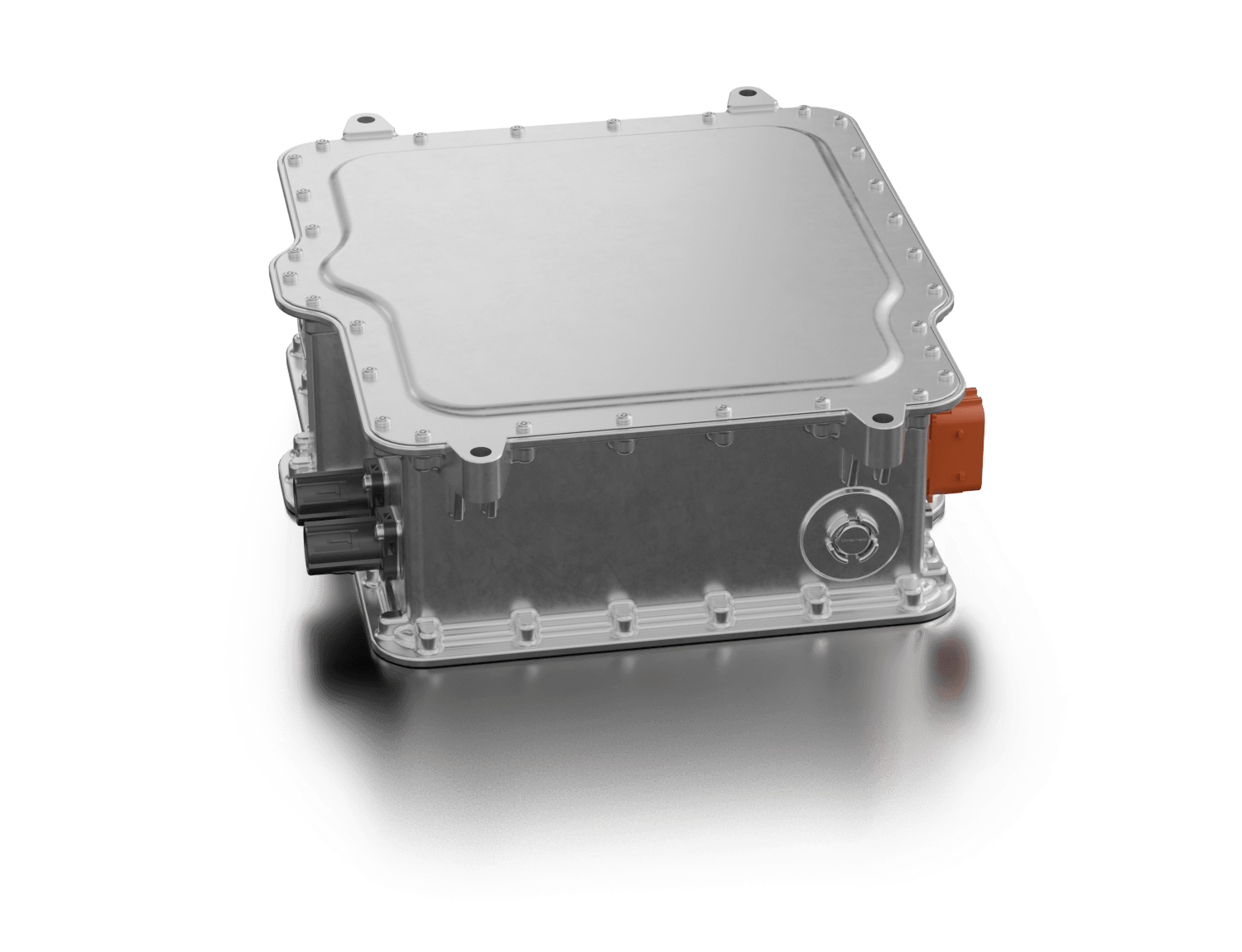

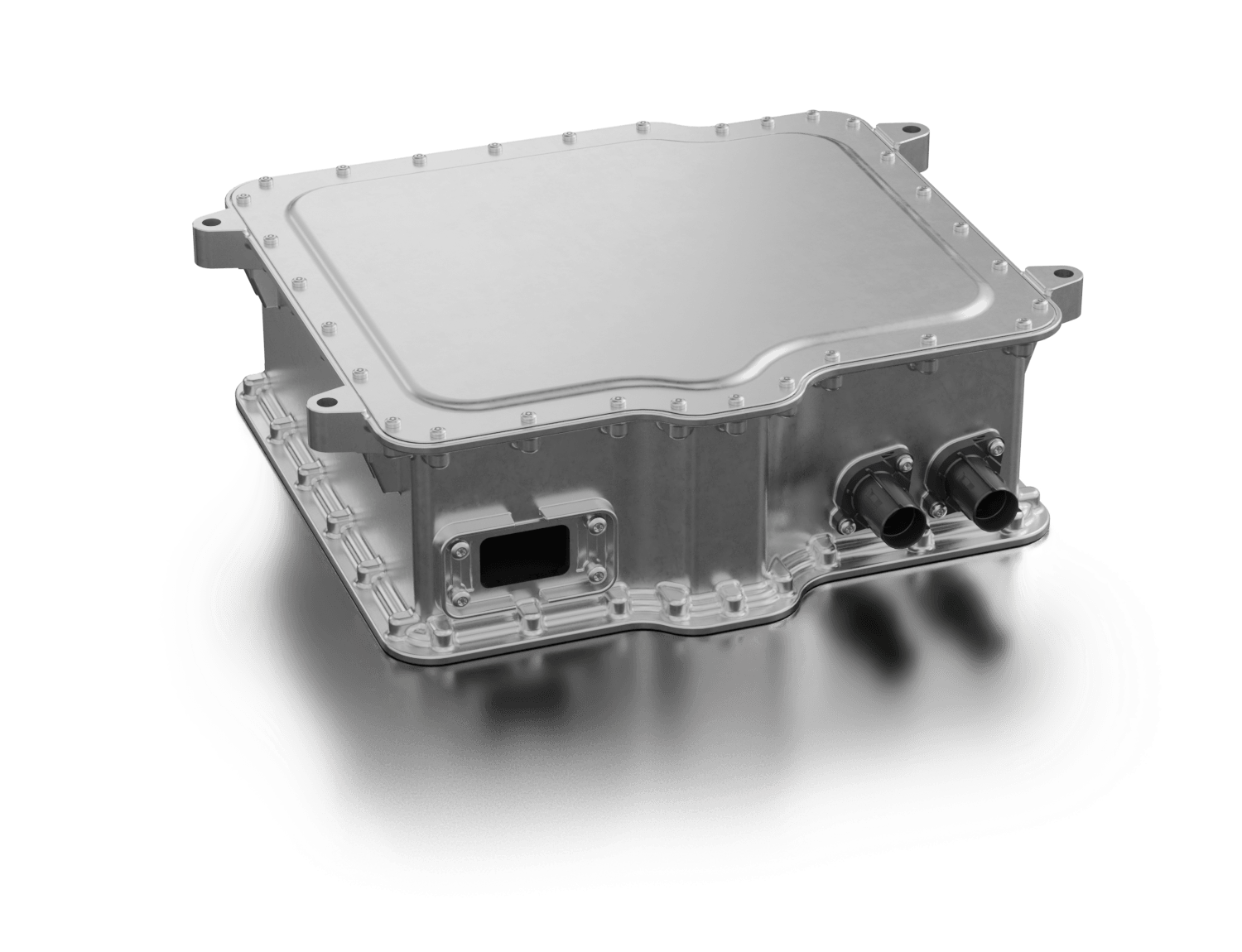

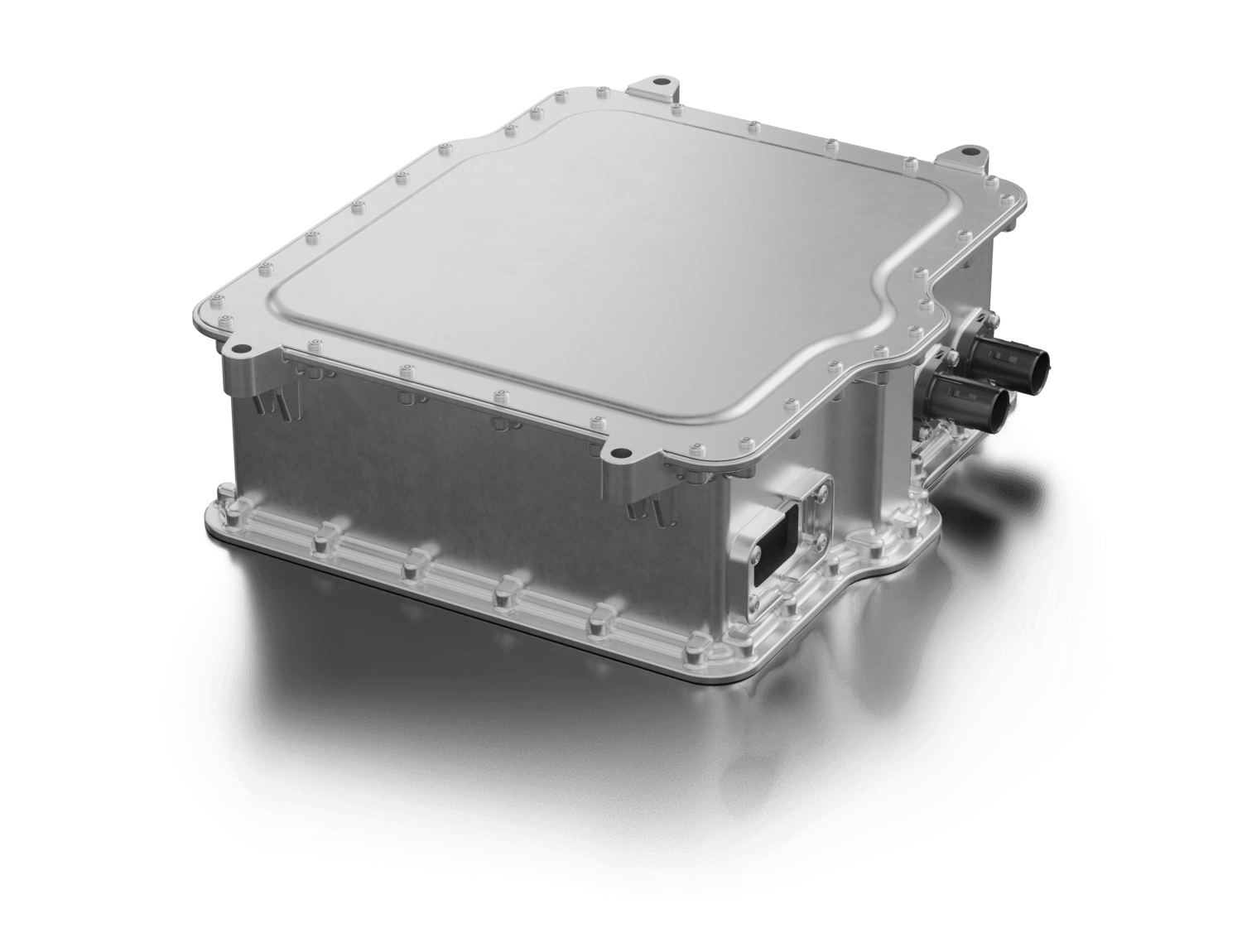

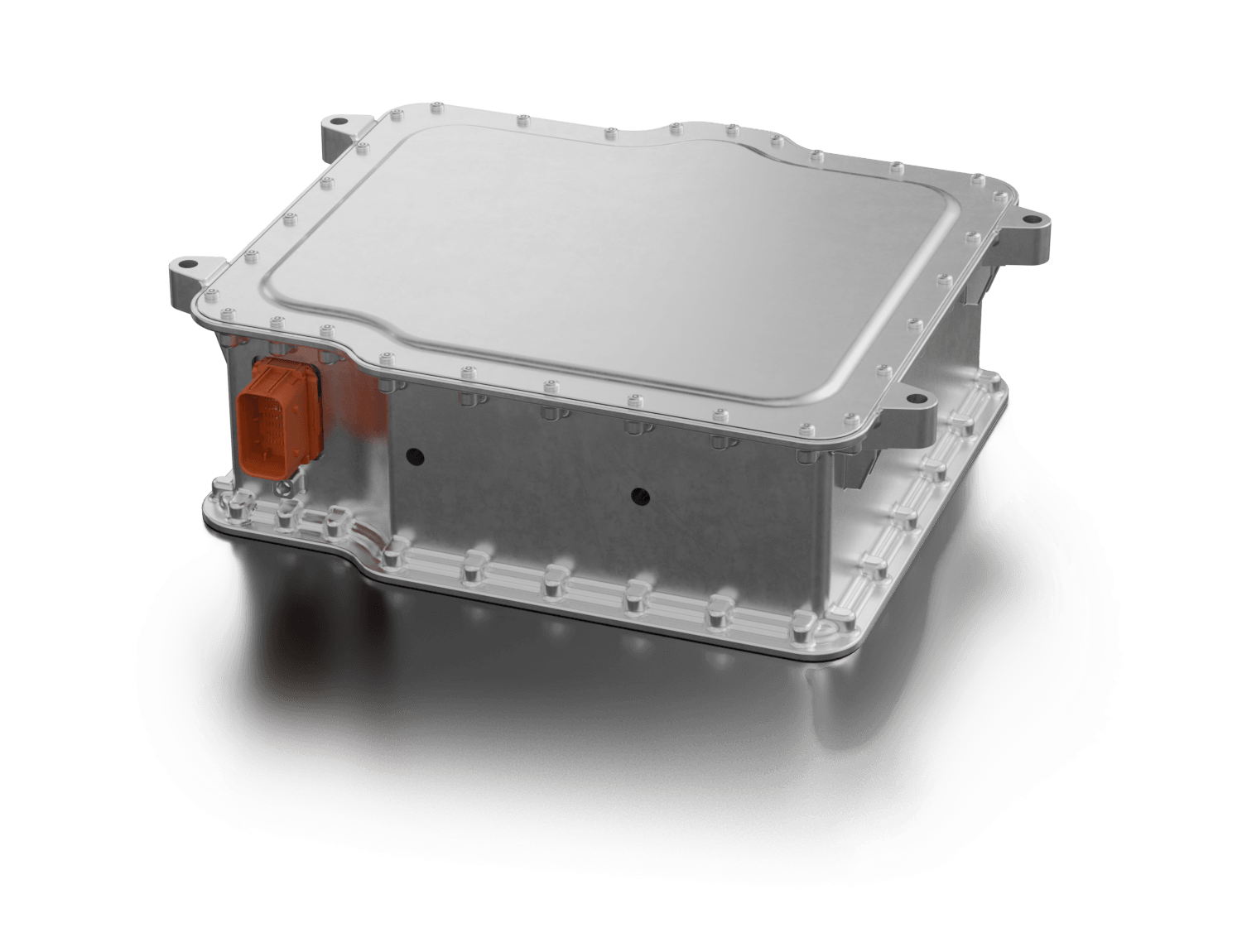

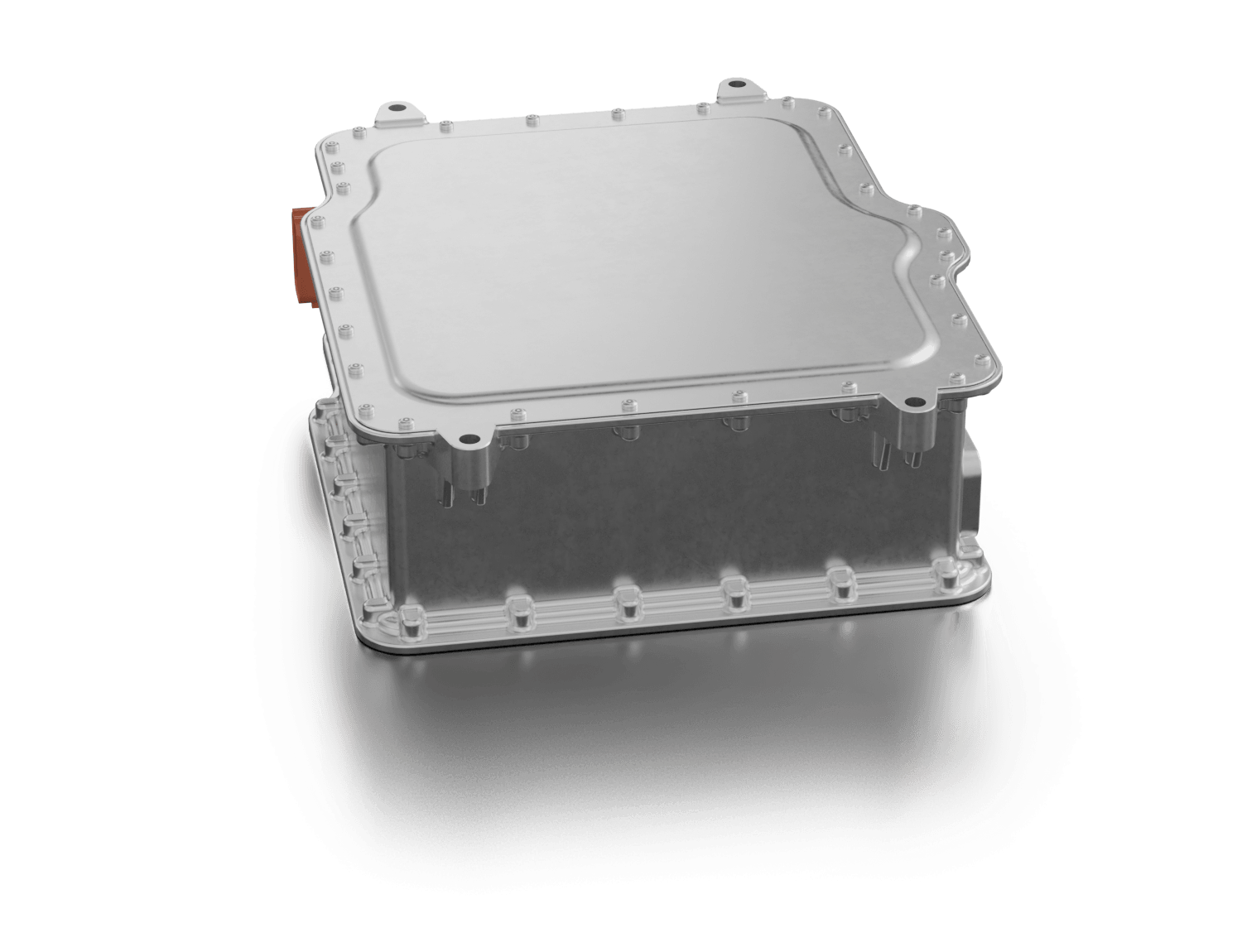

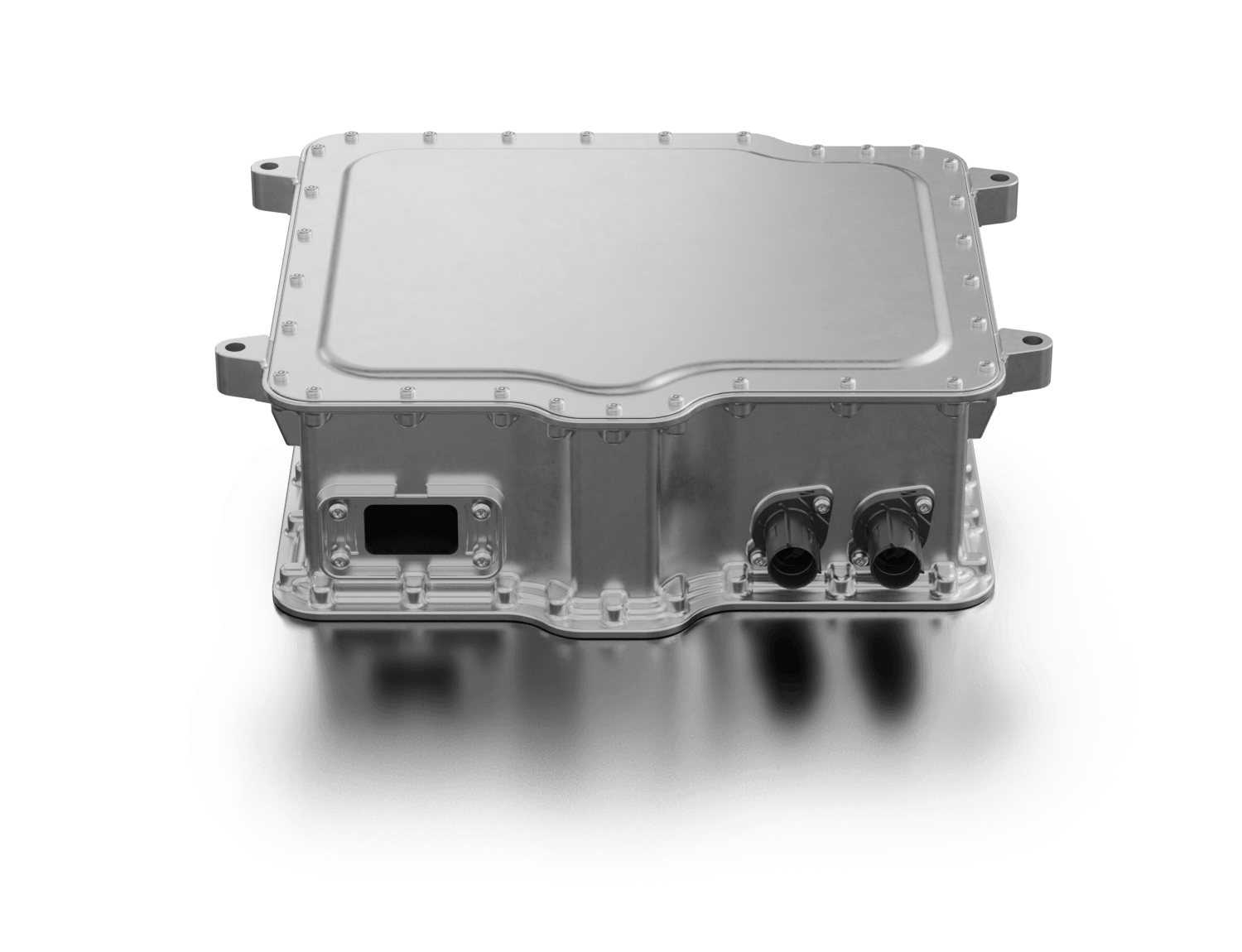

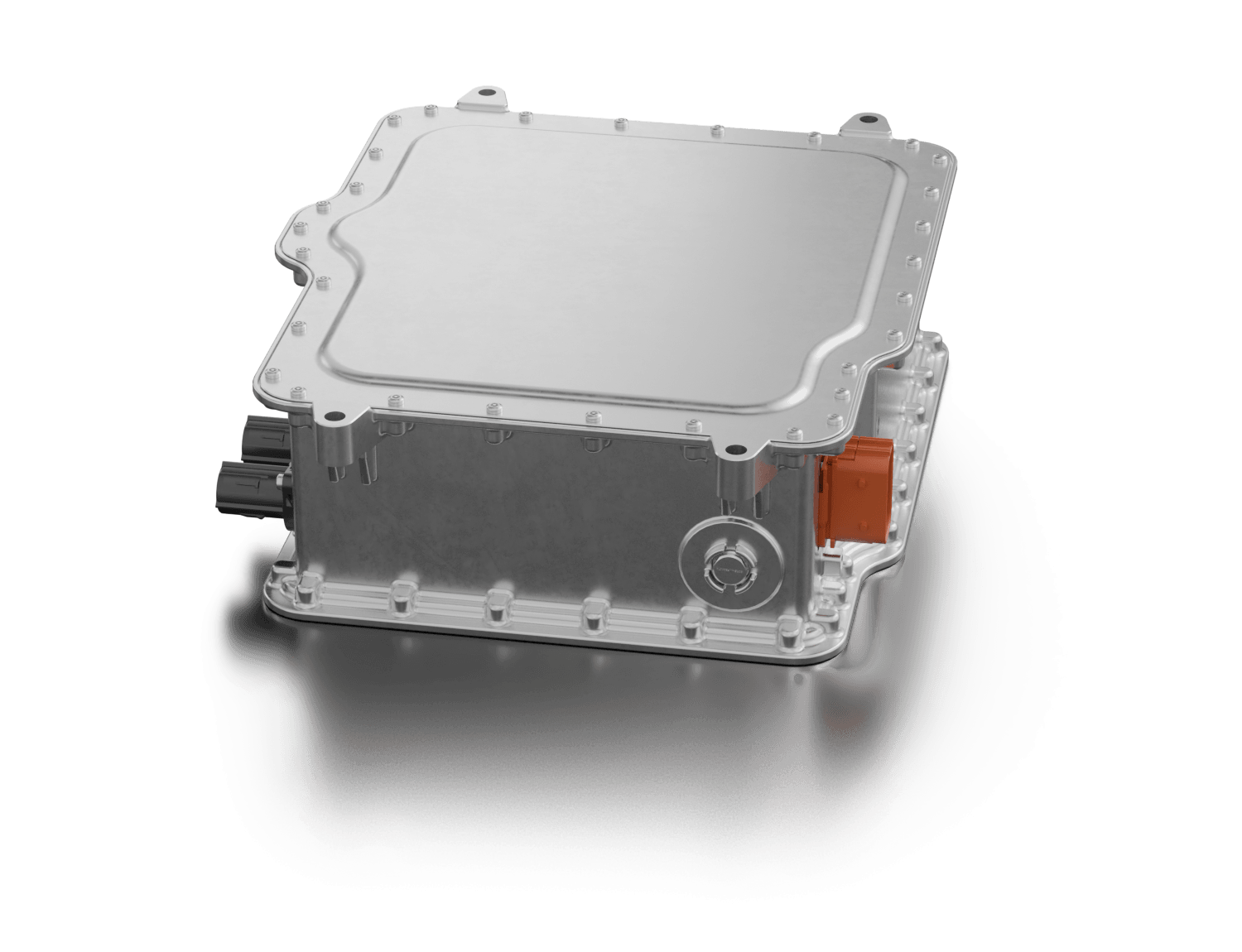

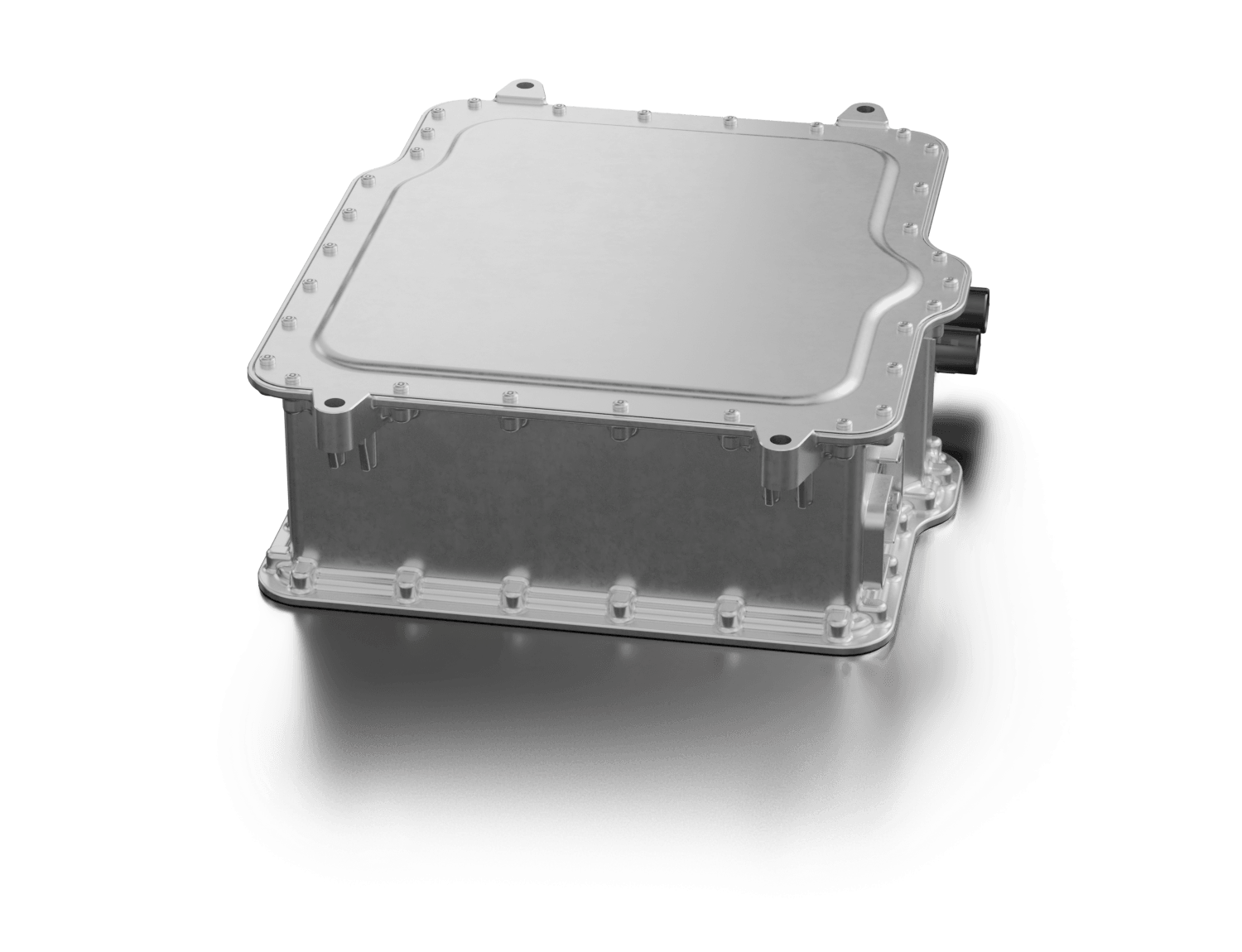

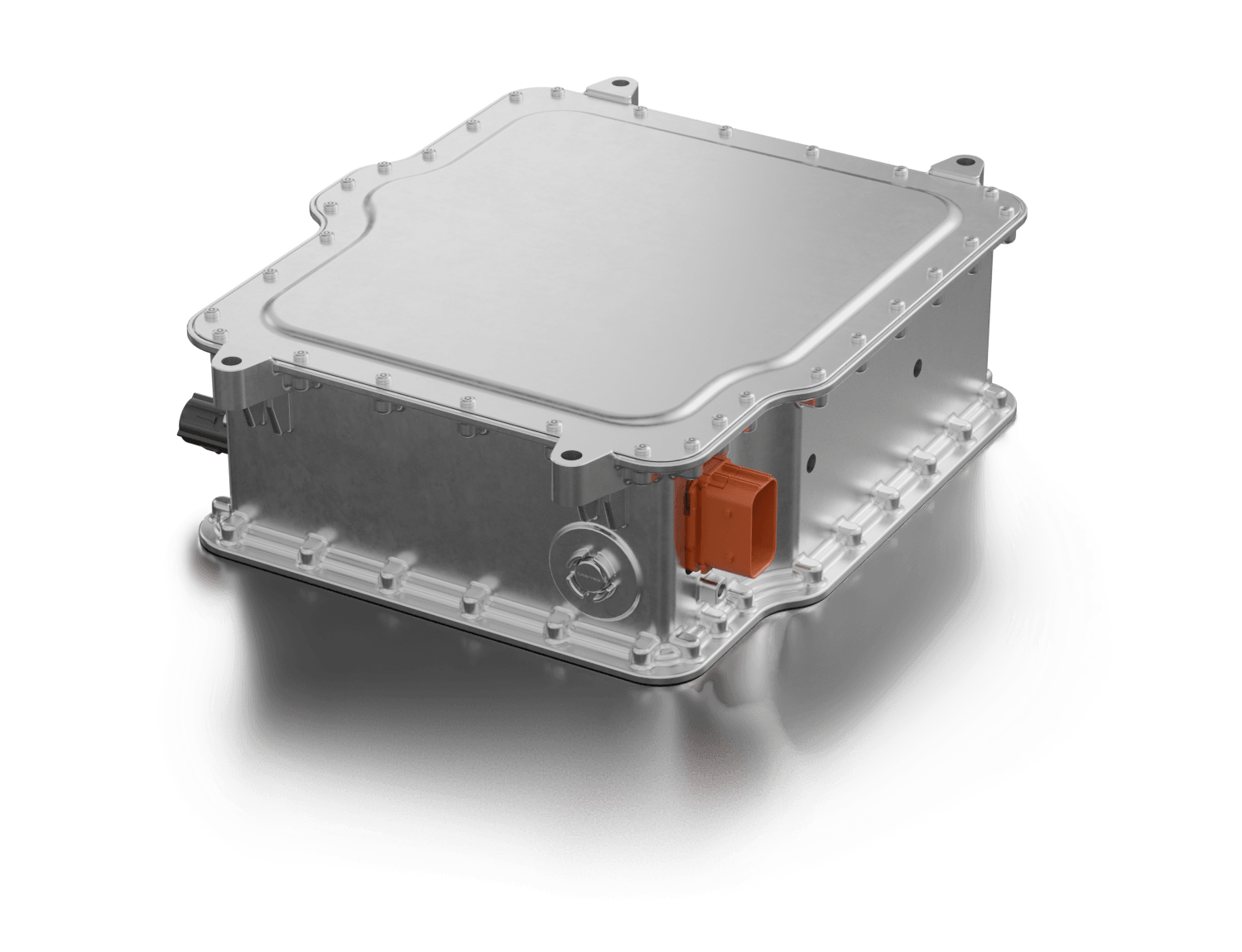

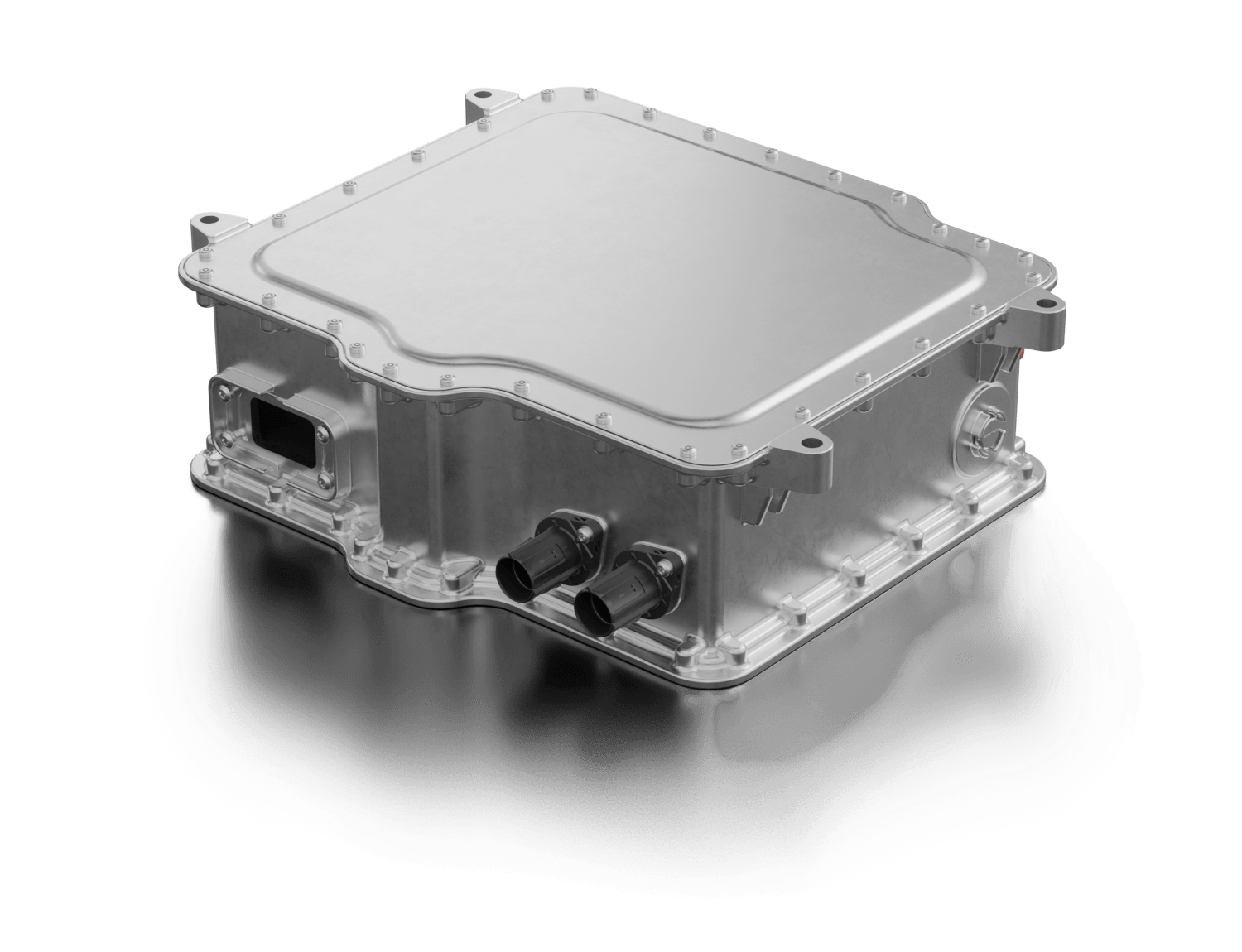

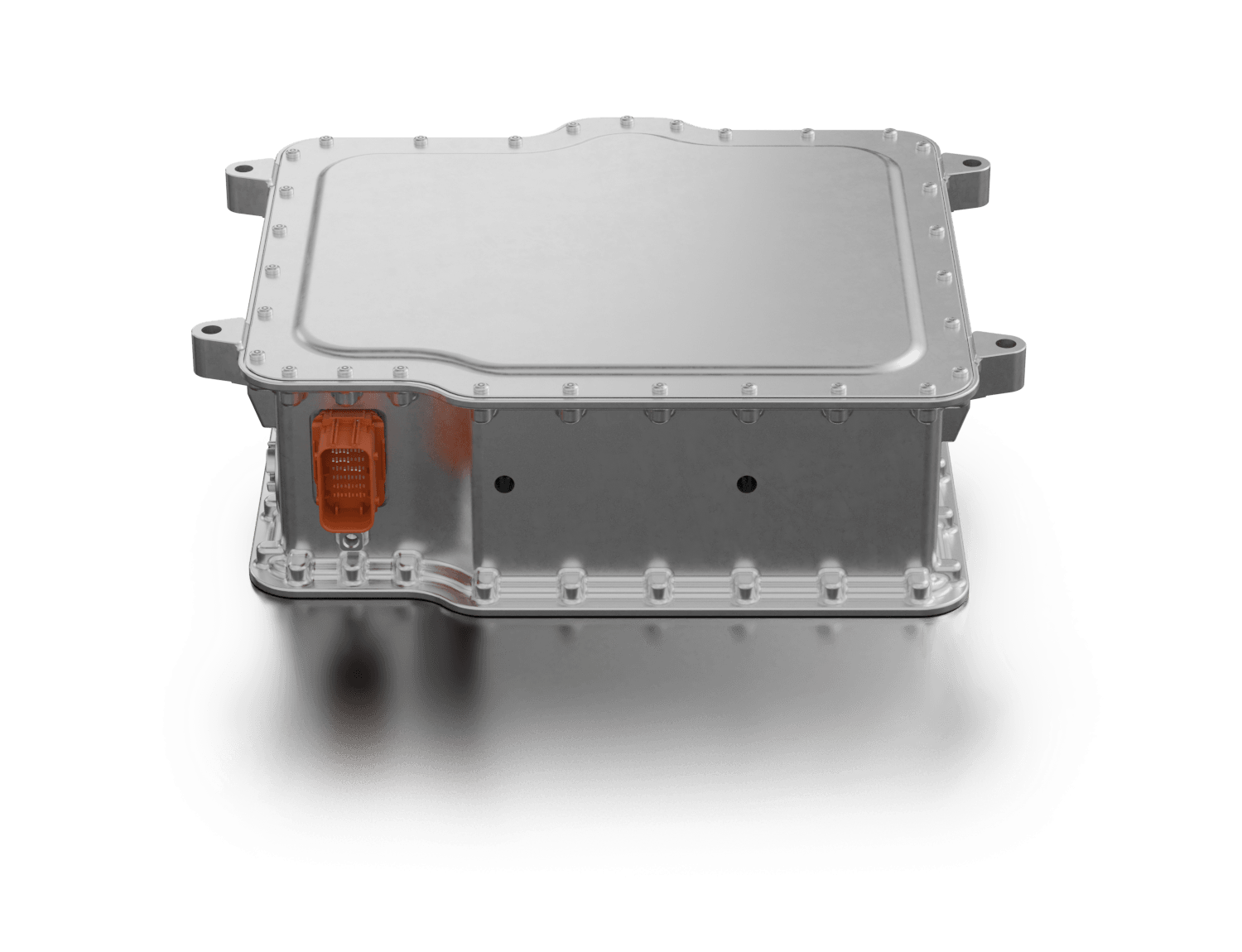

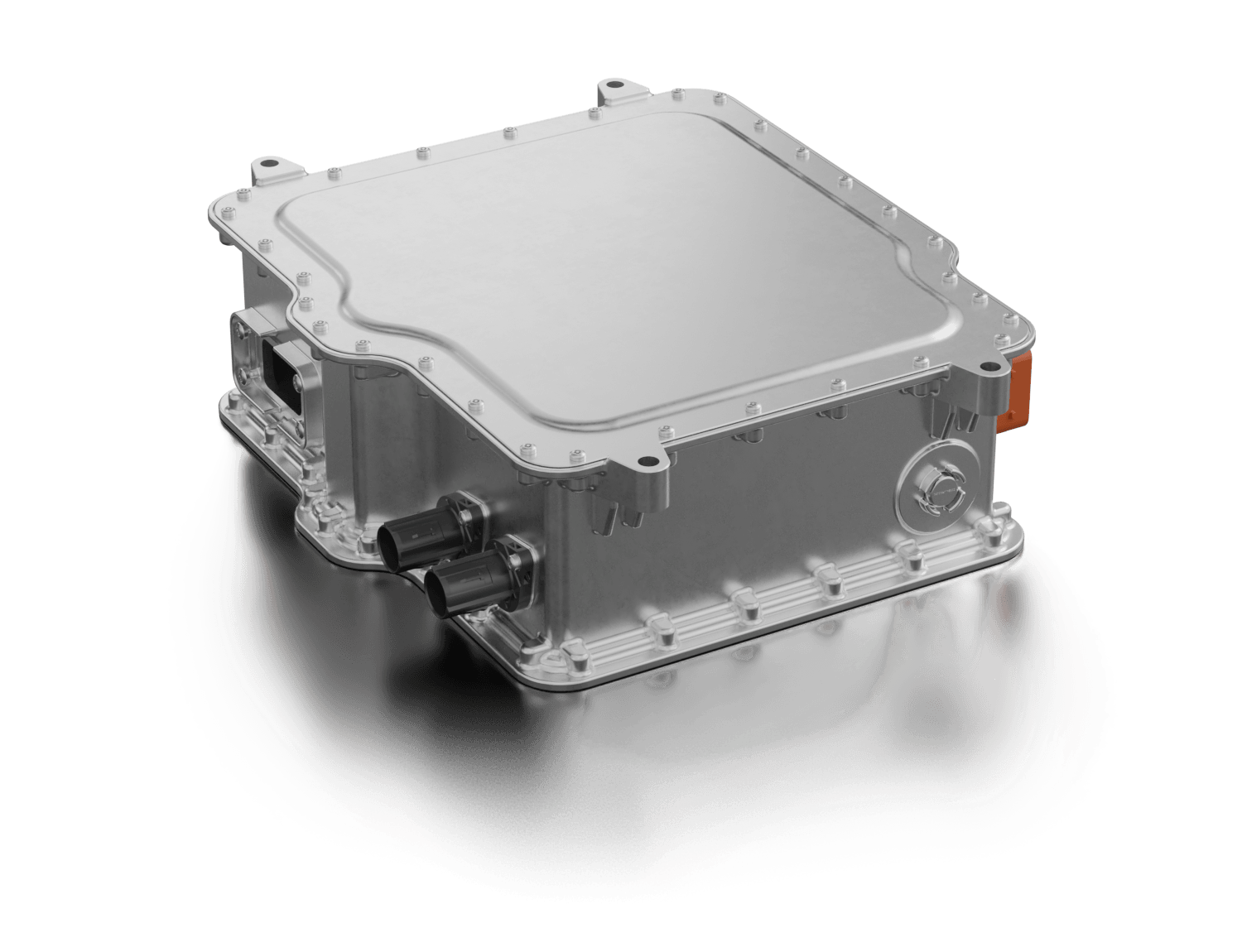

The electric Power Take-Off (ePTO) in 3D-View
Please click on the image to activate the 360˚ view.
Specifications
- AC output:
- Single-phase: 230 V / 50 Hz or 120 V / 60 Hz
- Three-phase: 400 V / 22 kVA (200 Ap)
- Unbalanced load capability with cos(phi) control
- DC output: 450 V to 850 V DC output (25 kW)
- Efficiency: > 94%
- Bidirectional operation: yes
- Galvanic isolation: yes
- Insulation monitoring: yes
- Control: voltage / current control
- Safety rating: ASIL-C
Application Areas
- Commercial vehicles such as tippers, tow trucks and refrigerated trucks for hydraulics, winches and cooling;
- municipal vehicles (sweepers, snowplows);
- construction machinery (concrete pumps, drilling rigs);
- emergency vehicles (fire brigade, service vehicles);
- agricultural machinery;
- maritime applications;
- machines with electric drives for quieter and emission-free operation
Advantages
- Greater range due to minimal losses in the power supply to the generators
- Cost savings/higher payload due to lighter, low-maintenance trailers
- Reduced noise due to the elimination of diesel generators
- Flexible installation in all vehicle classes
Why choose this product?
The Silver Atenas ePTO impresses with its high efficiency across a wide load range.
Its hot-plug capability (plugging in with immediately available power and high starting currents) and bidirectional operation enable its use in a wide variety of mobile applications.
