High-Voltage Traction Inverter
What is a High-Voltage Traction Inverter?

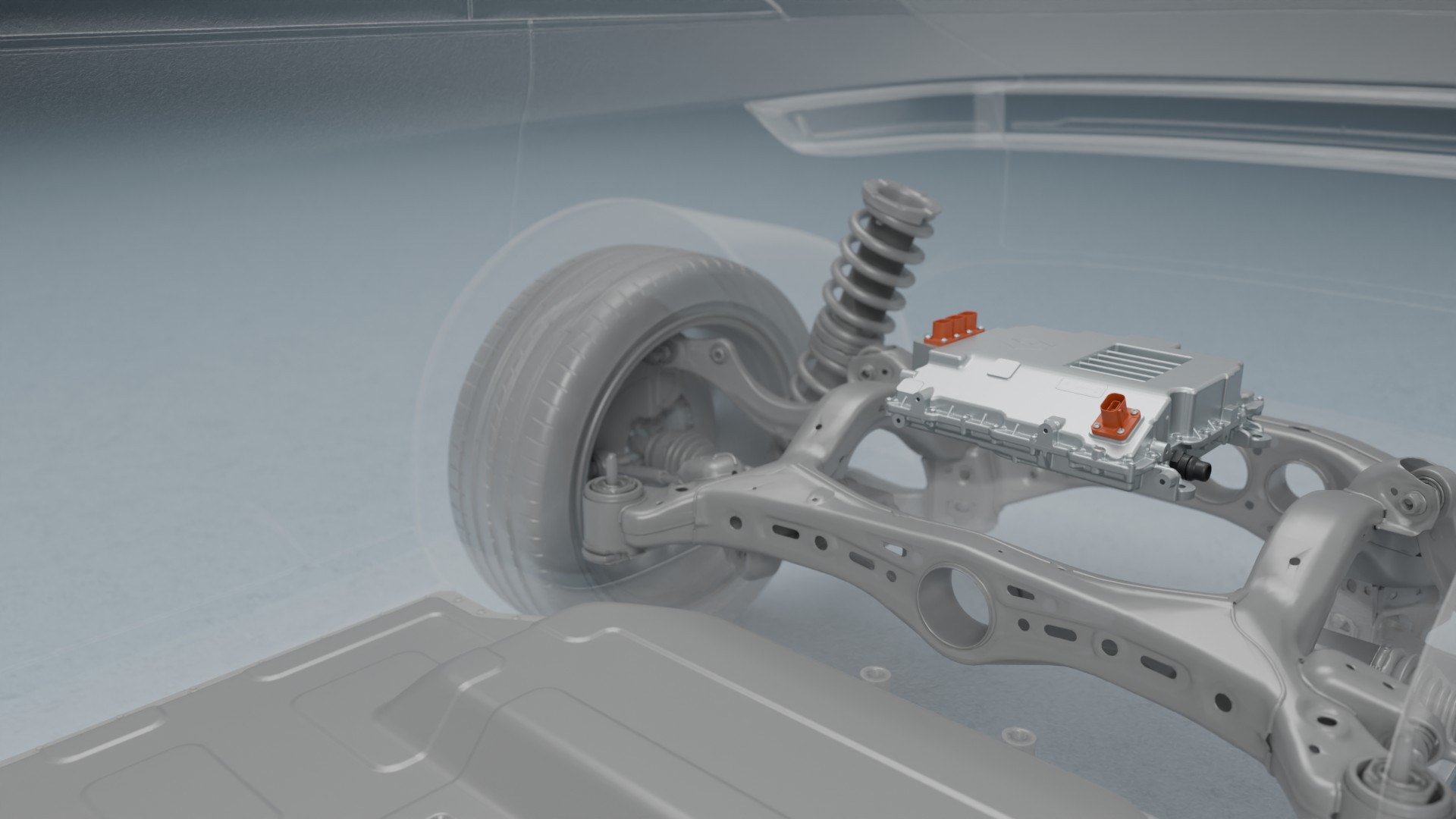

Our inverters for controlling electric motors form the central control unit of the electric powertrain. They impress with their exceptional energy efficiency, compact design, and maximum reliability – even under extreme conditions in axle drives. Developed for use in 400 V and 800 V electrical systems, our traction inverters are ideally suited for modern electric vehicles and hybrid applications – including commercial vehicles.
Whether as an add-on or integrated solution, the inverters can be flexibly integrated into various vehicle architectures and offer maximum performance in a minimal installation space. Thanks to state-of-the-art silicon (Si) and silicon carbide (SiC) semiconductor technology, our systems achieve particularly high efficiencies across virtually the entire operating range – crucial for long driving ranges.
For a dynamic driving experience, our inverters deliver high currents for strong torque – even at low speeds. Furthermore, our systems support the synchronization of two electric motors on one axle – ideal for targeted torque distribution to improve driving dynamics and stability.
Features
- Inverter for precise control of electric motors in the drivetrain
- Highest efficiency with silicon or SiC semiconductor technology
- Optimal energy efficiency thanks to low losses
- Regenerative braking for greater range
- Compact, flexible design – available as a stand-alone or integrated solution
- High torque and dynamic driving behavior with robust reliability
- Protection mechanisms: ASC (Active Short Circuit) capable, stall operation (starting against high load or back pressure, e.g., on a hill or curb), passive and active discharge without additional electronics, fulfillment of high safety requirements up to ASIL D
Applications
- Electric drivetrain
- Main inverter for traction motor(s)
- Robust inverters for heavy loads and continuous operation
- Suitable for multi-motor systems (front/rear or on one axle)
- Dual or triple inverter concepts

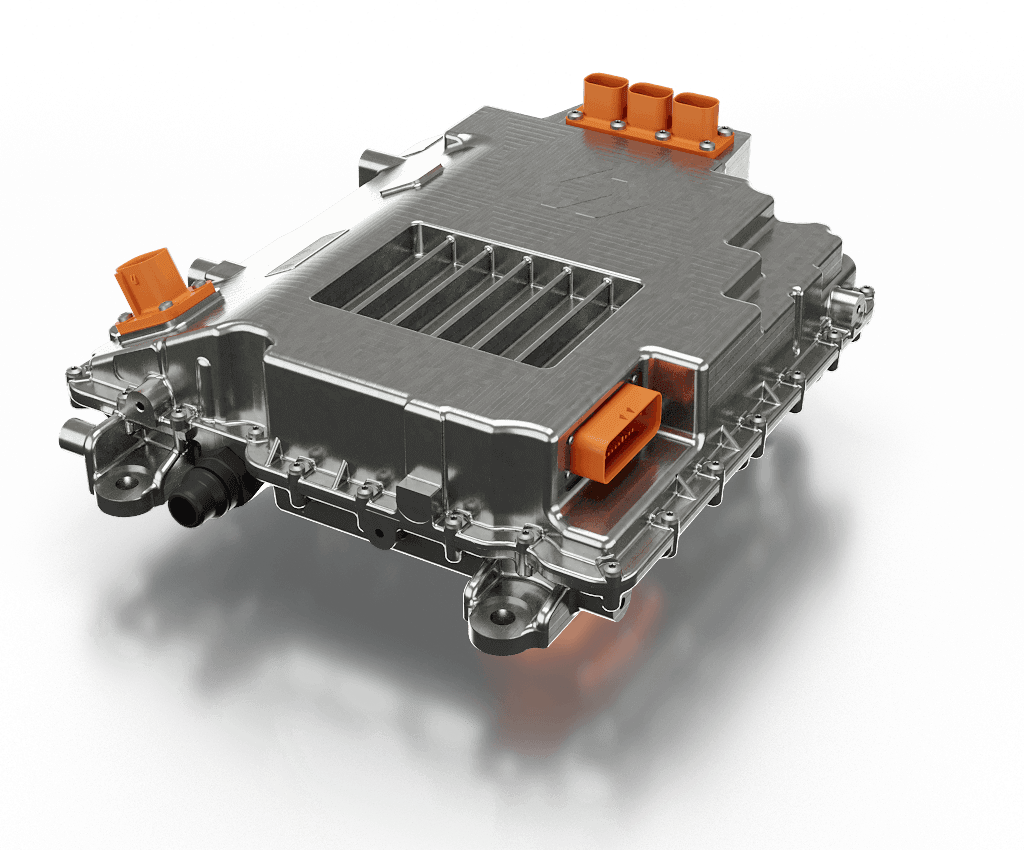

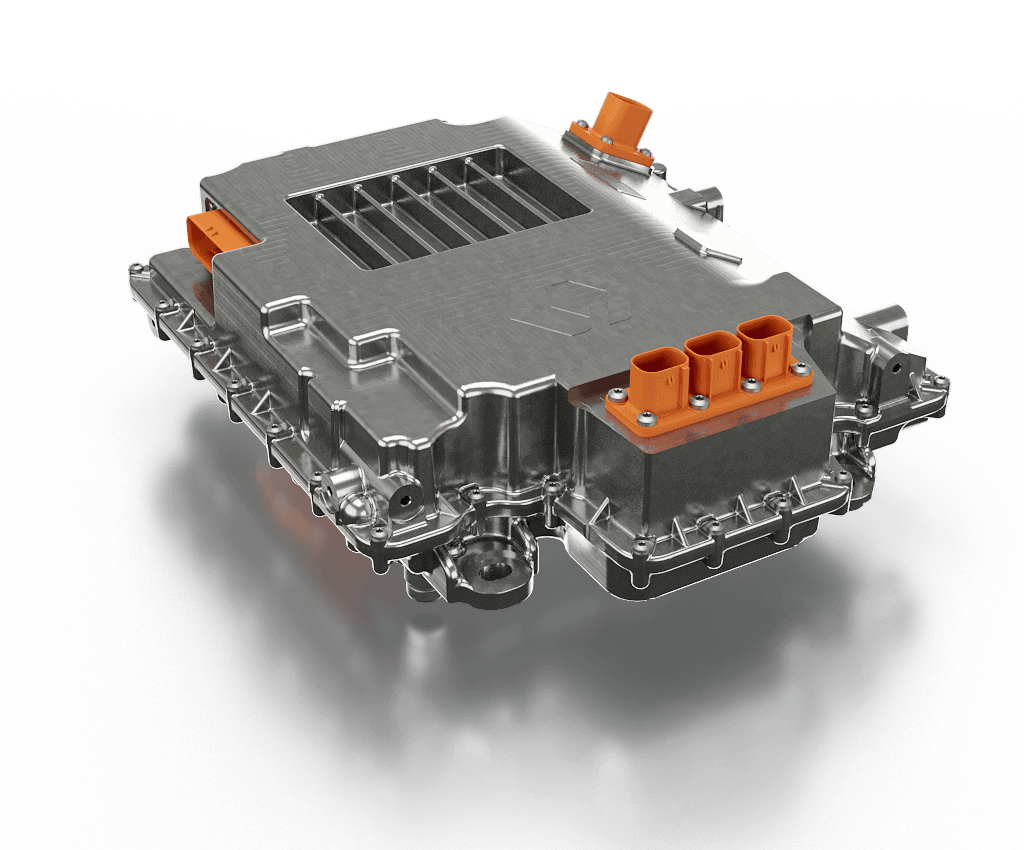

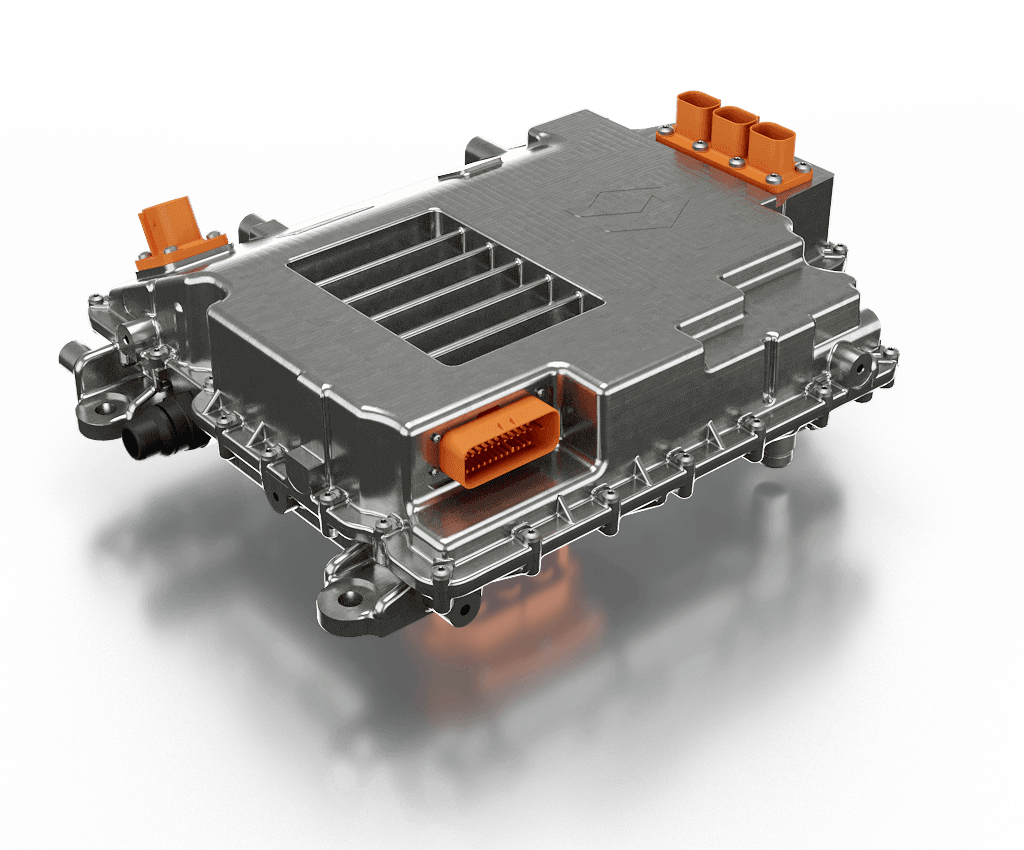

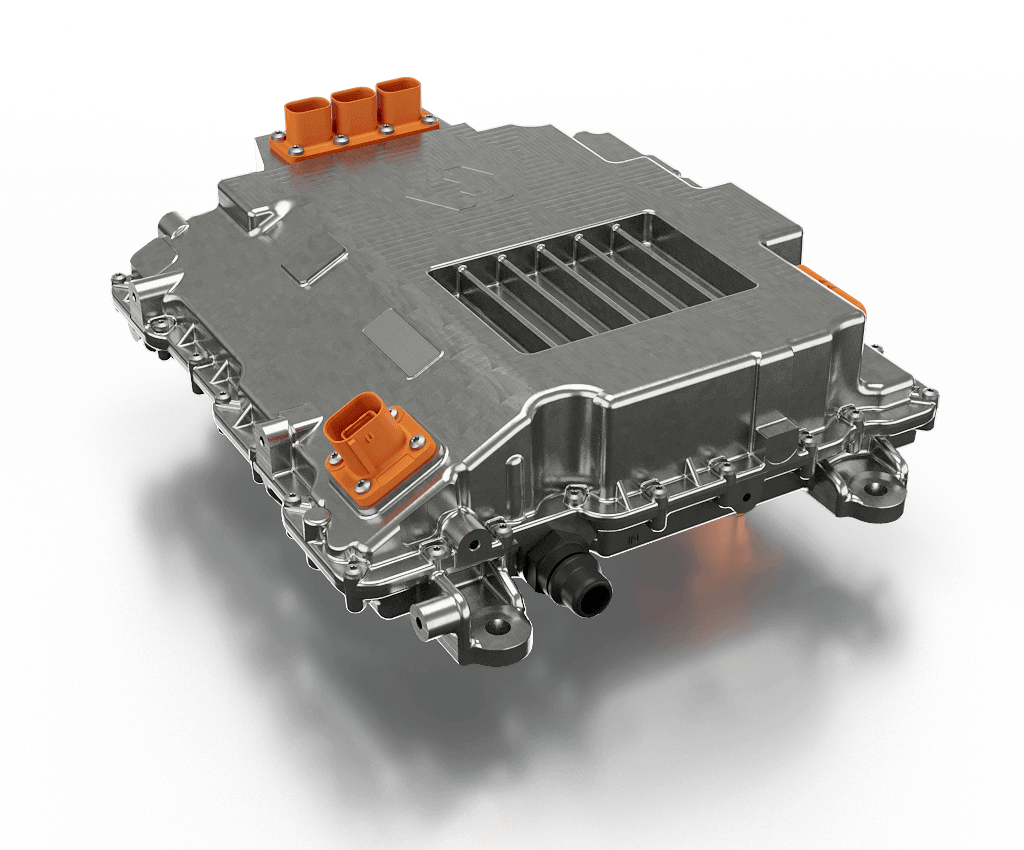

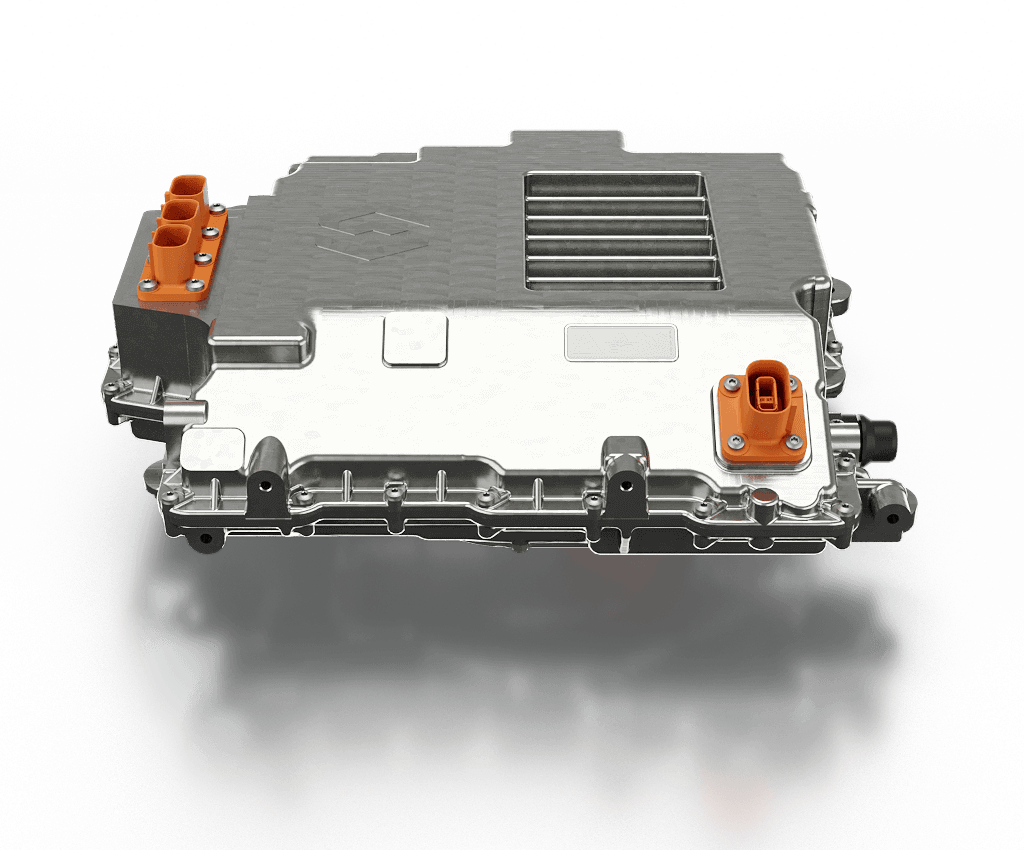

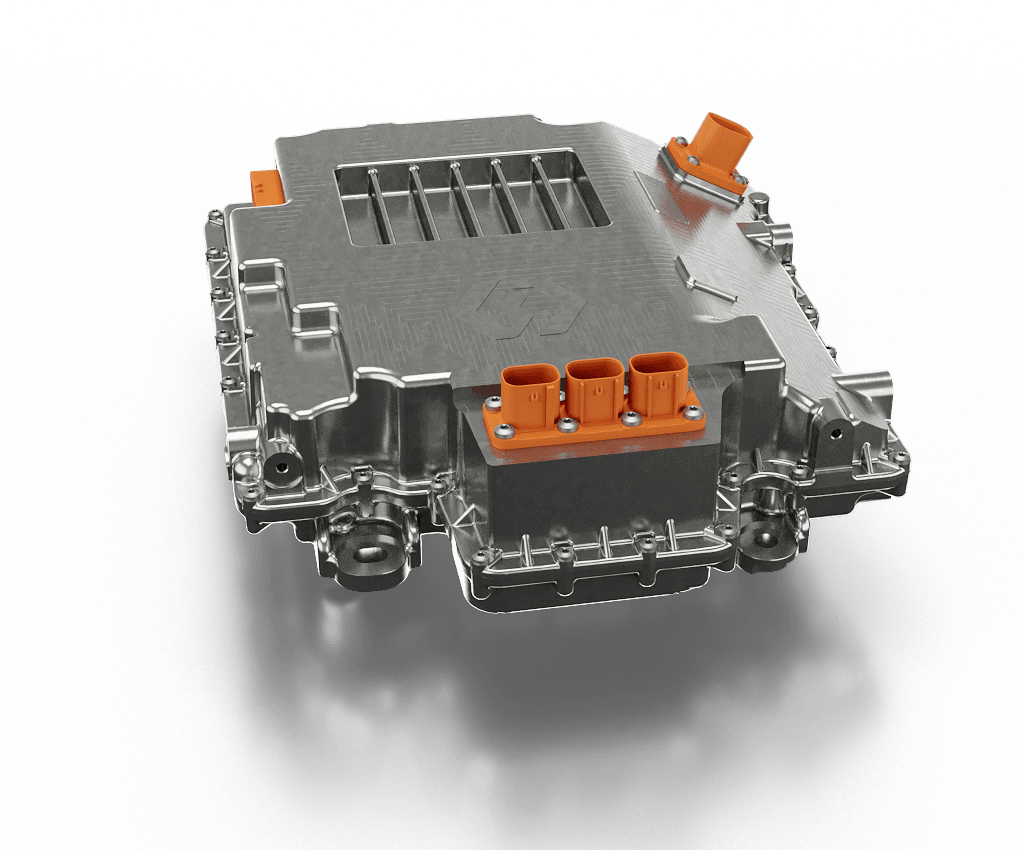

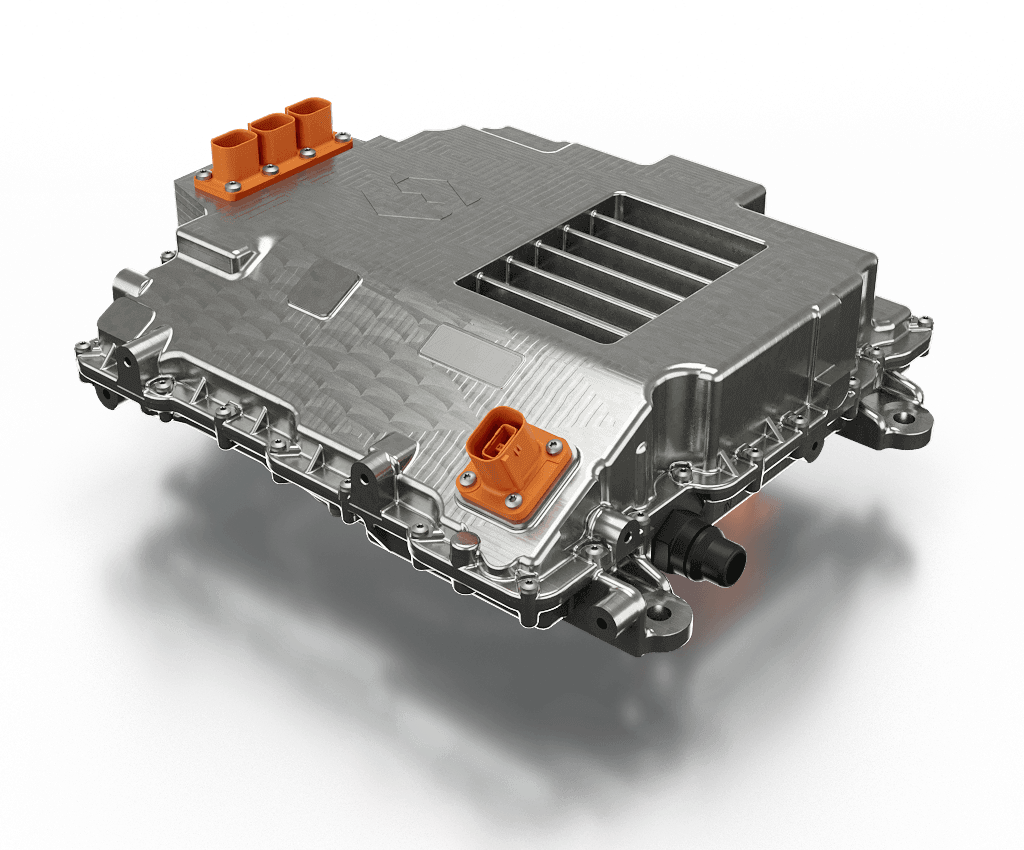

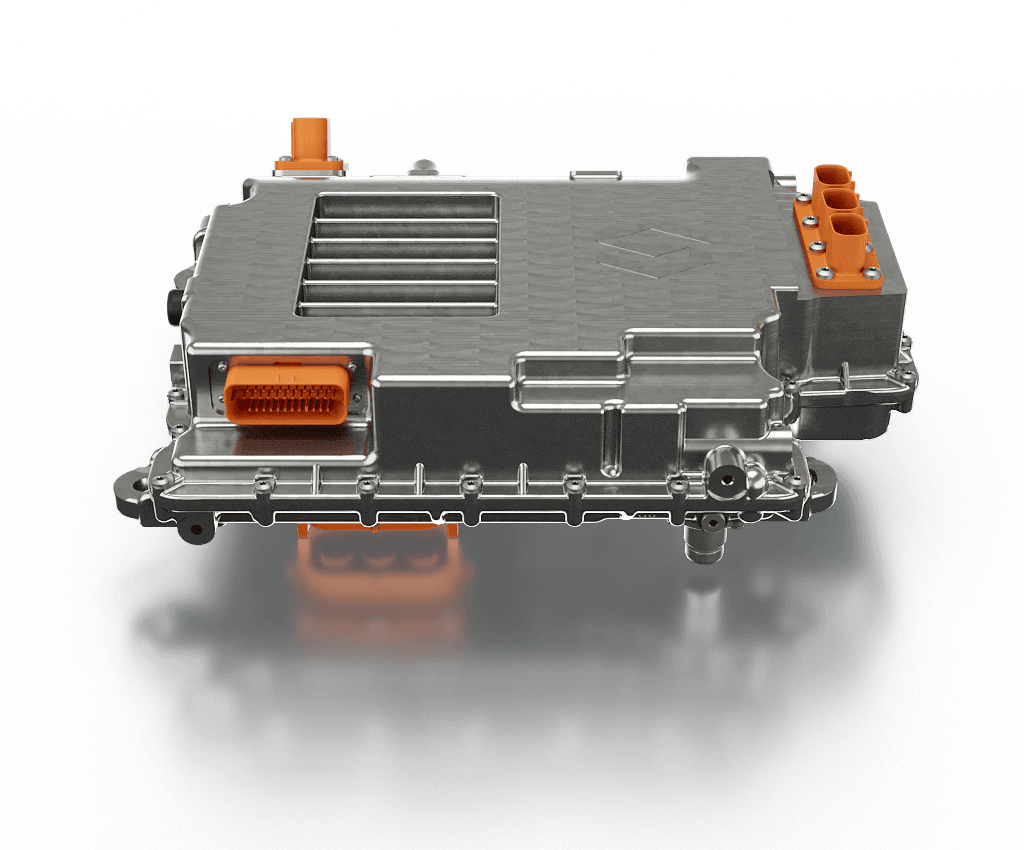

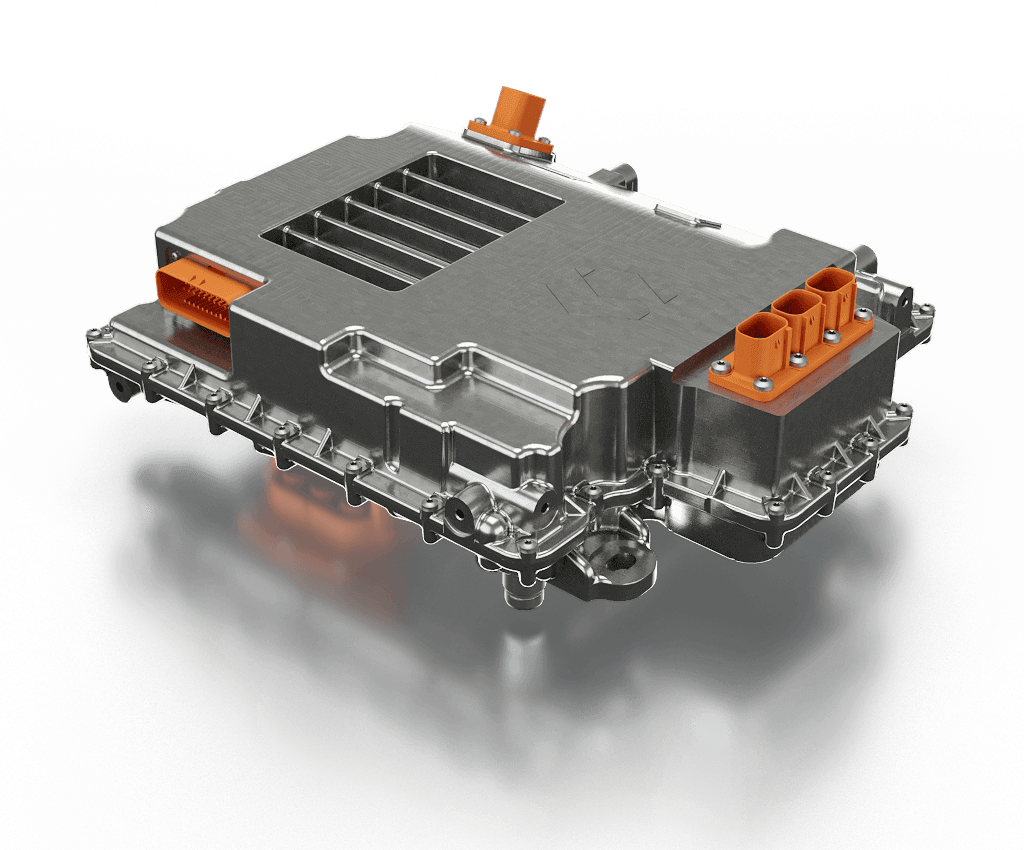

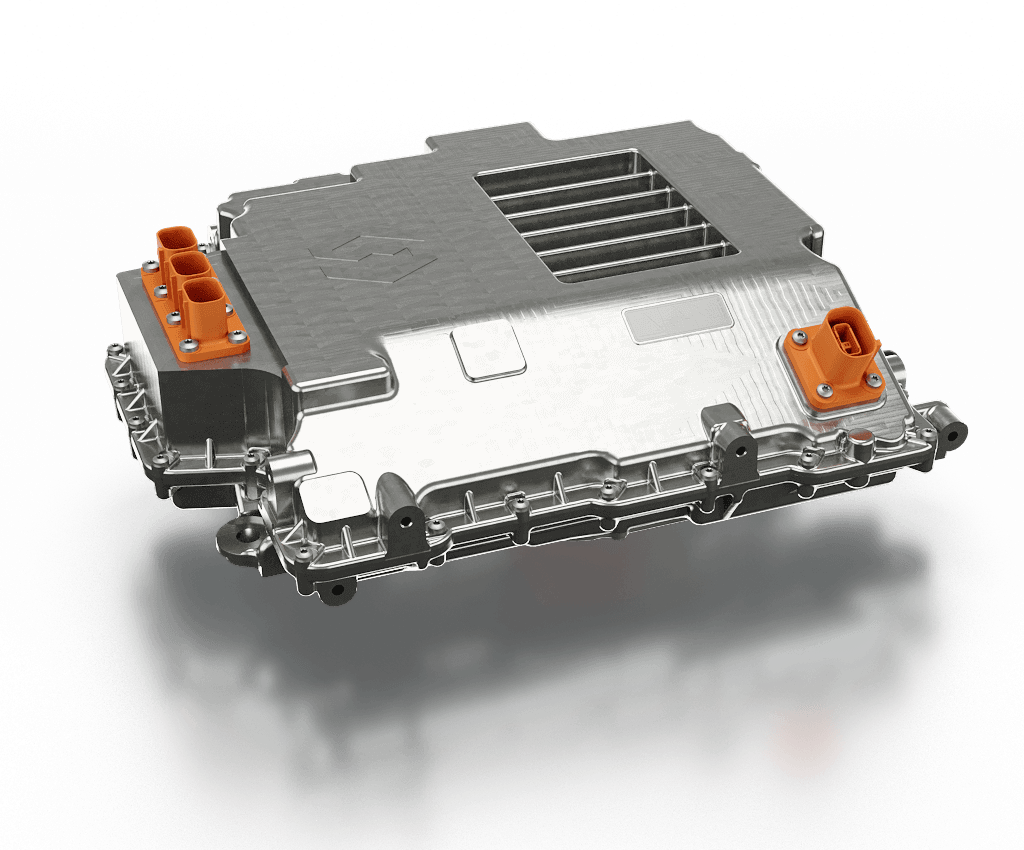

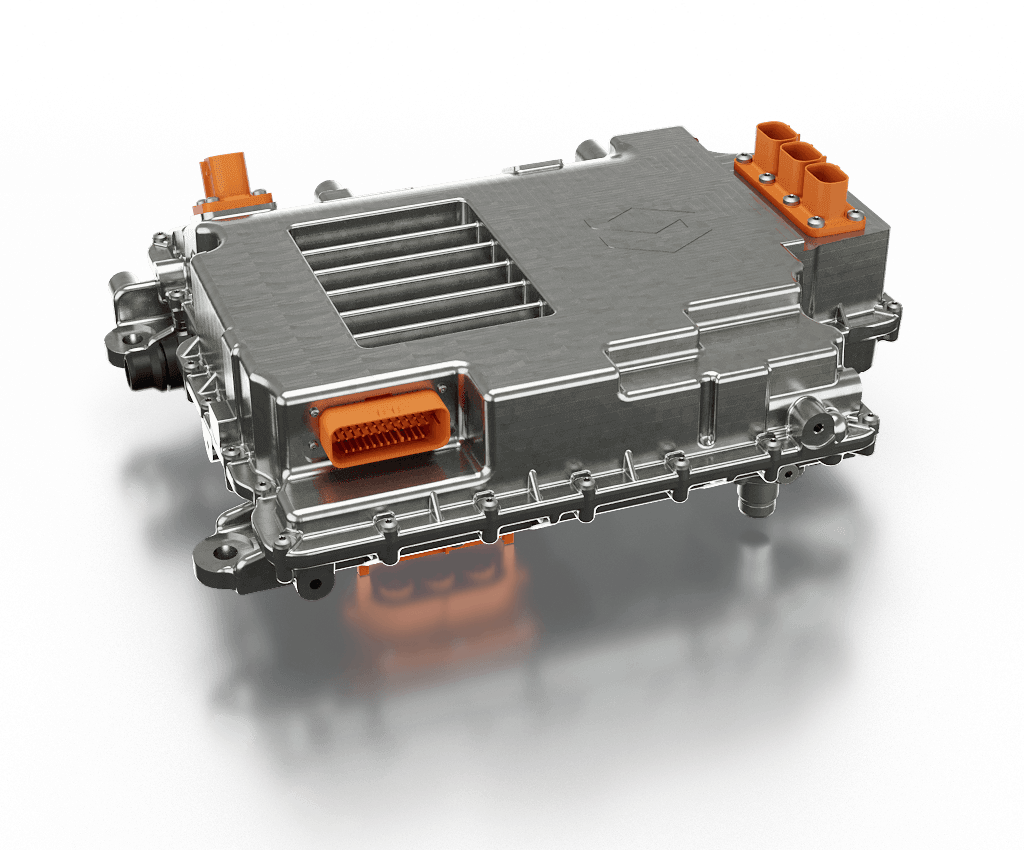

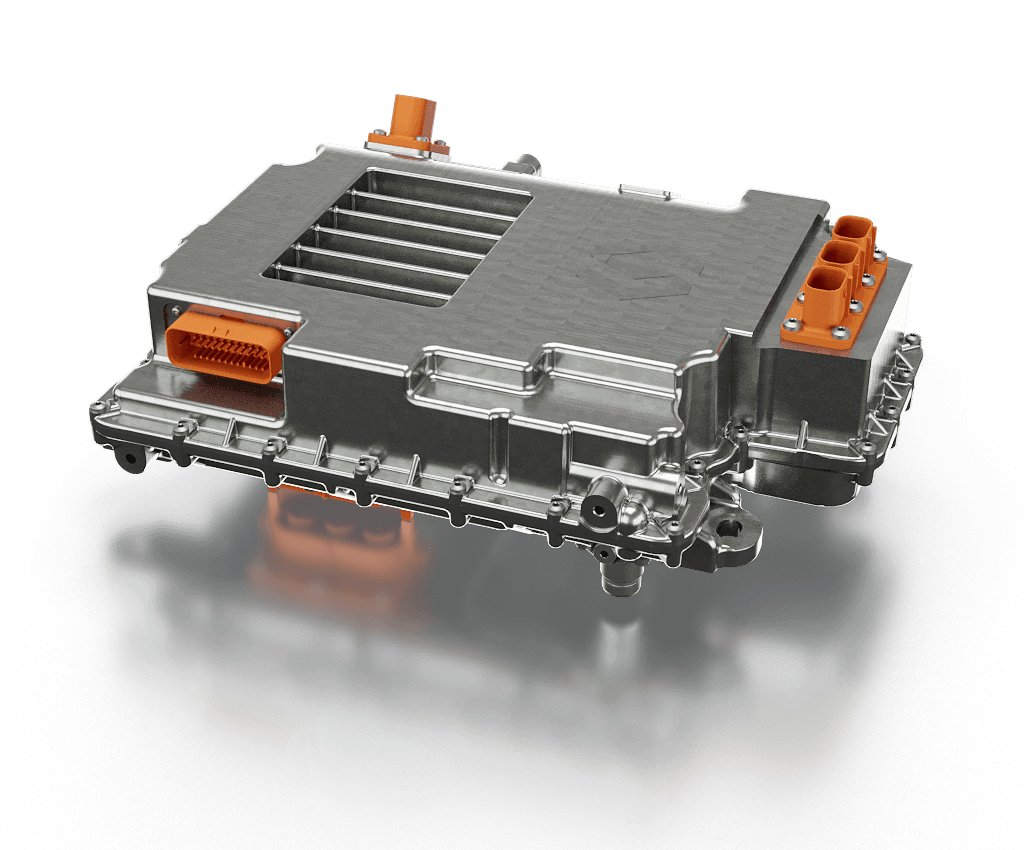

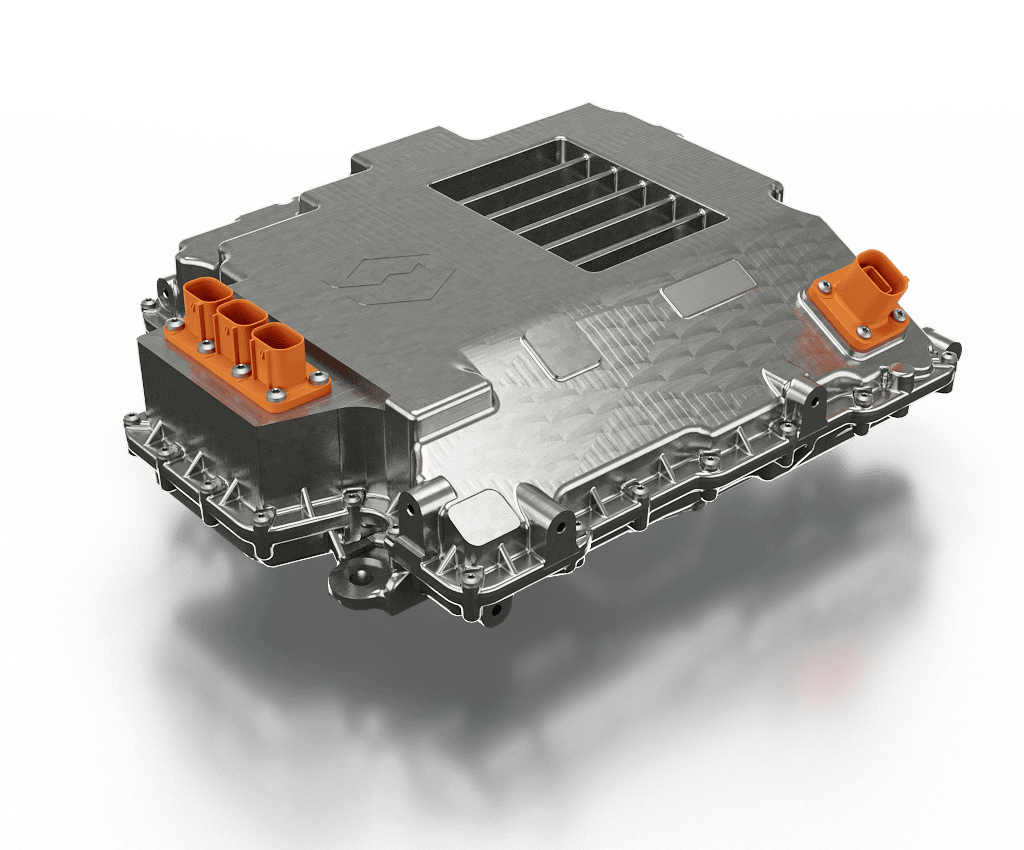

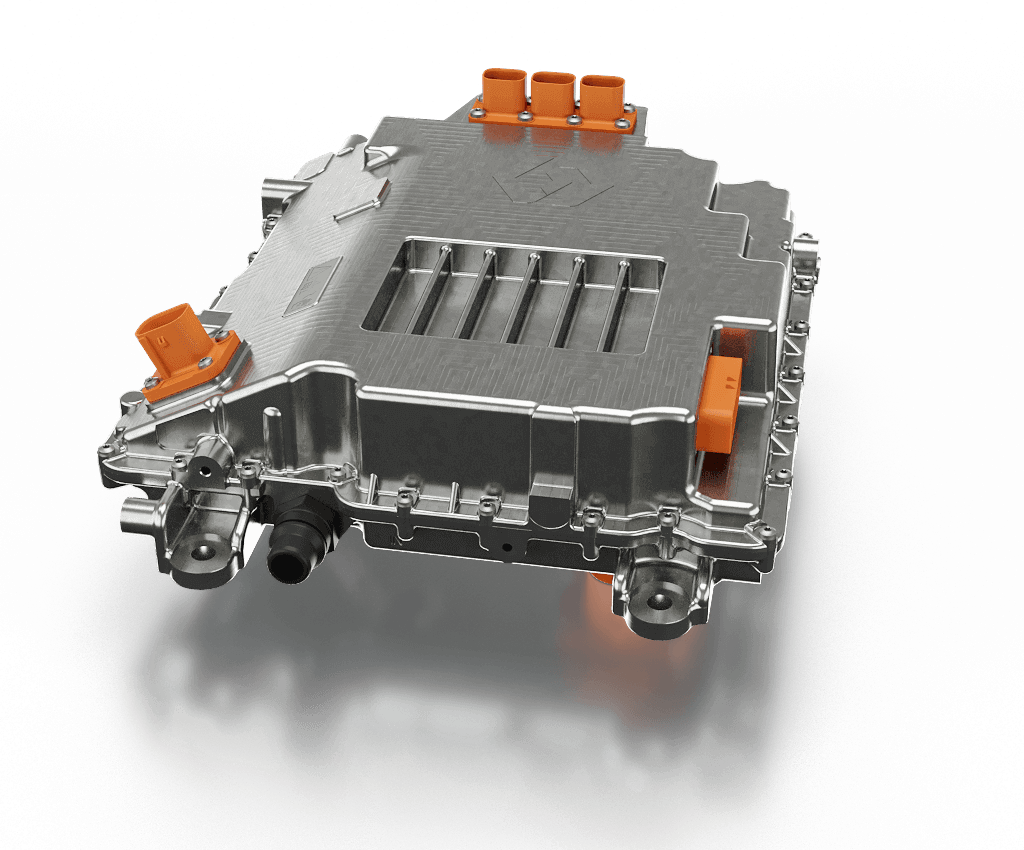

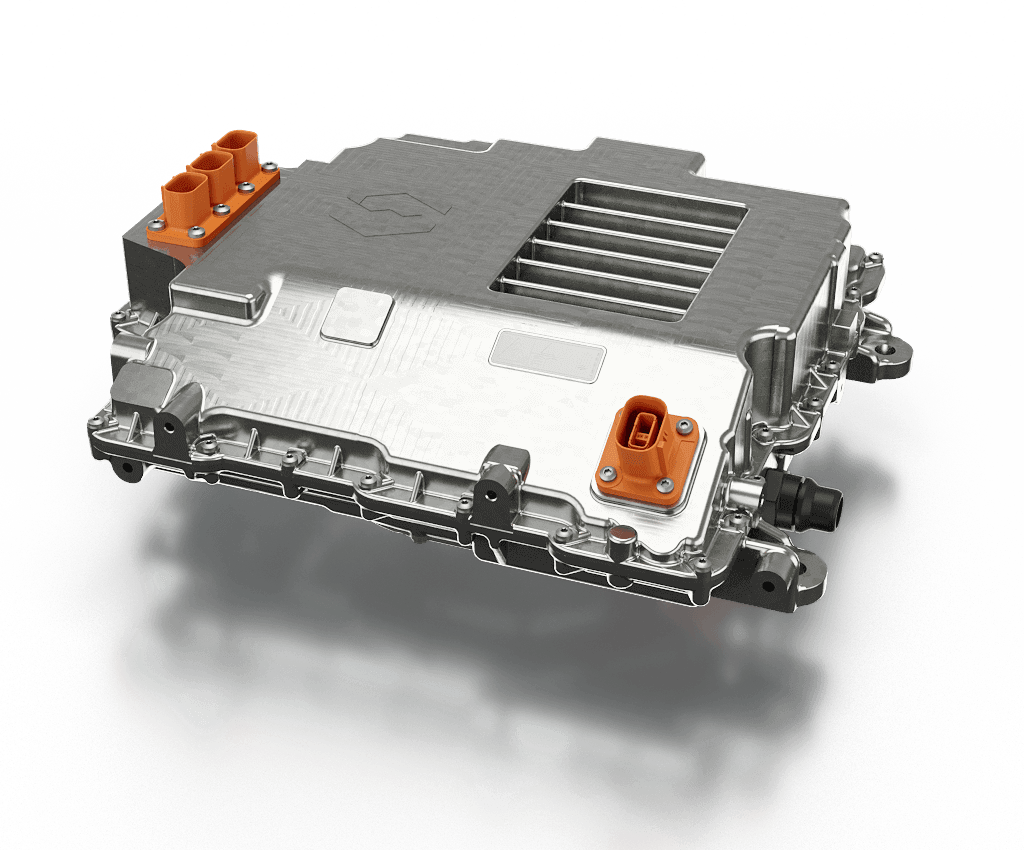

The High-Voltage Traction Inverter in 3D-View
Please click on the image to activate the 360˚ view.
Specifications
- Voltage range: 400 V - 800 V
- Power: up to 600 kW
- Safety level: up to ASIL D
- Active short circuit (ASC-capable): yes
- Stall operation: yes
Application Areas
- Electric cars with system architectures for 400V, 800V, or higher
- Commercial vehicles and buses with high power requirements
- Fuel cell vehicles
- Motorsport and off-highway applications with high dynamic load profiles
- Agricultural machinery and mobile machinery
Forklifts and logistics vehicles (AGVs)
Advantages
High efficiency across all operating points ensures optimal energy utilization, which directly translates into a longer range and reduced cooling requirements. At the same time, the high power density enables a compact design while maintaining consistently high performance – a crucial advantage for smaller and lighter drive systems.
High switching frequencies enable precise motor control, which has a positive impact on driving characteristics, for example, in functions like torque vectoring. This is complemented by high-performance control technology that significantly improves dynamic response and driving stability.
Finally, the multilevel architecture contributes to efficiency optimization and opens up possibilities for greater range or the use of smaller batteries.
Why choose this product?
- Maximum efficiency and compact design thanks to SiC/Si semiconductor technology and thermally optimized design
- Flexible adaptation to individual customer requirements through modular platform strategies
- Automotive-compliant according to ISO 26262, IATF 16949, and others – ideal for safety-critical vehicle applications
Why Silver Atena?
- Engineering expertise: decades of experience in high-voltage power electronics and safety certifications
- Innovative semiconductor technology: many years of experience with SiC and GaN for maximum efficiency
- Flexible system integration: customized solutions from prototype to series production
- Certified safety: ASIL D and cybersecurity compliant
- Customer-focused collaboration: from concept to after-sales service
- Reliable results: proven, practiced in-house development process or customer process
- On-time delivery: in-house production lines and certified partners
