Control and Display Device
What is a BAG (Control and Display Device)

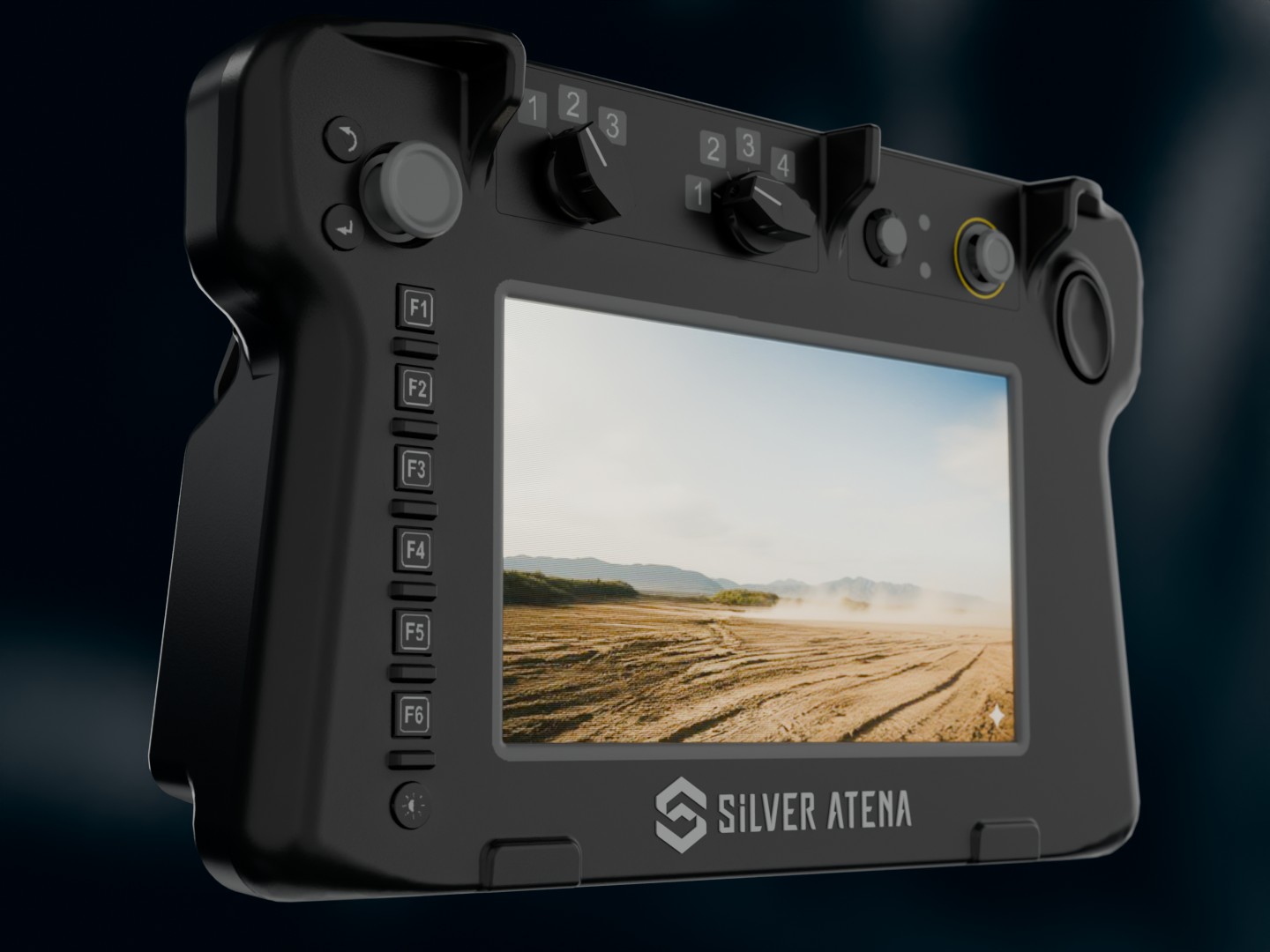

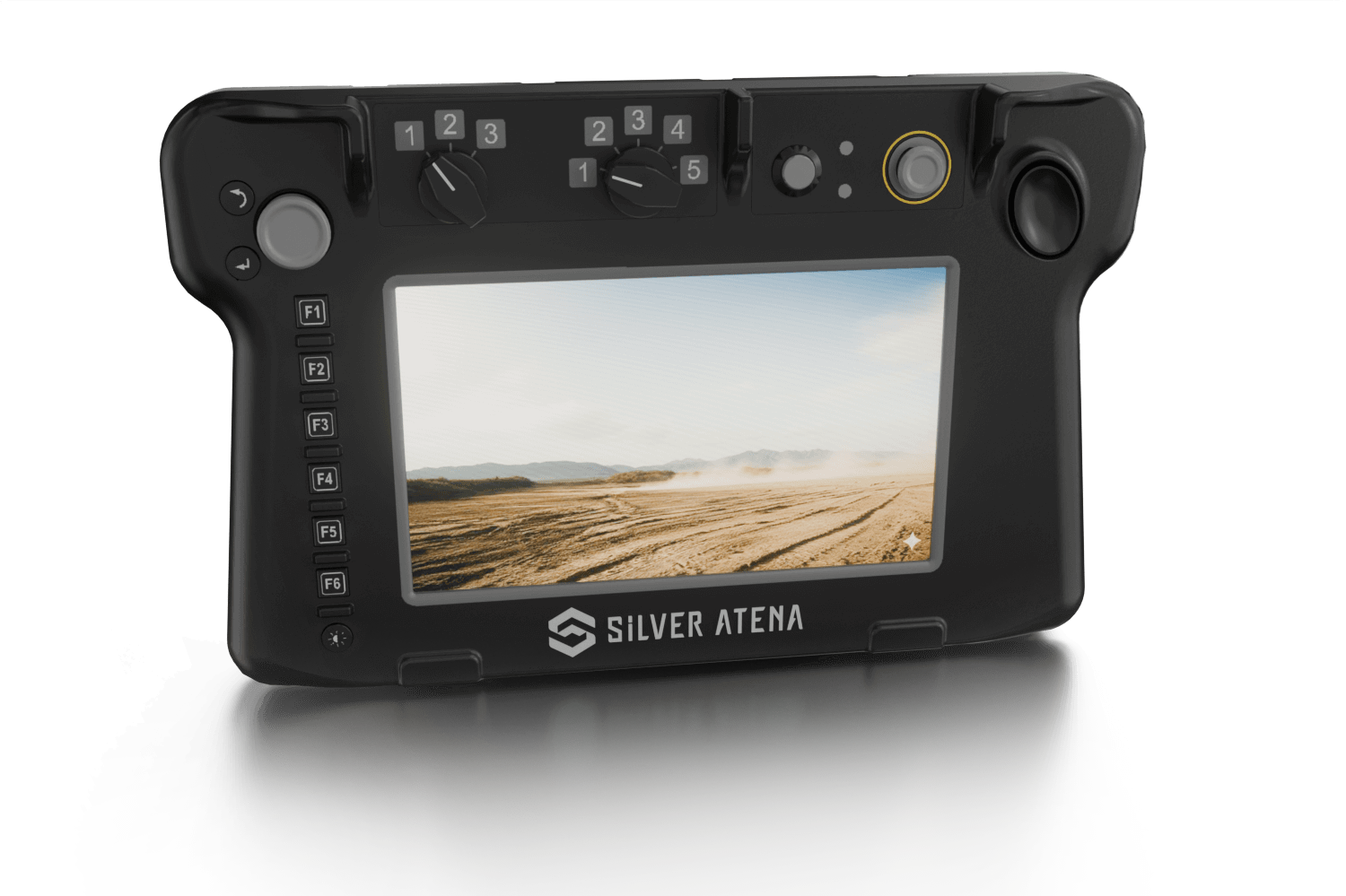

The BAG from Silver Atena is a robust, modular and mobile control and display unit for military vehicles and command facilities. It serves as a central human-machine interface for controlling sensors, weapon systems, and communications.
Featuring a 10.1" touchscreen, real-time video processing, and EMC protection, it is ideal for extreme operating conditions.
Certified to MIL standards, it offers high reliability, glove-operable operation, and flexible integration into land, air, or sea-based platforms.
Features
- Real-time video signal processing
- Robust 10.1" display with touch functionality
- Mobile (removable from the overall system)
- Operation with gloves is possible
- Fully shielded against EMC interference
- Control elements with dimmable backlight
- Use of microcontrollers for communication and control
- Adjustable display brightness
Applications
- Control of reconnaissance sensors, display of tactical information, and operation of deafence systems
- Terminal for situational awareness, real-time communications, and battlefield monitoring
- Control of sensors, mission planning, or display of video streams from aerial reconnaissance
- Navigation support and display of surface contacts and tactical situations

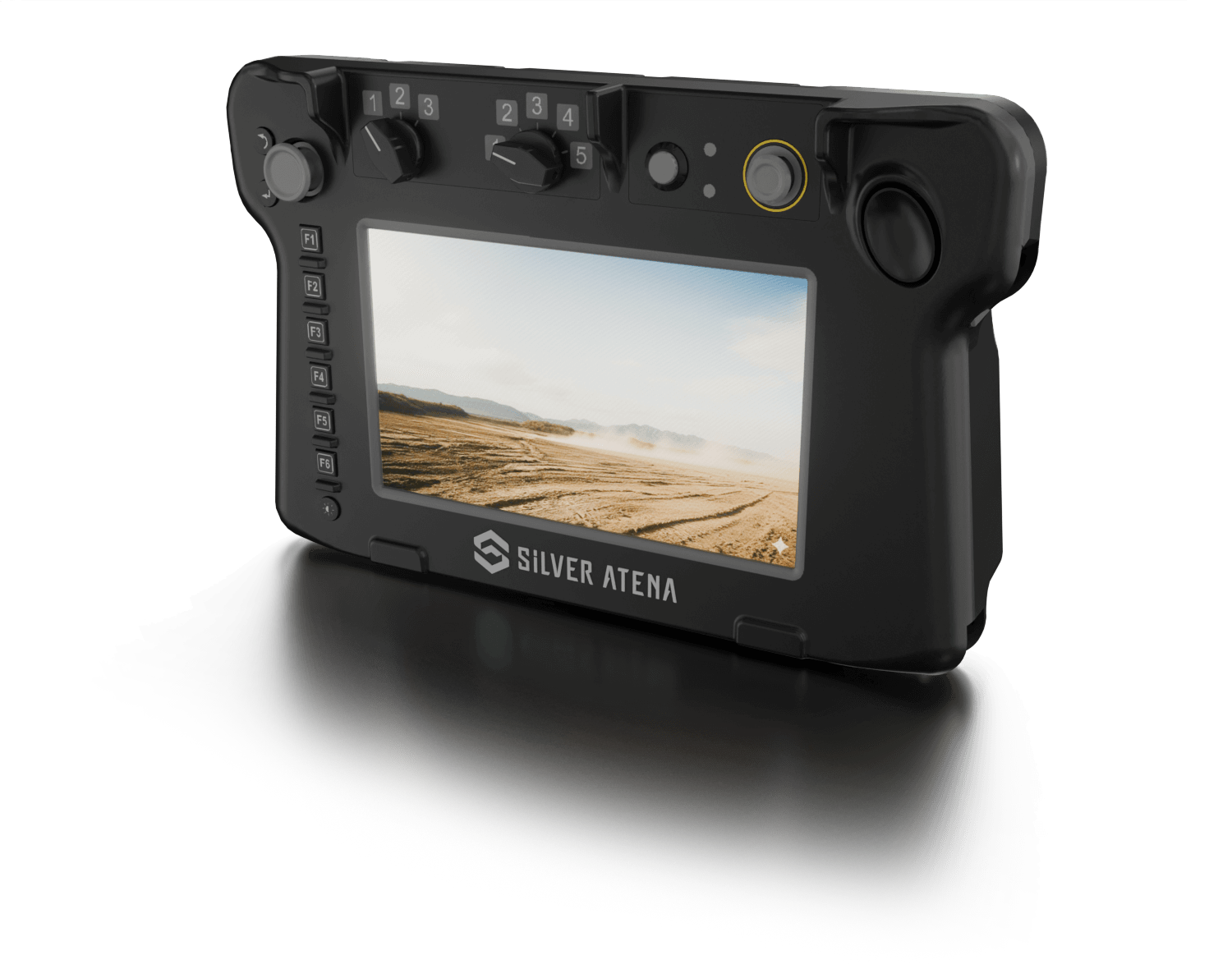

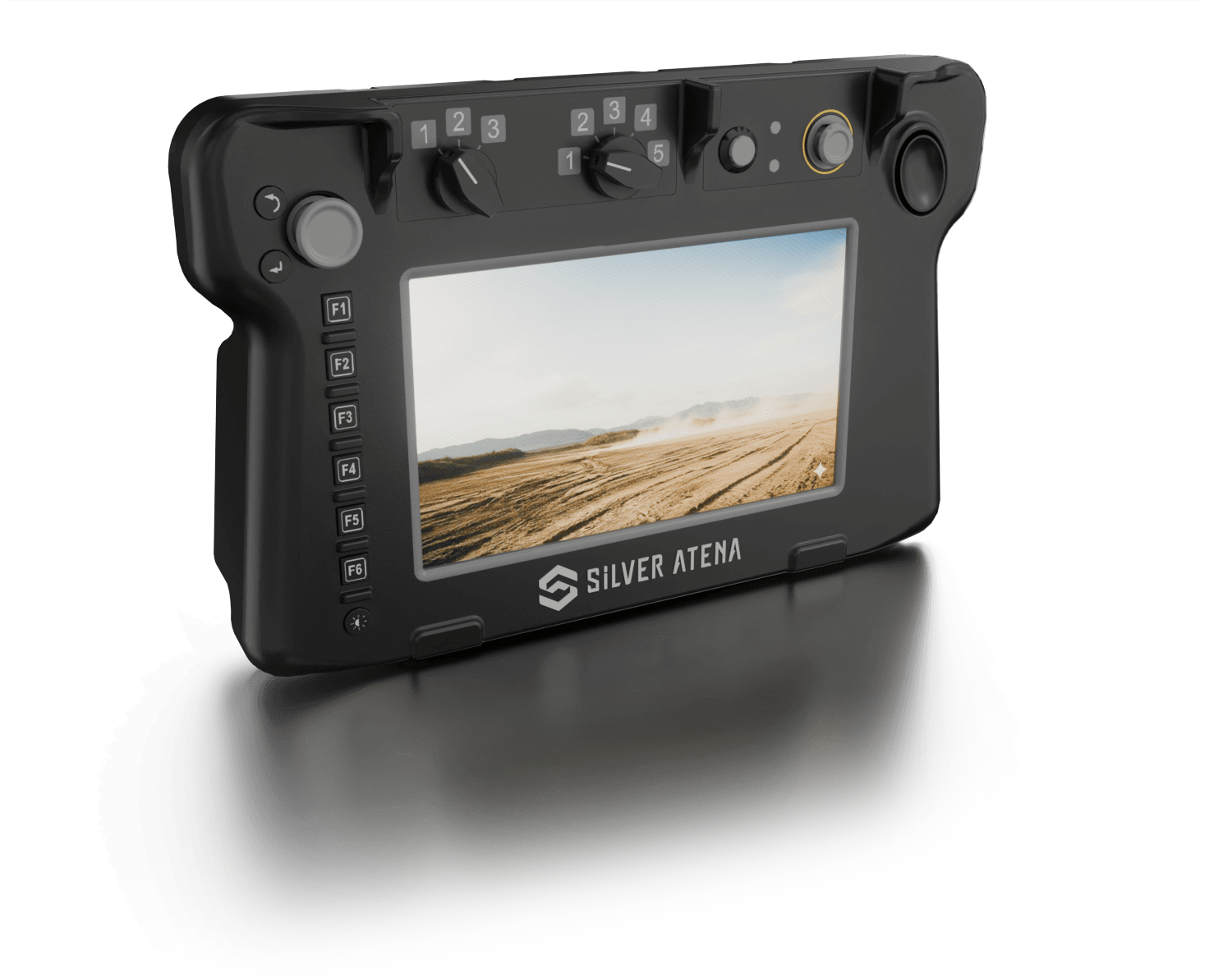

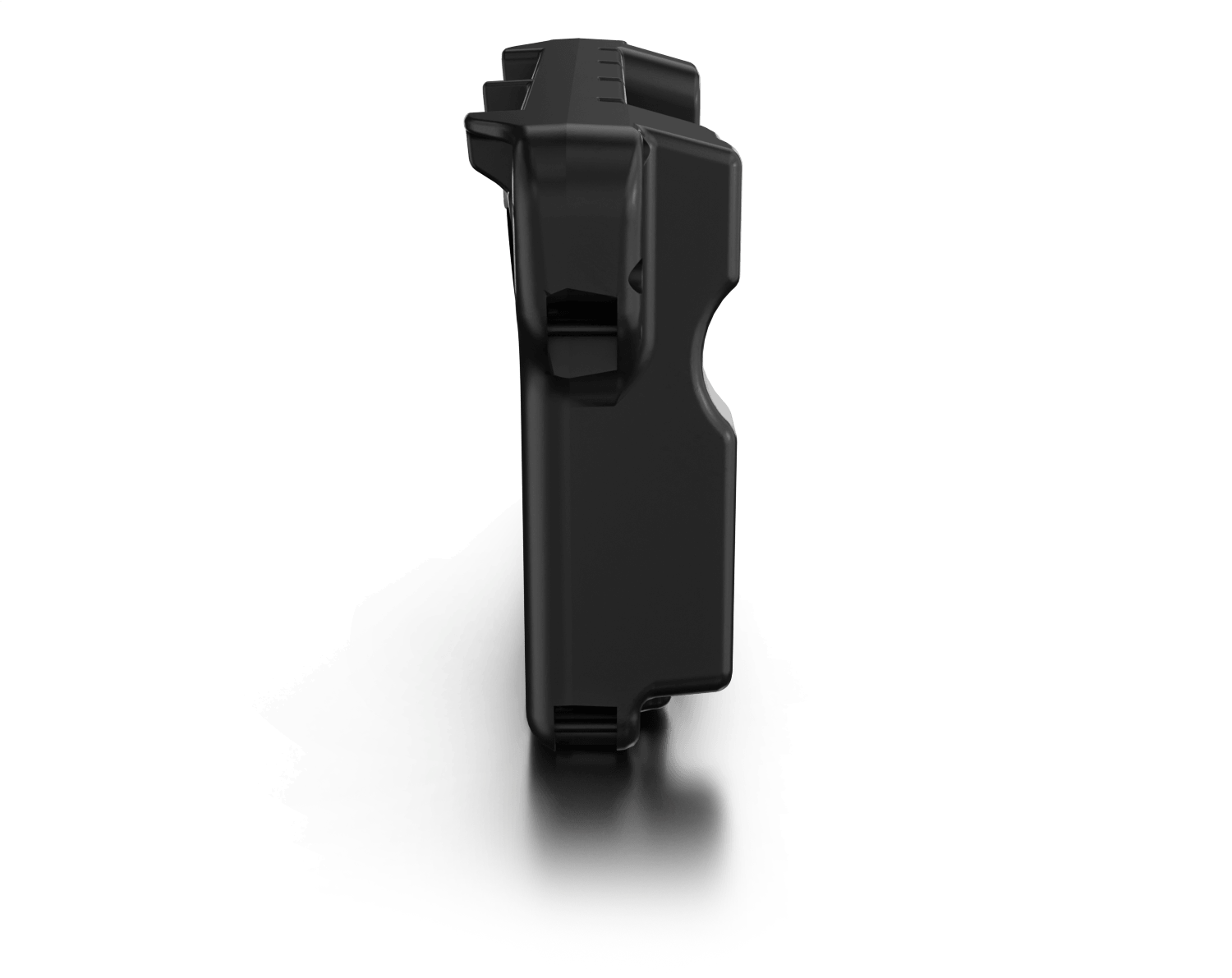

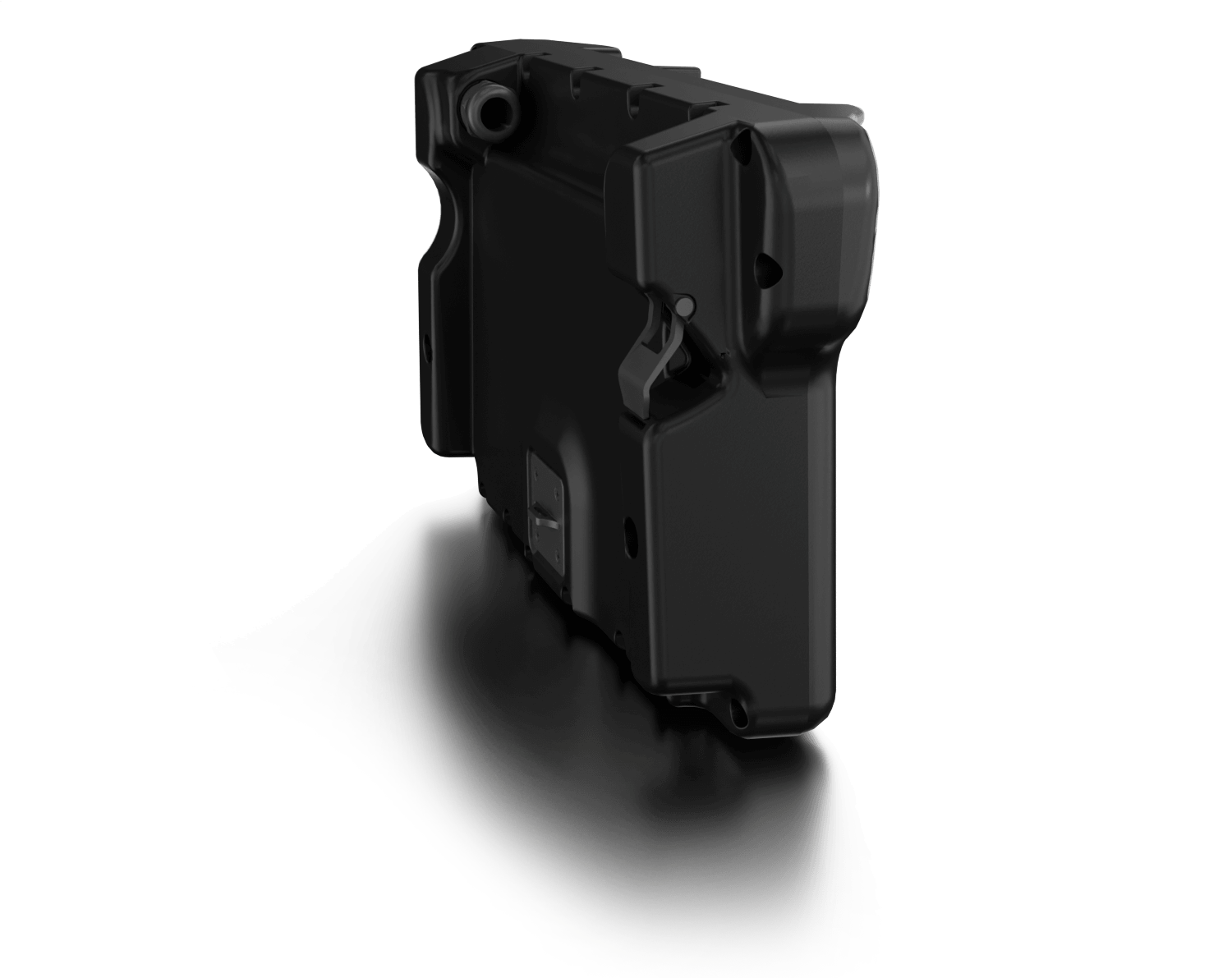

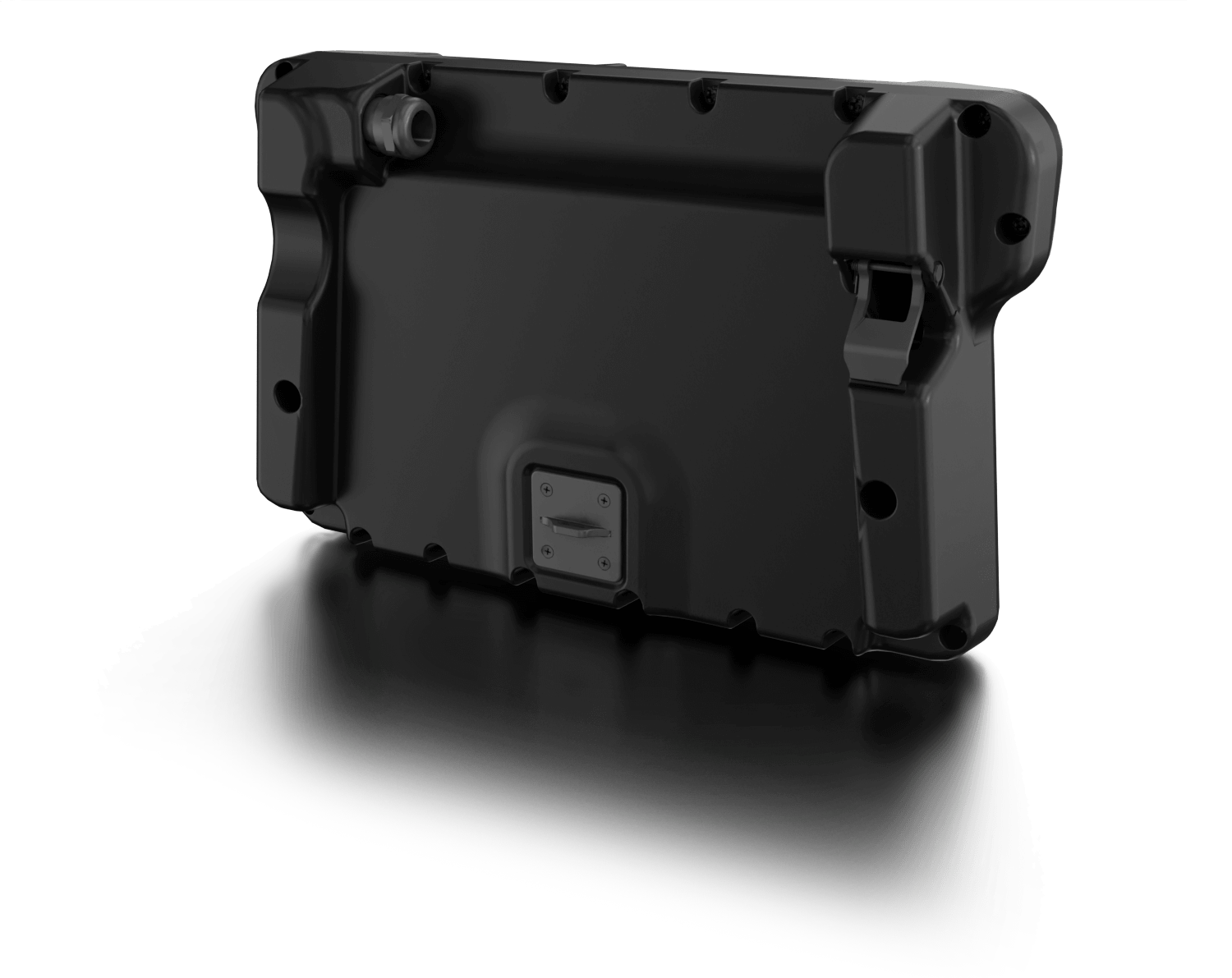

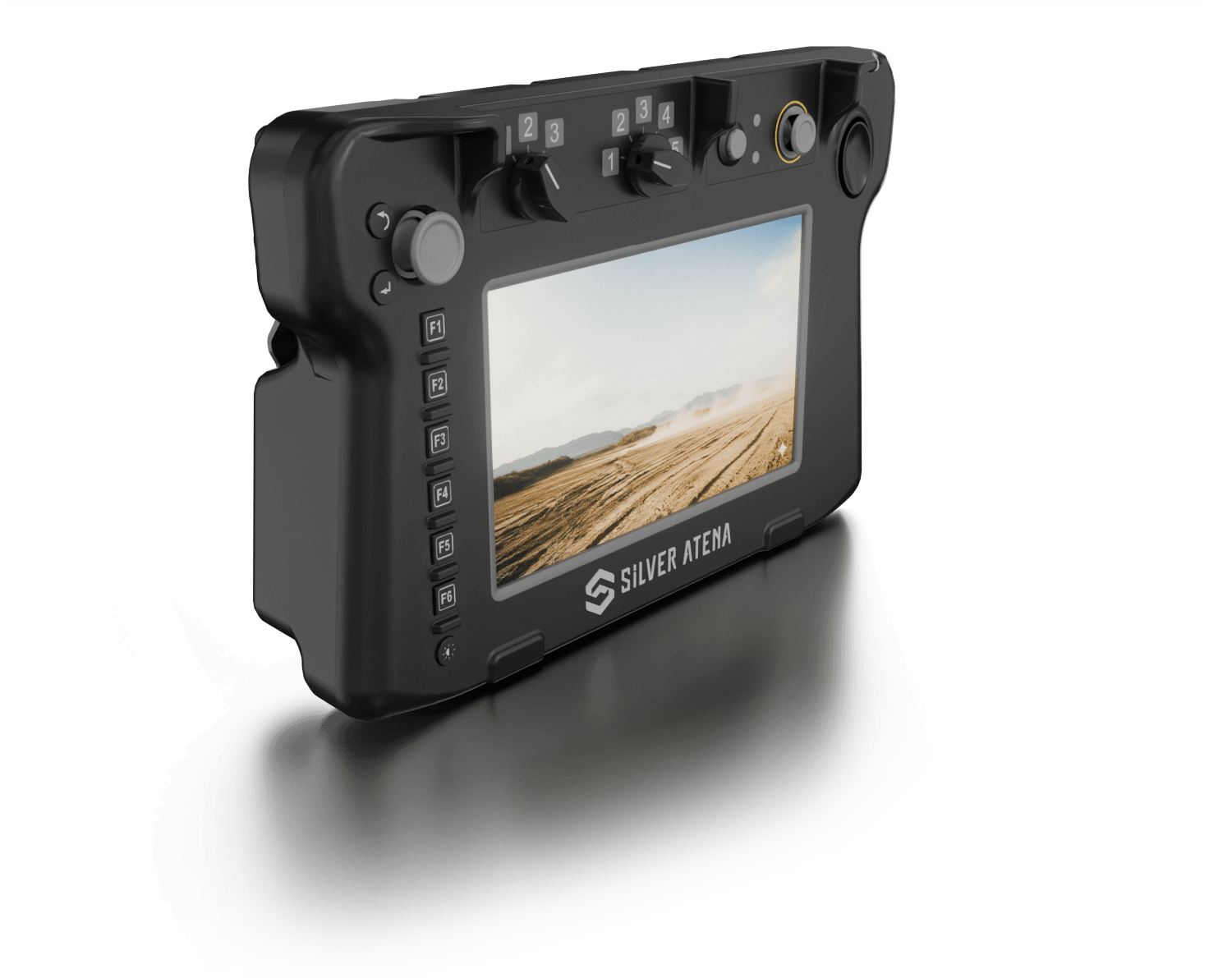

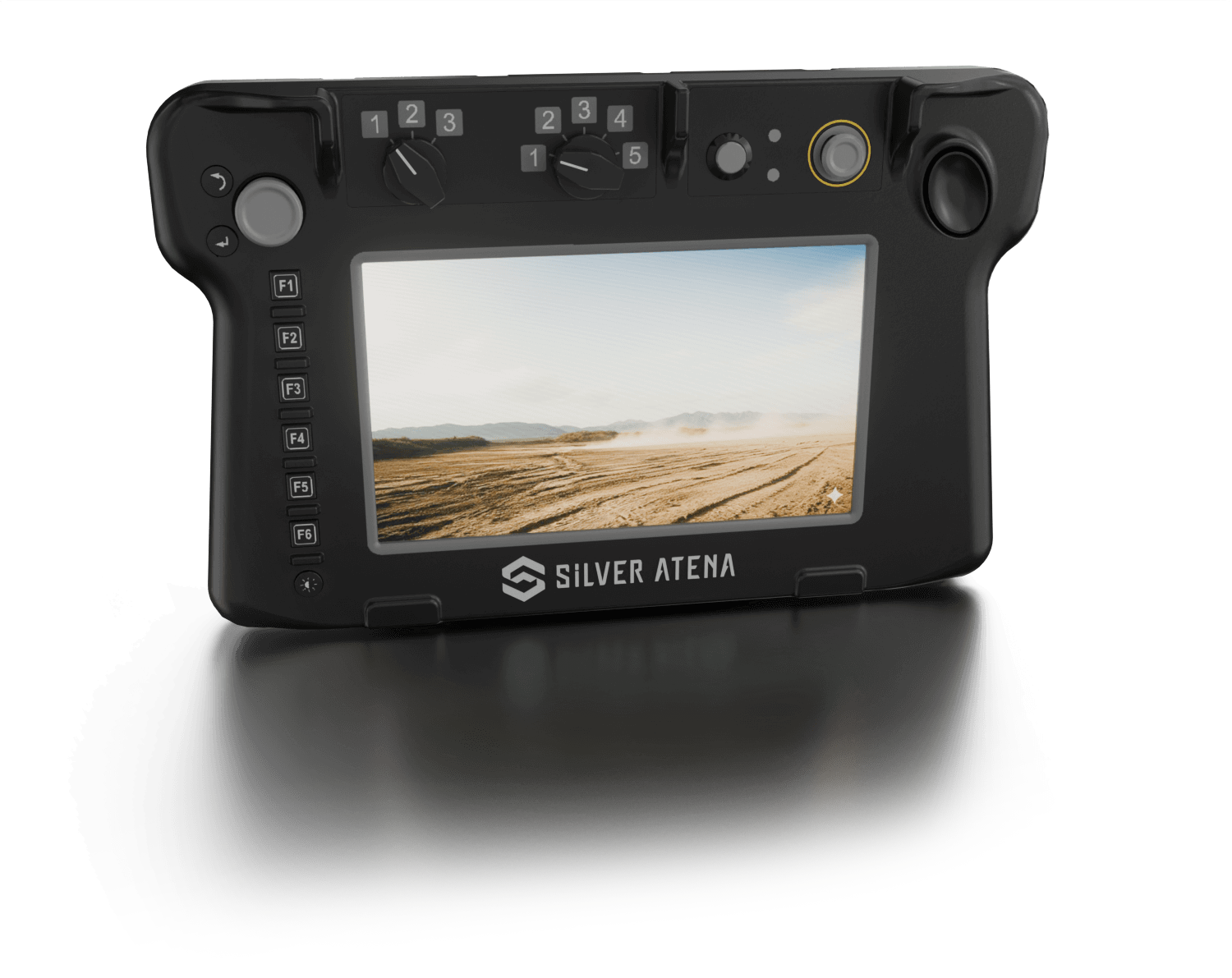

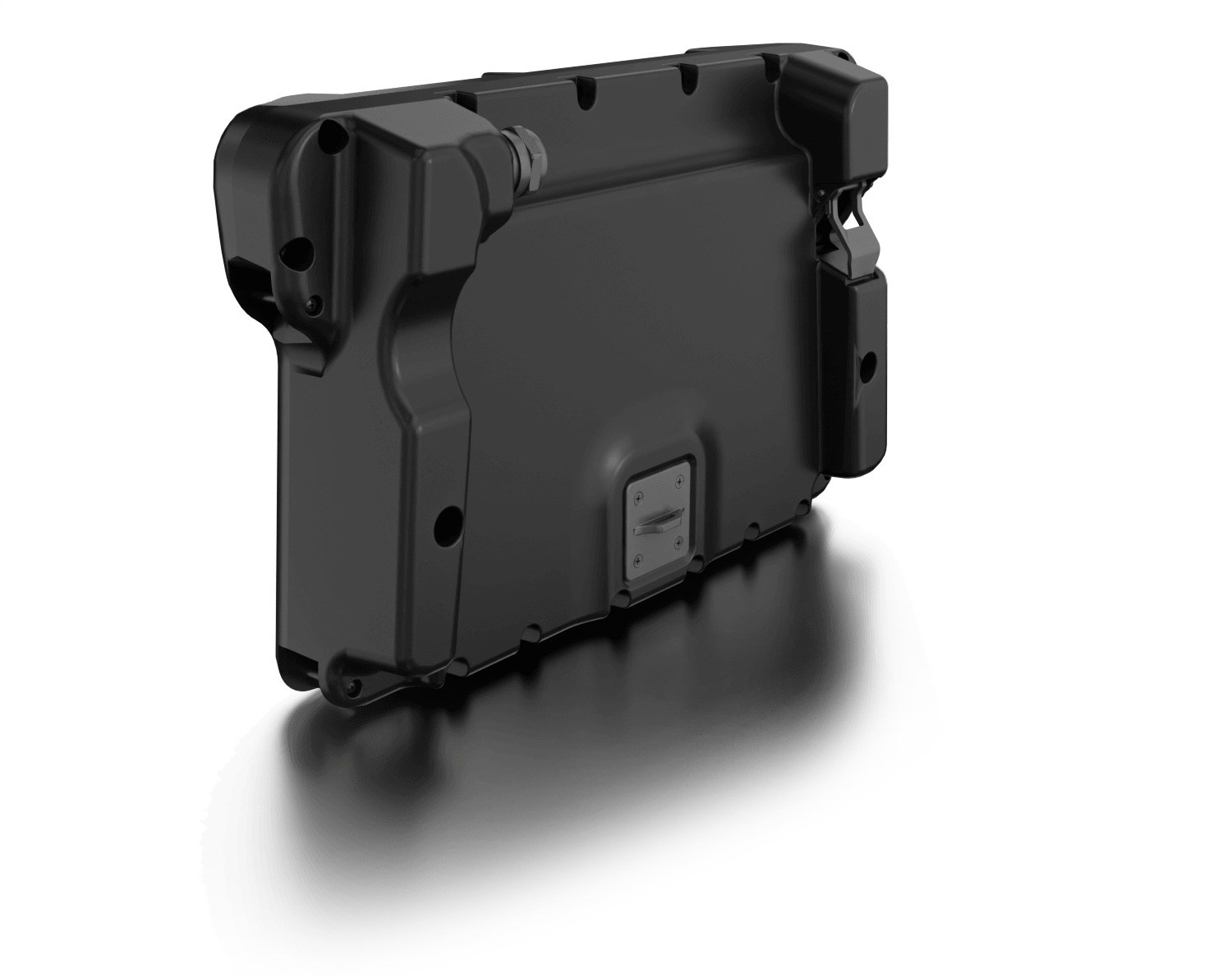

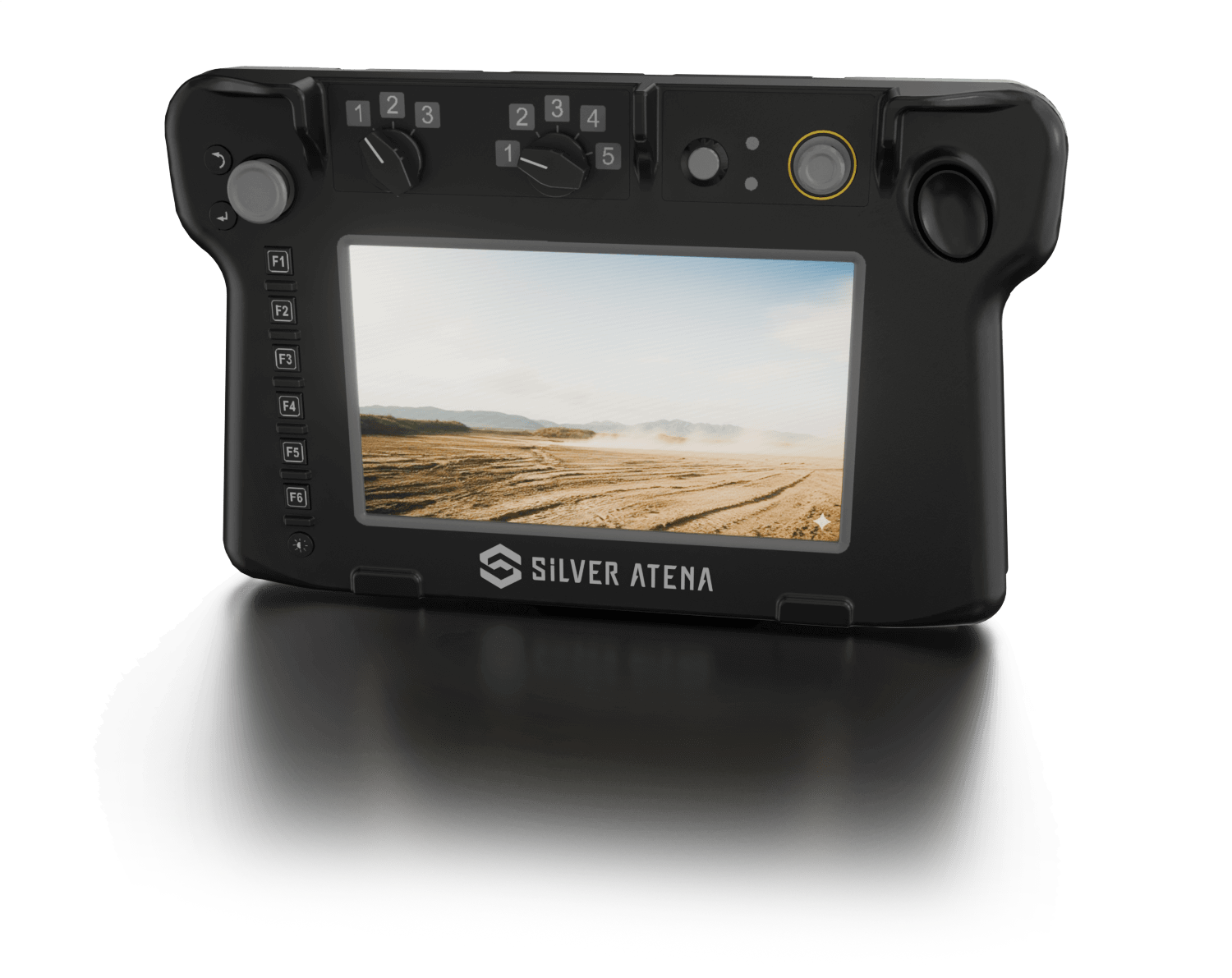

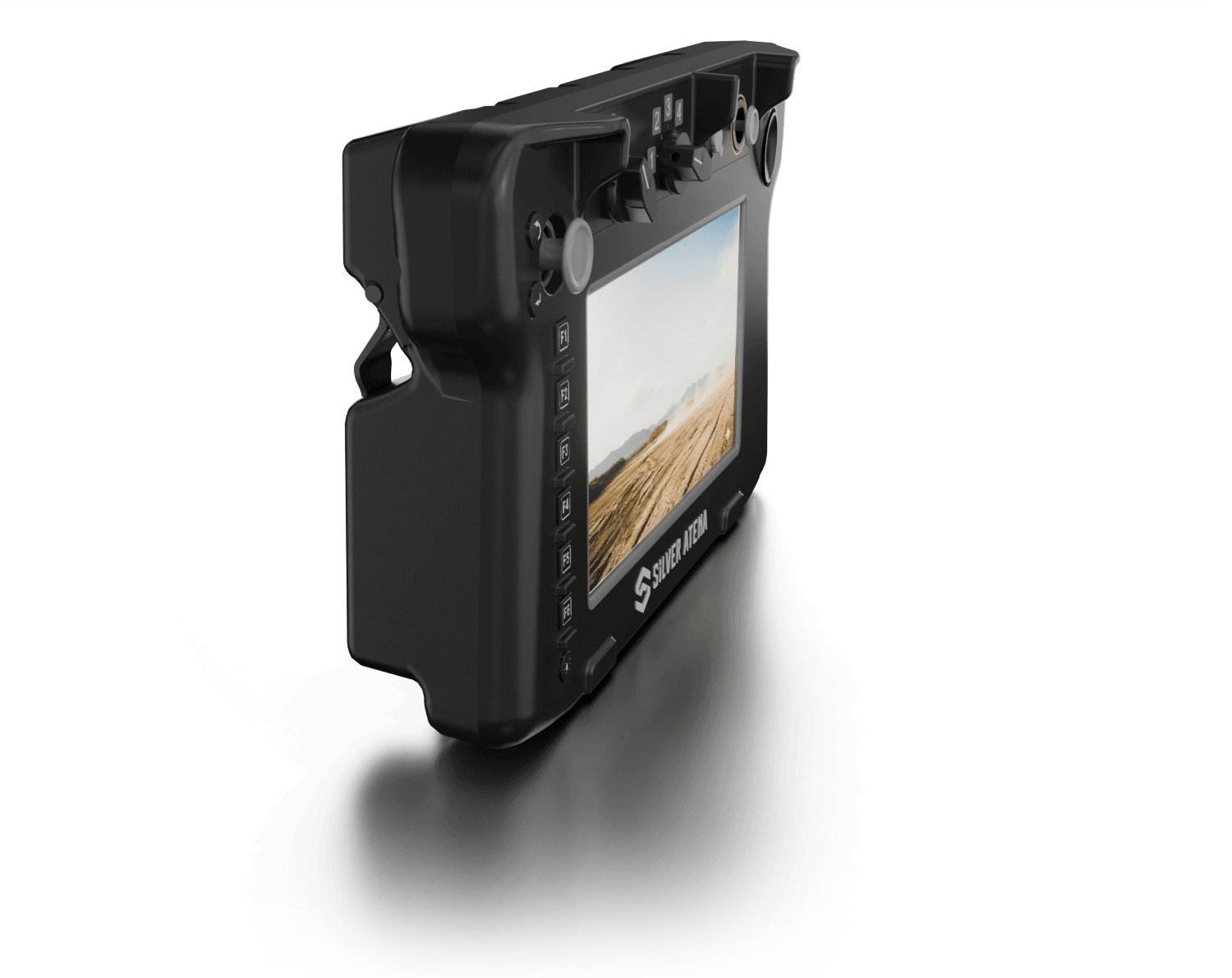

The BAG in 3D-View
Please click on the image to activate the 360˚ view.
Specifications
- Display: IPS 10.1" Full HD (1920x1080; Format: 16:9)
- Contrast: 1000:1; Brightness: 800 cd/m2
- Controls: 14 function/push button and selector switches
- Power supply: 16…32 VDC, nominal 28 VDC
- Dimensions [W x H x D]: 376 x 225 x 91 mm
- Weight: 3 kg
- Operating temperature range: -46 °C to +44 °C
- Protection class: IP54
- Certification: STANAG-4370, VG95374, VG95377, VG95370
- Connectivity: MILCAN, SDI
Application Areas
The BAG is particularly well-suited for scenarios with demanding environmental conditions – from arctic cold to desert heat, in urban operations as well as under combat conditions.

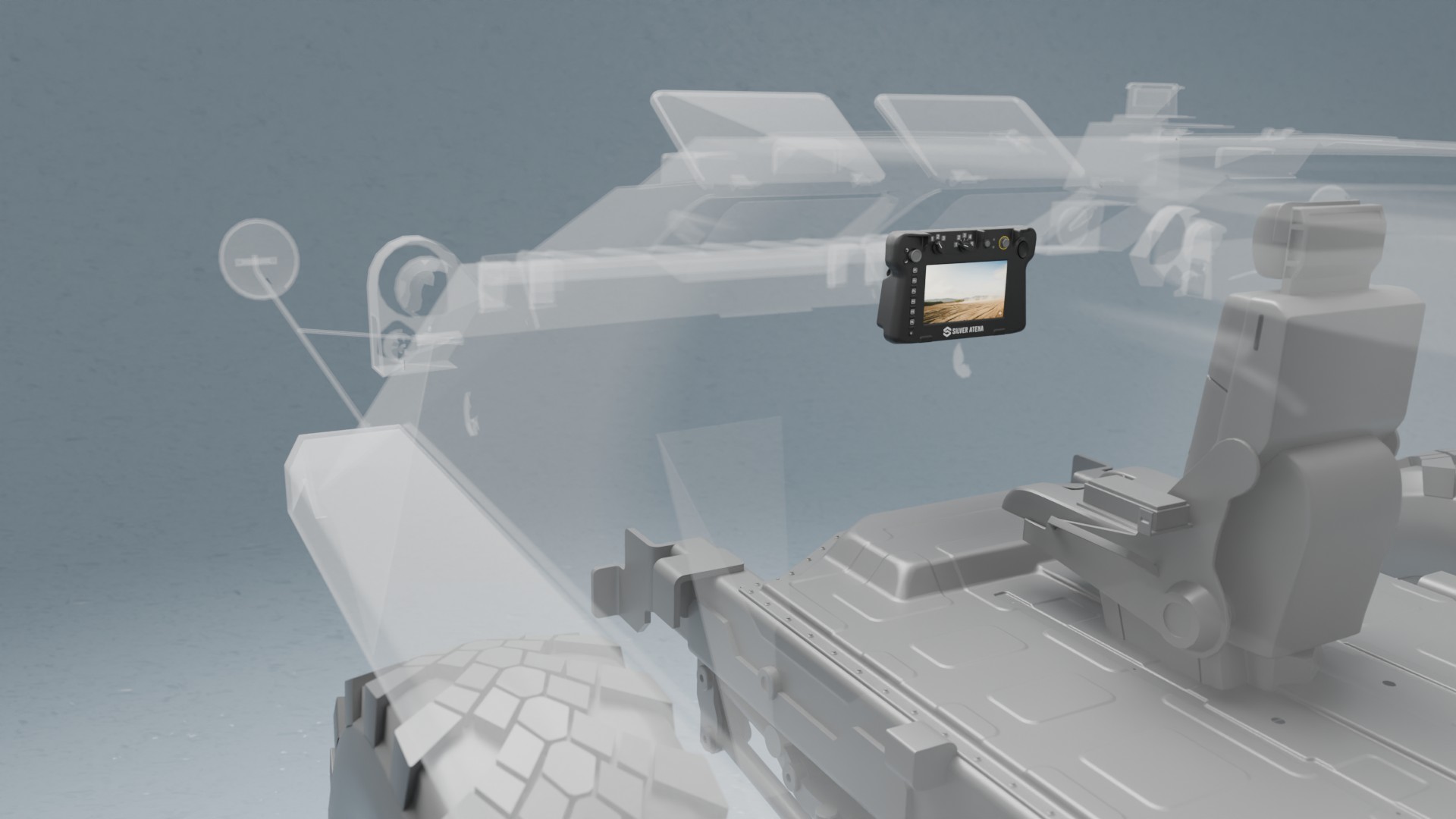

- Combat vehicles and tanks
- Command posts and command centers
- Aircraft and drone control stations
- Ship systems
Advantages
- Robust design: Developed for extreme mobile operating conditions – resistant to vibration, dust, and moisture
- Extended temperature range (-46 °C to +44 °C) enables use in extreme temperatures
- Low-maintenance & durable: Minimized service requirements thanks to robust electronics
- Handheld operation: Safely controllable even in cold conditions or while wearing protective gear
- Dimmable display: Optimal readability at night and in changing light conditions
- Modular & adaptable: Configurable for various military vehicle types
- MIL-certified: Meets international military standards (e.g., STANAG, VG standards)
Why choose this product?
The BAG (Control and Display Unit) is specifically developed for use in military vehicles and systems.
It meets the highest standards for durability, environmental resistance and operational reliability.
Combining mobility, technical robustness, modular architecture and customisable interfaces, the BAG is the ideal solution for demanding mission scenarios – from combat vehicles to command centres.
