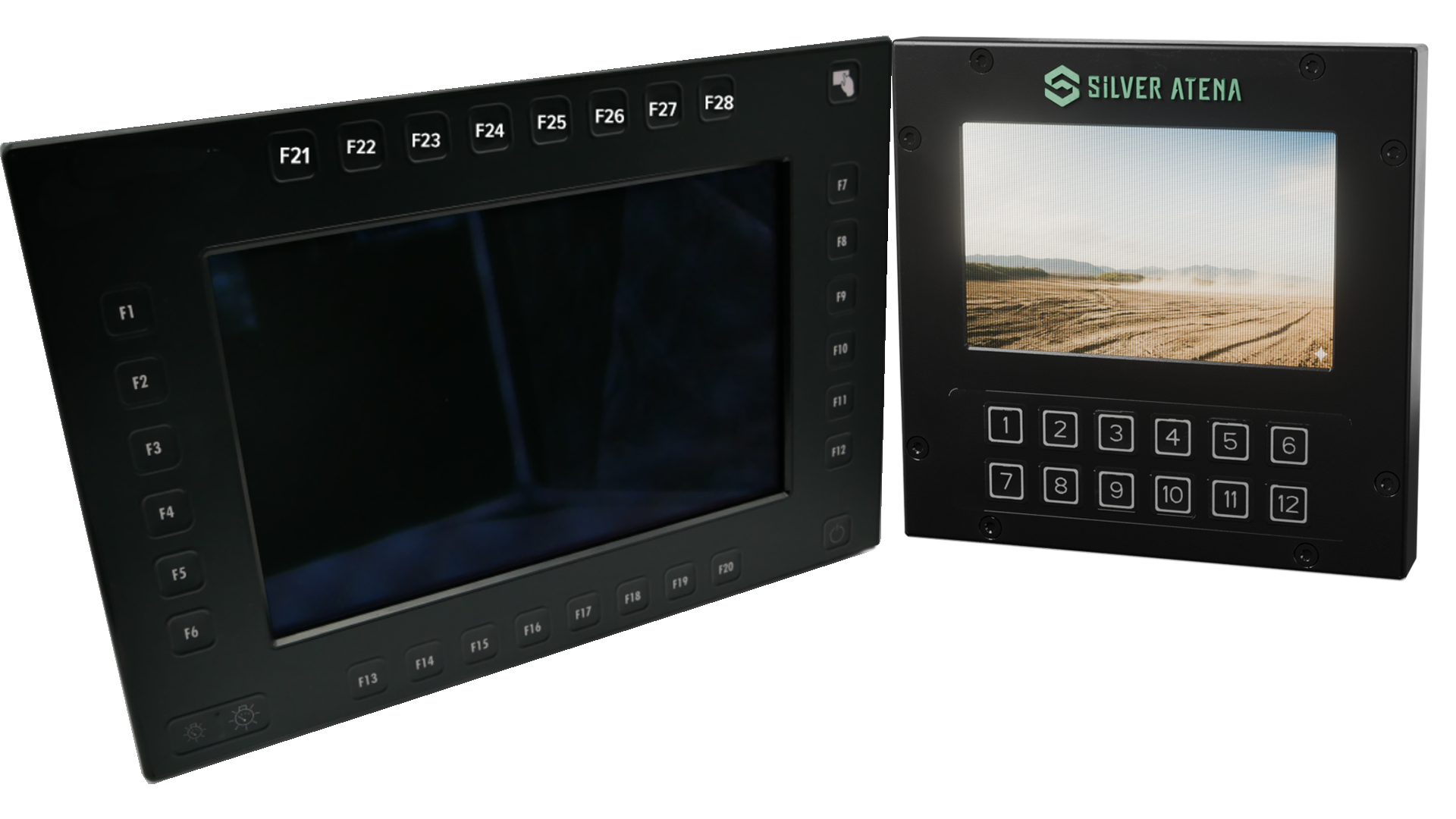

Ruggedized display devices 7" and 12"
Ruggedized displays
The ruggedized 7" and 12" vehicle displays offer reliable operating and display units for demanding environments. Both models impress with their flexible application options, real-time video signal processing, numerous interfaces, and high reliability.
The 7" display is particularly compact and ideally suited for vehicles with limited installation space. It offers high flexibility for integration into a wide variety of platforms – from commercial vehicles and marine applications to rail vehicles – with a multitude of electrical interfaces.
The GVA-compliant 12" display, on the other hand, offers a larger display area and is specifically designed for applications with increased information requirements. Based on the proven 7" model, it expands functionality and visibility for more complex operating concepts – ideal for military and other specialized vehicles.
Features
- Real-time, low-latency video signal processing using an FPGA
- Fully shielded against EMC interference
- Control elements with dimmable backlighting
- System-on-Module (SoM) elements for communication, control, and OSD capability
- Communication via isolated interfaces of CAN / SPI / RS232 / RS485 / Ethernet
- Scaling, cropping, and PiP functionality
- Adjustable display brightness
Applications

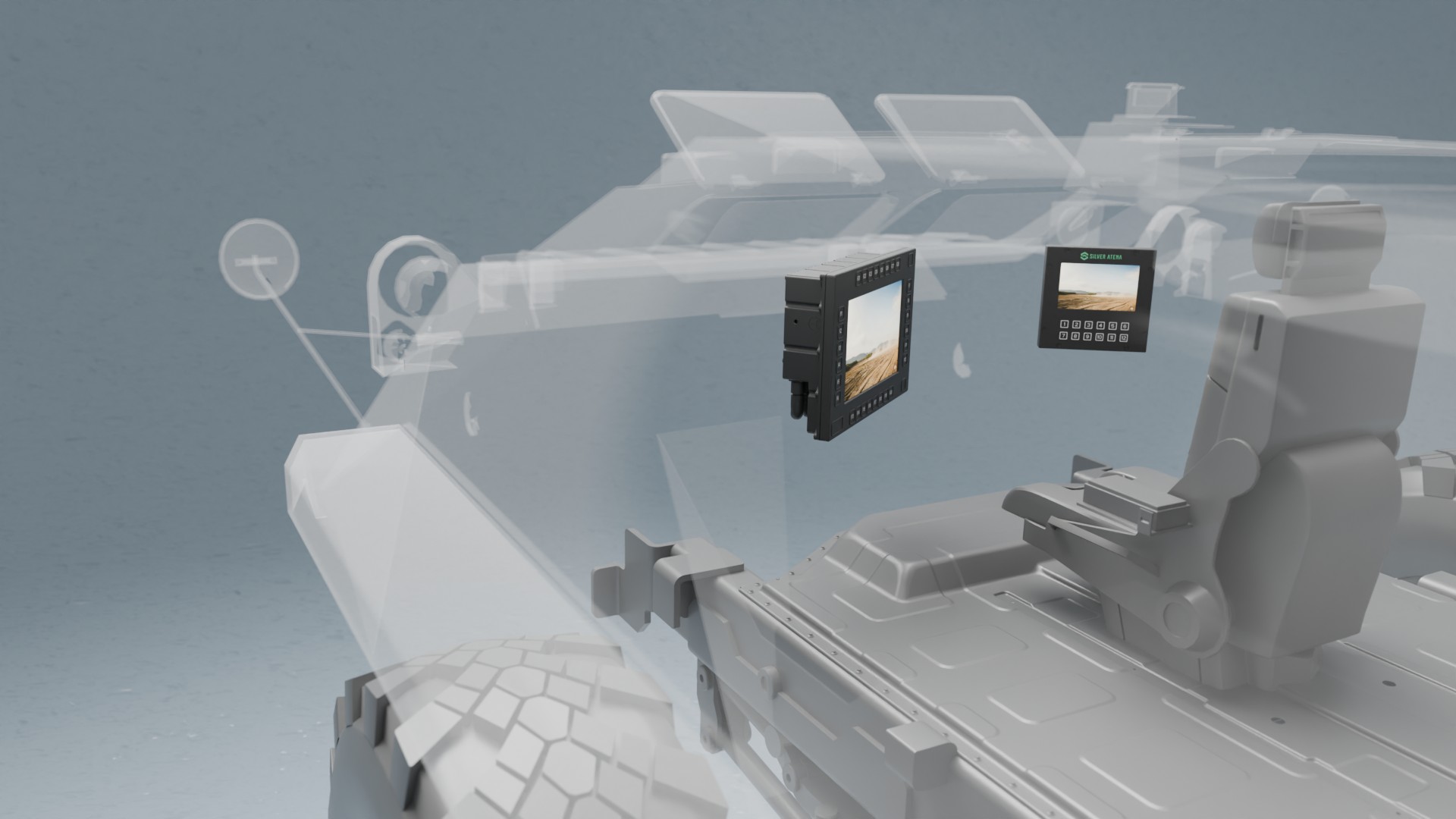

The displays are designed for mobile vehicle platforms with high technical requirements and extreme environmental conditions:
- Military vehicles (armored vehicles, logistics vehicles, air defense systems)
- Special vehicles (fire department, police, rescue services)
- Commercial vehicles (trucks, vans, municipal vehicles)
- Construction and agricultural machinery
- Maritime sector
- Rail transport
- Off-road and special vehicles

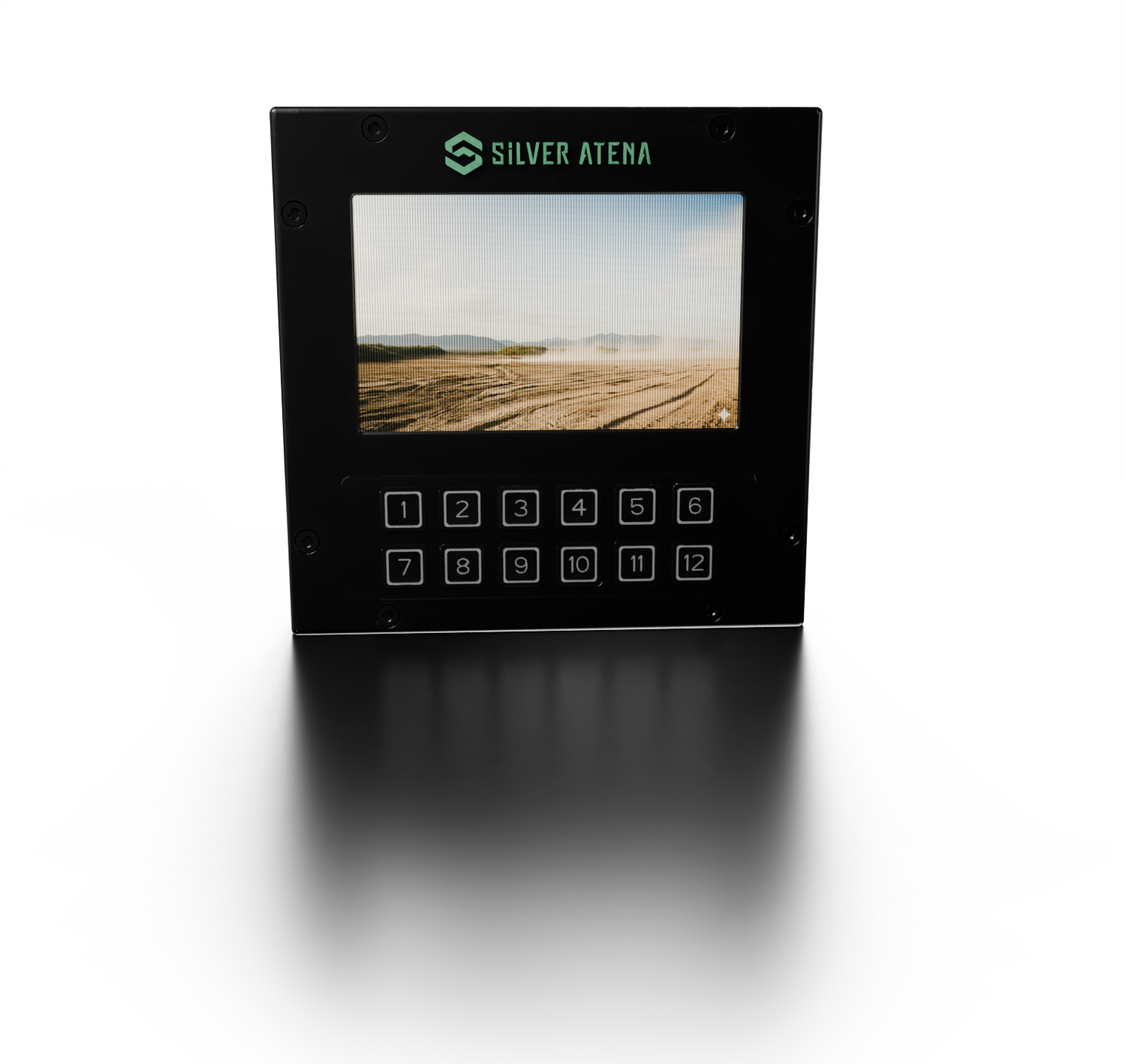

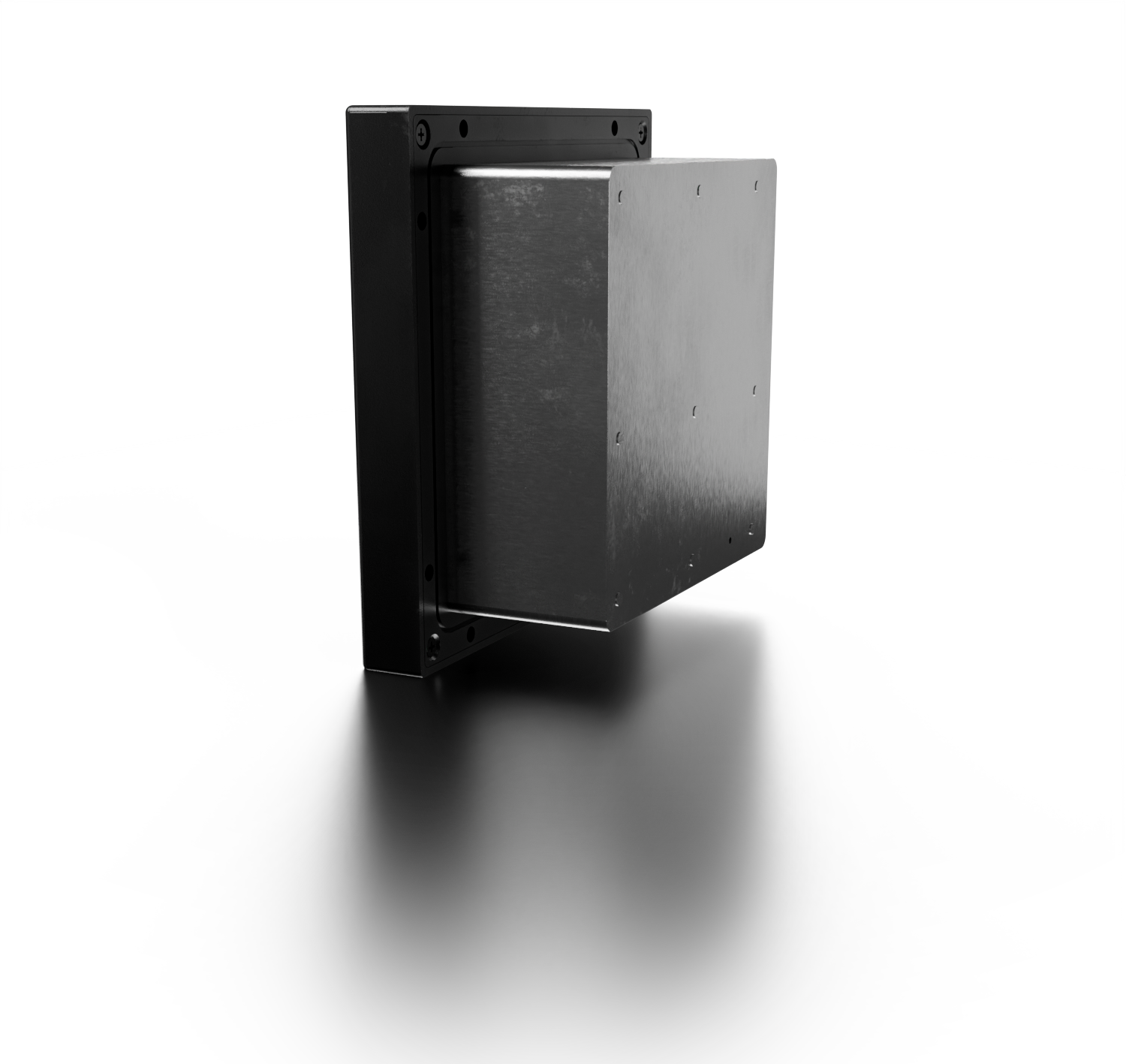

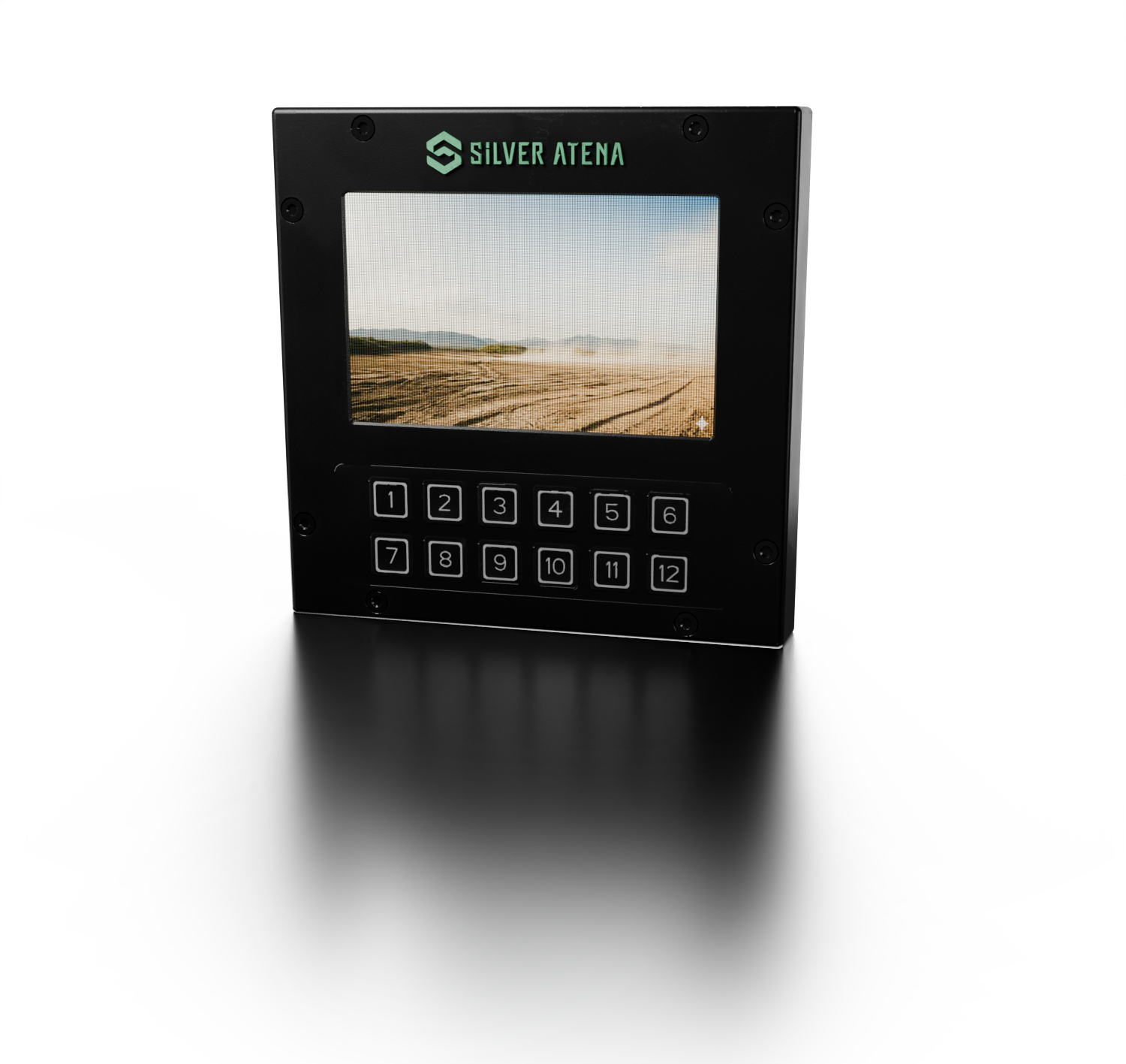

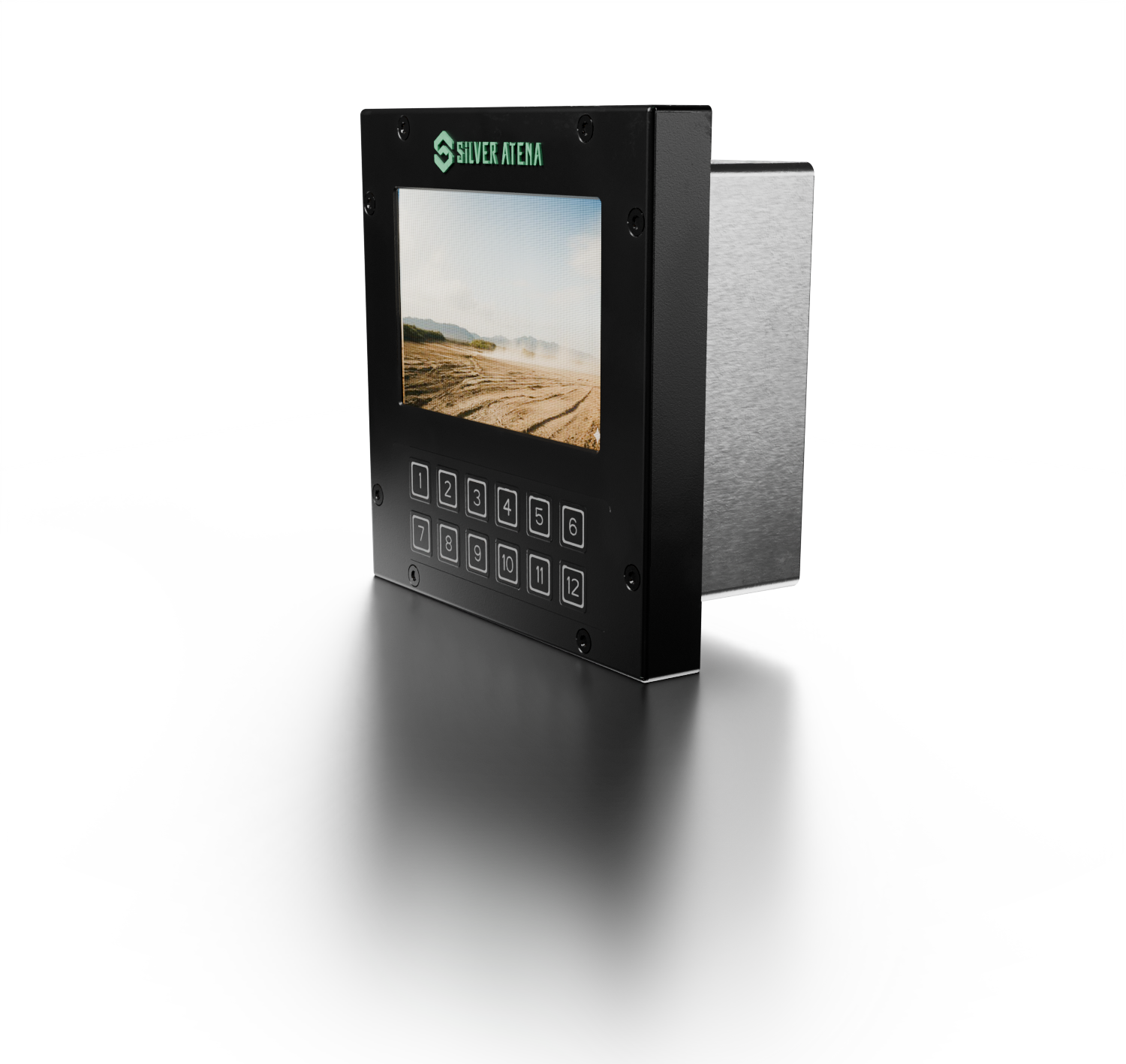

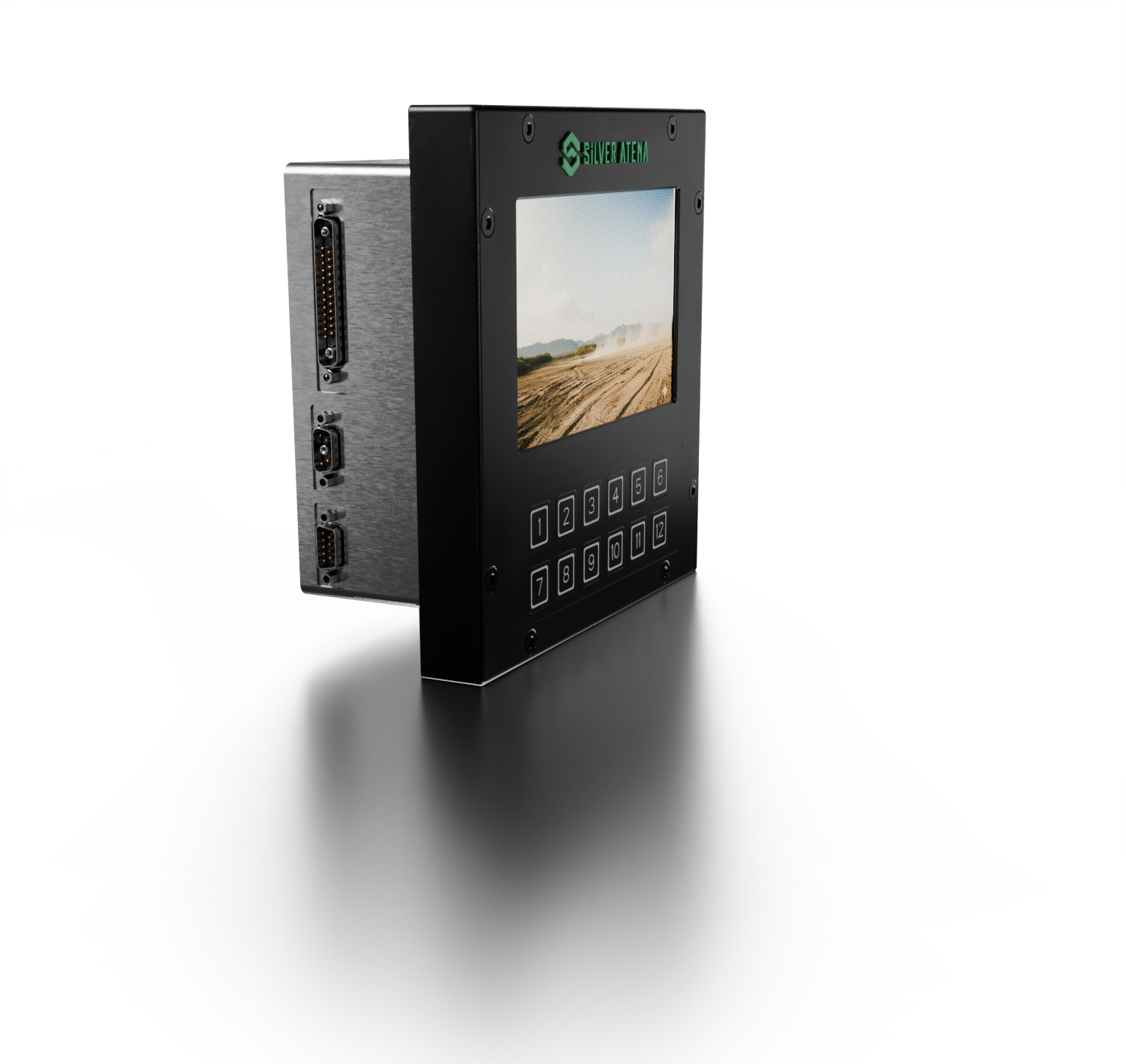

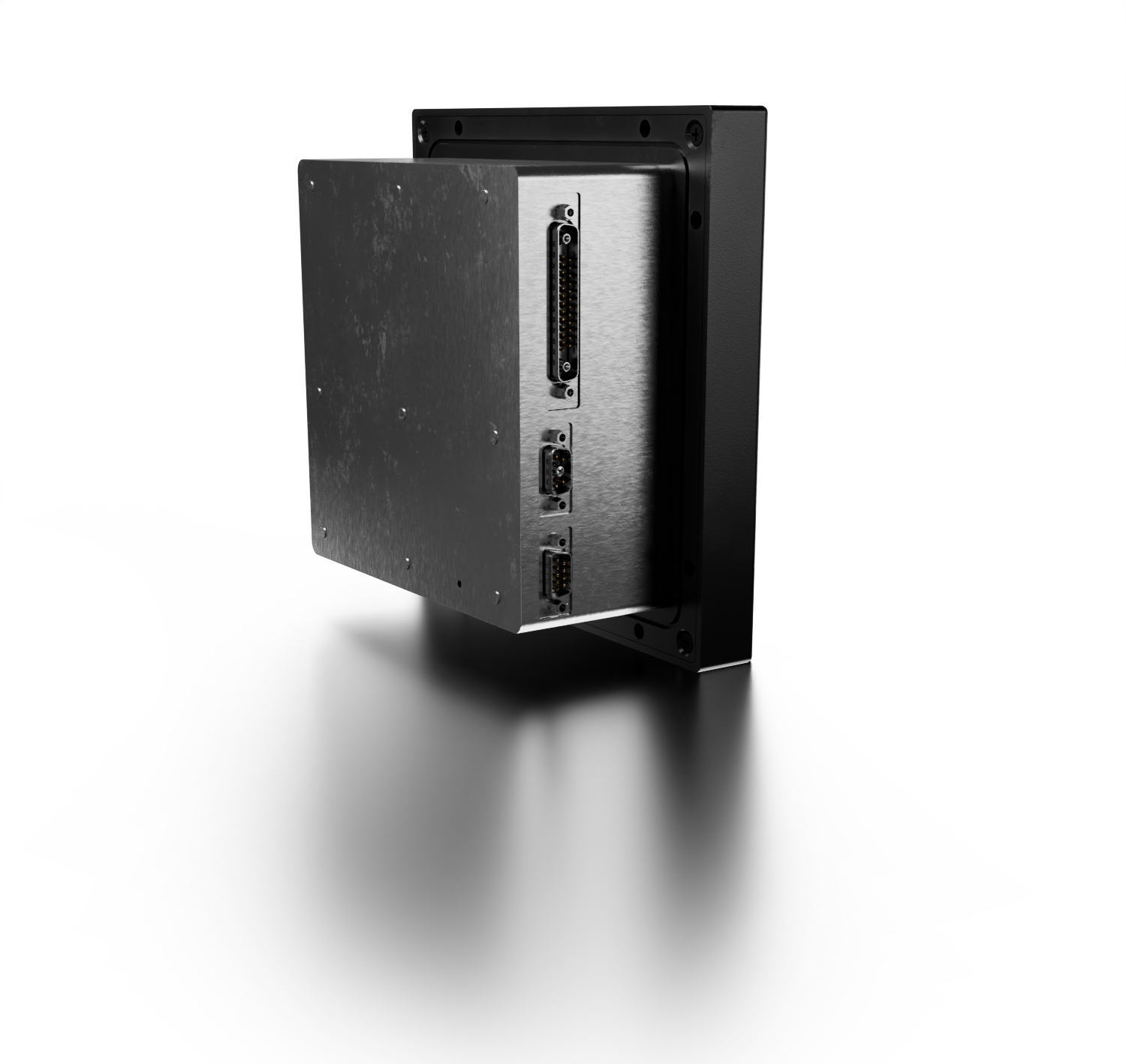

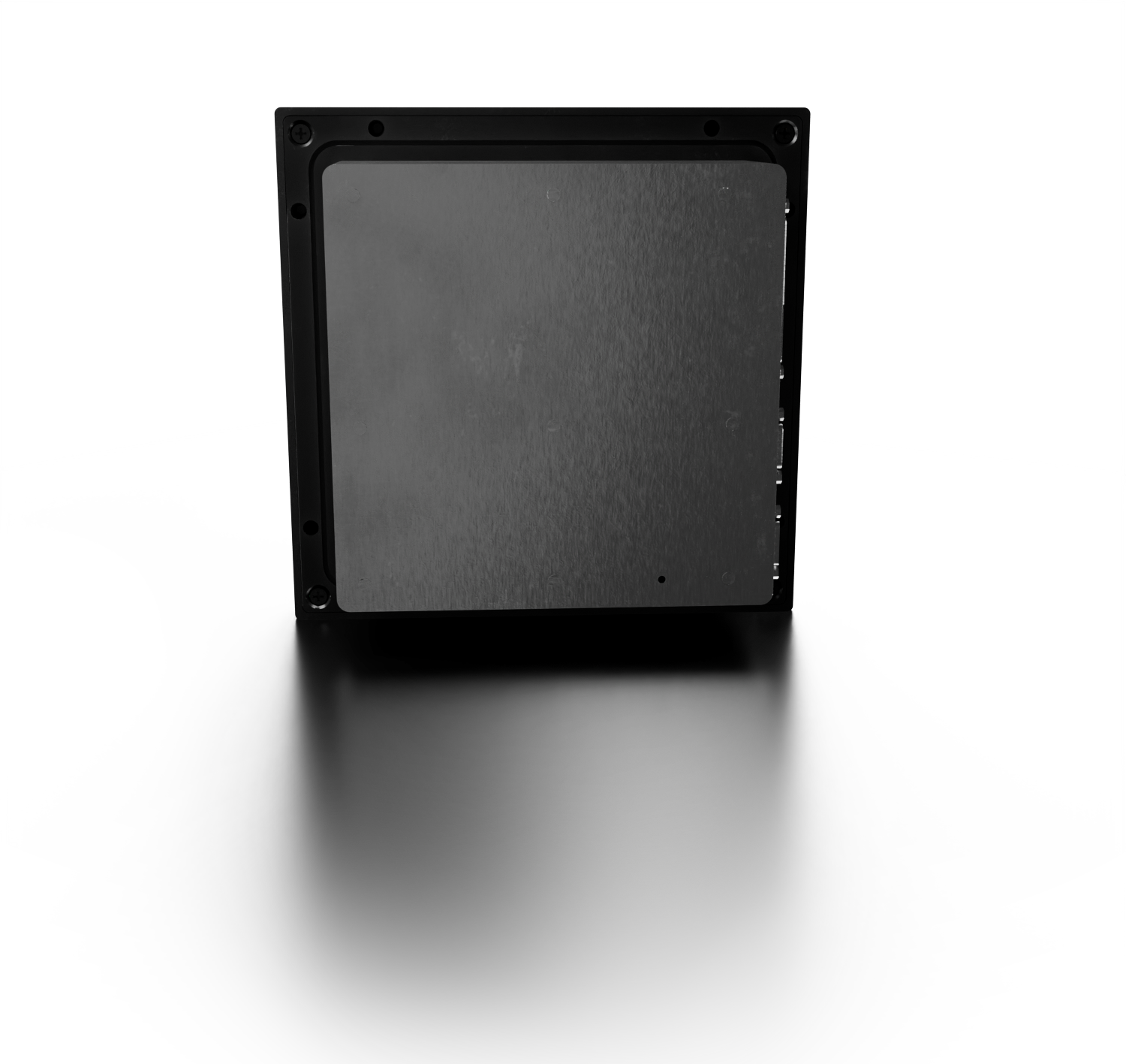

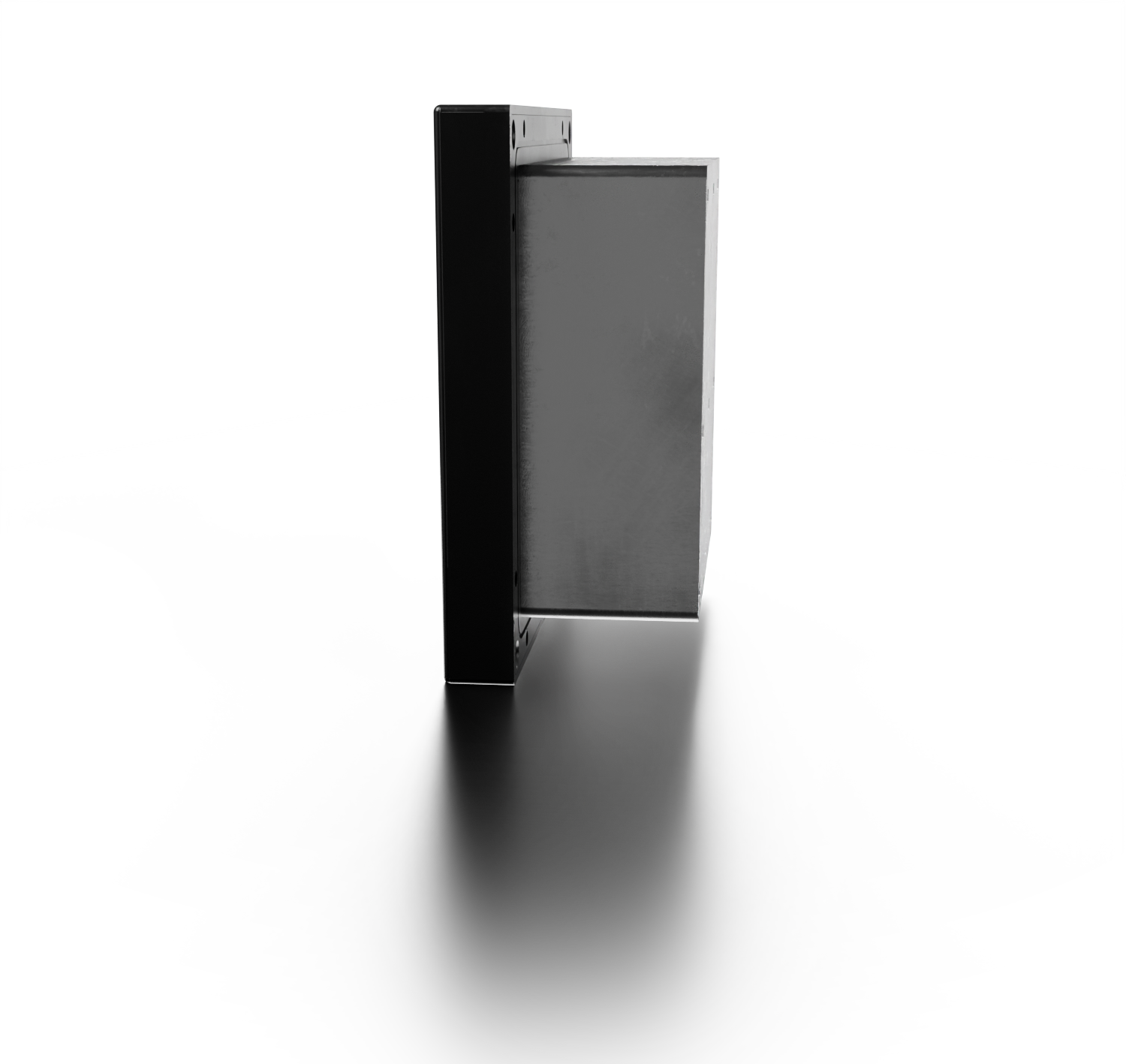

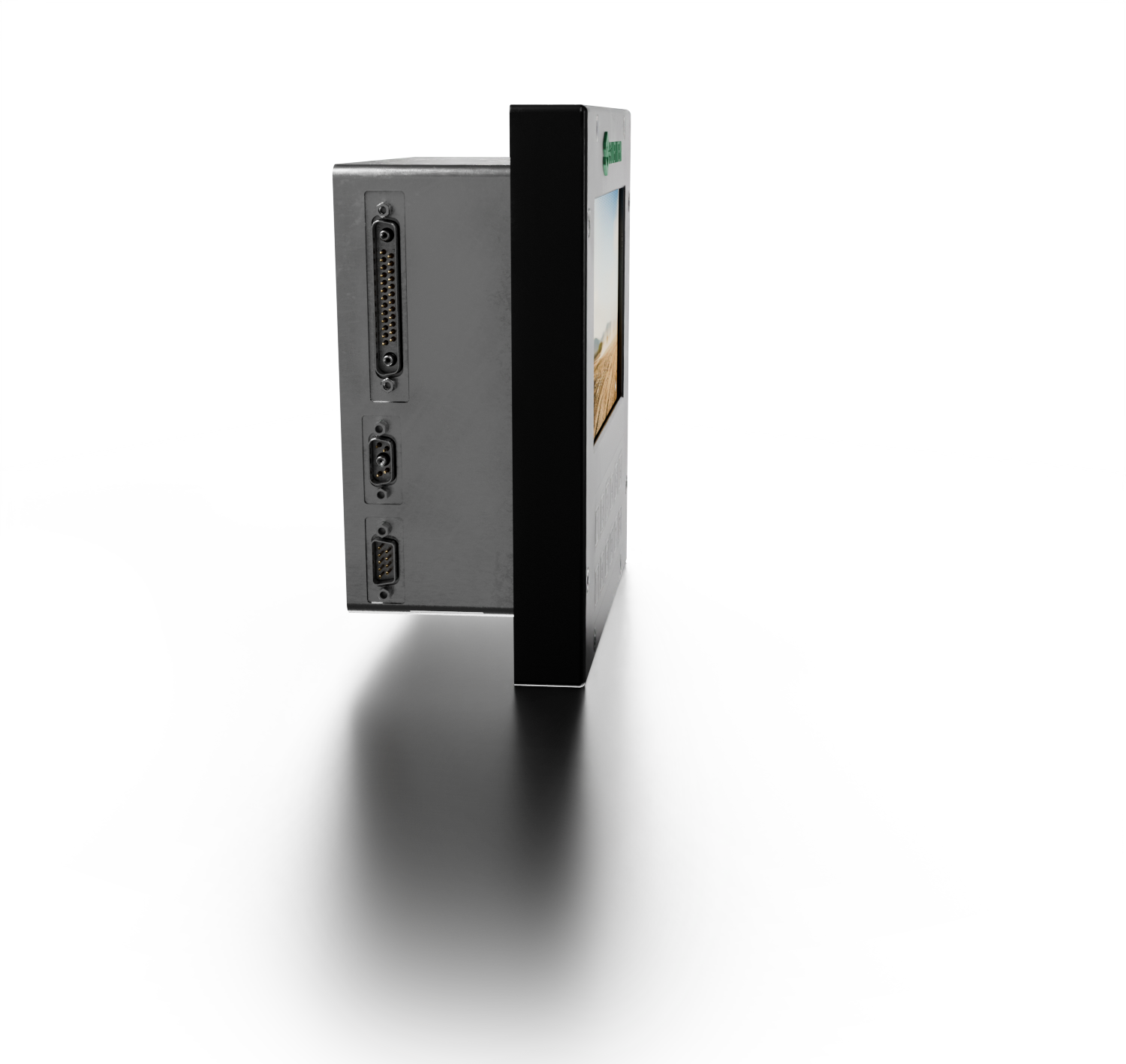

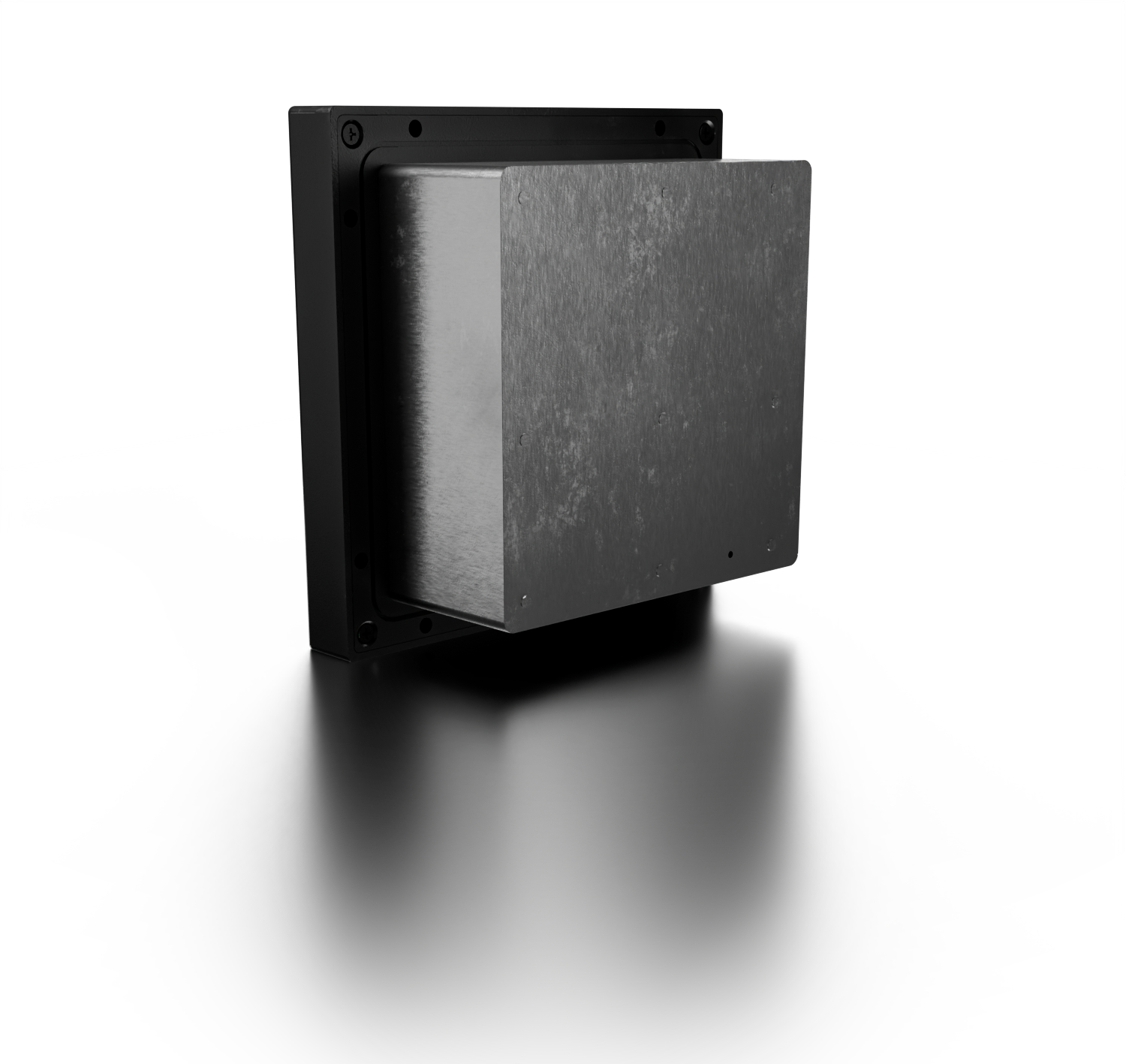

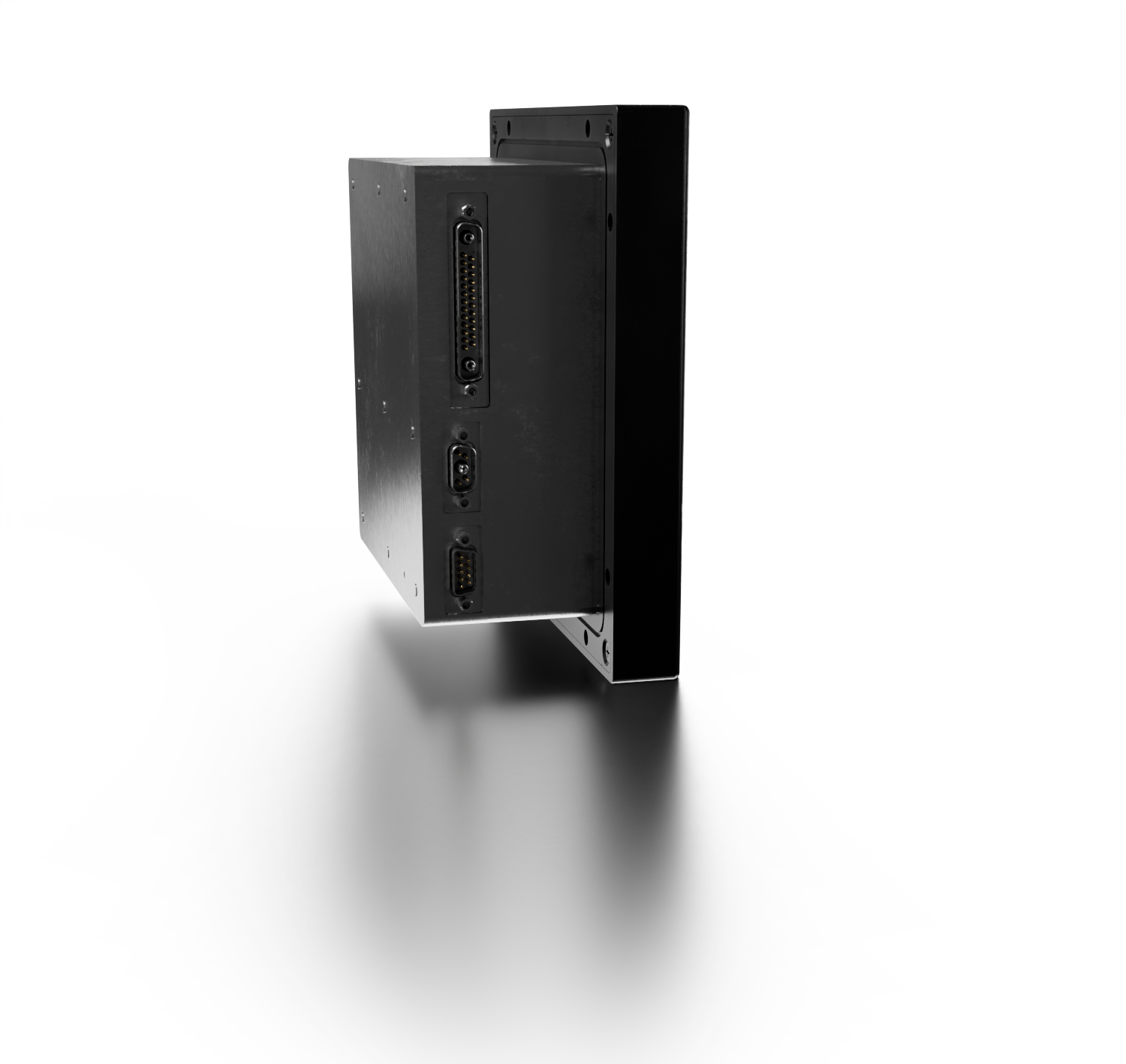

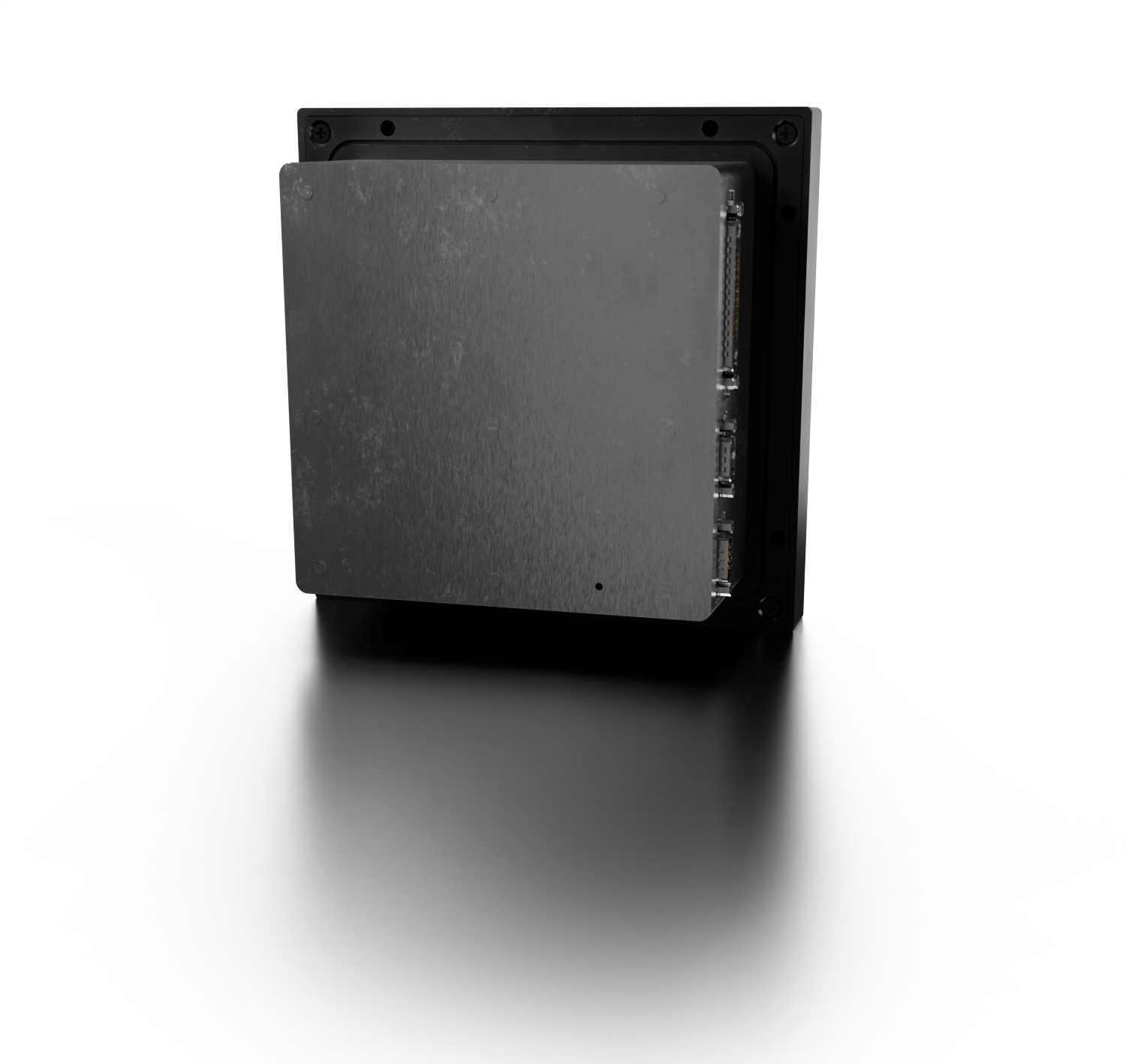

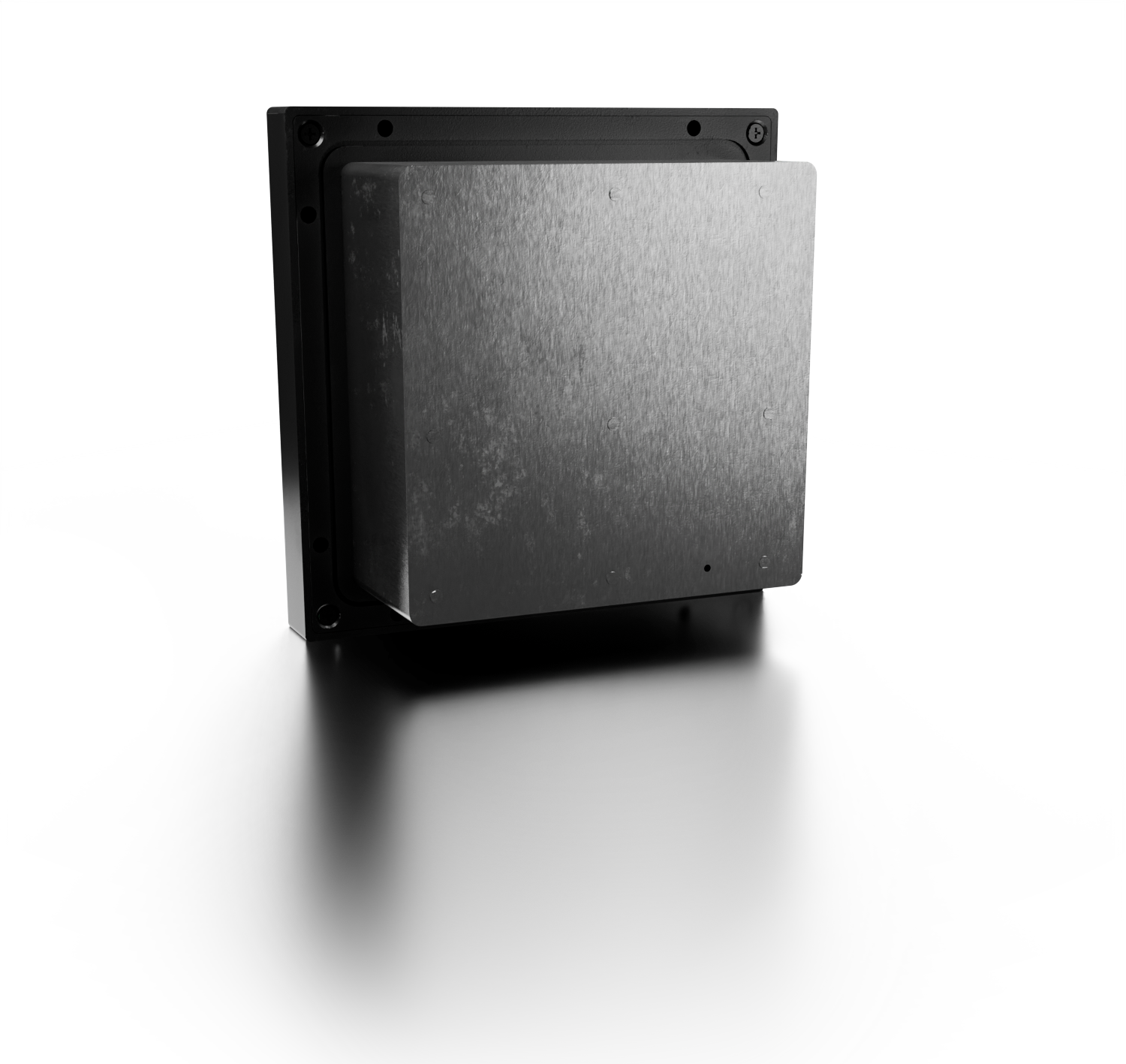

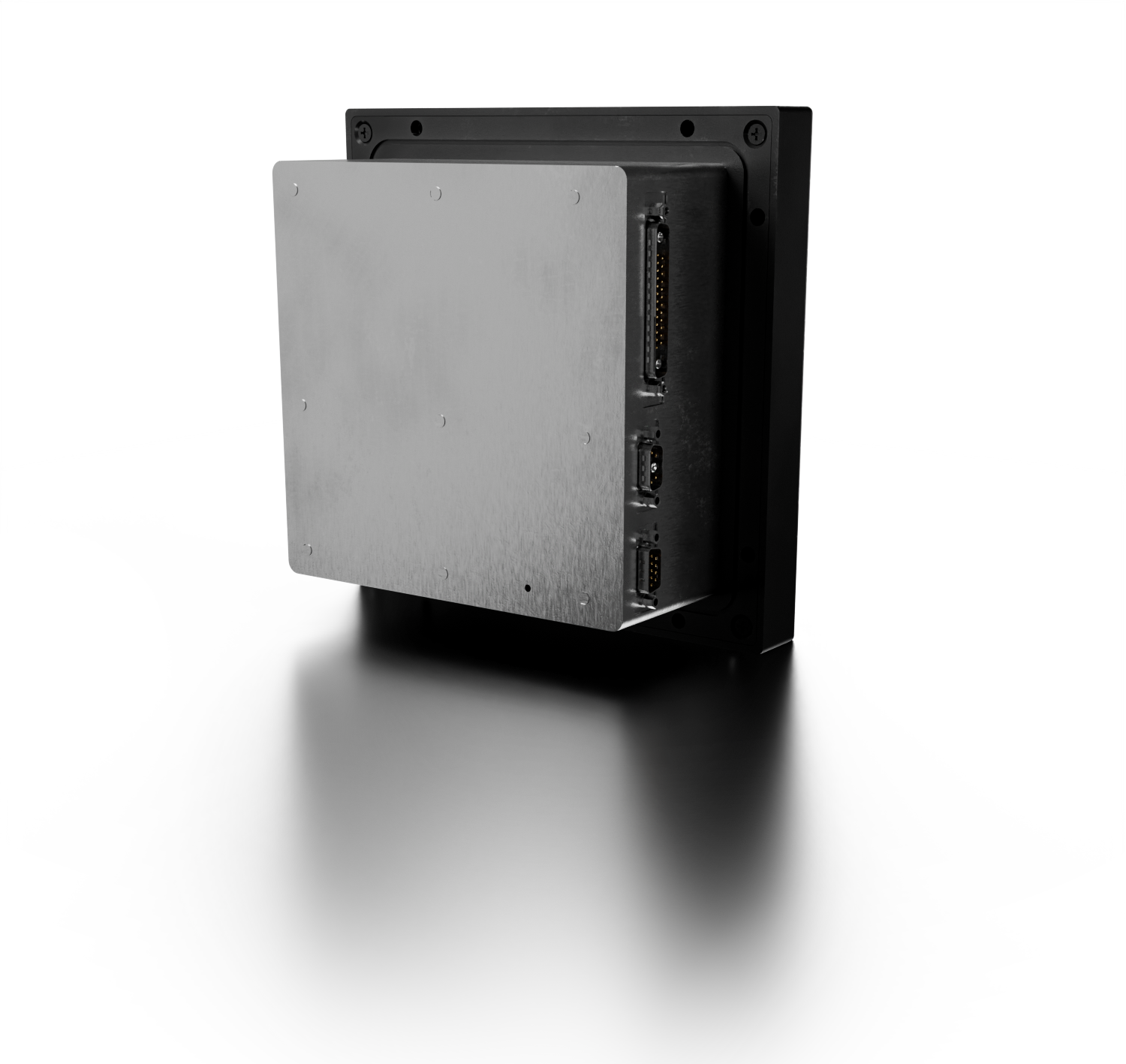

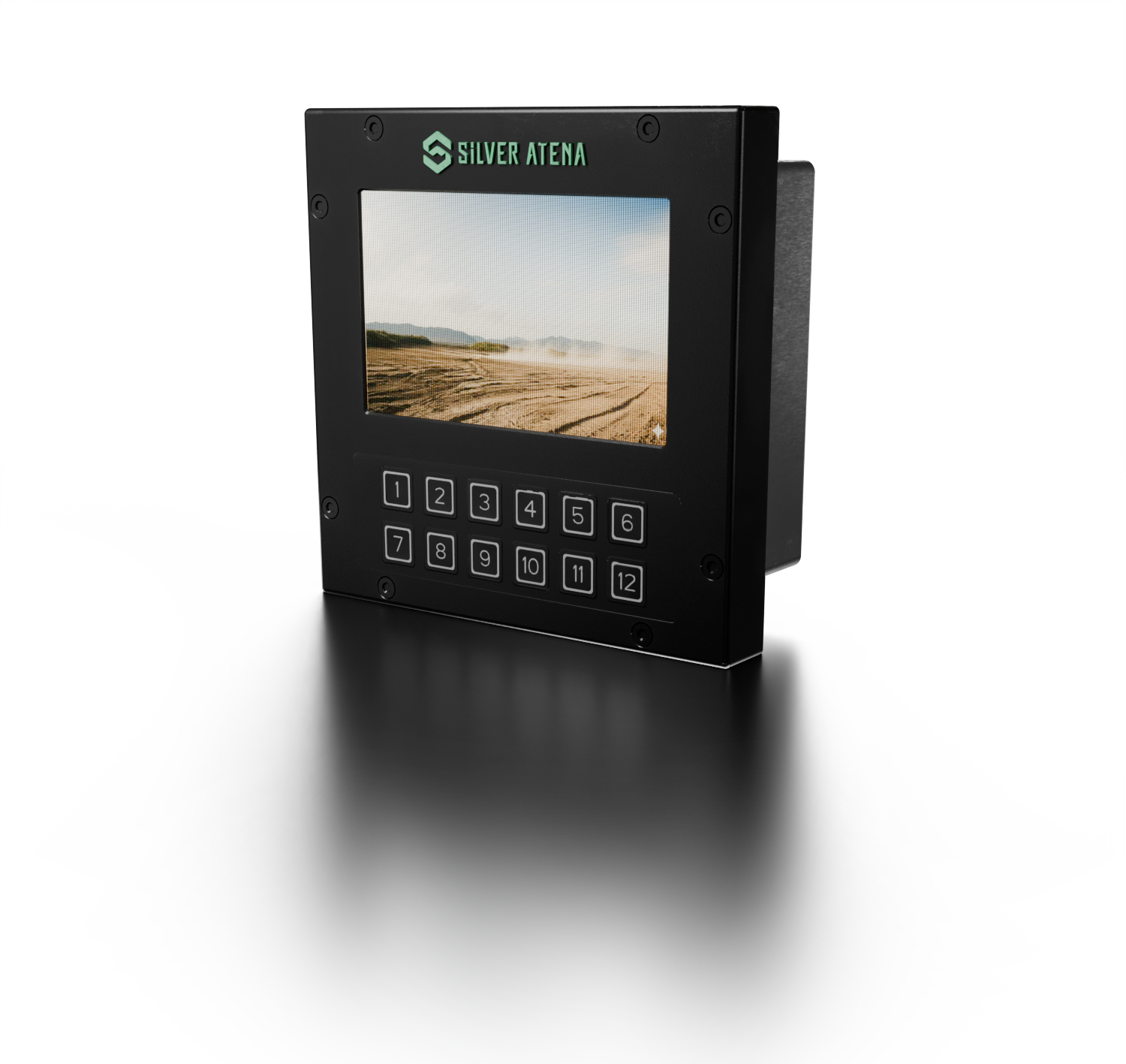

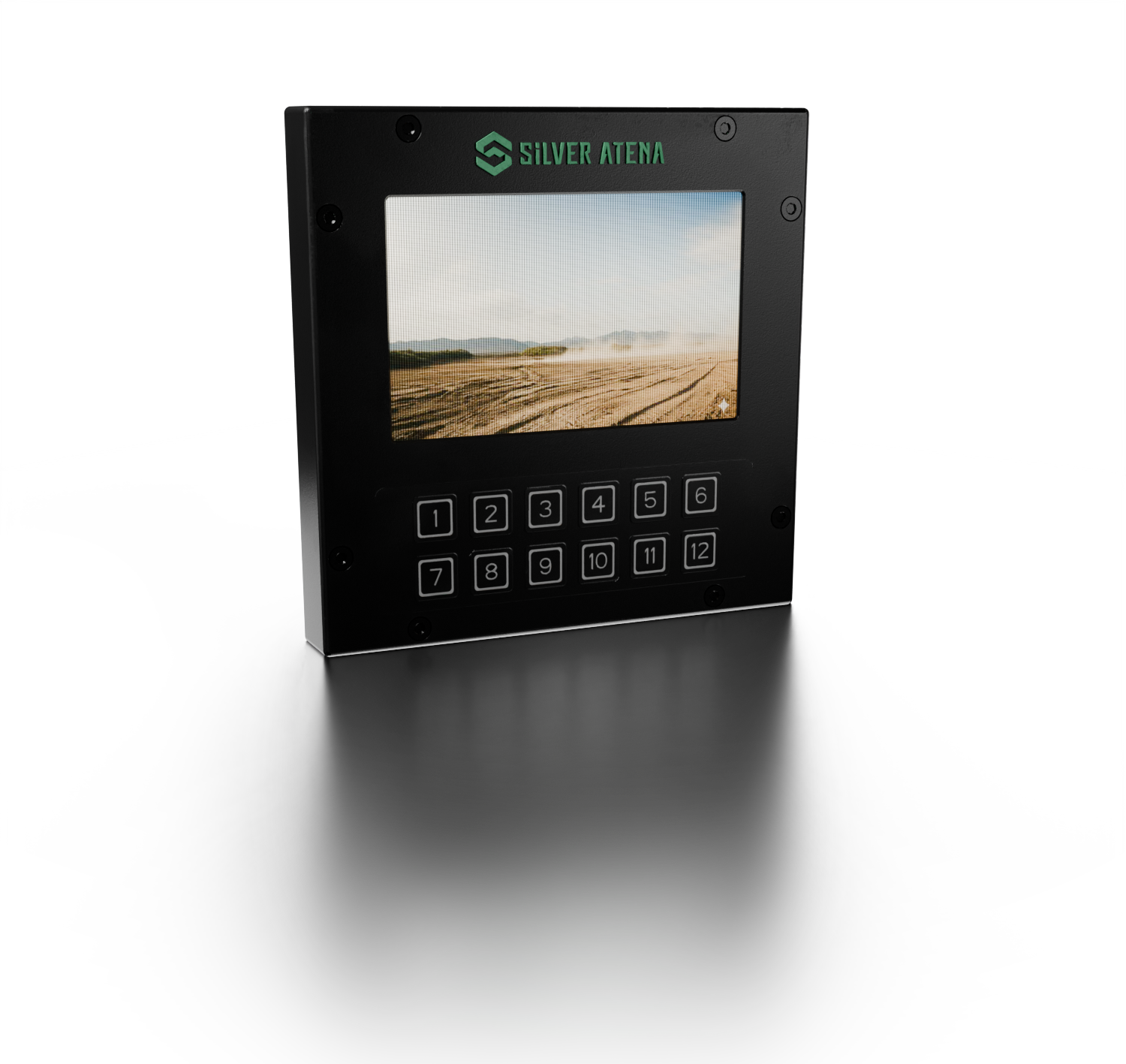

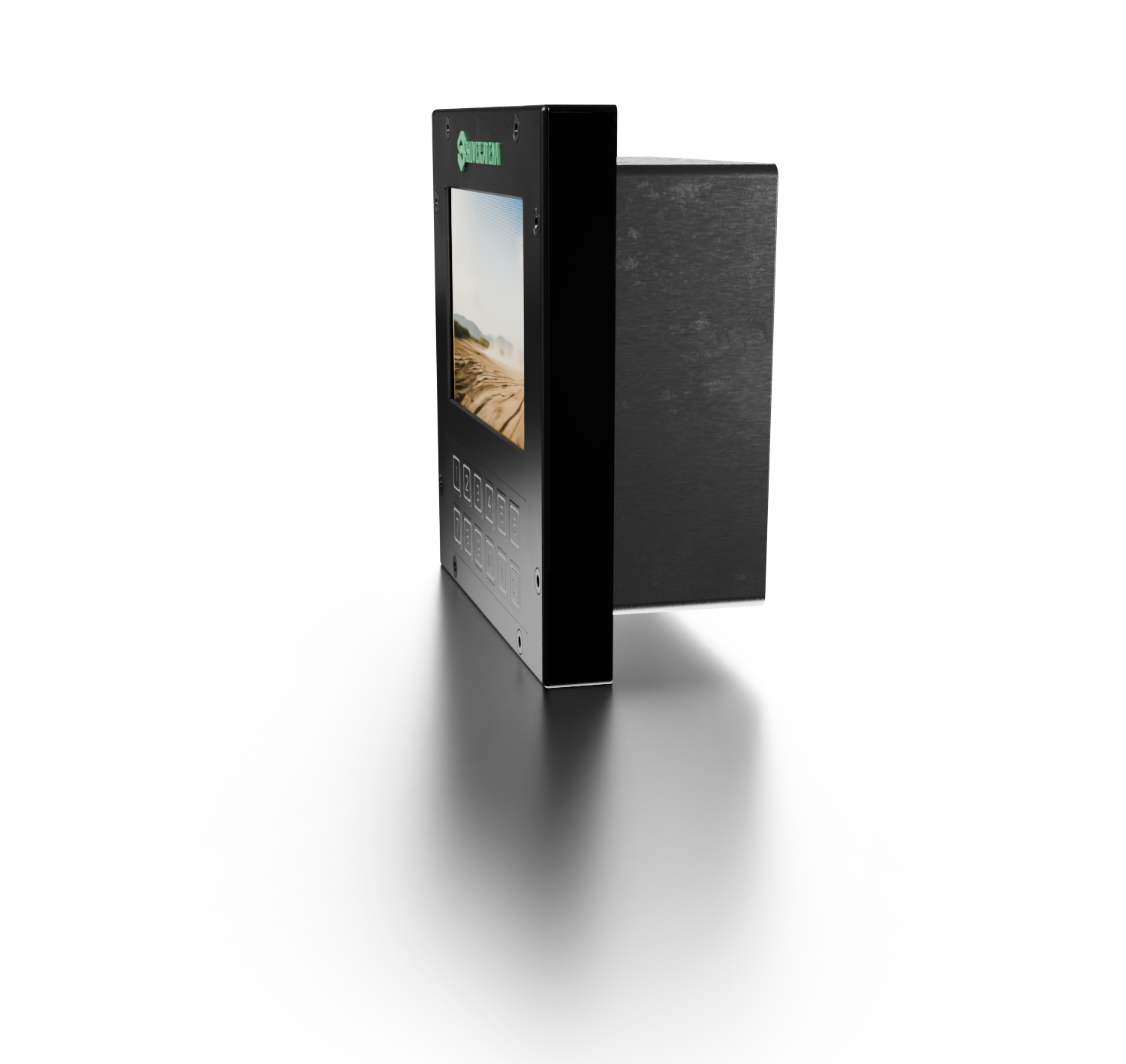

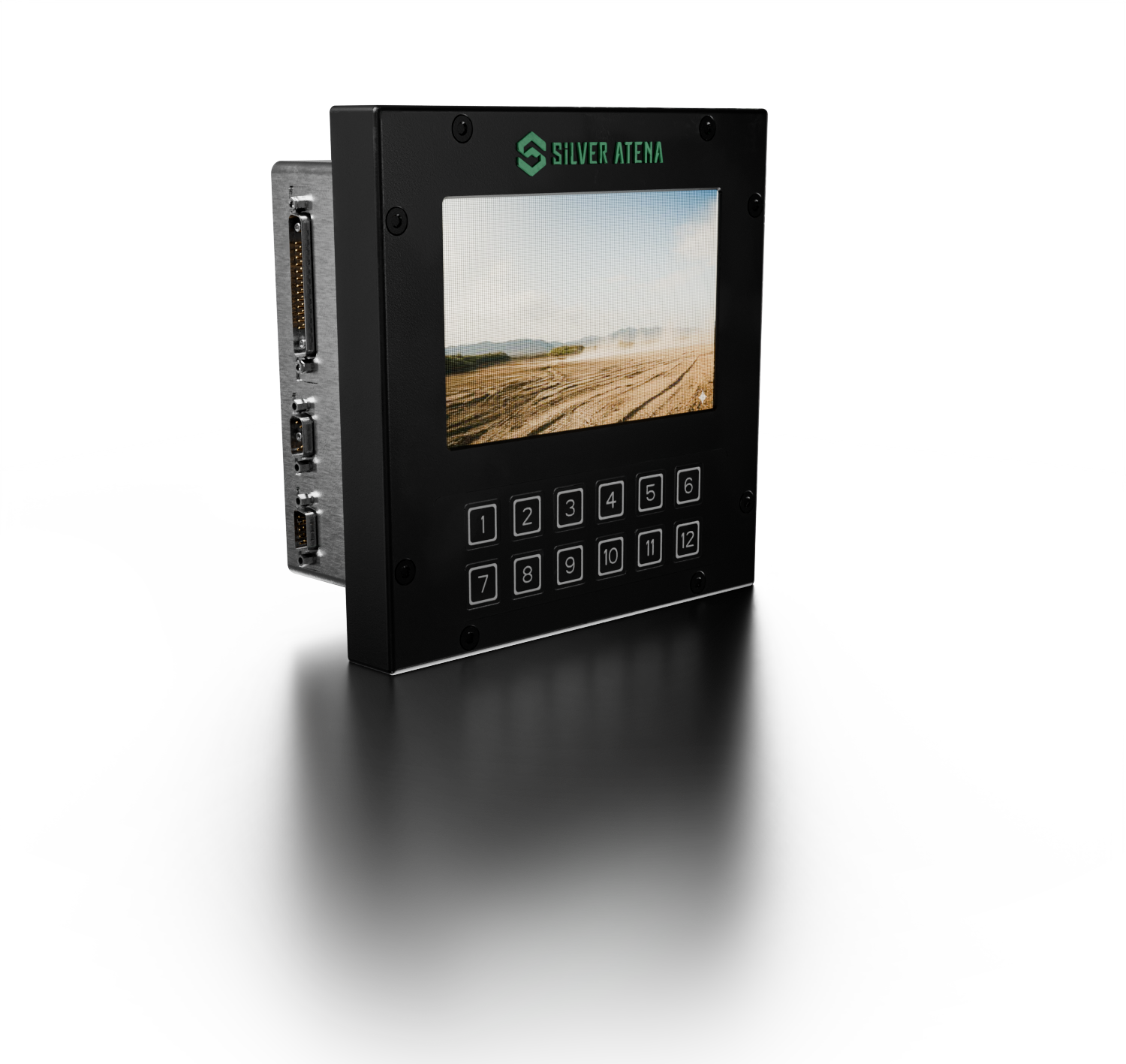

The displays in 3D-View
Please click on the image to activate the 360˚ view.
Specifications
7-inch Display

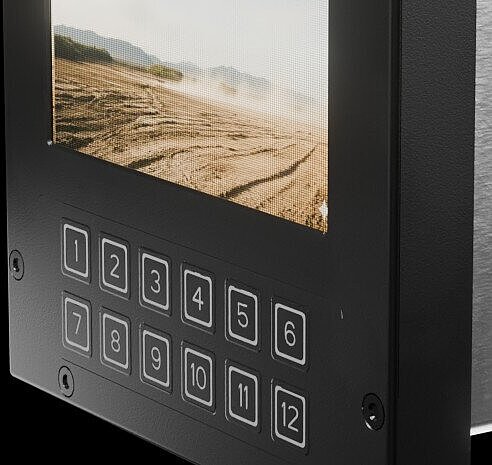

Display Resolution: WVGA (800x480) | Aspect Ratio: 15:9 | Contrast Ratio: 800:1 | Brightness: 500 cd/m² | Keys: 12 pushbuttons (membrane keypad) | Dimensions: 210 x 215 x 96 mm | Weight: < 3.3 kg | Temperature Range: -46 °C to +63 °C | Certifications: MIL-STD 810, VG96903/VG95373 | Connectors: D-Sub & MIL
12-inch Display
Display Resolution: WXGA (1280x800) | Aspect Ratio: 16:10 | Contrast Ratio: 1000:1 | Brightness: 1500 cd/m² | Keys: 28 pushbuttons | Dimensions: 470 x 292 x 160 mm | Weight: < 8 kg Temperature range: -30 °C to +85 °C | Certification: MIL-STD 810, VG9616 | Connections: not specified
Application Areas
- Military (logistical, armored, or tracked vehicles)
- Air defense systems
- Agricultural machinery
- Maritime sector
- Rail transport
Advantages
- Ruggedized design – resistant to vibrations, dust, moisture, and other environmental influences
- Extended temperature range – reliable operation in extreme temperatures
- High durability & reliability – reduced maintenance requirements, MTBF > 26,000 hours
- Operation under extreme conditions – even with work gloves or in winter temperatures
- Dimmable, anti-glare display – perfect for night driving and changing light conditions
- Flexible configuration – adaptable for various vehicle types, from commercial vehicles to military vehicles
- MIL certification – meets military standards for rugged electronics in demanding operating environments
Why choose this product?
These displays were specifically designed for use in extreme conditions. They combine technical reliability, modular adaptability, and a wide range of industrial interfaces.
While the 7-inch model offers maximum flexibility in a compact size, the 12-inch model is aimed at applications with increased information needs and the highest demands on performance and visibility.
